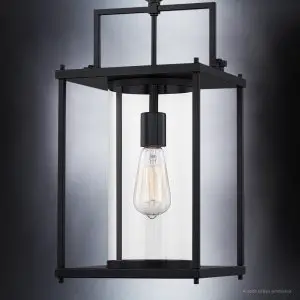

urban ambiance UQL1524 Installation Guide

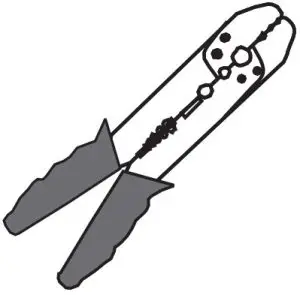

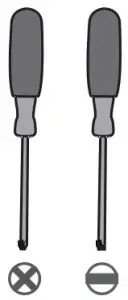

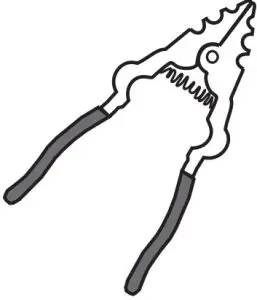

Tools Required

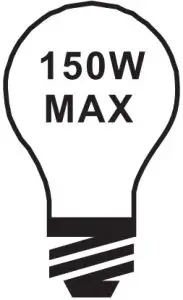

LightSource
- BULB BASE TYPE Medium (E26)
- BULB SHAPE TYPE A
1BULB REQUIRED BULB NOT INCLUDED
FixtureHeightAdjustable 22” to 118”
Warnings and Cautions
Turn off the electricity at the circuit breaker before installation. Consult a licensed electrician if in doubt about installation. Turn off power to the fixture and allow the bulbs to cool before replacing.
Package Contents
Preparation: Identify and inspect all parts before beginning the installation.
Missing or damaged parts? Contact your original place of purchase.
PARTS BAG
- A: Crossbar Assembly x 1 A
- B: Outlet Box Screw x 2
- C: Wire Connector x 3

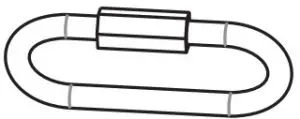

- D: Quick Link x 2
- E: Fixture Chain x 1
- F: Ceiling Canopy x 1
- G: Fixture Body x 1

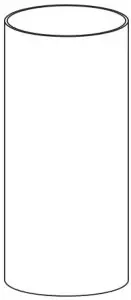

- H: Glass x 1
Table of Contents

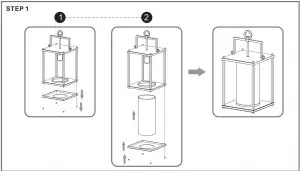

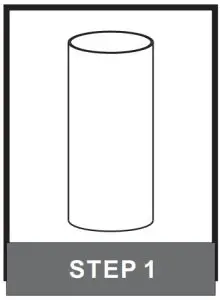

- Glass
- Crossbar Assembly

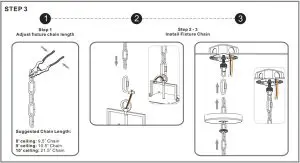

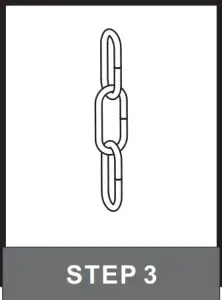

- Fixture Chain

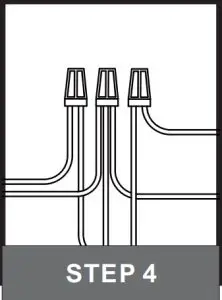

- Wiring

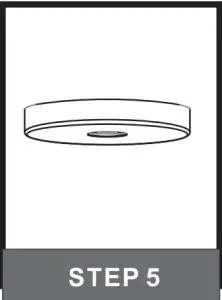

- Ceiling Canopy

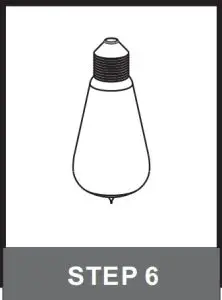

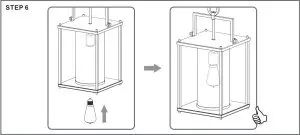

- Bulb
Assembly Instructions
Step 1

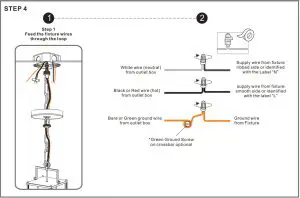

Feed the fixture wires through the loop
- White wire (neutral) from outlet box
- Supply wire from fixture ribbed side or identified with the Label “N”
- Black or Red wire (hot) from outlet box
- supply wire from fixture smooth side or identified with the label “L”
- Bare or Green ground wire from outlet box
- Ground wire from Fixture
- *Green Ground Screw on crossbar optional
