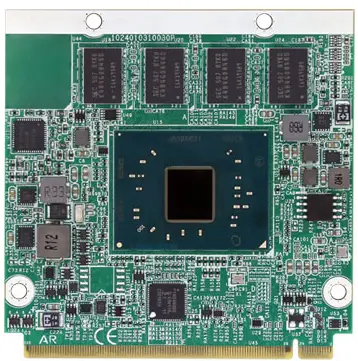

RoHS EmQ-i2401 Qseven R2.0 CPU Module
- Form Factor
Qseven® CPU Module - CPU
Intel® Celeron® N3350/ Pentium® N4200 Processor - Video
Dual-Channel 24-bit LVDS/ DDI - LAN
Intel® i210IT PCIe GbE controller - Audio
HD Link - I/O
USB2.0/ USB SuperSpeed/ SATA/ PCIex1/ SDIO/ I2C
Technical Support
If you have any technical difficulties, please consult the user’s manual first at: http://www.arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still can not find out the answer.
Declaration of Conformity
FCC Class A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Packing List
Before starting with the installation, make sure the following items are shipped:
Ordering Information
| EmQ-i2401-N4200 | Intel® Pentium® N4200 Qseven R2.0 CPU module w/ 4G memory soldered on module, -20~85oC |
| EmQ-i2401-N3350 | Intel® Celeron® N3350 Qseven R2.0 CPU module w/ 4G memory soldered on module, -20~85oC |
| EmQ-i2401-WT- E3950 | Intel® Atom® x7-E3950 Qseven R2.0 CPU module w/ 4G memory soldered on module, -40~85oC |
| EmQ-i2401-WT- E3940 | Intel® Atom® x5-E3940 Qseven R2.0 CPU module w/ 4G memory soldered on module, -40~85oC |
| EmQ-i2401-WT- E3930 | Intel® Atom® x5-E3930 Qseven R2.0 CPU module w/ 4G memory soldered on module, -40~85oC |
Optional Accessories
| PBQ-900L | Qseven R2.0 w/ EPIC form factor Carrier Board |
| HS-2401-F1 | Heat Spreader, W/PAD, 70*65*8mm for N-Series |
| HS-2401-F2 | Heat Spreader, W/PAD, 70*65*8mm for E-Series |
|
CBK-06-900L-00 | Cable kit: 2 x COM cables 1 x USB cable 1 x SATA cable 1 x SATA Power cable 1 x Audio cable |
Specifications
| Form Factor | Qseven® CPU Module |
| CPU | Soldered onboard Intel Celeron® N3350 2.4GHz processor/ Intel Pentium® N4200 2.5GHz processor |
| System Memory | Soldered onboard 4GB DDR3L SDRAM, upgradable to 8GB |
| BIOS | AMI BIOS, UEFI Code |
| USB | 4 x USB 2.0 ports 2 x USB 3.0 SuperSpeed ports |
| Expansion Bus | 4 x PCIex1 lanes, I2C Interface, SDIO |
| Storage | 2 x Serial ATA ports Soldered onboard eMMC 5.0 16GB/32GB (OEM Request) |
| Ethernet controller | 1 x Intel® i210IT PCIe GbE controller |
| Audio | HD link |
| Graphics Chipset | Intergrated in Intel® Gen9 graphic |
| Graphics Interface | Dual Channel 24-bit LVDS, with resolution up to 1920×1200 |
| 1 x DDI port | |
| OS Support | Windows 10 64-bit Linux: Ubuntu |
| Power Requirement | DC 5V, 5VSB |
| Power Consumption | 2A@5V with N4200 (Typical with PBQ-900L) |
| Operating Temp. | -20ºC ~ 85ºC(-4~185ºF) -20ºC ~ 70ºC for EmQ-i2401D series -40ºC ~ 85ºC(-40~185ºF) for EmQ-i2401-WT series |
| Operating Humidity | 10 ~ 95% @ 85°C (non-condensing) |
| Dimension (L x W) | 70 x 70 mm (2.76” x 2.76”) |
Driver Installation Note
The CPU module supports Windows 10. To install the drivers, please visit our website at www.arbor-technology.com and download the driver pack from the product page. If you need driver DVD, please contact your ARBOR sales representative.
Windows 10 (64-bit)
| Driver | Path |
| Audio | \Apollolake-i240x\Audio\7687_PG436_Win10_Win8.1_Win8_Win7_ WHQLx64 |
| Chipset | \Apollolake-i240x\Chipset |
| Ethernet | \Apollolake-i240x\LAN |
| Graphics | \Apollolake-i240x\Graphic |
| Serial IO | \Apollolake-i240x\Serial IO\SerialIO_30.100.1620.02_APL_PV_Win10\x64 |
| TXE | \Apollolake-i240x\TXE |

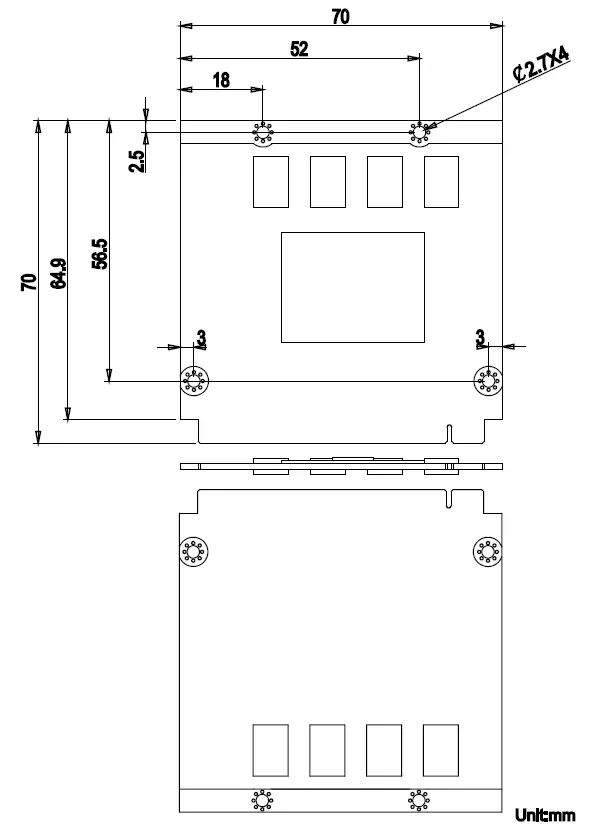

Board Dimensions

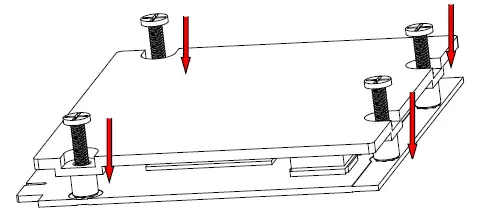

Heat Spreader Installation
To install the heat spreader:
See the illustration below. Mount the heat spreader to the board. Fix the heat spreader in place with fours screws
Connector Pin Assignment
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal | |
| 1 | GND | 2 | GND | 65 | Q7_AZ_SDATA_IN | 66 | I2C_CLK0 | |
| 3 | LAN1_MDI3- | 4 | LAN1_MDI2- | 67 | Q7_AZ_SDATA_OUT | 68 | I2C_DATA0 | |
| 5 | LAN1_MDI3+ | 6 | LAN1_MDI2+ | 69 | THRM# | 70 | WDTRIG# | |
| 7 | LAN_LINK100# | 8 | LAN_LINK_1000# | 71 | THRMTRIP# | 72 | WDOUT(N/C) | |
| 9 | LAN1_MDI1- | 10 | LAN1_MDI0- | 73 | GND | 74 | GND | |
| 11 | LAN1_MDI1+ | 12 | LAN1_MDI0+ | 75 | USB3TXN0 | 76 | USB3_RXN0 | |
| 13 | LED_LINK# | 14 | LAN_ACT# | 77 | USB3TXP0 | 78 | USB3_RXP0 | |
| 15 | GBE_CTREF (N/C) | 16 | SLP_S4# | 79 | USB_6_7_OC# (N/C) | 80 | USB_4_5_OC#(N/C) | |
| 17 | WAKE# | 18 | SLP_S3# | 81 | USB3TXN1 | 82 | USB3_RXN1 | |
| 19 | SUS_STAT# | 20 | Q7_PWR_BTN# | 83 | USB3TXP1 | 84 | USB3_RXP1 | |
| 21 | SLEEP# | 22 | LID# | 85 | USB_OC2/3 | 86 | USB_OC0/1 | |
| 23 | GND | 24 | GND | 87 | USB_3N | 88 | USB_2N | |
| KEY | KEY | 89 | USB_3P | 90 | USB_2P | |||
| 25 | GND | 26 | CB_PWRGD | 91 | USB_CC(N/C) | 92 | Q-7_USB_ID(N/C) | |
| 27 | Q7_BATLOW# | 28 | Q7_RSTBTN# | 93 | USB_1N | 94 | USB_0N | |
| 29 | SATA_TXP0_C | 30 | SATA_TXP1_C | 95 | USB_1P | 96 | USB_0P | |
| 31 | SATA_TXN0_C | 32 | SATA_TXN1_C | 97 | GND | 98 | GND | |
| 33 | Q7_HDD_ACT# | 34 | GND | 99 | LVDS_A0+ | 100 | LVDS_B0+ | |
| 35 | SATA_RXP0_C | 36 | SATA_RXP1_C | 101 | LVDS_A0- | 102 | LVDS_B0- | |
| 37 | SATA_RXN0_C | 38 | SATA_RXN1_C | 103 | LVDS_A1+ | 104 | LVDS_B1+ | |
| 39 | GND | 40 | GND | 105 | LVDS_A1- | 106 | LVDS_B1- | |
| 41 | BIOS_DISABLE# | 42 | SD_CLK# | 107 | LVDS_A2+ | 108 | LVDS_B2+ | |
| 43 | SD_CD# | 44 | SDIO_LED (N/C) | 109 | LVDS_A2- | 110 | LVDS_B2- | |
| 45 | SD_CMD | 46 | SD_WP | 111 | Q7_VDDEN | 112 | Q7_BKLTEN | |
| 47 | SD_PWR# | 48 | SD_DATA1 | 113 | LVDS_A3+ | 114 | LVDS_B3+ | |
| 49 | SD_DATA0 | 50 | SD_DATA3 | 115 | LVDS_A3- | 116 | LVDS_B3- | |
| 51 | SD_DATA2 | 52 | SDIO_DAT5 (N/C) | 117 | GND | 118 | GND | |
| 53 | SDIO_DAT4 (N/C) | 54 | SDIO_DAT7 (N/C) | 119 | LVDS_A_CLK+ | 120 | LVDS_B_CLK+ | |
| 55 | SDIO_DAT6 (N/C) | 56 | RSVD (N/C) | 121 | LVDS_A_CLK- | 122 | LVDS_B_CLK- | |
| 57 | GND | 58 | GND | 123 | Q7_LCD_BKLT_CTRL | 124 | GP_1-Wire_Bus (N/C) | |
| 59 | Q7_AZ_SYNC | 60 | SMB_CLK_RESUME | 125 | LVDS_I2C_DAT | 126 | eDP0_HPD#/LVDS_ BLC_DAT (N/C) | |
| SMB_DATA_RE- SUME | ||||||||
| 61 | Q7_AZ_RST# | 62 | 127 | LVDS_I2C_CLK | 128 | eDP1_HPD#/LVDS_ BLC_CLK (N/C) | ||
| 63 | Q7_AZ_BIT_CLK | 64 | Q7_SMB_ALERT# | |||||
| 129 | CAN0_TX (N/C) | 130 | CAN0_RX (N/C) |
| Pin | Signal | Pin | Signal |
| 131 | Q7_DDI0_TXP3 | 132 | RSVD (N/C) |
| 133 | Q7_DDI0_TXN3 | 134 | RSVD (N/C) |
| 135 | GND | 136 | GND |
| 137 | Q7_DDI0_TXP1 | 138 | DDI0_AUXP |
| 139 | Q7_DDI0_TXN1 | 140 | DDI0_AUXN |
| 141 | GND | 142 | GND |
| 143 | Q7_DDI0_TXP2 | 144 | RSVD (N/C) |
| 145 | Q7_DDI0_TXN2 | 146 | RSVD (N/C) |
| 147 | GND | 148 | GND |
| Pin | Signal | Pin | Signal |
| 197 | GND | 198 | GND |
| 199 | Q7_SPI_MOSI | 200 | Q7_SPI_CS#0 |
| 201 | Q7_SPI_MISO | 202 | Q7_SPI_CS#1 |
| 203 | Q7_SPI_CLK | 204 | MFG_NC4 (N/C) |
| 205 | VCC_5V_SB | 206 | VCC_5V_SB |
| 207 | MFG_NC0 (N/C) | 208 | MFG_NC2 (N/C) |
| 209 | MFG_NC1 (N/C) | 210 | MFG_NC3 (N/C) |
| 211 | VCC | 212 | VCC |
| 213 | VCC | 214 | VCC |
| 215 | VCC | 216 | VCC |
| 217 | VCC | 218 | VCC |
| 219 | VCC | 220 | VCC |
| 221 | VCC | 222 | VCC |
| 223 | VCC | 224 | VCC |
| 225 | VCC | 226 | VCC |
| 227 | VCC | 228 | VCC |
| 229 | VCC | 230 | VCC |
