RoHS EmETXe-i91U0 COM Express Compact Type 6 CPU Module
- Form Factor
COM Express® Compact Type 6 CPU Module - CPU
8th Gen. Intel® Core™ i7-8665UE/ i5-8365UE/ i3-8145UE/ Celeron 4305UE - Video
24-bit Dual Channels LVDS/ DDI/ Analog RGB - LAN
Intel® i219LM PCIe GbE PHY - Audio
HD Audio Link - I/O
USB / SATA/ PCIe / I2C/DIO / UART
Technical Support
If you have any technical difficulties, please consult the user’s manual first on our website. http://www.arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still can not find out the answer. E-mail: [email protected]
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
COM Express supports seven pin-out Type applying to Basic and Extended form factors:
Module Type 1 and 10 support single connector with two rows of pins (220 pins) Module Type 2, 3, 4, 5 and 6 support two connectors with four rows of pins (440 pins) Connector placement and most mounting holes have transparency between Form Factors.
The differences among the Module Type 6 and EmETXe-i91U0 are summarized in table below:
| Module Type | Standard Type 6 | EmETXe-i91U0 |
| Connectors | 2 | 2 |
| Connector Rows | A, B, C, D | A, B, C, D |
| PCIe Lanes (Max) | 24 | 8 |
| LAN (Max) | 1 | 1 |
| Serial Ports (Max) | 2 | 2 |
| Digital Display I/F (Max) | 3 | 2 |
| USB 3.0 Ports (Max) | 4 | 4 |
Packing List
Before you begin installing your single board, please make sure that the following materials have been shipped:
1 x EmETXe-i91U0 COM Express CPU Module
1 x Quick Installation Guide
If any of the above items is damaged or missing, contact your vendor immediately.
Specifications
| System | |
|
CPU | Soldered onboard 8th Generation Intel® Core™ – i7-8665UE 1.7GHz (Base)/ 4.4GHz (Turbo) – i5-8365UE 1.6GHz (Base)/ 4.1GHz (Turbo) – i3-8145UE 2.2GHz (Base)/ 3.9GHz (Turbo) – Celeron 4305UE 2.2GHz processor |
| Memory | 2 x DDR4 SO-DIMM sockets |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | 1~255 levels reset |
| I/O | |
| USB Port | 12 x USB ports: – 8 x USB 2.0 ports – 4 x USB 3.1 ports |
| Serial Port | 2 x UART ports (RX/TX only) |
| Expansion Bus | 8 x PCIex1 lanes, I2C Interface |
| Digital I/O | 8-bit Digital Input/Output |
| Storage | 2 x Serial ATA ports Soldered onboard eMMC 5.0 up to 32GB (OEM Request) |
| Ethernet Chipset | 1 x Intel® i219LM PCIe GbE PHY |
| Audio | HD audio link |
| TPM | TPM 2.0 |
| Display | |
| Graphic Chipset | Intergrated Intel® HD Graphics 620 |
| Graphic Interface | LCD: Dual Channels 24-bit LVDS |
| 2 x DDI ports or 1 x DDI port, 1 x Analog RGB port | |
| Mechanical & Environmental | |
| Power Requirement | 8.5V~20V +/- 5% wide range voltage input, +5VSB |
| Power Consumption | 2.3A@12V (i7-8665UE typical, CPU module only) |
| Operating Temp. | -40 ~ 85ºC (-40 ~ 185ºF) |
| Operating Humidity | 10 ~ 95% @ 85ºC (non-condensing) |
| Dimensions (L x W) | 95 x 95 mm (3.7” x 3.7”) |
Ordering Information
| EmETXe-i91U0-WT-8665UE | 8th Generation Intel® Core™ i7-8665UE WT COM Express® Compact Type 6 CPU module, w/ DDI |
| EmETXe-i91U0-WT-8365UE | 8th Generation Intel® Core™ i5-8365UE WT COM Express® Compact Type 6 CPU module, w/ DDI |
| EmETXe-i91U0-WT-8145UE | 8th Generation Intel® Core™ i3-8145UE WT COM Express® Compact Type 6 CPU module-, w/ DDI |
| EmETXe-i91U0-WT-4305UE | 8th Generation Intel® Core™ Celeron 4305UE WT COM Express® Compact Type 6 CPU module, w/ DDI |
| EmETXe-i91U0-WT-8665UE-RGB | 8th Generation Intel® Core™ i7-8665UE WT COM Express® Compact Type 6 CPU module, w/ DDI+RGB |
| EmETXe-i91U0-WT-8365UE-RGB | 8th Generation Intel® Core™ i5-8365UE WT COM Express® Compact Type 6 CPU module, w/ DDI+RGB |
| EmETXe-i91U0-WT-8145UE-RGB | 8th Generation Intel® Core™ i3-8145UE WT COM Express® Compact Type 6 CPU module-, w/ DDI+RGB |
| EmETXe-i91U0-WT-4305UE-RGB | 8th Generation Intel® Core™ Celeron 4305UE WT COM Express® Compact Type 6 CPU module, w/ DDI+RGB |
Optional Accessories
| HS-91U0-F2-T | Heat spreader, threaded standoffs (bore hole) (95x95x11mm) |
| HS-91U0-F2-NT | Heat spreader, non-threaded standoffs (bore hole) (95x95x11mm) |
| HS-91U0-C1 | Heat sink with Fan (95x95x37.6mm) |
| PBE-1705-F1 | COM Express® Type 6 evaluation carrier board with SIO F71869ED module in ATX form factor |
| CBK-03-1705-00 | Cable kit 1 x SATA cable 2 x Serial port cables |
Driver (7.4A) Installation
To install the drivers, please visit our website at www.arbor.technology.com and download the driver pack from the product page.
Driver Path
- Audio \EmETXe-i91U0\Audio\Win10_Win8.1_Win8_Win7_WHQLx64
- Chipset \EmETXe-i91U0\Chipset
- LAN \EmETXe-i91U0\Ethernet
- Graphic \EmETXe-i91U0\Graphic\igfx_win10_100.7212
- ME \EmETXe-i91U0\ME

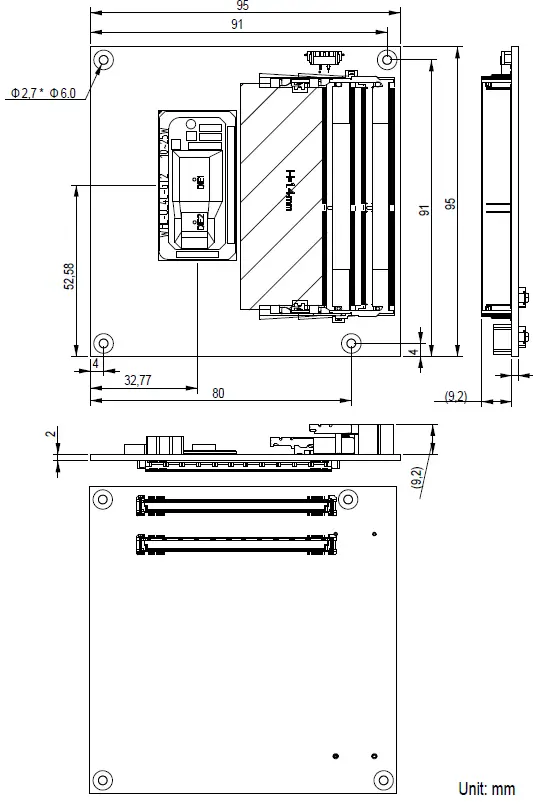

Board Dimensions
Connectors Quick
Reference Top Side

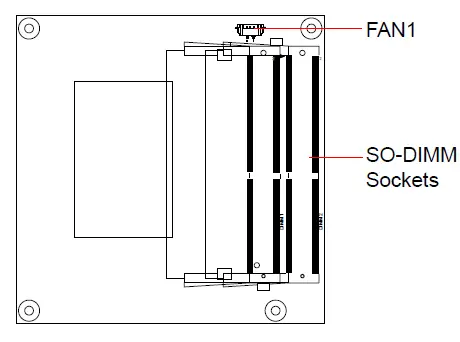

Connectors Quick Reference Top Side
FAN1: Fan connctor
Connector type: Wafer 3-pin 1.25mm 85204-03X0L
Pin Description
- 1 GND
- 2 Fan out
- 3 Fan Tachometer Input

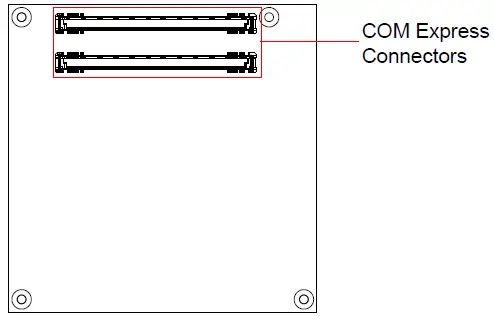

COM Express AB Connector (bottom side)

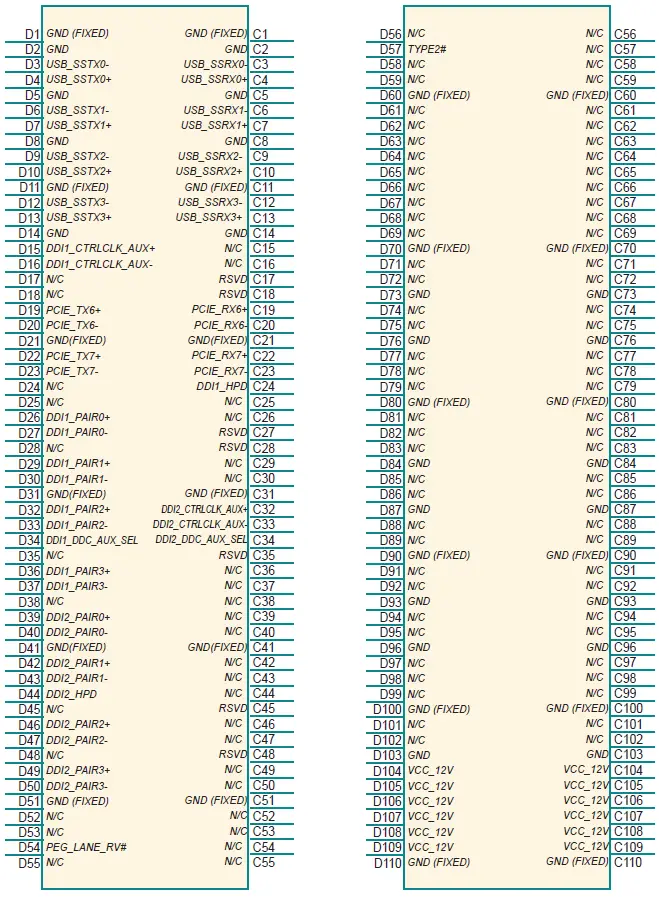

COM Express CD Connector (bottom side)
