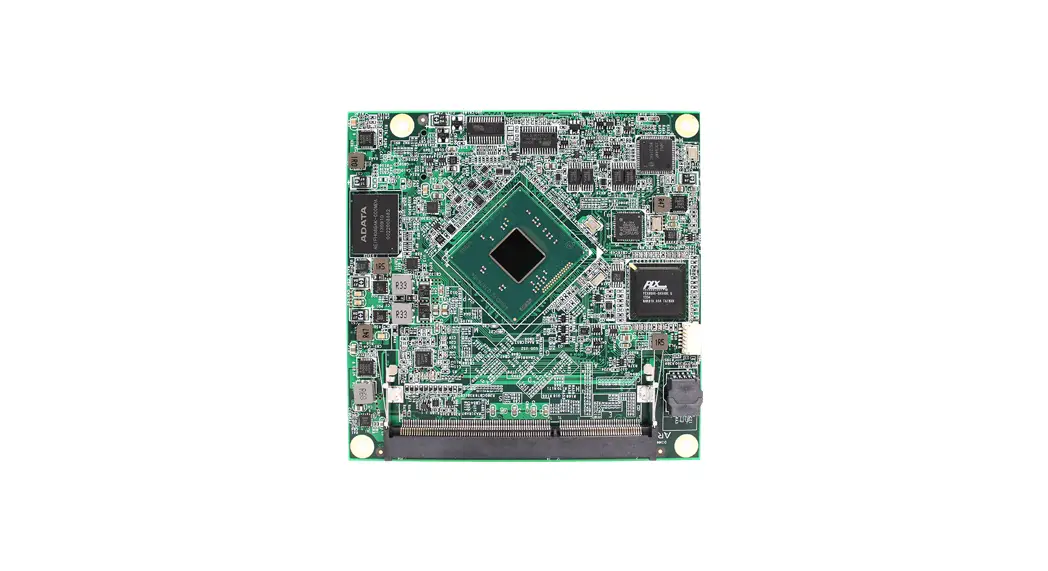

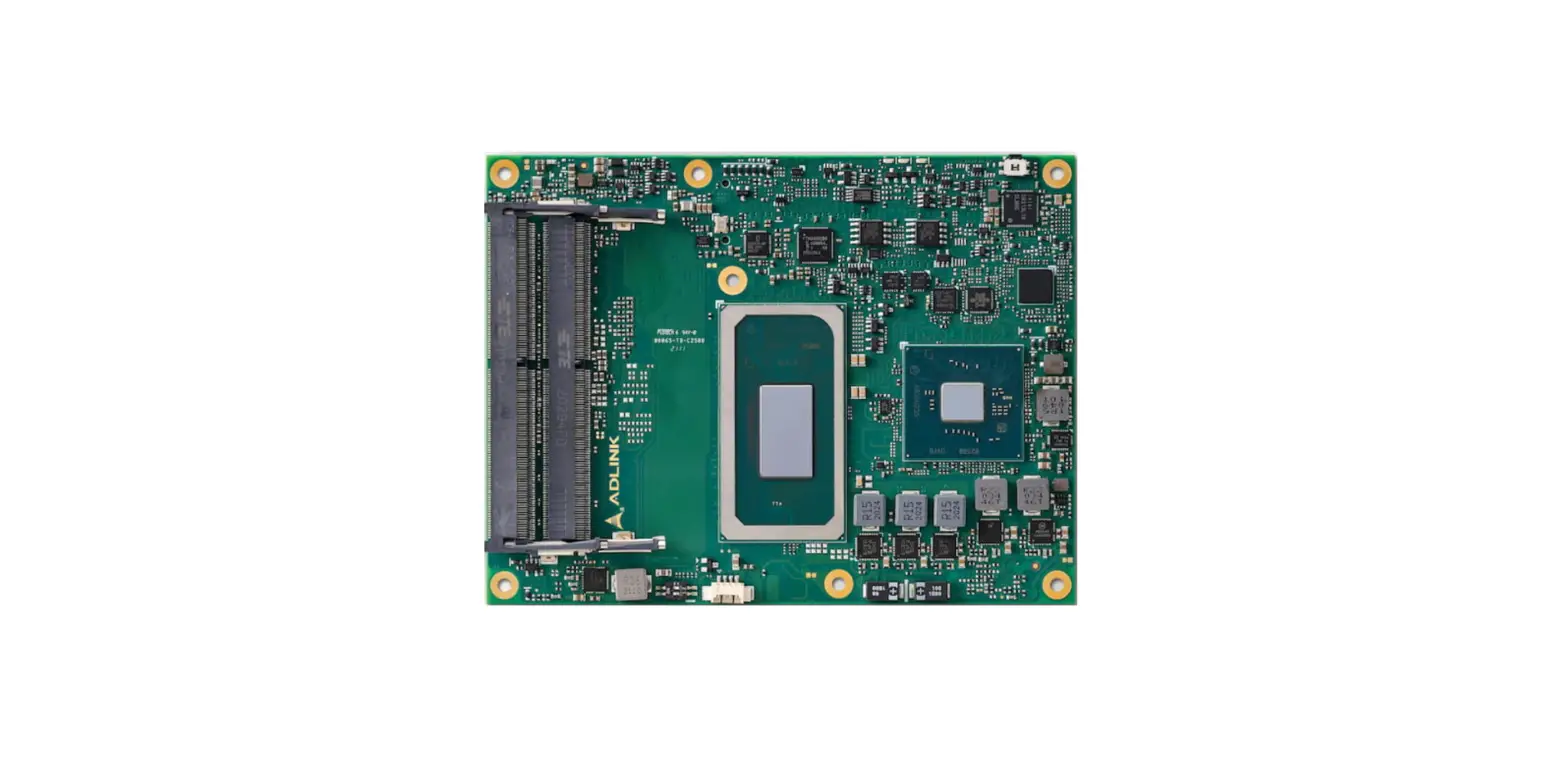

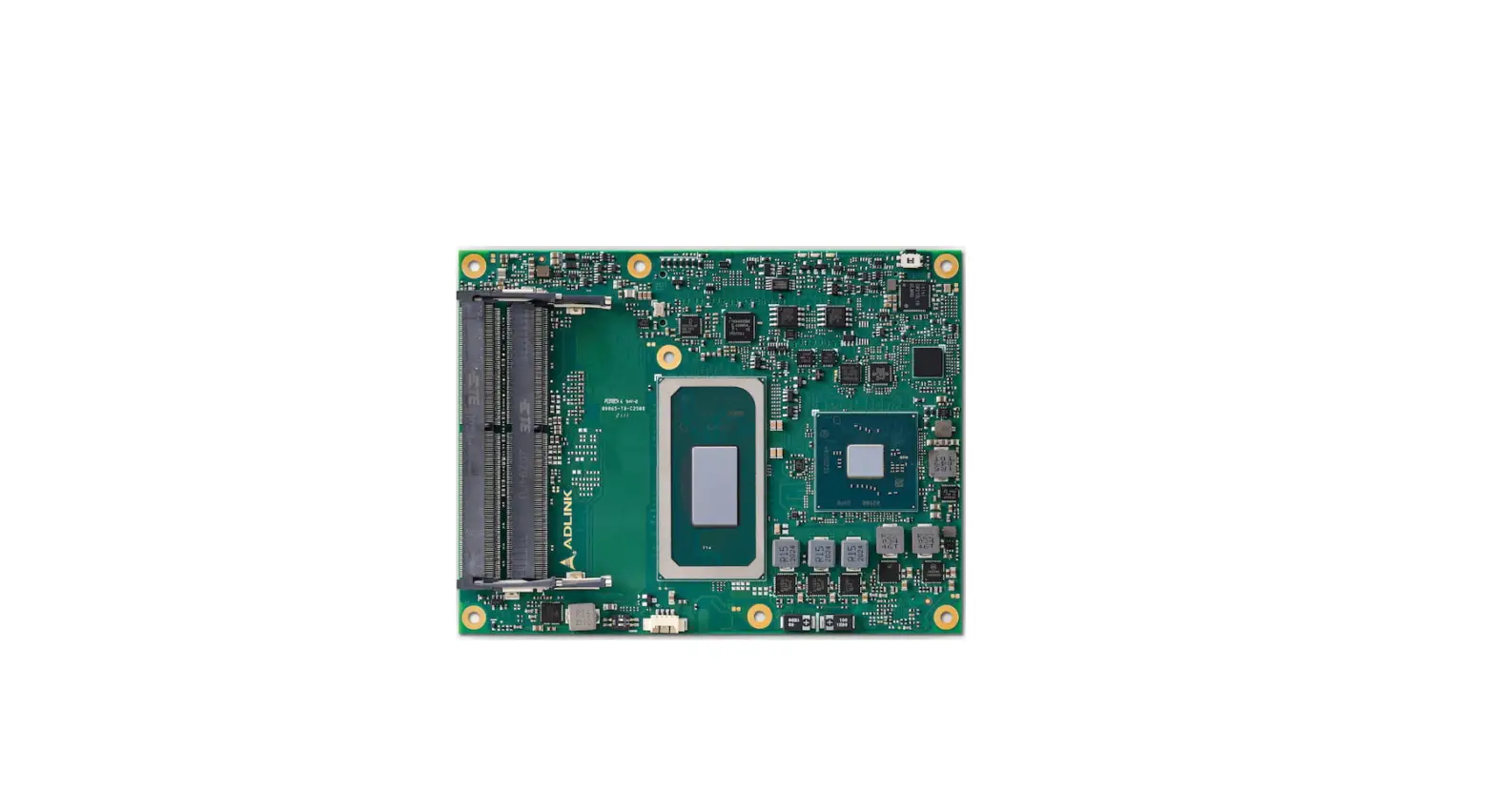

ARBOR EmETXe-i91U0 COM Express Compact Type 6 CPU Module

COM Express® Compact Type 6 CPU Module

Form Factor
- COM Express® Compact Type 6 CPU Module
CPU
- 8th Gen. Intel® Core™
- i7-8665UE/ i5-8365UE/
- i3-8145UE/ Celeron 4305UE
Video
- 24-bit Dual Channels LVDS/ DDI/ Analog RGB
LAN
- Intel® i219LM PCIe GbE PHY
Audio
- HD Audio Link
I/O
- USB / SATA/ PCIe / I2C/DIO / UART

Technical Support

If you have any technical difficulties, please consult the user’s manual first on our website.
http://www.arbor-technology.com
Please do not hesitate to call or e-mail our customer service when you still can not find out the answer. E-mail: i[email protected]

FCC Class A

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

COM Express supports seven pin-out Type applying to Basic and Extended form factors:
Module Type 1 and 10 support single connector with two rows of pins (220 pins) Module Type 2, 3, 4, 5 and 6 support two connectors with four rows of pins (440 pins)
Connector placement and most mounting holes have transparency between Form Factors.
The differences among the Module Type 6 and EmETXe-i91U0 are summarized in table below:

Module Type	Standard Type 6	EmETXe-i91U0
Connectors	2	2
Connector Rows	A, B, C, D	A, B, C, D
PCIe Lanes (Max)	24	8
LAN (Max)	1	1
Serial Ports (Max)	2	2
Digital Display I/F (Max)	3	2
USB 3.0 Ports (Max)	4	4

Packing List

Before you begin installing your single board, please make sure that the following materials have been shipped:

	1 x EmETXe-i91U0 COM Express CPU Module
	1 x Quick Installation Guide
If any of the above items is damaged or missing, contact your vendor immediately.

Specifications

System
CPU	Soldered onboard 8th Generation Intel^® Core™ – i7-8665UE 1.7GHz (Base)/ 4.4GHz (Turbo) – i5-8365UE 1.6GHz (Base)/ 4.1GHz (Turbo) – i3-8145UE 2.2GHz (Base)/ 3.9GHz (Turbo) – Celeron 4305UE 2.2GHz processor
Memory	2 x DDR4 SO-DIMM sockets
BIOS	AMI UEFI BIOS
Watchdog Timer	1~255 levels reset
I/O
USB Port	12 x USB ports: – 8 x USB 2.0 ports – 4 x USB 3.1 ports
Serial Port	2 x UART ports (RX/TX only)
Expansion Bus	8 x PCIex1 lanes, I2C Interface
Digital I/O	8-bit Digital Input/Output
Storage	2 x Serial ATA ports Soldered onboard eMMC 5.0 up to 32GB (OEM Request)
Ethernet Chipset	1 x Intel^® i219LM PCIe GbE PHY
Audio	HD audio link
TPM	Supports TPM (OEM Request)
Display
Graphic Chipset	Integrated Intel^® HD Graphics 620
Graphic Interface	LCD: Dual Channels 24-bit LVDS
Graphic Interface	2 x DDI ports or 1 x DDI port, 1 x Analog RGB port
Mechanical & Environmental
Power Requirement	8.5V~20V +/- 5% wide range voltage input, +5VSB
Power Consumption	2.3A@12V (i7-8665UE typical, CPU module only)
Operating Temp.	-40 ~ 85ºC (-40 ~ 185ºF)
Operating Humidity	10 ~ 95% @ 85ºC (non-condensing)
Dimensions (L x W)	95 x 95 mm (3.7” x 3.7”)

Ordering Information

EmETXe-i91U0-WT-8665UE	8th Generation Intel^® Core™ i7-8665UE WT COM Express^® Compact Type 6 CPU module, w/ DDI
EmETXe-i91U0-WT-8365UE	8th Generation Intel^® Core™ i5-8365UE WT COM Express^® Compact Type 6 CPU module, w/ DDI
EmETXe-i91U0-WT-8145UE	8th Generation Intel^® Core™ i3-8145UE WT COM Express^® Compact Type 6 CPU module-, w/ DDI
EmETXe-i91U0-WT-4305UE	8th Generation Intel^® Core™ Celeron 4305UE WT COM Express^® Compact Type 6 CPU module, w/ DDI
EmETXe-i91U0-WT-8665UE-RGB	8th Generation Intel^® Core™ i7-8665UE WT COM Express^® Compact Type 6 CPU module, w/ DDI+RGB
EmETXe-i91U0-WT-8365UE-RGB	8th Generation Intel^® Core™ i5-8365UE WT COM Express^® Compact Type 6 CPU module, w/ DDI+RGB
EmETXe-i91U0-WT-8145UE-RGB	8th Generation Intel^® Core™ i3-8145UE WT COM Express^® Compact Type 6 CPU module-, w/ DDI+RGB
EmETXe-i91U0-WT-4305UE-RGB	8th Generation Intel^® Core™ Celeron 4305UE WT COM Express^® Compact Type 6 CPU module, w/ DDI+RGB
EmETXe-i91U0D-WT-8665UE (OEM Request)	8th Generation Intel^® Core™ i7-8665UE COM Express^® Compact Type 6 CPU module, w/ 32GB eMMC, DDI
EmETXe-i91U0D-WT-8365UE (OEM Request)	8th Generation Intel^® Core™ i5-8365UE COM Express^® Compact Type 6 CPU module, w/ 32GB eMMC, DDI
EmETXe-i91U0D-WT-8145UE (OEM Request)	8th Generation Intel^® Core™ i3-8145UE COM Express^® Compact Type 6 CPU module, w/ 32GB eMMC, DDI
EmETXe-i91U0D-WT-4305UE (OEM Request)	8th Generation Intel^® Core™ Celeron 4305UE COM Express^® Compact Type 6 CPU module, w/ 32GB eMMC, DDI
EmETXe-i91U0D-WT-8665UE- RGB (OEM Request)	8th Generation Intel^® Core™ i7-8665UE COM Express^® Compact Type 6 CPU module, w/ 32GB eMMC, DDI+RGB
EmETXe-i91U0D-WT-8365UE- RGB (OEM Request)	8th Generation Intel^® Core™ i5-8365UE COM Express^® Compact Type 6 CPU module, w/ 32GB eMMC, DDI+RGB

EmETXe-i91U0D-WT-8145UE- RGB (OEM Request)	8th Generation Intel^® Core™ i3-8145UE COM Express^® Compact Type 6 CPU module, w/ 32GB eMMC, DDI+RGB
EmETXe-i91U0D-WT-4305UE- RGB (OEM Request)	8th Generation Intel^® Core™ Celeron 4305UE COM Express^® Compact Type 6 CPU module, w/ 32GB eMMC, DDI+RGB

Optional Accessories

HS-91U0-F2-T	Heat spreader, threaded standoffs (bore hole) (95x95x11mm)
HS-91U0-F2-NT	Heat spreader, non-threaded standoffs (bore hole) (95x95x11mm)
HS-91U0-C1	Heat sink with Fan (95x95x37.6mm)
PBE-1705-F1	COM Express^® Type 6 evaluation carrier board with SIO F71869ED module in ATX form factor
CBK-03-1705-00	Cable kit 1 x SATA cable 2 x Serial port cables

Driver (7.4A) Installation
To install the drivers, please visit our website at www.arbor.technology.com and download the driver pack from the product page.

Driver	Path
Audio	\EmETXe-i91U0\Audio\Win10_Win8.1_Win8_Win7_WHQLx64
Chipset	\EmETXe-i91U0\Chipset
LAN	\EmETXe-i91U0\Ethernet
Graphic	\EmETXe-i91U0\Graphic\igfx_win10_100.7212
ME	\EmETXe-i91U0\ME

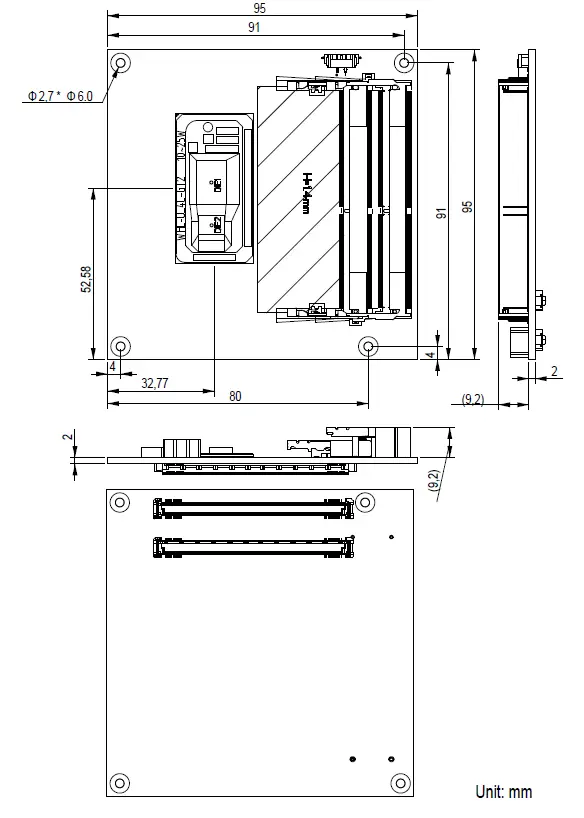

Board Dimensions

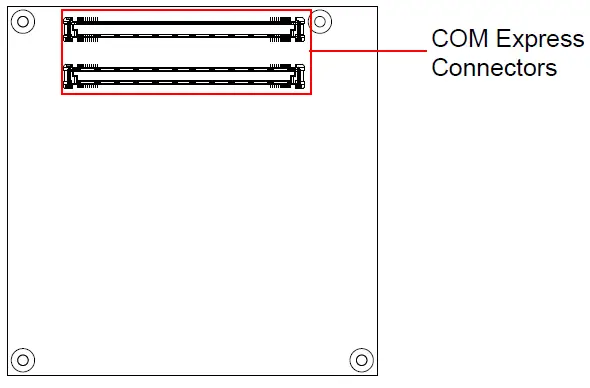

Connectors Quick Reference

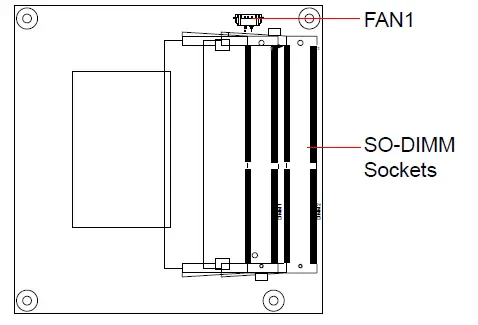

Top Side

Bottom Side

FAN1: Fan connector
Connector type: Wafer 3-pin 1.25mm 85204-03X0L

Pin	Description
1	GND
2	Fan out
3	Fan Tachometer Input

COM Express AB Connector (bottom side)

B1	GND	GND (FIXED)	A1
B2	LAN_LED_ACT#	LAN1_MDI3N	A2
B3	LPC_FRAME#	LAN1_MDI3P	A3
B4	LPC_AD0	LAN_LED_100#	A4
B5	LPC_AD1	LAN_LED_1000#	A5
B6	LPC_AD2	LAN1_MDI2N	A6
B7	LPC_AD3	LAN1_MDI2P	A7
B8	LPC_LDRQ0-	LAN_LED_LNK#	A8
B9	LPC_LDRQ1-	LAN1_MDI1N	A9
B10	LPC_CLK	LAN1_MDI1P	A10
B11	GND	GND (FIXED)	A11
B12	CB_PWRBTN#	LAN1_MDI0N	A12
B13	SMB_CLK	LAN1_MDI0P	A13
B14	SMB_DATA	0V9_LAN	A14
B15	SMB_ALERT#	SLP_S3#	A15
B16	SATA_TXP1	SATA_TXP0	A16
B17	SATA_TXN1	SATA_TXN0	A17
B18	SUS_STAT#	SLP_S4#	A18
B19	SATA_RXP1	SATA_RXP0	A19
B20	SATA_RXN1	SATA_RXN0	A20
B21	GND	GND (FIXED)	A21
B22	N/C	N/C	A22
B23	N/C	N/C	A23
B24	CB_PWROK	SLP_S5#	A24
B25	N/C	N/C	A25
B26	N/C	N/C	A26
B27	WDT	PM_BATLOW#	A27
B28	N/C	SEALED-	A28
B29	HDA_SDIN1	HDA_SYNC	A29
B30	HDA_SDIN0	HDA_RST-	A30
B31	GND	GND	A31
B32	SPCA	HDA_BIT_CLK	A32
B33	I2C_CLK	HDA_SDOUT	A33
B34	I2C_DAT	BIOS_DIS0#	A34
B35	THRM#	CB_TRIP#	A35
B36	USBP_7N	USBP_6N	A36
B37	USBP_7P	USBP_6P	A37
B38	USBOC_45-	USBOC_67-	A38
B39	USBP_5N	USBP_4N	A39
B40	USBP_5P	USBP_4P	A40
B41	GND	GND	A41
B42	USBP_3N	USBP_2N	A42
B43	USBP_3P	USBP_2P	A43
B44	USBOC_01-	USBOC_23-	A44
B45	USBP_1N	USBP_0N	A45
B46	USBP_1P	USBP_0P	A46
B47	PLTRST#_BUFF	VCC_RTC	A47
B48	EXCD1_CCPE#	PLTRST#_BUFF	A48
B49	CB_SYSRST#	EXCD0_CCPE#	A49
B50	CB_RESET#	LPC_SERIRQ	A50

B51	GND	GND	A51
B52	PCIE_RXP7	PCIE_TXP7	A52
B53	PCIE_RXN7	PCIE_TXN7	A53
B54	DIO_1	DIO_0	A54
B55	PCIE_RXP6	PCIE_TXP6	A55

B56	PCIE_RXN6	PCIE_TXN6	A56
B57	DIO_2	GND	A57
B58	PCIE_RXP4	PCIE_TXP4	A58
B59	PCIE_RXN4	PCIE_TXN4	A59
B60	GND	GND	A60
B61	PCIE_RXP3	PCIE_TXP3	A61
B62	PCIE_RXN3	PCIE_TXN3	A62
B63	DIO_3	DIO_1	A63
B64	PCIE_RXP2	PCIE_TXP2	A64
B65	PCIE_RXN2	PCIE_TXN2	A65
B66	PCH_WAKE#	GND	A66
B67	EC_WAKE_IN#	DIO_2	A67
B68	PCIE_RXP1	PCIE_TXP1	A68
B69	PCIE_RXN1	PCIE_TXN1	A69
B70	GND	GND	A70
B71	LVDSB_DATA0	LVDSA_DATA0	A71
B72	LVDSB_DATA0-	LVDSA_DATA0-	A72
B73	LVDSB_DATA1	LVDSA_DATA1	A73
B74	LVDSB_DATA1-	LVDSA_DATA1-	A74
B75	LVDSB_DATA2	LVDSA_DATA2	A75
B76	LVDSB_DATA2-	LVDSA_DATA2-	A76
B77	LVDSB_DATA3	LVDS_VDD_EN	A77
B78	LVDSB_DATA3-	LVDSA_DATA3	A78
B79	LVDS_BKLT_EN	LVDSA_DATA3-	A79
B80	GND	GND	A80
B81	LVDSB_CLK+	LVDSA_CLK+	A81
B82	LVDSB_CLK-	LVDSA_CLK-	A82
B83	COM_BKLT_CTRL	LVDS_DDC_CLK	A83
B84	VCC_5V_SBY	LVDS_DDC_DATA	A84
B85	VCC_5V_SBY	DIO_3	A85
B86	VCC_5V_SBY	H_RCIN#	A86
B87	VCC_5V_SBY	A20GATE	A87
B88	BIOS_DIS1#	COM_EXP_CLK_P	A88
B89	N/C	COM_EXP_CLK_N	A89
B90	GND	GND	A90
B91	CRT_GREEN	+V3.3A	A91
B92	CRT_BLUE	SPI_MISO	A92
B93	CRT_HSYNC	DIO_0	A93
B94	CRT_VSYNC	SPI_CLK	A94
B95	CRT_DDC_CLK	SPI_MOSI	A95
B96	CRT_DDC_DATA	COM_TMP_PP	A96
B97	SPI_CS1#	N/C	A97
B98	N/C	UART_TX0	A98
B99	N/C	UART_RX0	A99
B100	GND	GND	A100
B101	FAN_PWMOUT	UART_TX1	A101
B102	FAN_TACHIN	UART_RX1	A102
B103	SLEEP#	LID#	A103
B104	VCC_12V	VCC_12V	A104
B105	VCC_12V	VCC_12V	A105

B106	VCC_12V	VCC_12V	A106
B107	VCC_12V	VCC_12V	A107
B108	VCC_12V	VCC_12V	A108
B109	VCC_12V	VCC_12V	A109
B110	GND	GND	A110

COM Express CD Connector (bottom side)

D1	GND (FIXED)	GND (FIXED)	C1
D2	GND	GND	C2
D3	USB_SSTX0-	USB_SSRX0-	C3
D4	USB_SSTX0+	USB_SSRX0+	C4
D5	GND	GND	C5
D6	USB_SSTX1-	USB_SSRX1-	C6
D7	USB_SSTX1+	USB_SSRX1+	C7
D8	GND	GND	C8
D9	USB_SSTX2-	USB_SSRX2-	C9
D10	USB_SSTX2+	USB_SSRX2+	C10
D11	GND (FIXED)	GND (FIXED)	C11
D12	USB_SSTX3-	USB_SSRX3-	C12
D13	USB_SSTX3+	USB_SSRX3+	C13
D14	GND	GND	C14
D15	DDI1_CTRLCLK_AUX+	N/C	C15
D16	DDI1_CTRLCLK_AUX-	N/C	C16
D17	N/C	RSVD	C17
D18	N/C	RSVD	C18
D19	PCIE_TX6+	PCIE_RX6+	C19
D20	PCIE_TX6-	PCIE_RX6-	C20
D21	GND(FIXED)	GND(FIXED)	C21
D22	PCIE_TX7+	PCIE_RX7+	C22
D23	PCIE_TX7-	PCIE_RX7-	C23
D24	N/C	DDI1_HPD	C24
D25	N/C	N/C	C25
D26	DDI1_PAIR0+	N/C	C26
D27	DDI1_PAIR0-	RSVD	C27
D28	N/C	RSVD	C28
D29	DDI1_PAIR1+	N/C	C29
D30	DDI1_PAIR1-	N/C	C30
D31	GND(FIXED)	GND (FIXED)	C31
D32	DDI1_PAIR2+	DDI2_CTRLCLK_AUX+	C32
D33	DDI1_PAIR2-	DDI2_CTRLCLK_AUX-	C33
D34	DDI1_DDC_AUX_SEL	DDI2_DDC_AUX_SEL	C34
D35	N/C	RSVD	C35
D36	DDI1_PAIR3+	N/C	C36
D37	DDI1_PAIR3-	N/C	C37
D38	N/C	N/C	C38
D39	DDI2_PAIR0+	N/C	C39
D40	DDI2_PAIR0-	N/C	C40
D41	GND(FIXED)	GND(FIXED)	C41
D42	DDI2_PAIR1+	N/C	C42
D43	DDI2_PAIR1-	N/C	C43
D44	DDI2_HPD	N/C	C44
D45	N/C	RSVD	C45
D46	DDI2_PAIR2+	N/C	C46
D47	DDI2_PAIR2-	N/C	C47
D48	N/C	RSVD	C48
D49	DDI2_PAIR3+	N/C	C49
D50	DDI2_PAIR3-	N/C	C50
D51	GND (FIXED)	GND (FIXED)	C51
D52	N/C	N/C	C52
D53	N/C	N/C	C53
D54	PEG_LANE_RV#	N/C	C54
D55	N/C	N/C	C55

D56	N/C	N/C	C56
D57	TYPE2#	N/C	C57
D58	N/C	N/C	C58
D59	N/C	N/C	C59
D60	GND (FIXED)	GND (FIXED)	C60
D61	N/C	N/C	C61
D62	N/C	N/C	C62
D63	N/C	N/C	C63
D64	N/C	N/C	C64
D65	N/C	N/C	C65
D66	N/C	N/C	C66
D67	N/C	N/C	C67
D68	N/C	N/C	C68
D69	N/C	N/C	C69
D70	GND (FIXED)	GND (FIXED)	C70
D71	N/C	N/C	C71
D72	N/C	N/C	C72
D73	GND	GND	C73
D74	N/C	N/C	C74
D75	N/C	N/C	C75
D76	GND	GND	C76
D77	N/C	N/C	C77
D78	N/C	N/C	C78
D79	N/C	N/C	C79
D80	GND (FIXED)	GND (FIXED)	C80
D81	N/C	N/C	C81
D82	N/C	N/C	C82
D83	N/C	N/C	C83
D84	GND	GND	C84
D85	N/C	N/C	C85
D86	N/C	N/C	C86
D87	GND	GND	C87
D88	N/C	N/C	C88
D89	N/C	N/C	C89
D90	GND (FIXED)	GND (FIXED)	C90
D91	N/C	N/C	C91
D92	N/C	N/C	C92
D93	GND	GND	C93
D94	N/C	N/C	C94
D95	N/C	N/C	C95
D96	GND	GND	C96
D97	N/C	N/C	C97
D98	N/C	N/C	C98
D99	N/C	N/C	C99
D100	GND (FIXED)	GND (FIXED)	C100
D101	N/C	N/C	C101
D102	N/C	N/C	C102
D103	GND	GND	C103
D104	VCC_12V	VCC_12V	C104
D105	VCC_12V	VCC_12V	C105

D106	VCC_12V	VCC_12V	C106
D107	VCC_12V	VCC_12V	C107
D108	VCC_12V	VCC_12V	C108
D109	VCC_12V	VCC_12V	C109
D110	GND (FIXED)	GND (FIXED)	C110
