INSTALLATION MANUAL

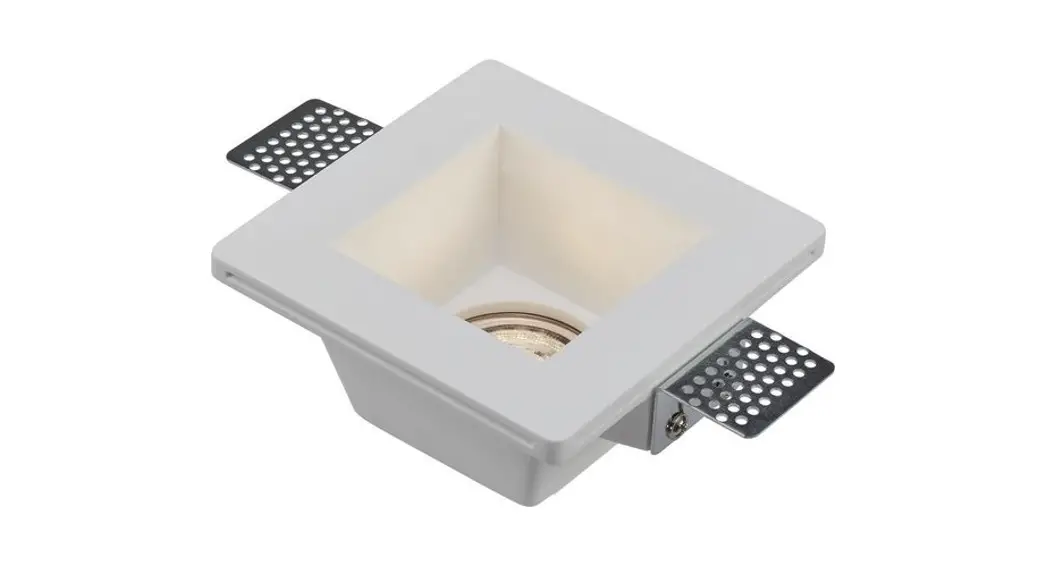

Q13397 – DEVON SINGLE
100-240V | GU10 | IP20 | GYPSUM | MAX. 35W
Installation Instructions
Installation Instructions
– Disconnect the electricity before installation
– Cut the hole (12.3 x 12.3 cm)

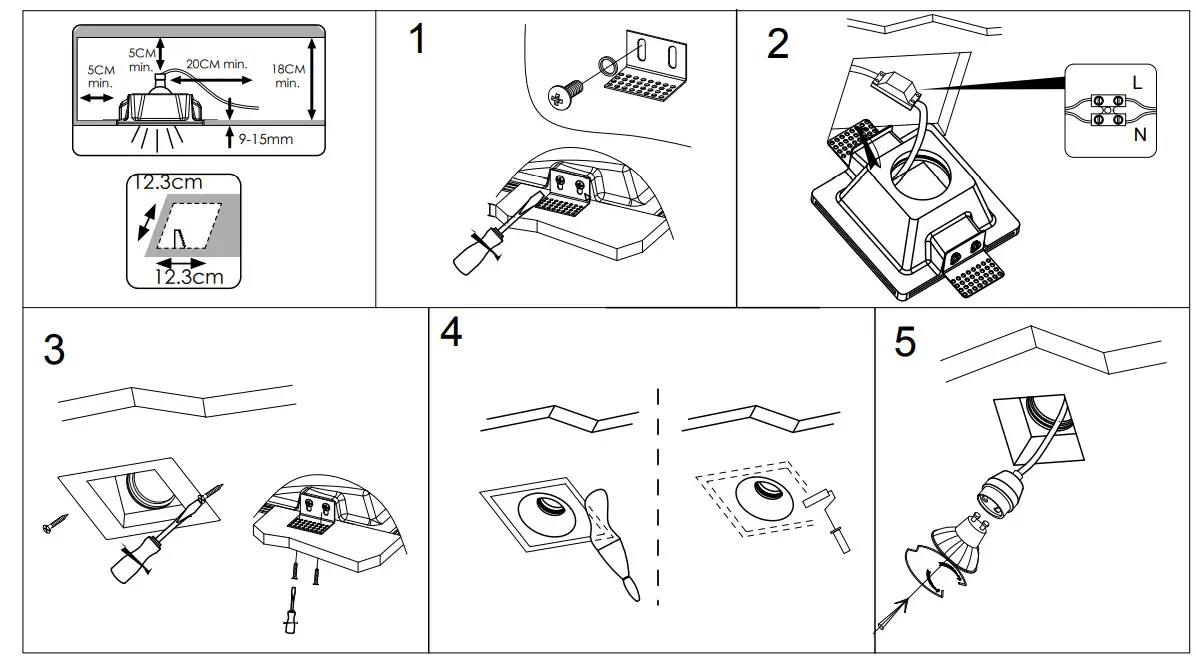

– Adjust the height of the mounting bracket according to the ceiling thickness (figure 1)
TIP: make sure to have 3-4mm plaster height for smooth finish
– Connect the GU10 lamp holders (figure 2)
– Put the gypsum fitting into the ceiling hole and fix using screws (figure 3)
– Finish with plaster and paint (figure 4)
– Insert GU10 lamps (figure 5)
– Switch on the main electricity
Warnings:
- Disconnect the electricity before installation
- Make sure that the product is installed properly before connecting to electricity
- Do not cover the fitting
- Maintenance and installation should only be carried out by a professional electrician
