ses imagotag Hermes GEN 2 3 Wire Bus for Power and Data Instruction Manual

Introduction

The Hermes Gen 2 is a design based on a 3-wire bus for power and data which is built into an aluminium rail. Rail displays are using mechanical contact to connect to the bus.

The Rail Controller includes a radio component to receive and send wireless transmissions to the Access Point. The radio is based on Bluetooth Low Energy (BLE) technology and is operating in the 2.4 GHz ISM band. The protocol implementation is called “RAN2.0”

Components

• Rail – aluminium rail + 3-wire bus
• Rail Controller – “bridge” between radio and 3-wire bus of the rail
• Battery pack – non-rechargeable
• Rail Displays – E-ink displays
• BLE Access Point – transmitter device

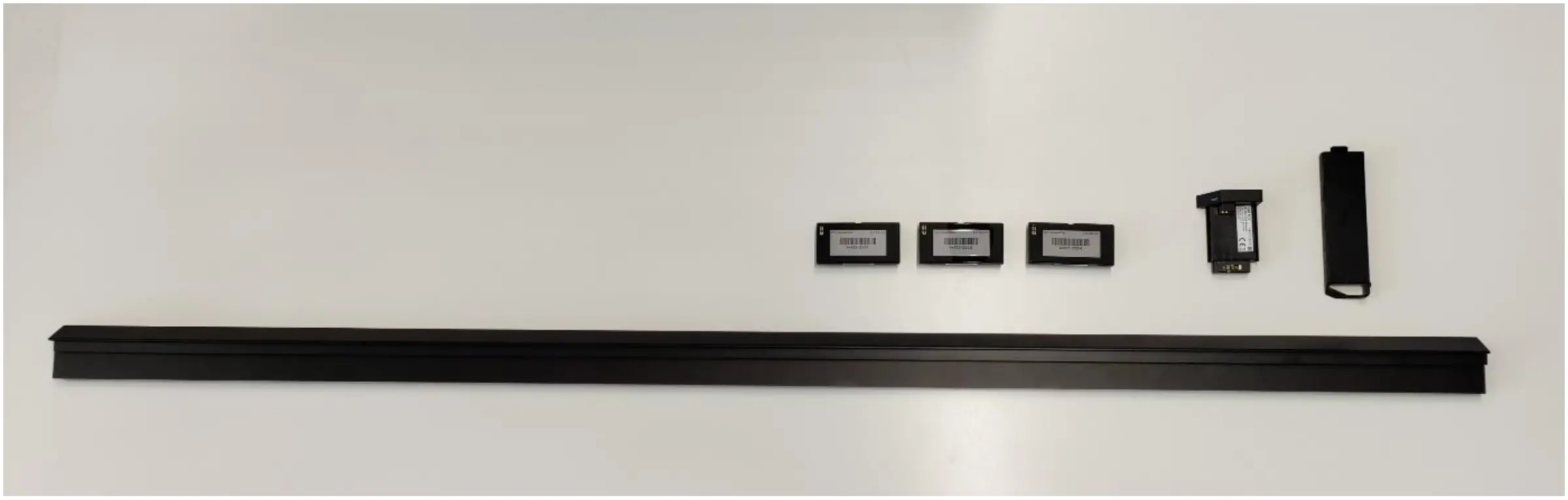

Figure 1 – Rail, Rail Controller, Battery Pack, Rail Displays

Figure 2 – Rail Displays

Figure 3 – Rail Controller & Battery Pack

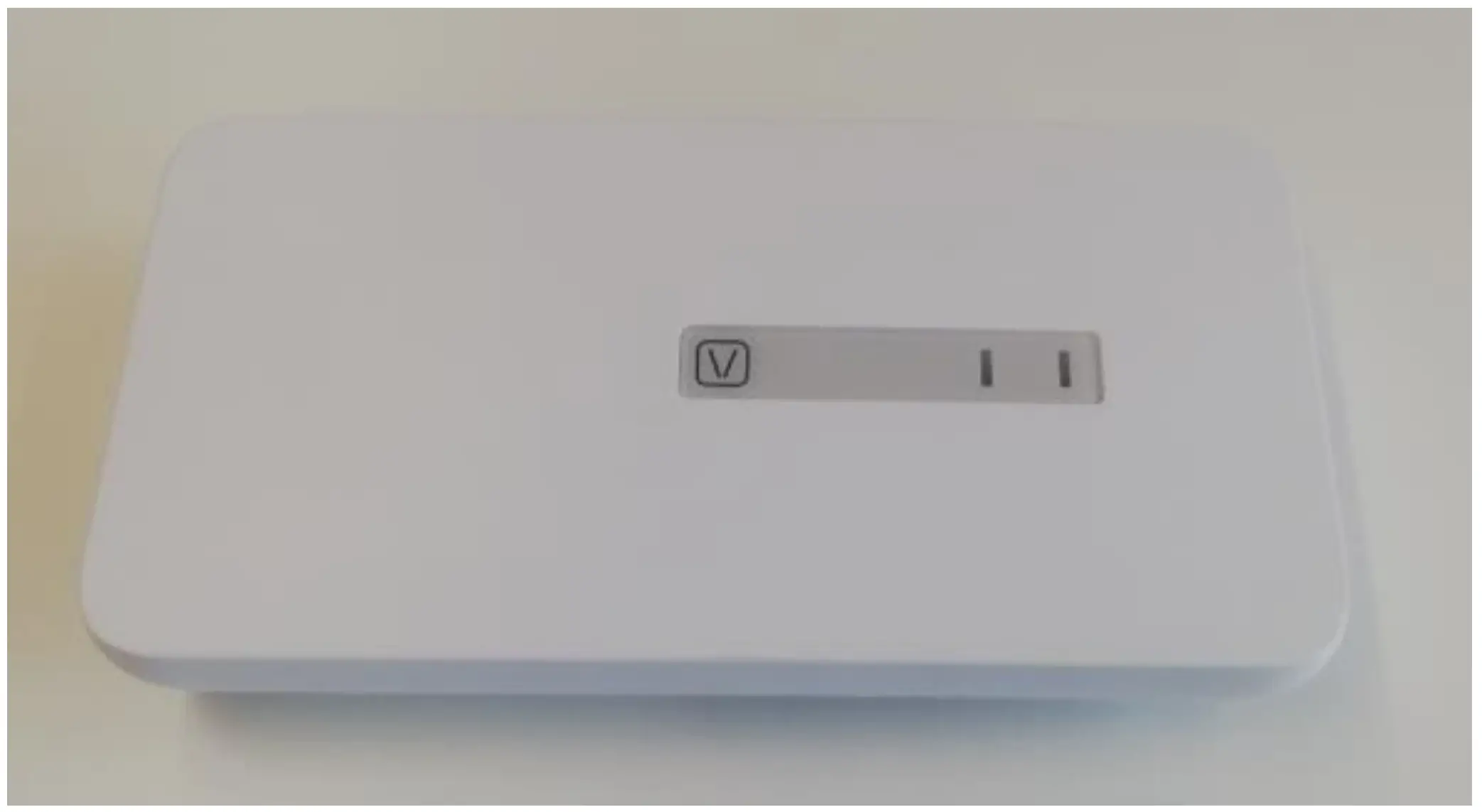

Figure 4 – BLE Access Point

Hardware Setup

1. Plugging Rail Controller into Rail

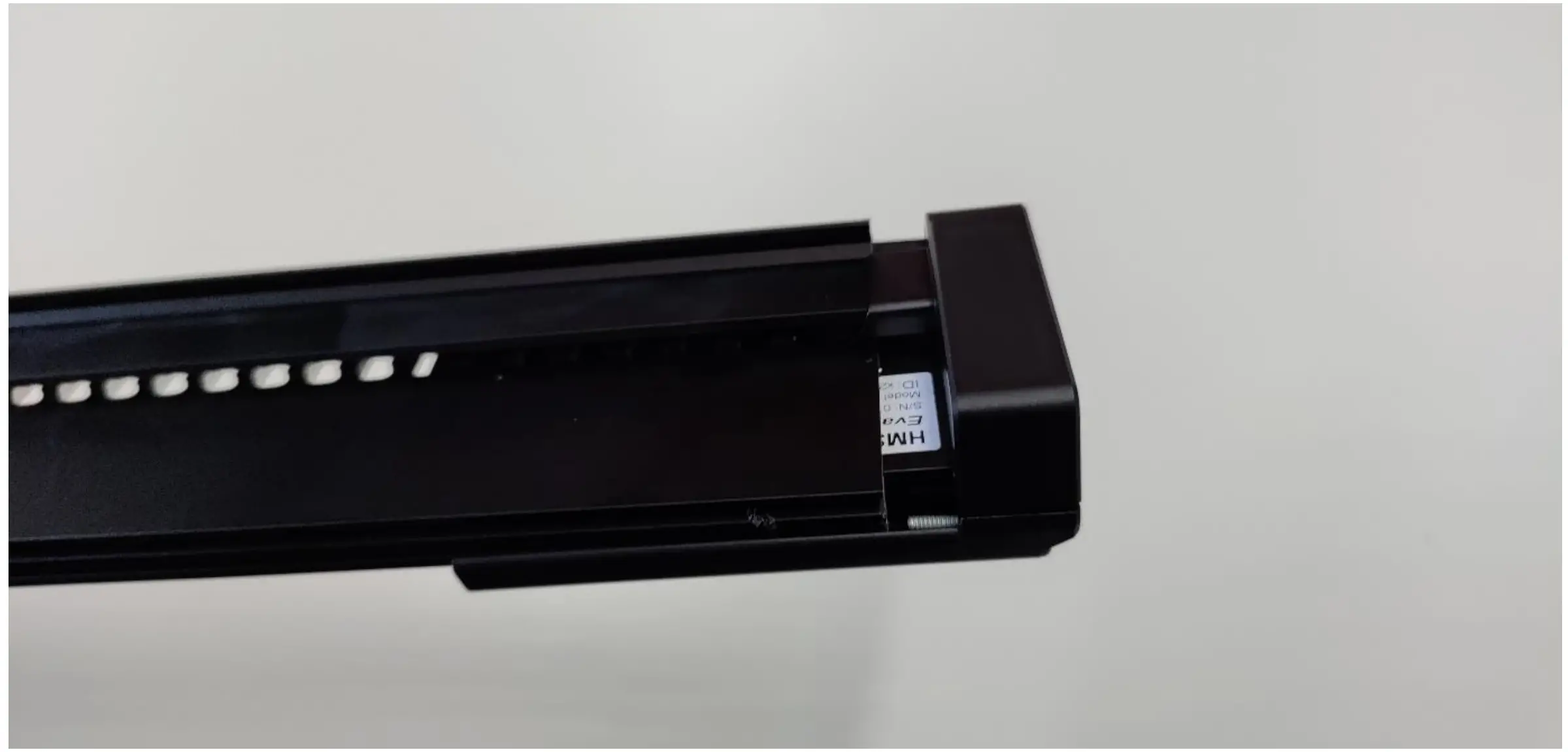

   Figure 5 – Plug Rail Controller into Rail

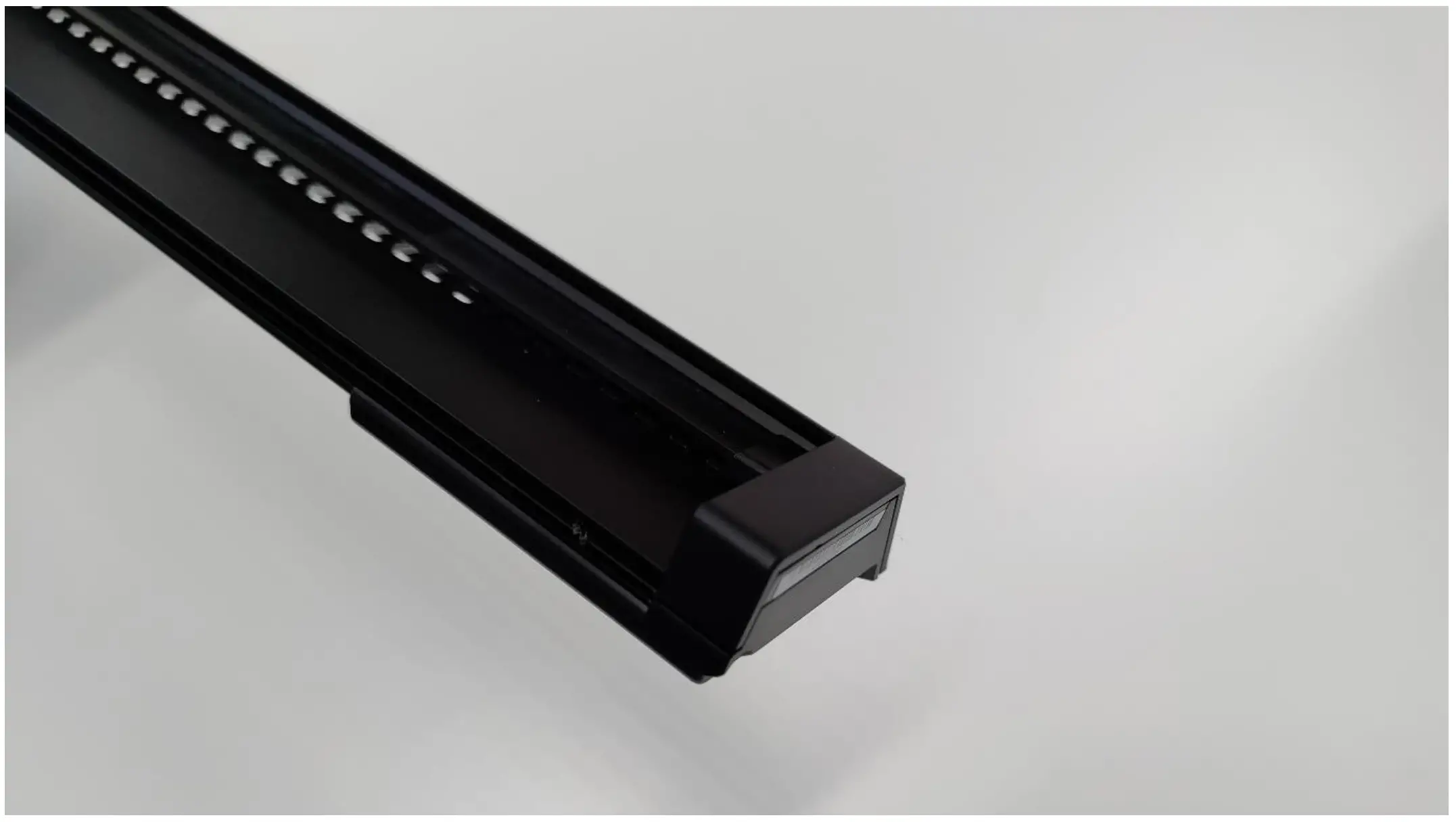

   Figure 6 – Plugged Rail with Rail Controller
2. Supplying Rail with power (plugging Battery Pack)

   Figure 7 – Rail with Rail Controller and Battery Pack

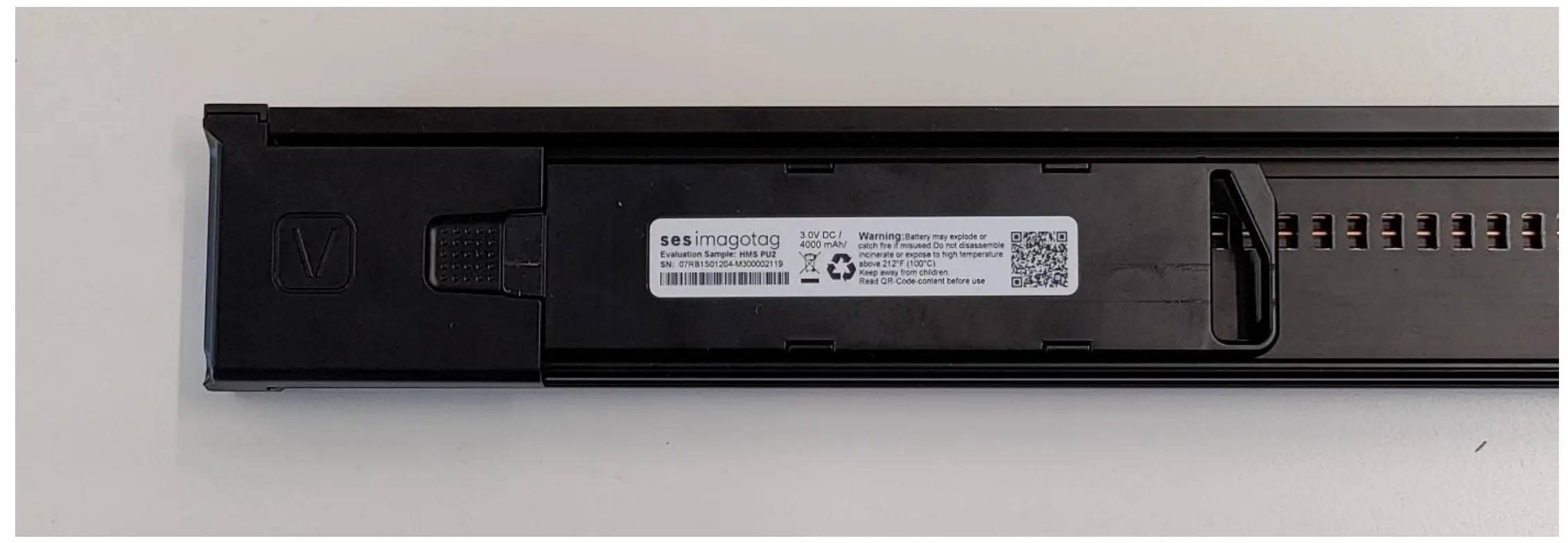

   Figure 8 – Connect Rail with Rail Controller and Battery Pack

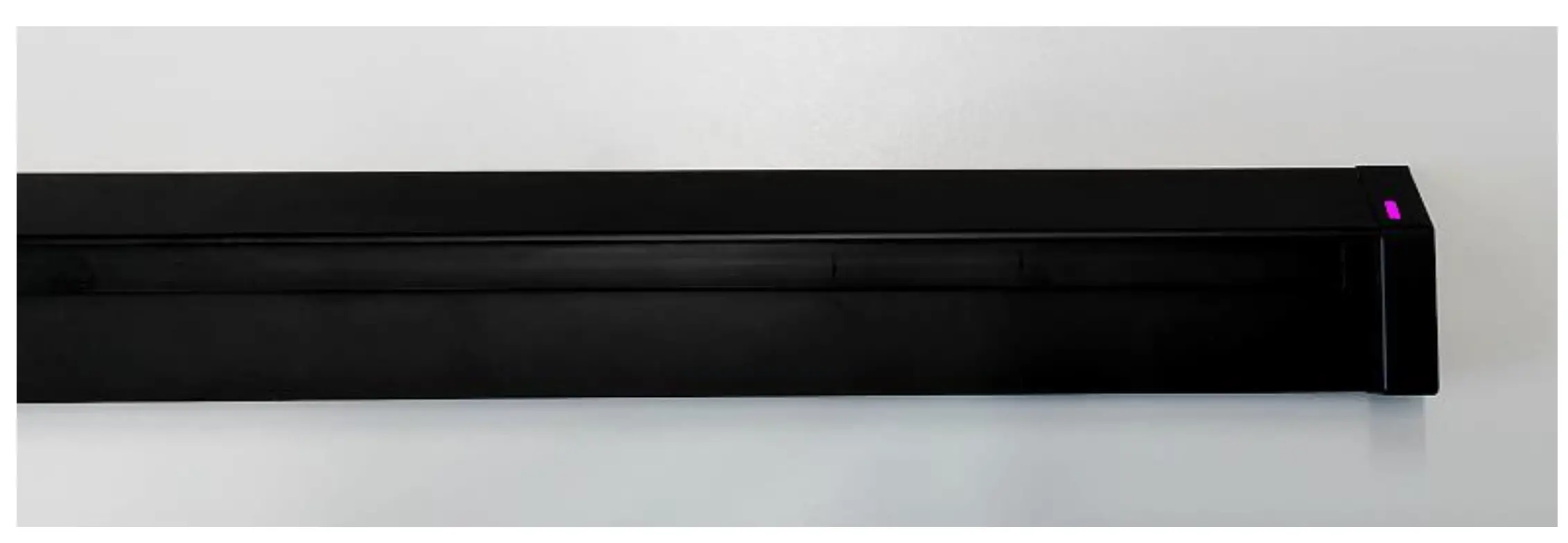

   Figure 9 – After connecting, the LED of the Rail Controller flashes in magenta colour (subject to change)

3. Plugging Rail Displays into the Rail

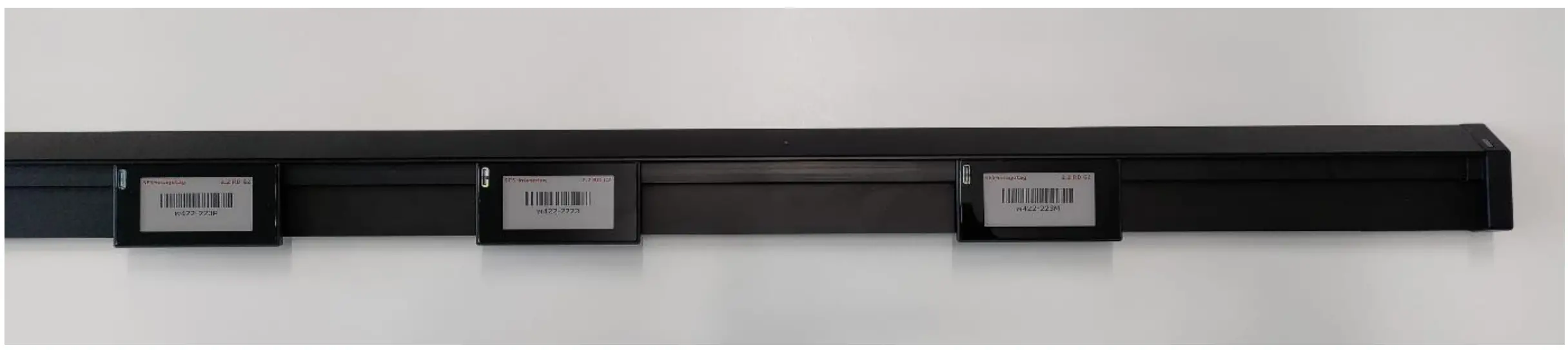

   Figure 10 – Plugging Rail Displays into Rail

Safe handling of lithium batteries / HMS PU2

Warning/Info:

• Battery may explode or catch fire if misused.
• If expose damaged battery to water, try to recharge battery or when mixing it with used or other battery types, it may explode or leak and cause personal injury.
• Do not disassemble, open battery, incinerate, or expose to high temperature above 212°F (100°C).
• Keep away from Children. If swallowed, promptly see doctor.
• Batteries used for HMS PU2 have passed the test UN 38.3 and are classified as non-dangerous good

Certification

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

CAUTION TO USERS
Changes or modifications not expressly approved by the party responsible for compliance could void the user`s authority to operate the equipment.

FCC rules apply to the following products: HMS RD1/160 (Model: HRDX-0160 Y) , HMS RD1/220 (Model: HRDX-220-Y), HMS RC1 (Model: HRCX-BT01-Y)

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

IC standards apply to the following products: HMS RD1/160 (Model: HRDX 0160-Y) , HMS RD1/220 (Model: HRDX-220-Y), HMS RC1 (Model: HRCX-BT01-Y)

SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz/Mellach – AUSTRIA

FB: FN350927w I HG : Graz I UID : ATU65936017

Tel. +43 (0) 5 98 09-400 I
Fax. +43 (0) 5 98 09-900 I E.

[email protected]
www.ses-imagotag.com
