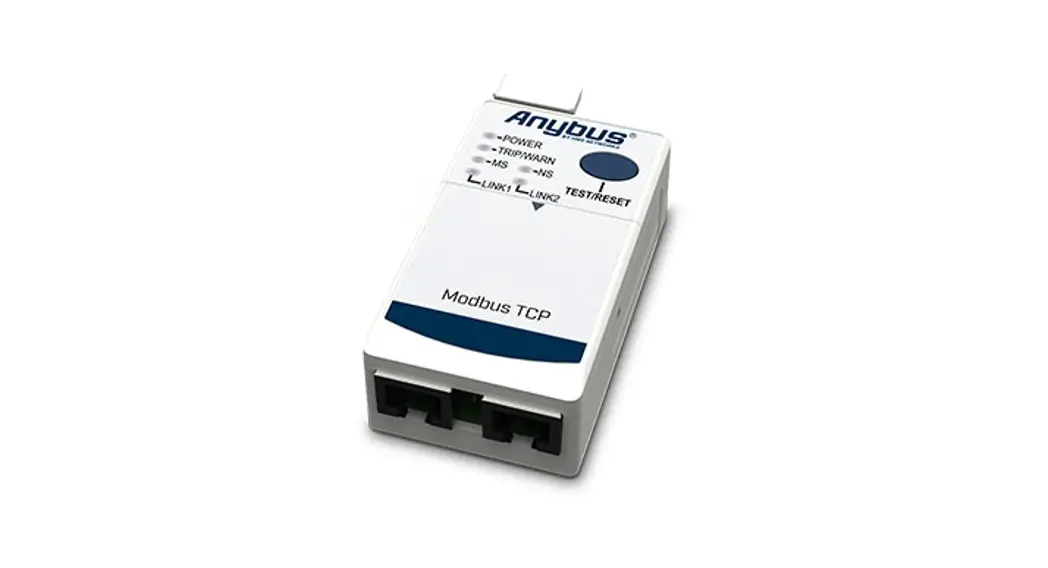

Anybus 5S21 E300 Communication Module
SAFETY AND COMPLIANCE INFORMATION

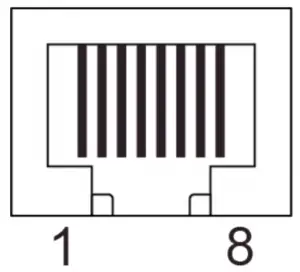

| RJ45 | ||
 | Pin | Data |
| 1 | TD+ | |
| 2 | TD+ | |
| 3 | RD+ | |
| 4 | ||
| 5 | ||
| 6 | RD+ | |
| 7 | ||
| 8 | ||
General Safety Instructions
 WARNINGTo prevent electrical shock, disconnect from power source before installing or servicing. Follow NFPA 70E requirements. Install in suitable enclosure. Keep free from contaminants. |
| WARNING Installation, adjustments, putting into service, use, assembly, disassembly, and maintenance shall be carried out by suitably trained personnel in accordance with applicable code of practice. |
| WARNING In case of malfunction or damage, no attempts at repair should be made. The product should be returned to the manufacturer for repair. Do not dismantle the product. |
Intended Use
The intended use of this equipment is as a communication interface.

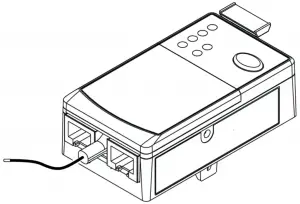

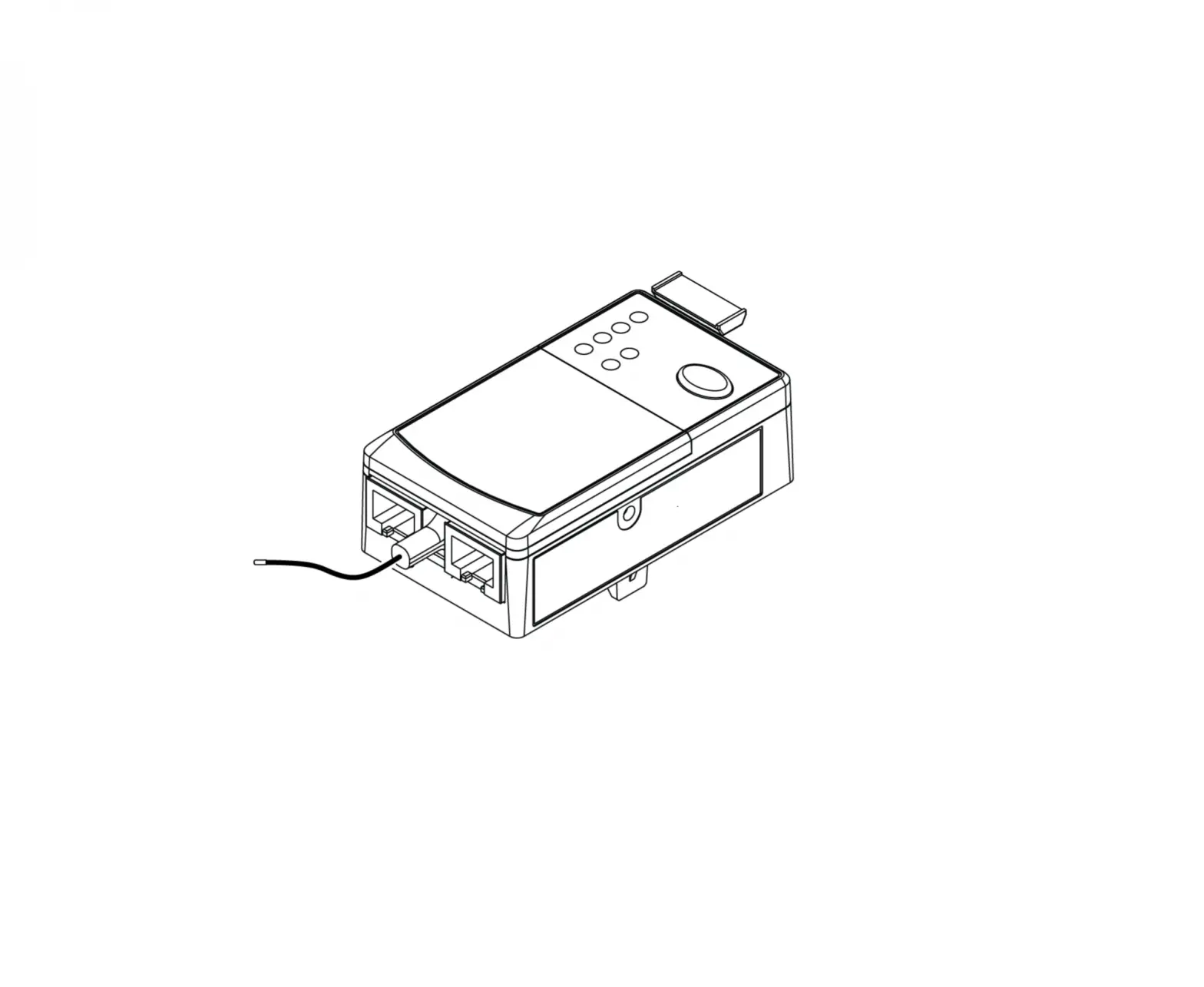

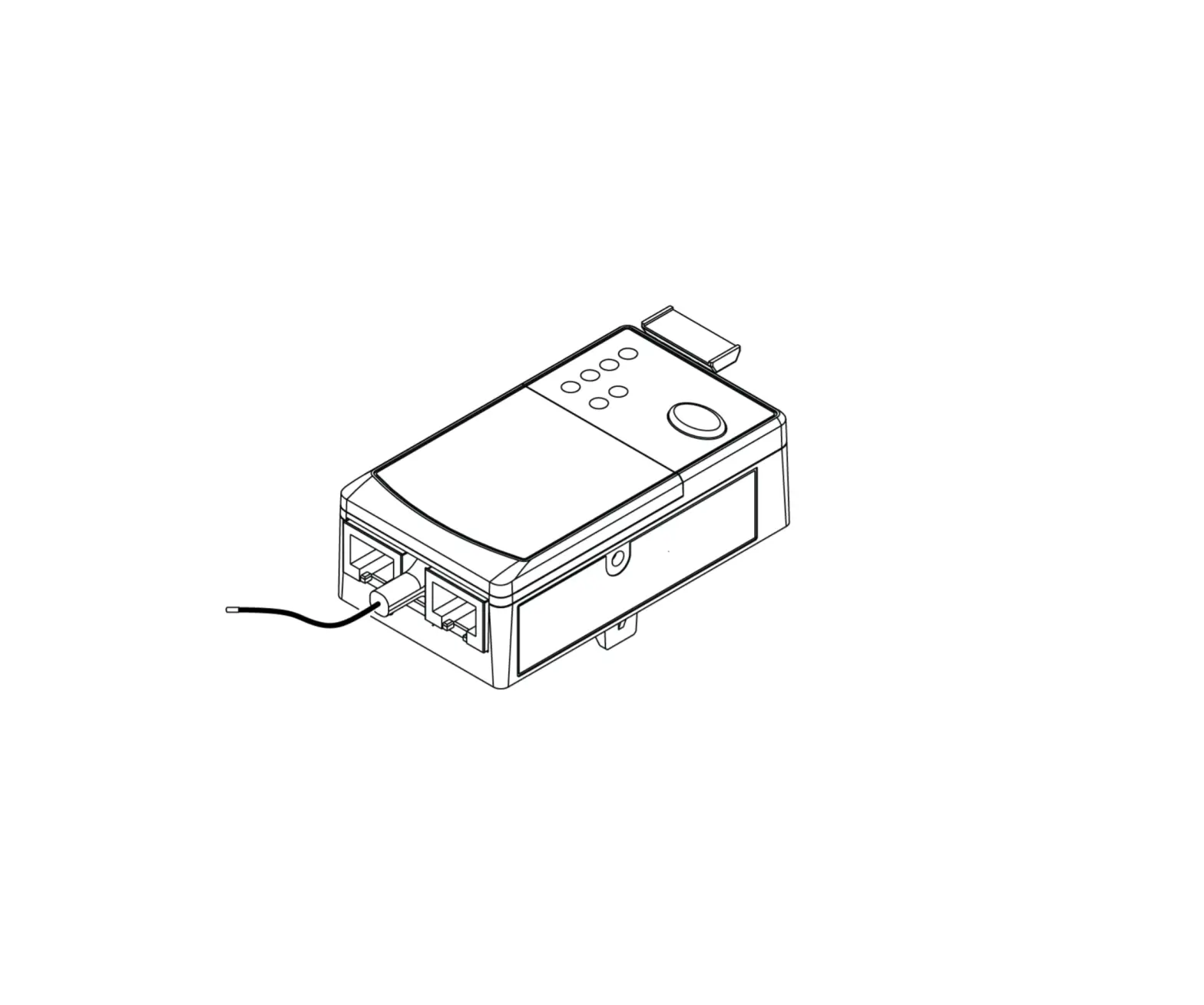

The communication module allows an E300 Relay to be integrated into an automation system.
The communication module has two RJ45 connectors that function as a switch.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
Model Identification
| Hardware description | Model ID |
| Common Ethernet | 5S21 |

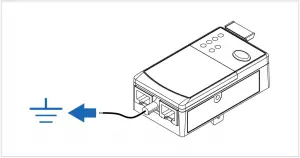

Installation
The equipment is considered as open type and shall be installed in a suitable end enclosure providing mechanical protection.
Technical Specifications
| Model identification | 5S21 |
| Communication connector | RJ45 x 2 |
| Power consumption | Typical: 220 mA @ 5 VDC |
| Storage temperature | -40 to +85 °C |
| Operating temperature | -20 to +55 °C |
| Humidity | EN 600068-2-78: Damp heat, +40°C, 92% humidity for 56 days EN 60068-2-30: Damp heat, +25°C – +40°C, 93% RH, 21 cycles |
| Cooling Method | Natural convection |
| Vibration | IEC 68-2-6: 5 G operating, 5 G non-operating |
| Shock | IEC 68-2-27: 30 G |
| Protection class | IP20 |
| Product weight | 85 g |
| Dimensions | 32 x 44,8 x 89,3 mm (H x W x D) |
Additional technical data can be found in the product web page.
Technical Specifications tab at www.anybus.com
 Have the product article number available, to search for the product specific support web page. You find the product article number on the product cover. |
CE Compliance
 This product is in compliance with the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU with amendment 2015/863 through conformance with applicable standards. The full text of the Declaration of Conformity is available at www.anybus.com/support |
Disposal and recycling
 You must dispose of this equipment properly according to local laws and regulations. Because this equipment contains electronic components, it must be disposed of separately from household waste. When this equipment reaches its end of life, contact local authorities to learn about disposal and recycling options, or return the equipment to HMS.For more information, see www.hms-networks.com |
UL Ordinary Locations (OrdLoc)
This equipment is certified for use in ordinary locations in compliance with the
following standards:
- UL 61010-1 SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR MEASUREMENT, CONTROL, AND LABORATORY USE – PART 1: GENERAL REQUIREMENTS – Edition 3
- UL 61010-2-201 STANDARD FOR SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR MEASUREMENT, CONTROL, AND LABORATORY USE – PART 2-201: PARTICULAR REQUIREMENTS FOR CONTROL EQUIPMENT – Edition 2
- CSA C22.2 NO. 61010-1 SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR MEASUREMENT, CONTROL, AND LABORATORY USE. PT. 1, GENERAL REQUIREMENTS – Edition 3
- CSA C22.2 NO. 61010-2-201 SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR MEASUREMENT, CONTROL, AND LABORATORY USE – PART 2-201: PARTICULAR REQUIREMENTS FOR CONTROL EQUIPMENT – Edition 2
The certification number of Anybus-E300-MBTCP certified modules according to OrdLoc certification is: E214107
According to the standards listed above, Anybus-E300-MBTCP modules are certified with the following marking:
