Anybus Communicator CAN – ControlNet
Communicator CAN Converters Gateways
Integrate your CAN-based industrial devices and equipment to a ControlNet control system without the need for any changes to the device. Just connect, configure and you’re done!
The Anybus Communicator is a proven and trusted protocol converter gateway that connects nonindustrial devices with a CAN-based protocol to ControlNet. The gateway performs an intelligent protocol conversion and presents the CAN data to the PLC/Controller as easily processed I/O data.

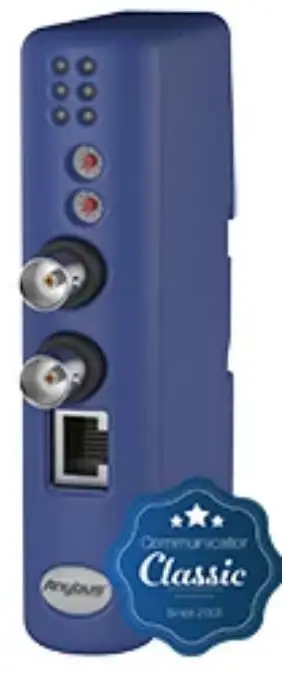

The Communicator is slim stand-alone gateway designed for IP20 and DIN-rail mounting, requiring a 24-volt power supply. The Communicator is conformance tested to current ControlNet specifications guaranteeing network compatibility.
TYPICAL CAN APPLICATIONS
Typical serial applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.
FEATURES AND BENEFITS
- CAN protocol converter gateways connecting CAN devices to fieldbus/Ethernet networks
- Support for custom CAN 1.0, 2.0A and 2.0B protocols
- Handles mixed Produce/Consume and Request/Response protocols and transactions
- No hardware or software changes needed to your devices
- No PLC code or function blocks required • Compatible with PLCs from all leading manufacturers
- Versions with Dual Port switched Ethernet allows for daisy chaining and eliminates the need for external switches
- High performance, fast throughput, max 5 ms
- Anybus Configuration Manager included for easy visual CAN frame building
- Dynamic transaction controlled by network master
- Global free technical support and consultancy
- See www.anybus.com for application notes and instruction videos on how to configure the gateway
CAN CONFIGURATION – ANYBUS CONFIGURATION MANAGER
The Anybus Configuration Manager (ACM) is included with the purchase of the Anybus Communicator.
- Graphical CAN frame building support using several ready-made CAN functions.
- Can configure any CAN 2.0A or 2.0B based protocol (11 and 29 bit identifiers).
- Configures upto 128 transactions containing a total of 256 CAN frames
- Monitor/Modify function of process I/O data informing of CAN transaction status
- Diagnostic transaction Live List in the network I/O informing of CAN transaction status
- Multi-language support, supporting English, German, Spanish, Italian, French, Polish, Russian, Chinese and Japanese
- Handy Save/Load function allows for a completed configuration to be re-used for many other installations
- Password protection prevents unauthorized upload and download of configurations
CONTROLNET INTERFACE FEATURES
- ControlNet CONFORMANCE TESTED™ by ODVA
- ControlNet Specification version: Communications Adapter profile 12
- Max. 450 bytes of Input and 450 bytes of Output data
- ControlNet baudrate 5 Mbit/s
- Supports Polled & Bitstrobed, I/O Change-of-state / cyclic I/O
- Supports media redundancy
- MacID node address setting via DIP switch
- Network Access Port (NAP)
- ControlNet network configuration via .EDS file
- Can be used with RG-6 quad shielded cable
- 2x BNC network connectors
TECHNICAL SPECIFICATIONS
COMMUNICATOR CAN
| Protocol | Configurable CAN 1.0, 2.0A and 2.0B based protocols |
| Baud rate | 20 kbit/s – 1 Mbit/s |
| Physical standards | CAN |
TECHNICAL DETAILS
| Dimensions (L x W x H) | 120 x 75 x 27 mm 4,72 x 2,95 x 1,06” | |
| Weight | 150 grams, 0.33 lb | |
| Protection class | IP20 Nema rating 1 | |
| Enclousure material | PC ABS, UL 94 | |
| Installation position | Any | |
| Mounting | DIN rail (35 * 7,5/15) | EN 50022 |
CERTIFICATIONS
| UL | File number: E203225 | UL 508 Ind. Cont. Eq. |
| Hazardous Locations | CLASS 1, DIVISION 2, GROUPS A, B, C AND D, T4 | ANSI/ISA-12.12.01-2000 |
| CE | 2004/108/EC | EN 61000-6-4 EN 61000-6-2 |
| ATEX | Zone 2, Cat 3 (except Modbus RTU) | EN 60079-11 EN 60079-15 |
ELECTRICAL CHARACTERISTICS
| Power | 24 VDC +/- 10 % |
| Current consumption | Max 300 mA, Typical 100 mA |
HARDWARE CHARACTERISTICS
| Reverse voltage protection | Yes | |
| Short circuit protection | Yes | |
| Galvanic isolation on subnetwork | Yes | EN 60950-1 |
ENVIROMENTAL CHARACTERISTICS
| Operating temp | -25 to 55 o C, -13 to 131 o F | IEC 60068-2-1 IEC 60068-2-2 |
| Storage temp | -40 to 85 o C, -40 to 185 o F | IEC 60068-2-1 |
| IEC 60068-2-2 | ||
| Relative Humidity | 5-95% non condensing | IEC 60068-2-30 |
| Installation altitude | Up to 2 000 m | |
IMMUNITY AND EMISSION FOR INDUSTRIAL ENVIRONMENT
| Electrostatic discharge | +/- 4 kV | EN 61000-4-2 |
| Electro magnetic RF fields | 10 V/m 80 MHz – 1 GHz 3 V/m 1,4 GHz – 2,0 GHz 1 V/m 2,0 GHz – 2,7 GHz | EN 61000-4-3 |
| Fast Transients | +/- 1 kV | EN 61000-4-4 |
| Surge protection | +/- 1 kV | EN 61000-4-5 |
| RF conducted interference | 10 V/rms | EN 61000-4-6 |
| Emission (at 10 m) | 40 dB 30 MHz – 230 MHz 47 dB 30 MHz – 1 GHz | CISPR 16-2-3 |
Content of delivery
Configuration Cable (RS232) Port
Installation sheet
Dsub with screw terminals for sub network
Ordering Information
ORDER CODE: AB7314
INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable is supplied with every single-piece Communicator shipment
- CAN D-sub connector is supplied with every single-piece Communicator shipment
- All configuration software available for download
- (Power supply not included)
GUARANTEE: 3 years
For purchasing instructions and terms and conditions, see: →How to buy
