410-5513-05-1 TAO 1mini 4K Pro Streaming Node
Product Information:
The TAO 1mini is a compact and portable device designed and
manufactured in Xiamen Hi Technology Zone, China. It supports
various input and output interfaces, including HDMI 2.0, UVC,
LAN(PoE), USB 3.0 Type-C, and audio communication. The device is
powered through PoE or USB-C PD with a maximum power of 10W. It has
a working temperature range of 0°C to 55°C and a humidity range of
5% to 85%. The TAO 1mini comes with a welcome card, USB-C cable,
and international socket adapters.
Product Usage Instructions:
To use the TAO 1mini, follow these steps:
- HDMI 2.0 Input: Connect the device to an HDMI
2.0 source, such as an AI tracking camera, using an HDMI
cable. - UVC Input: Use this interface to receive video
signals from your phone or other compatible devices. - LAN(PoE) Interface: Connect the device to a
network using a LAN cable for up streaming. - HDMI 2.0 Output: Connect the device to a
display or monitor using an HDMI cable for video signal
transmission. - MIC Interface: Use this interface for audio
signal transmission. - USB 3.0 Interface: Connect your webcam to this
interface for video signal transmission. - TFT Touch Screen: Monitor the signals and
perform menu operations using the device’s built-in 2.1-inch TFT
touch screen. - Tally Lights: The device supports tally lights
for visual indication. - U Disk Recording: You can record video to a U
disk using the device. - Power Options: The TAO 1mini can be powered
via PoE or USB-C PD. Use the appropriate power source to power the
device. - Streaming: The device supports various
streaming protocols, including RTMP, RTMPS, and NDI. Stream to at
least four platforms using the TAO APP. - LED TALLY Indicators: The device features LED
tally indicators for easy monitoring. - 4K UHD Support: The TAO 1mini can handle up to
4K UHD video resolution without compromising quality. - Codec Integration: The device supports MJPEG,
YUV, H.264 codecs to ensure high-quality video transmission. - Multi-platform Live Streaming: The TAO 1mini
converts HDMI/UVC signals into NDI/RTMP/SRT for simultaneous live
broadcasting on four platforms. - Power via PoE Ethernet: The device supports
Power over Ethernet (PoE) and can be powered using a mobile power
supply. Simply connect one network cable for both power supply and
network transmission.
For more information, visit the www.rgblink.com website or contact
[email protected] or +86 592 5771197.
Interface
Input
Output Audio Communication
Power
Power
Mode Input voltage Maximum power
HDMI 2.0 UVC HDMI 2.0 Input LAN(PoE) USB 3.0 Type-C LAN(PoE)
1×HDMI-A 1×USB-C 1×HDMI-A 1×3.5mm audio socket 1×RJ45 1×USB-A 1×PD Type-C 1×RJ45
PoE, PD 5~12V 10W
Working Environment
Temperature Humidity
0~55 5%~85%
Physical
Product Weight Package Weight Product Dimension Package Dimension
160g 780g 91mm(diameter)×40.8mm(height) 215mm x 145mm x 80mm
In the Box
TAO 1mini Welcome Card USB-C Cable International Socket Adapters
Performance
HDMI 2.0 input Input resolution
Format Bit depth Pixel format Image delay
720p@50/60, 1080i@50/60, 1080p@30/50/60, 1280×720@50/60, 1280×768@60, 1280×1024@60, 1360×768@60, 1366×768@60 , 1600×900@60, 1920×1080@50/60 3840×2160@60 RGB/YUV 4:2:0/4:2:2
8 bit/10 bit BT.601 | BT.709 3 frames
UVC/Type C input Input resolution
Decoding performance
1024×768@60, 1280×720@50/60, 1280×768@60, 1280×1024@60, 1360×768@60, 1920×1080@24/25/30/50/60 MJPEG/YUV | H.264 | H.265
Audio Input Audio delay setting Analog audio input Maximum input level
0~160ms MIC/LINE +6dBV
LAN Coding performance Speed mode NDI coding NDI decoding RTMP/SRT coding Maximum output speed
Support MJPEGYUV,H.264,H.265 CBR,VBR,FIXQP,AVBR,QPMAP FULL NDI, 4K@60 FULL NDI, 4K@60 Support streaming software 125Mbps
HDMI 2.0 output Output resolution
Audio
Order Codes
410-5513-05-1
720×480@30, 1280×720@30, 1920×1080@30/60, 3840×2160@60 Embedded audio output
TAO 1mini
WEB: www.rgblink.com EMAIL: [email protected] PHONE: +86 592 5771197 Proudly designed and manufactured in Xiamen Hi Technology Zone, China
090-0230-01-0 2022 | TAO 1mini
www.rgblink.com

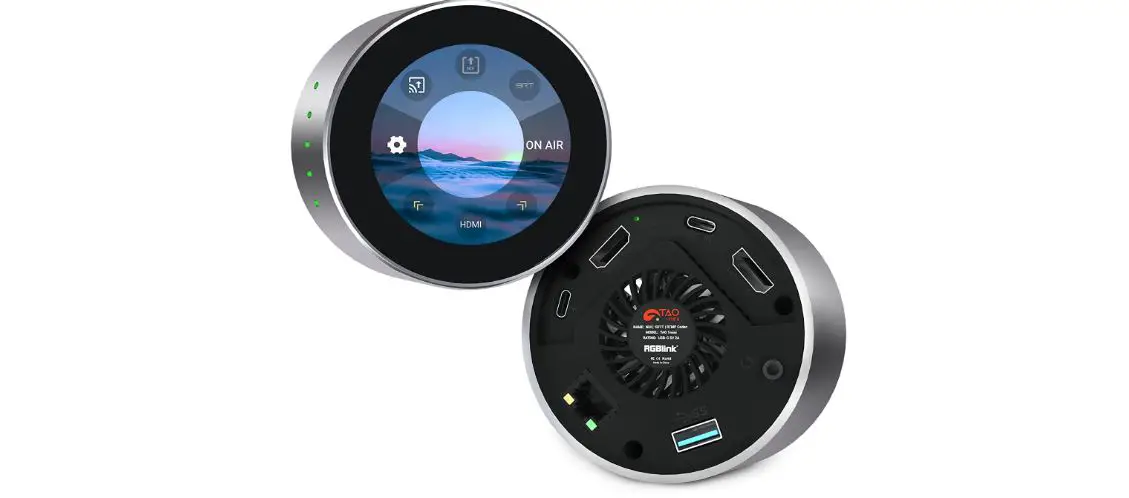

UVC IN : For receiving video signal from your phone or others
Reset : For recharging Type-C : Charge
HDMI IN : For receiving
video signal from your AI tracking camera
LAN|PoE : For up streaming
HDMI OUT :For video signal transimission
MIC : For Audio signal transmission
USB 3.0 : For video signal transmission from your webcam
4K streaming node
NDI is the abbreviation of Network Device Interface, which is a broadcast-quality, low-latency open IP network interface protocol launched by NewTek. As the world’s leading network audio and video codec technology, NDI is favored by more and more professional audio and video technicians.

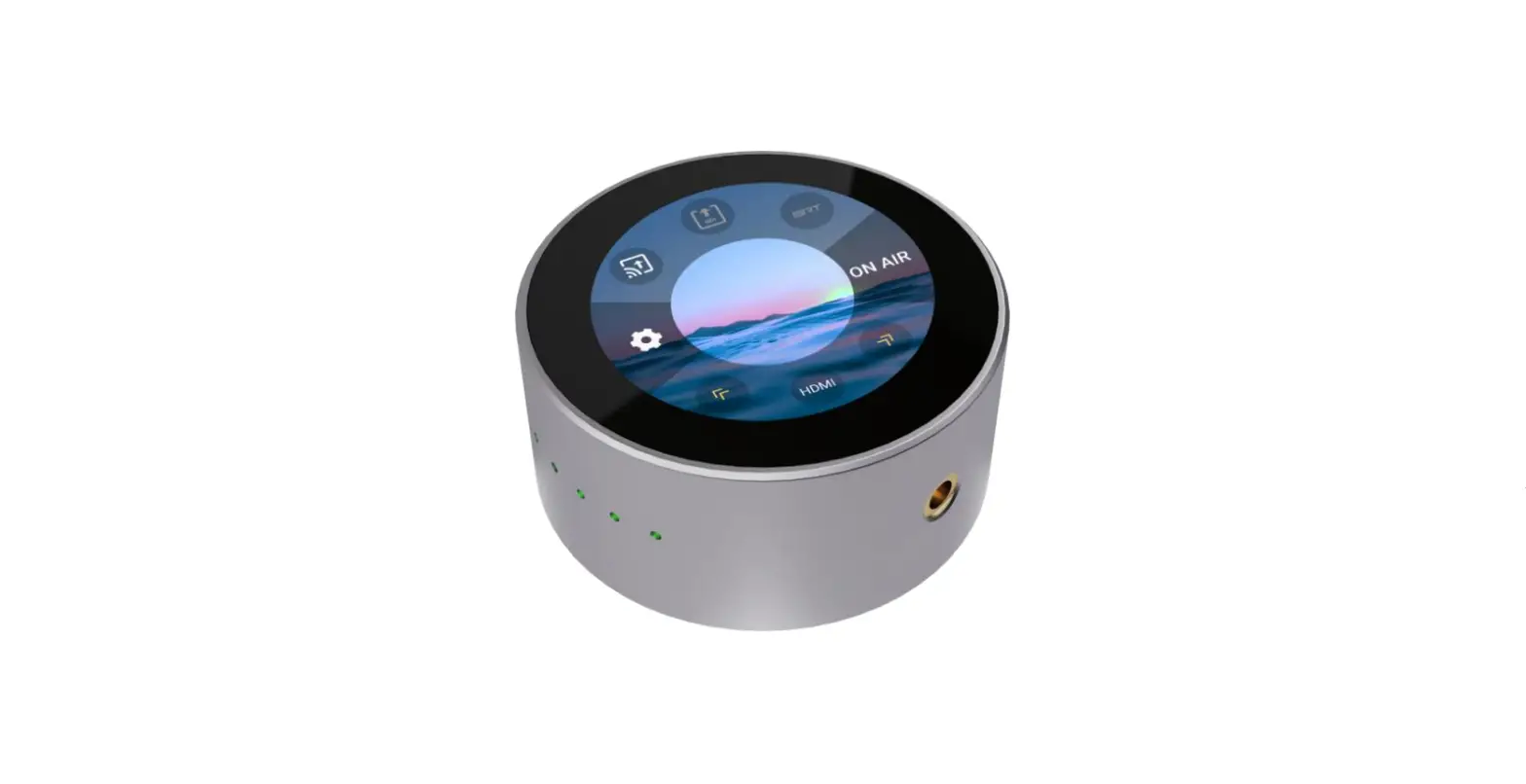

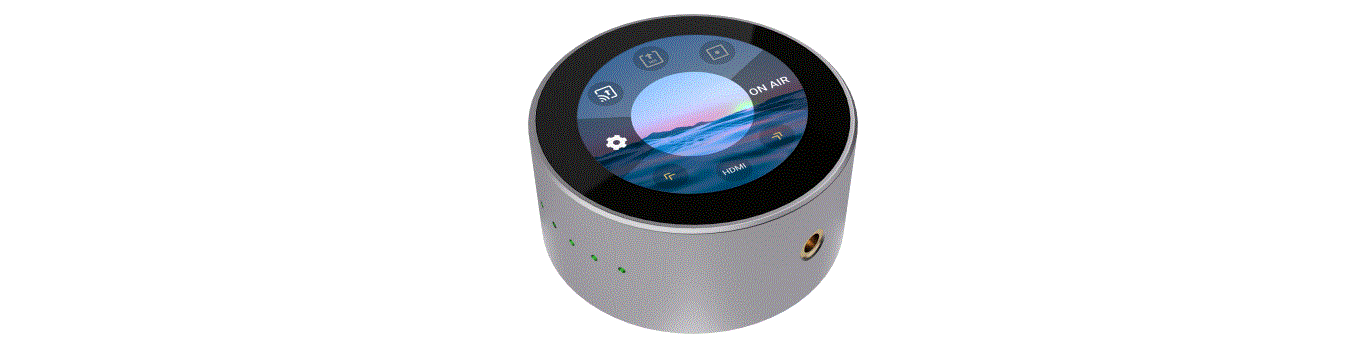

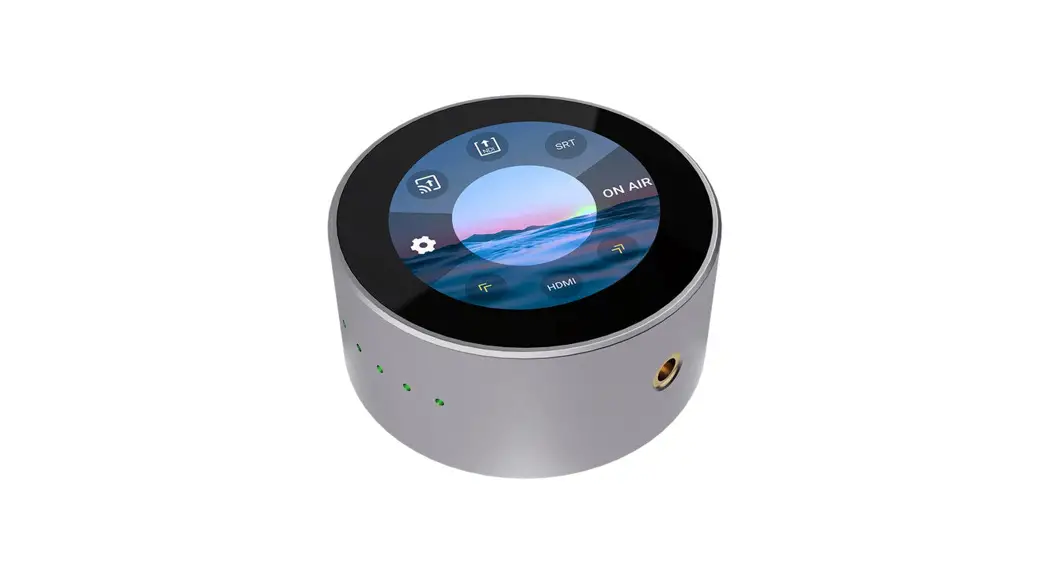

TAO 1mini supports HDMI&UVC and FULL NDI gigabit Ethernet video stream codecs for encoding and decoding. Round appearance, simple and elegant, easy to carry, with standard camera screw holes, can be easily installed to the camera bracket. The device has a 2.1-inch TFT touch screen for real-time monitoring of signals and menu operations. Support tally lights, support U disk recording, support PoE and other functions.
Compact in form NDI codec support Dual ¼in mounts
low latency live previews & recording RTMPRTMPS protocols
Why choose NDI?
NDI is a broadcast-quality, low-latency video streaming protocol over Gigabit networks. With low loss, low latency, more stable
Low loss
Low latency
More stable
power via PoE power from USB-C PD Stream to at least 4 platforms via TAO APP
LED TALLY indicators Up to 4K UHD without compromise
Professional IP production equipment
Both encoding and decoding support up to 4K (UHD) video resolution, and are backward compatible with resolutions such as HD/SD. Adopt MJPEGYUV, H.264 to ensure high quality video transmission
&
Codec integration
TAO 1mini not only supports 4K Full NDI but also NDI|HX, it is an all-in-one codec machine
Multi-platform live streaming
TAO 1mini can not only convert 4K HDMIUVC signals into NDIRTMPSRT, but also a network push streaming device that can realize simultaneous live broadcast of 4 platforms.
HDMI/UVC
RTMP/SRT
Power via PoE Ethernet
At the same time, it supports Power over Ethernet (PoE), PD input, and can use a mobile power supply to power the device. Only one network cable can realize power supply and network transmission.
Easy to install
TAO 1mini has double-rack screw holes, allowing you to enjoy a variety of installation experiences according to different scenarios.
Portable and stable
Exquisite and portable, it has a built-in ultra-thin large-diameter cooling fan to help cool the device.
One-click recording
The USB3.0 interface supports up to 64G U disk or 2T SSD solid state drive, and realizes high-quality audio and video recording function with one key.
Monitor and touch
The 2.1-inch full-color touch monitoring screen can not only monitor the signal in real time, but also control it quickly.
RGBlink
