Ablenet 70000196 Latitude 360 Mounting Arm User Guide

QUICK START GUIDE
Latitude 360
mounting arm

Product Registration

1. Registering your product provides you access to AppleCare, product updates, and resources for your product. Scan the QR code below to register your product.

https://www.ablenetinc.com/product-registration/Getting

 Getting Started

Scan the QR code below to watch a short getting started video or follow the instructions listed.

https://ablenetinc.zendesk.com/hc/en-us/articles/4408208975764

To get started:

1. Attach the mounting arm to the table, wheelchair, or other surfaces. Turning the handle on the clamp counterclockwise will loosen or open the clamp to fit on larger surfaces.
   Turning the handle on the clamp clockwise will tighten the clamp.
2. Attach the threaded bolt side of the mounting plate to the end of the mounting arm.
3. Use quick-release handles to adjust the 3D joints. Turning the quick release handle counterclockwise to loosen and then clockwise to tighten after positioning the mounting arm.

To request a different mounting arm, clamp, or mounting plate, contact AppleCare at [email protected] or (651) 294-3101.
This device can do more! Full Instructions for Use are available at www.ablenetinc.com.

Download the AppleCare app to access live support from the AppleCare Product Success team, an online knowledge base filled with videos and getting started information, and other resources.
Scan the QR code below to download the free AppleCare app to your phone or tablet.

https://ablenetinc.zendesk.com/hc/en-us/articles/4408208975764	https://ablenetinc.zendesk.com/hc/en-us/articles/4408208975764

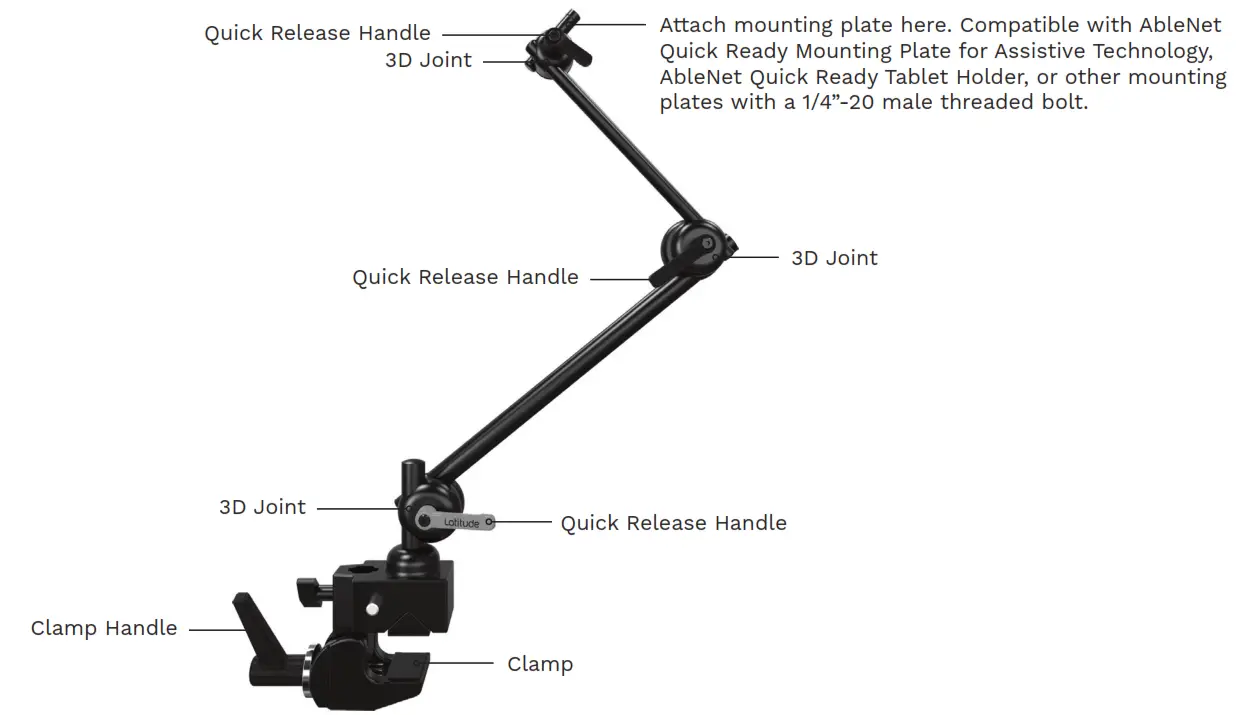

Device Overview

QUICK START GUIDE
Latitude 360 mounting arm
WARRANTY
AbleNet manufactured products include a 2-year limited warranty. This warranty is against defects in materials and manufacturing for 2 years from the date of purchase.
Full warranty details are available at www.ablenetinc.com.
AbleNet, Inc.
2625 Patton Road
Roseville, MN 55113
United States of America (651) 294-3101
[email protected]
www.ablenetinc.com
Made with recycled content
EN October 18, 2021 8:25 PM
