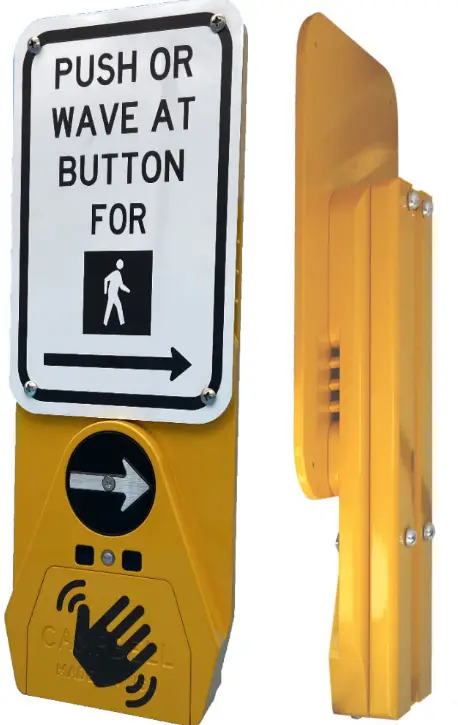

PedSafety TLPI Turning Lane Pedestrian Indicator
For Guardian Line of Independent APS

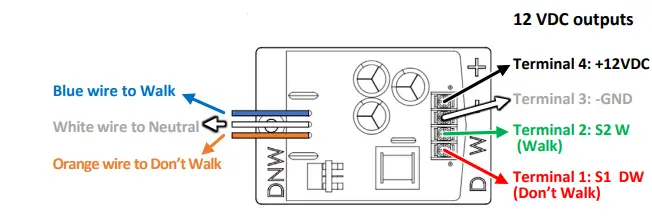

SPI (Signal Power Interface) in the Pedestrian Signal Head
WARNING: 120 VAC inputs
Do NOT set the SPI on the bottom of the Pedestrian Signal Head. Terminals of the SPI must be connected to the same terminals on the Base Station.

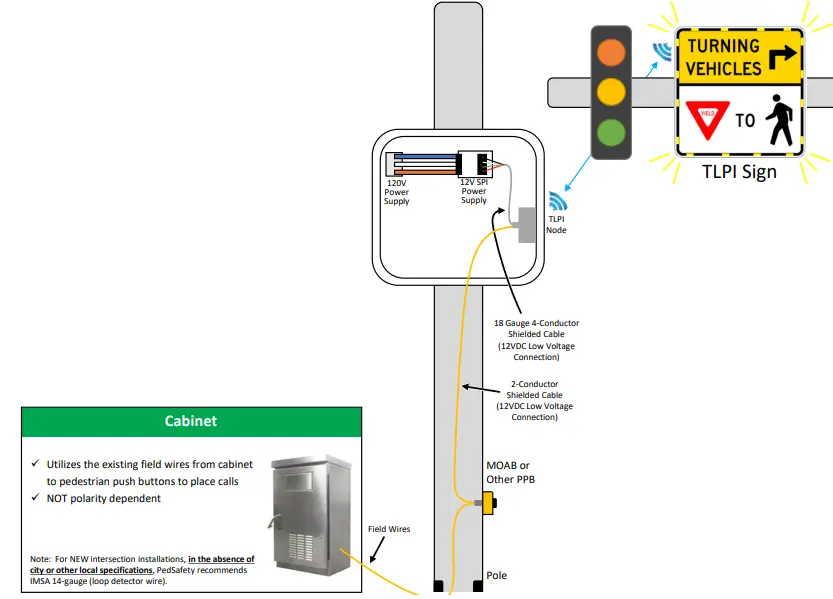

TLPI Signal Node Mounting Location
- Mount TLPI Signal Node to the inside for plastic pedestrian signal heads. Mount outside if the ped head is made of aluminum or steel.
TLPI Signal Node and Guardian Wiring Connections
(Enhanced view of terminal block)
SPI (Signal Power Interface) in the Pedestrian Signal Head
WARNING: 120 VAC inputs

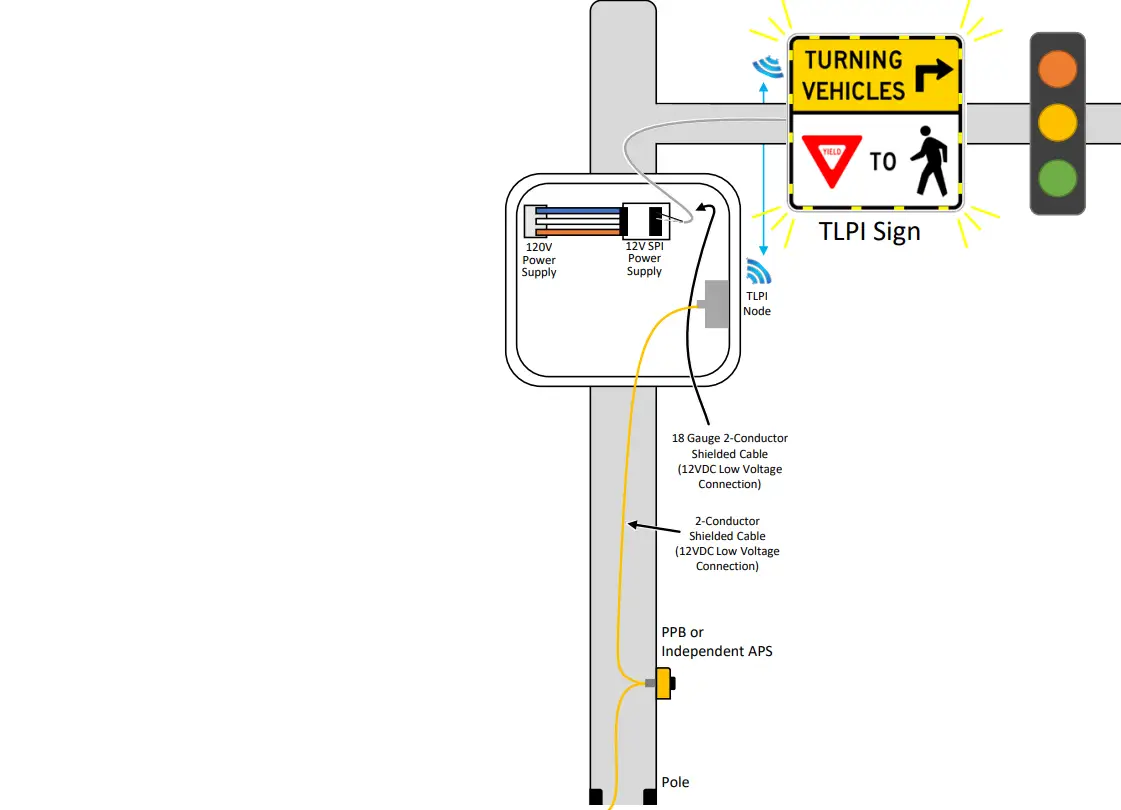

TLPI Signal Node Mounting Location
- Mount TLPI Signal Node to the inside for plastic pedestrian signal heads. Mount outside if the ped head is made of aluminum or steel.

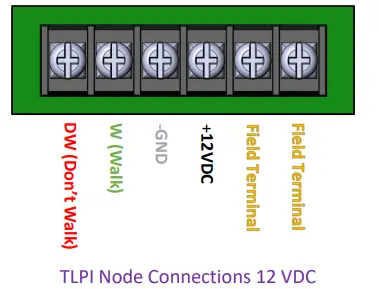

TLPI Signal Node Wiring Connections (Enhanced view of terminal block in front)
Sign Driver Quick Wiring Guide

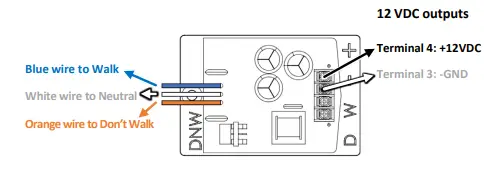

SPI (Signal Power Interface) in the Pedestrian Signal Head
WARNING: 120 VAC inputs
Solar Applications
- Solar can be used to power the Sign Driver on the R10-15
- The solar application must be able to provide 12V to the Sign Driver
The Signal Node that sends the signal to the Sign Driver is located inthe pedestrian signal head opposite the Sign Driver on the same phase as the Sign Driver.

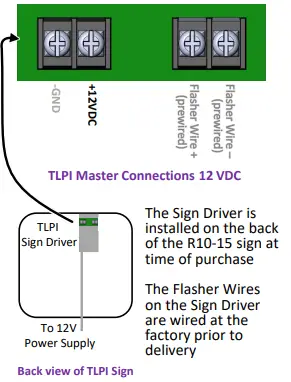

TLPI Sign Driver Wiring Connections (Enhanced view of terminal block in front)
- For complete documentation visit: https://www.pedsafety.com/product-installation-guides/
- Tech Support: (208)345-7459
