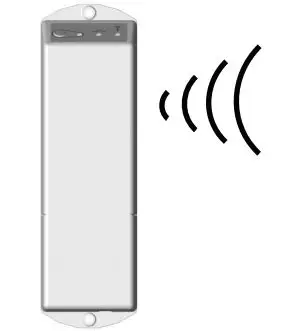

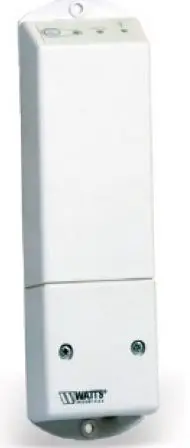

channel RF Receiver 230Vac (EFHRFR 001)

Install and plug the Receiver. Then press the Receiver push button during 4 seconds, the Green LED should lit up indicating that the Receiver is now in radio configuration mode waiting for a thermostat configuration address.
Please refer to the thermostat leaflet for enter the thermostat in “RF Init” mode.
Verify that radio signals are correctly received by the Receiver. On the Receiver, the Green LED should blink at each radio signal received from the thermostat.
Exit the Radio configuration mode on the thermostat. (Please refer to the thermostat leaflet)
Now starting up your installation in AUTO mode

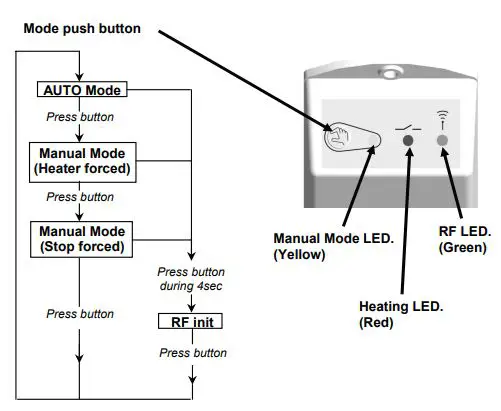

Yellow	Red	Green
0	0	0	Automatic mode, HEATER stopped
0	1	0	Automatic mode, HEATER operating
1	0	0	Manual mode OFF forced
1	1	0	Manuel mode HEATER forced
0 or 1	0 or 1	quick flash	Reception of an order, 4 flash
0 or 1	0 or 1	1	Waiting for a configuration signal (cf. configuration)
0	0	slow blink	ERROR see repair sequence bellow:
Repair instructions			– Verify the emitter batteries. – Verify the emitter/receiver range. – No perturbation by an apparatus at less than 50cm of the receiver. – No perturbation by an apparatus on the 868 MHz frequency (continuous transmission).
By pressing on the push button nothing happens			– Verify that the receiver is correctly connected – Verify main power supply (230VAC)

Operating temperature	0°C – 50°C (32°F – 122°F)
Electrical Protection	Class II – IP44
Power Supply	230Vac 50Hz
Radio frequency and Receiving zone	868 MHz, <10mW. Range of approximately 100m in open space. Range of approximately 30m in residential environment.
certifications	CE. EN 300220-1, EN 301489-1 (Radio frequency certifications)
Output	Relay 12A 250Vac
