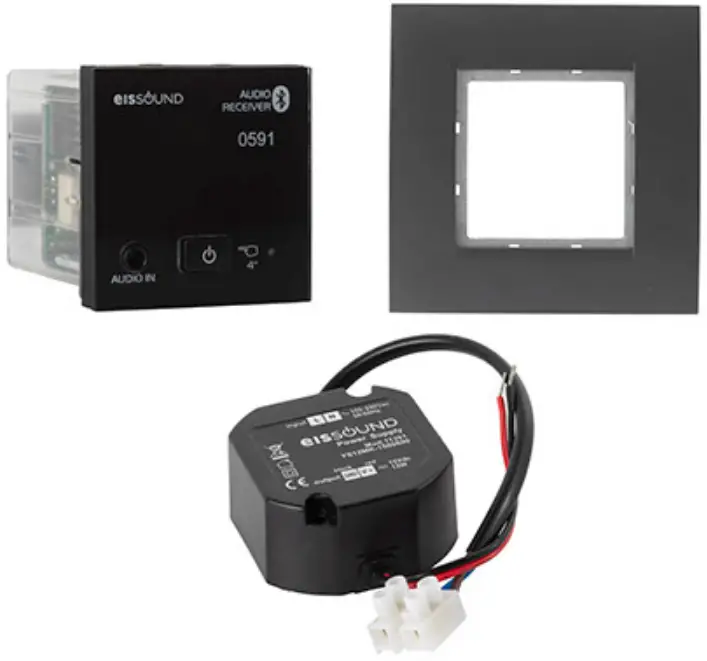

eISSOUND PREMIUM BT In-Wall Bluetooth Receiver User Guide
Please take note that the PREMIUM BT Unit must be in OFF mode.

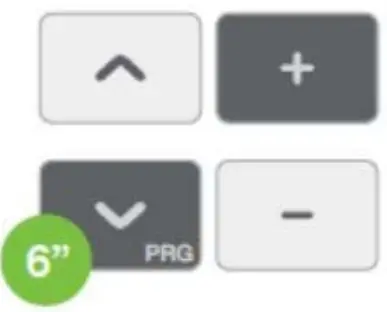

Activate installation Menu
Press the keys for 6 seconds

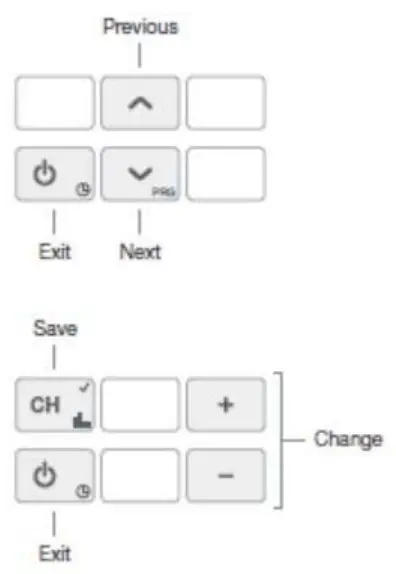

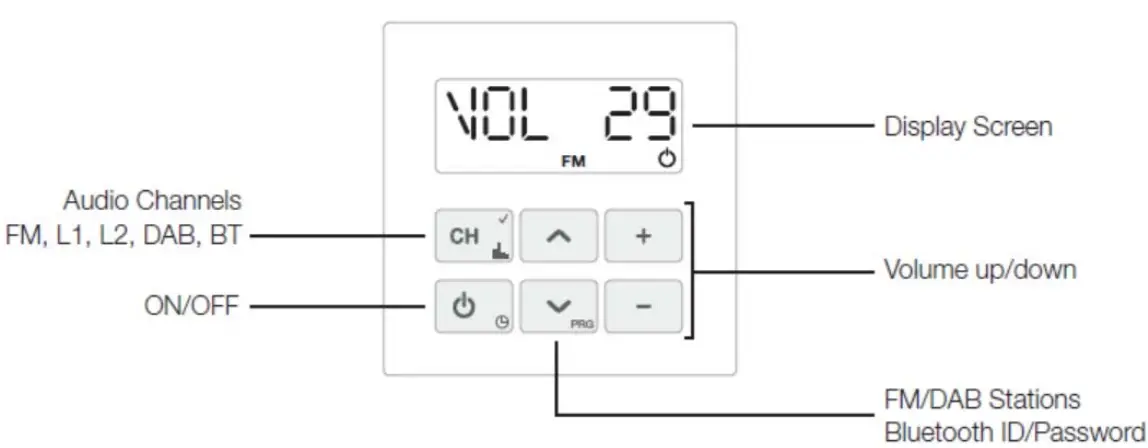

| Installation Menu | I N S |
| Language | E N G |
| Auto ON/OFF | A U T O N A U T O F F |
| Stereo/Mono | S T R E O M O N O |
| Audio Output | 8 O H M 16 O H M L I N E A M P 1 A M P 2 |
| Balance | B A L – 1 5 B A L + 1 5 |
| Volume Limit | M A X 0 0 M A X 9 9 |
| Menu Look | L O K U N L O K |
| L1 Enable | L 1 O N L 1 O F F |
| FM Enable | F M O N F M O F F |
| L1 Stereo/Mono | L1 M O N L1 S T L1 M I X |
| L2 Stereo/Mono | L2 M O N L2 S T L2 M I X |
| L1 Input Level | N O R M A L P R O F O T H E R |
| L2 Input Level | N O R M A L P R O F O T H E R |
| L1 Label | L – I N 1 T V F M – C E N B T – E X |
| L2 Label | L – I N 2 T V F M – C E N B T – E X |
| FM Central | L – I N 1 L – I N 2 |
| Terminal 0 | C E N T R L A M P |
| Factory Reset | R E S E T |
| Version | V E R S |
Please take note that the PREMIUM BT Unit must be in OFF mode.

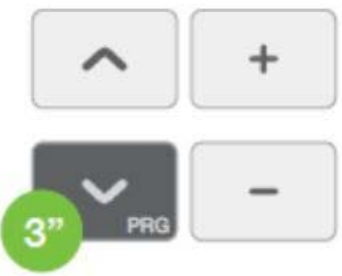

Activate User Menu
Press the key for 3 seconds
User Menu Options
| User Menu | U S E R |
| FM Mem. Delete | D E L |
| FM Forced MONO | S T E R E O M O N O |
| FM Sensitivity | S E N S 1 S E N S 2 S E N S 3 |
| Do not Disturb | N O C A L L C A L Disturba |
| Call Volume | C A L L 0 0 C A L L 9 9 |
| Light ON | L O N 1 L O N 5 |
| DAB Services Scan | D A B |
| DAB Memory Delete | D E L |
| Time – Hour | H 1 2 4 9 |
| Time – Minute | 1 2 M 4 9 |

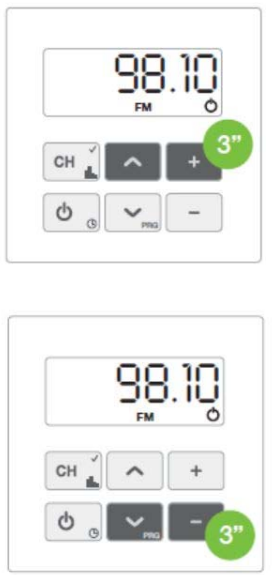

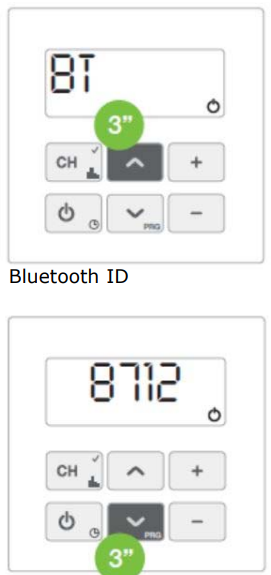

Keyboard shortcuts
Please take note that the PREMIUM BT Unit must be in ON mode.
Program/Delete FM/DAB Memory
Audio Channel: FM/DAB
Set/Save deal Mode
Access Bluetooth ID/Password
Audio Channel: BT
Equalization Mode
FM Fine Tuning
Audio Channel: FM
Timer
FM Forced MONO ON/OFF
Audio Channel: FM
BT/A2DP Dis connect
Audio Channel: BT
BT/BLE Dis connect
Audio Channel: BT
KBSOUND STAR App
The PREMIUM BT can also be controlled by our KBSOUND STAR App making the unit especially attractive and versatile. Available on Apple App Store (iOS devices) and Google Play (Android devices). Please make sure it is the latest App version. Compatible for iOS 10.0, Android 8.0 and subsequent related versions.
iOS Devices
Tap the Apple App Store to download the KBSOUND STAR App.
Android Devices
Tap the Google Play Store to download the KBSOUND STAR App.
Reference guide

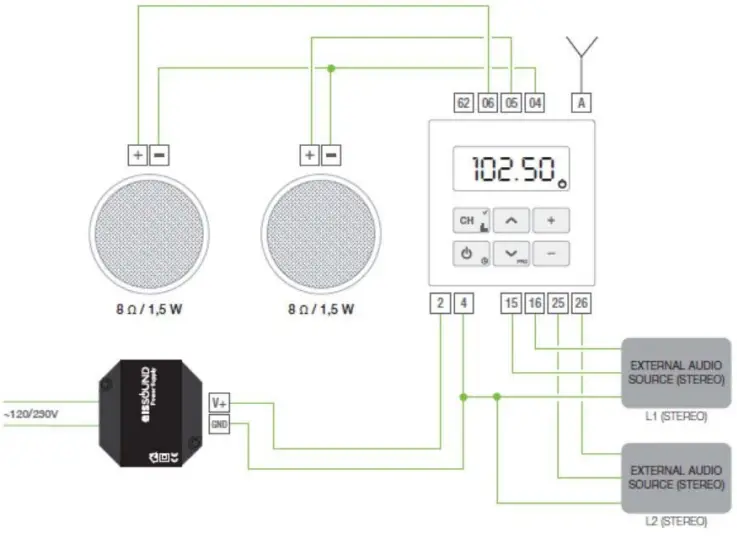

Basic installation
