Contardi Cornelia So Ceiling Lamp Instruction Manual

Cornelia – Messalina
SO

INSTALLING INSTRUCTIONS

ALL OPERATIONS MUST BE CARRIED OUT BY QUALIFIED PERSON

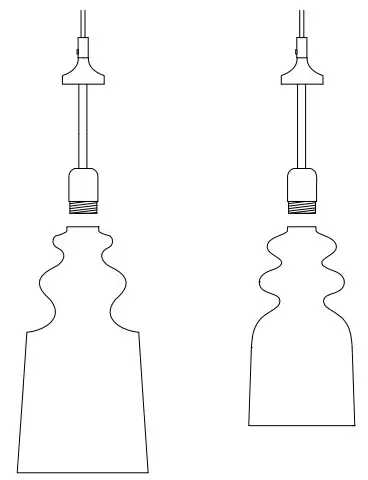

1. Unscrew the metal ring fixed on lamp holder.
   Insert carefully the glass on frame.

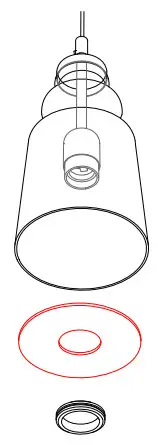

2. Fit the disc on the lamp holder and fix it screwing the metal ring.

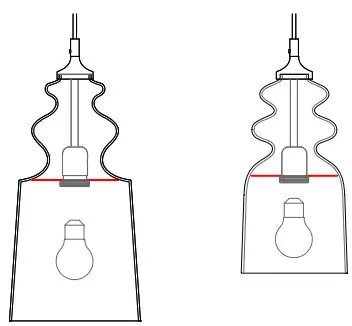

3. Insert the bulb.

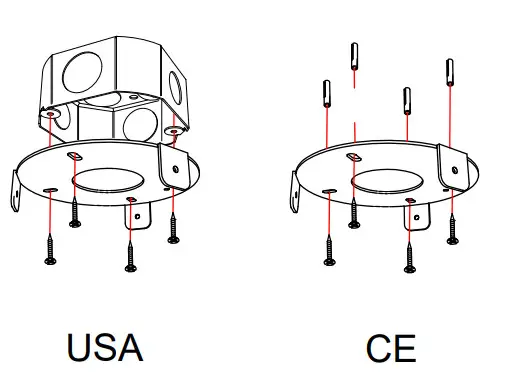

4. Fix the bracket on the ceiling (use appropriate anchors depending on the type of ceiling)

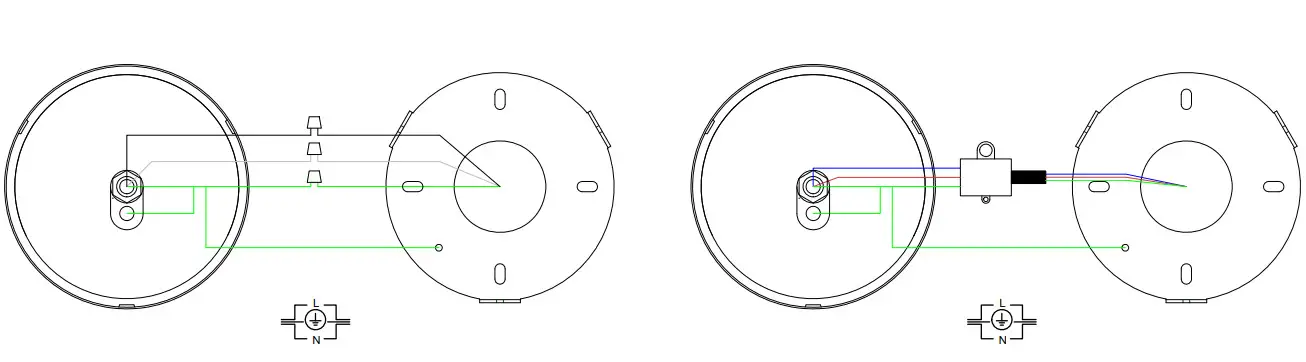

5. Complete the wiring as shown in the diagram.

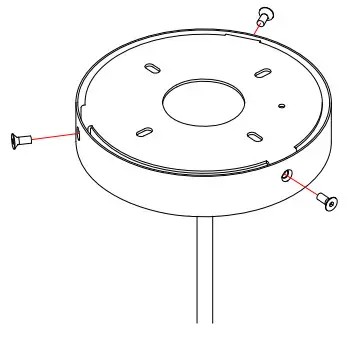

6. Fix the canopy to the bracket using the screws provided.
