SMART HOME LIGHTS
Fitting instructions

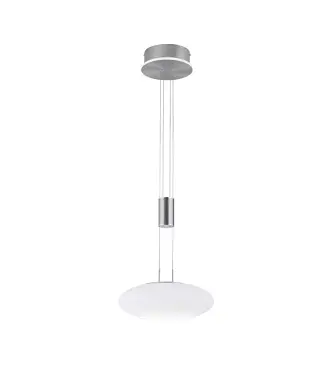

Q-ETIENNE Pendant Lamp
This product contains a light source of energy efficiency class <E>.
This product contains light sources of energy efficiency class <F >.
836509
230V / 50Hz~

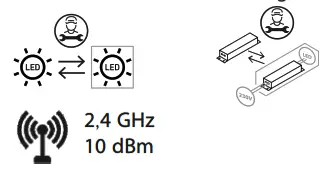

1x LED-Board 27,4V DC / 5,7W
2x LED-Board 27,4V DC / 8W not changeable

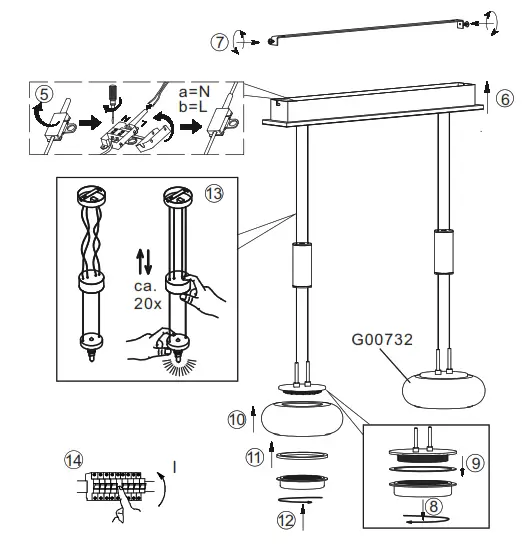

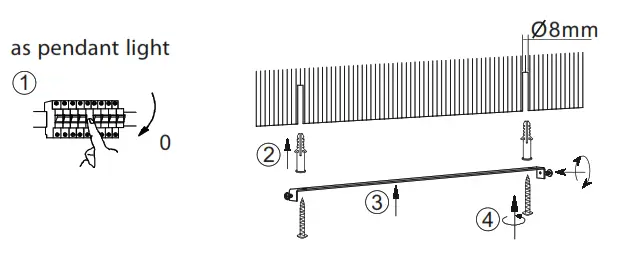

Montage fitting
| LED | 5,7 W / 8 W 700 lm / 950 lm |
 | 25,5 W 1.300 lm |
 | LED-Board |
| t | 25.000 h / 20.000 h |
| Tk | 2.700 – 5.000 K |
 | 15.000 x |
 | < 0,5 s |
electrical connection
230 Volt/50 Hz-Anschluss
230 voltage/50 Hz connection

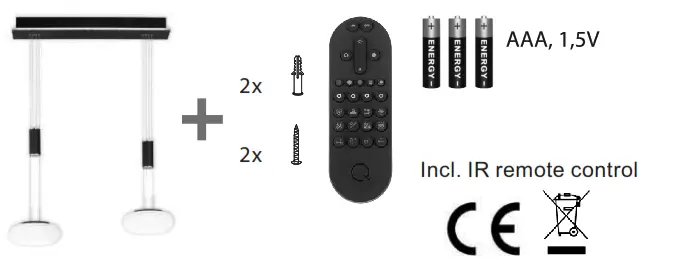

teach remote control
See Q-remote control manual

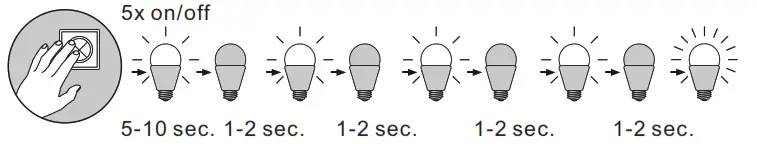

Reset
To integrate the lamp into a ZigBee network, reset the lamp to the factory setting.
Paul Neuhaus GmbH
Olakenweg 36 . 59457 Werl
Germany
Telefon: + 49 (0) 29 22 -97 21- 0
Telefax: + 49 (0) 29 22 -97 21- 9120
E-mail : [email protected]
https://scm.paul-neuhaus.de/public/conformity/
