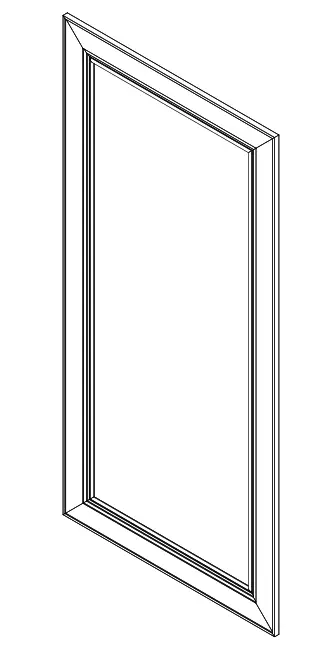

DM2040 Main Line Series Framed Mirror
Owner’s Manual
Features
- Metal Framed Wall Mirror
- Color and style matched to Main Line cabinets
- Easy installation
Construction
- Rust-free aluminum construction, available in plated or anodized finishes
- Includes installation hardware

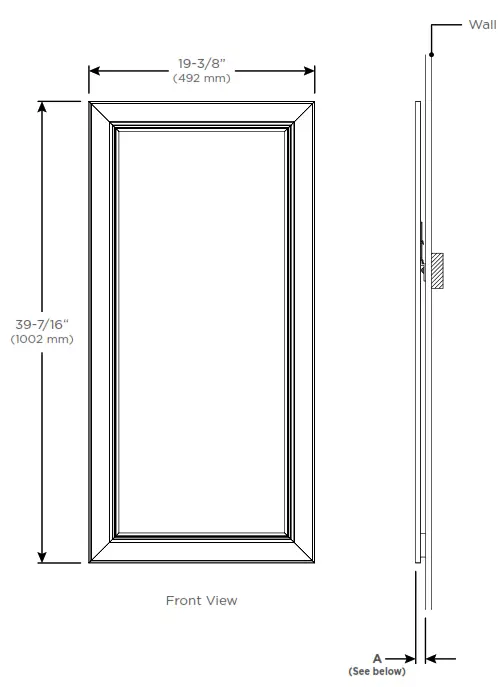

Dimensions
Width: 19-3/8″ (492 mm)
Height: 39-7/16″ (1002 mm)
Depth: See page 2 for dimensions

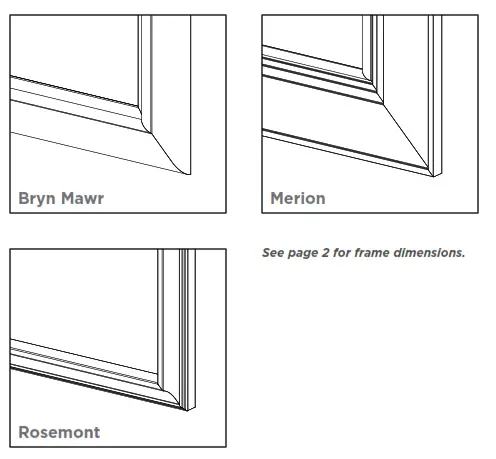

(Merion Option Shown)
Model Number Key
| Width 20 | Height 40 | Frame Style BM = Bryn Mawr ME = Merion RM = Rosemont | Frame Finish 66 = Nickel 67 = Vintage Brass 74 = Brushed Black 75 = Brushed Bronze 76 = Chrome 77 = Polished Nickel |
Click or scan the QR code to see the details found in the installation instructions.
Use the camera app on your mobile device to look at this QR code. This will allow you to quickly access web pages and other relevant documents.

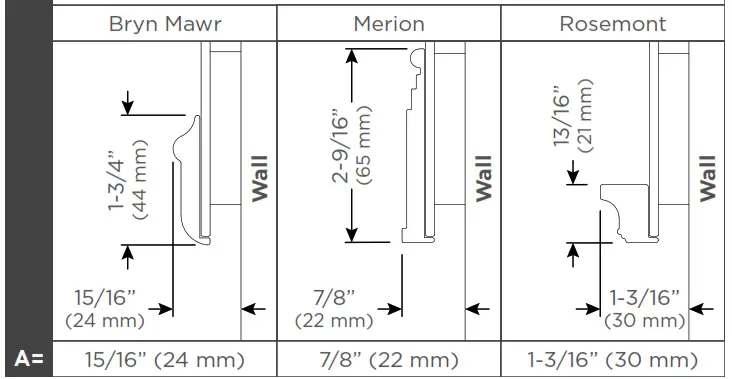

Dimensions projected from the wall
Recessed Mount
USA/Canada: 1.800.877.2376
www.robern.com
DM2040 – Specification Sheet
Page 2 of 2
229-1738 07192022
Robern, Inc
701 N. Wilson Ave.
Bristol, PA 19007
