FCA System Manual
MAR320A
2020.10.26

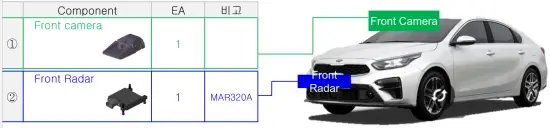

FCA System Composition : Front Radar included
- System composition: Radar +DAS System based on the camera sensor
- System Work Concept
| Recognition and Identification | Sensor fusion and Control | Actuation | |
| Recognize object Estimate Distance Categorize Object | ||
| Recognize object Estimate Distance | Sensor Fusion SCC/FCA Control HDA/LFA Control | |
| Acceleration/Dece celebration Steering |
Front Camera
Front Radar
ActuatorFCA System Composition

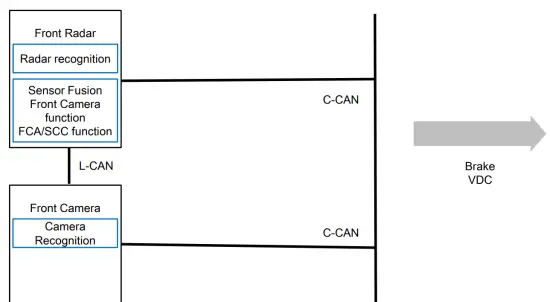

- CAN Composition per controller

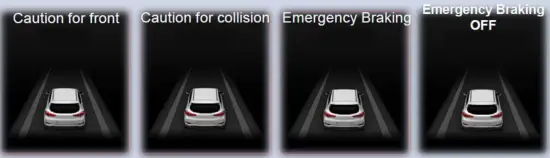

Cluster display under FCA mode
| Warning Message | |
| Dashboard Image |  |
| Explanation | Warning step to there step warning message + off |
Specification – MAR320A
Type A: Connector detachable type | Type B: Connector fixed type | |
Outline |  |  |
Note | This device supports 2 types according to with connector. | |
| Spec | Voltage : 12V, Operating Frequency : 76 ~ 77GHz | |
| Output power (Average) | Long Distance: 26.99 dBm (Including Tolerance) Short Distance: 23.54 dBm (Including Tolerance) | |
Connector Arrangement
- View of Unit conjunction interface
| No. | Signal | Signal Name | No. | Signal | Signal name |
| 1 | Battery | Power Wire | 5 | – | – |
| 2 | – | – | 6 | V_CAN-L | Vehicle CAN-L |
| 3 | V_CAN-H | Vehicle CAN-H | 7 | P_CAN-L | Private CAN-L |
| 4 | P_CAN-H | Private CAN-H | 8 | GND | System GND |
