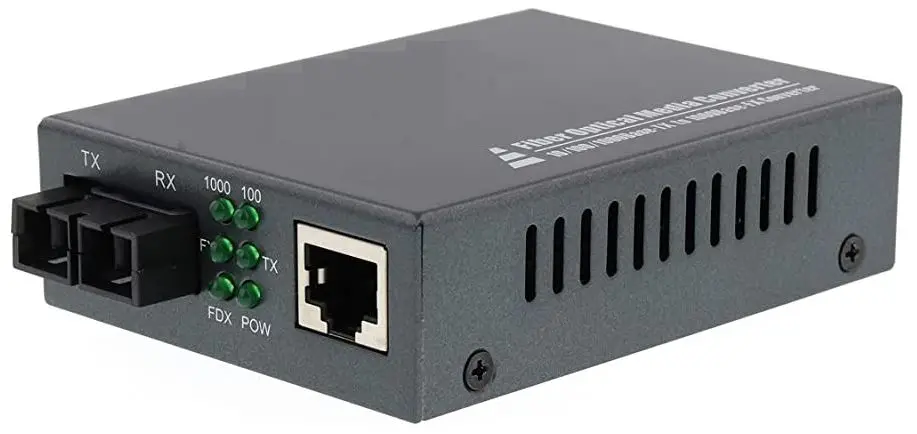

SECOMP 1000BaseSX Series Media Converter
Introduction
This Gigabit Ethernet Media Converter Series is designed to bridge a 10/100/1000BaseT(X) signal to a 1000BaseSX/LX signal. It’s used to extend the distance connection between two Gigabit Ethernet twisted-pair devices via the fiber cable transparently with no performance degradation. This Media Converter Series is based on the switching hub design. It can support Auto-Negotiation and Flow Control functions on the twisted-pair port. There are two SFP open slots for multi-mode or single-mode SFP modules.
Key Features
Compliant with IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LX Standards
- 1x 10/100/1000BaseT(X) Ethernet TP Port and 2x 1000BaseSX/LX Gigabit Ethernet Fiber Port
- 2x 1000BaseSX/LX Fiber Port can support either Multi or Single Mode
- TP Port can support Half/Full-Duplex, Auto-MDI/MDI-X, and Auto-Negotiation
Providing 19” Converter Chassis for up to 16 slots with redundant power supply for optional expansion use.
Application
Two Operating Modes:
- RJ-45 to SFP
- SFP to SFP
- SFP could be SM or MM
Installation
- DC Input & External Power Adapter
- The External Power Adapter specification:
- The device DC Input is +5VDC 2A.
The TP Port
The device TP port support Auto-MDIX, Auto-Negotiation, and Flow Control functions. It can work in the 10BaseT, 100BaseTX, or 1000SX/LX environment and the cable length up to 100 meters is for Cat5, Cat5e, or Cat6 shielded/unshielded twisted-pair cable.
2 x SFP open slots
There are two SFP open slots for SFP modules. Both multi-mode and single-mode are supported.
Package Contents
Before you start to install this switch, please verify your package that contains the following items:

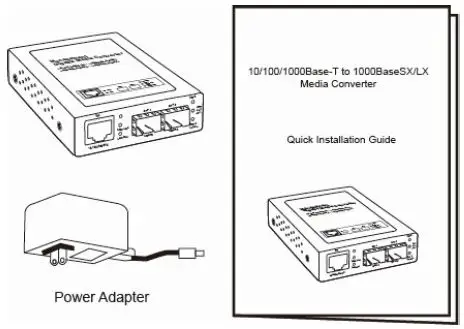

- One Media Converter
- One Power Adapter
- One Quick Installation Guide
Note:
If any of these items are found missing or damaged, please contact your local supplier for replacement.
LEDs
LED Indicators of Media Converter
| LED | Status | Operation |
| Power | On | The power is on. |
| TX | Flashing | The Port is transmitting data |
| RX | Flashing | The Port is transmitting data |
| LINK | On | Port is connected |
LLF/LFP Function

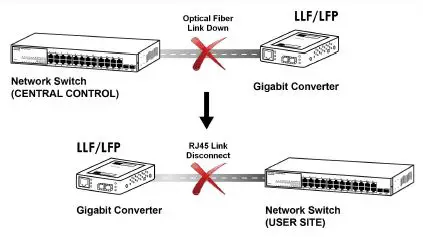

Link Loss Forwarding (LLF) / Link Fault Pass Through (LFP) is a function to pass the message if an optical fiber link is fail. With the optical fiber link fault pass-through, system administrators are able to notice the link failure within a short period of time, minimizing the loss caused by this problem.
Technical Specifications
| Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control |
| Features | Number of Ports: 1×10/100/1000BaseT(X) TP port 2x1000BaseSX/LX SFP open slots |
| Data Transfer Rate | 20/200/2000Mbps/Full-Duplex |
| Transmission Media | TP: 10/100/1000BaseT(X) Cat. 5, 5E, 6 UTP/STP, up to 100 m 1000BaseSX: 50/125μm Multi-Mode Fiber optic cable, up to 220 m 62.5/125μm Multi-Mode Fiber optic cable, up to 550 m 1000BaseLX: 9/125μm Single Mode Fiber optic cable |
| LED Indicators | Per Port: (TX): Link, TX (FX): Link, RX Per Unit: Power |
| Power Requirement | DC5V/2A |
| Power Consumption | 10 Watts (Max) |
| Dimensions | 102 x 74 x 22 mm (L x W x H) |
| Weight | 240 g |
| Operating Temperature | 0 to 45℃ |
| Storage Temperature | -20 to 90℃ |
| Humidity | 10 to 90% RH (non-condensing) |
| Certifications | FCC Class B, CE |
FCC Warning
This device has been tested and found to comply with limits for a Class B digital device, pursuant to Parts 2 and 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates and radiates radio frequency energy and, if not installed and used in accordance with the user’s manual, it may cause interference in which case users will be required to correct the interference at their own expense.
CE Warning
This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

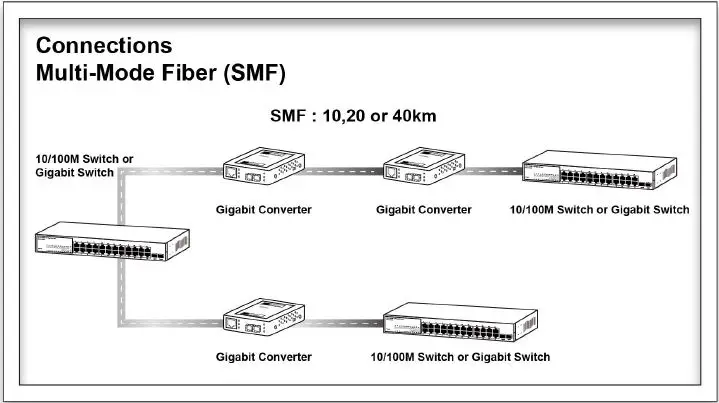

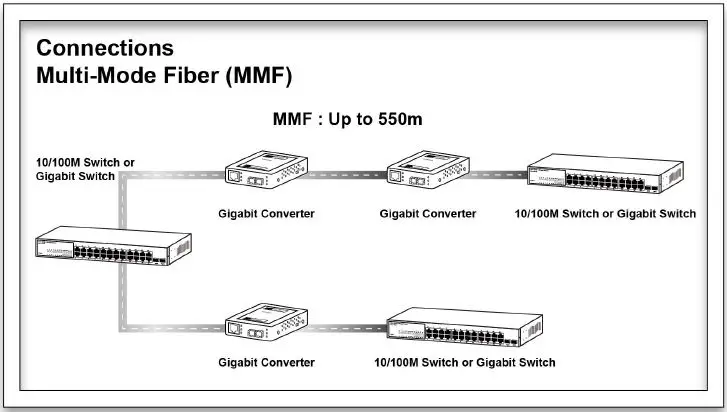

Connections
