8-Port Multi-Gigabit Switch,
2.5G, unmanaged
Quick Installation Guide
DN-80230
Introduction
The 8-Port Multi-Gigabit Switch (4-Speed) from DIGITUS® provides 8 x RJ45 ports with 2.5 Gbps bandwidth each. Expand your existing network easily with the available backplane bandwidth of 40 Gbps. No configuration is required on the switch itself; thanks to auto-negotiation and auto MDI/MDI-X, cables and speeds are also automatically detected. The switch can be used as a desktop variant or mounted on a wall with the included mounting accessories. Thanks to the external power adapter, the switch does not need a fan at all. Ideal for expanding/setting up small home or business networks with data rates of up to 2.5 Gbps – so even high workloads due to high-resolution streams or high data volumes are no problem.
Features
- Anzahl der Ports: 8 x 10/100/1000/2500 Mbps (4-Speed)
- Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz
- Auto-negotiation: Auto MDI/MDI-X
- IEEE 802.3x full-duplex flow control
- Backplane bandwidth: 40 Gbps
- Transfer method: Store and forward
- Switching rate: 3.72 Mpps (@2.5G)
- LED displays: 10/100/1000 Mbps Link/Act, 2.5 Gbps Link/Act, Power
- Jumbo frames: 12 KB
- Buffer memory: 12 Mbit
- L2 MAC table: 16K
- Fanless design
- Operating voltage: 12 V DC / 1.8 A
- Power consumption: 12 W max.
- Power supply, power adapter: 100 – 240 V AC, 50/60 Hz, 21.6 W
- Plug type, power adapter: Euro plug Type C (CEE 7/16)
- Plug type, device side: Coaxial plug (DC) 5.5 mm / 2.1 mm
- Operating temperature: 0 °C to +40 °C
- Operating humidity: 10% – 90% RH (non-condensing)
- Storage temperature: -10 °C to +60 °C
- Fanless design (air flow cooling)
- Dimensions: W 190 x D 120 x H 30 mm
- Weight: 735 g
Package Content
- 1 x 8-Port Gigabit Switch, 2.5G, Unmanaged
- 1 x Power adapter
- 1 x Accessories for wall mounting
- 1 x Quick start guide
Front Panel LED Indicators
The following table provides descriptions of the LED status and their meaning.
| LED | Color | Status | Description |
| Power | Green | On | The power of the Switch is On |
| 2.5G Link/Act | Green | On | A valid connection with 2.5Gbps |
| Blinking | Receiving Packets | ||
| 1000M/100M/ 10M Link/Act | Green | On | A valid connection with 1000M/100M/10Mbps |
| Blinking | Receiving Packets |

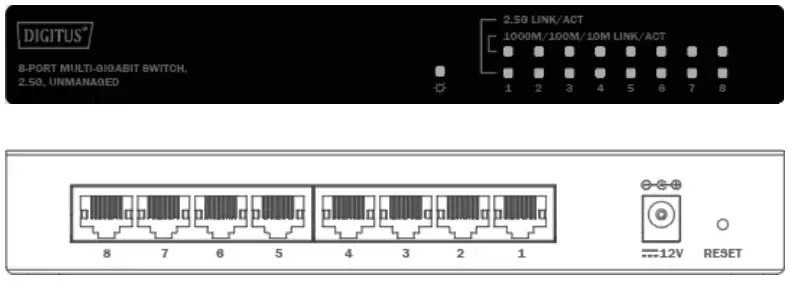

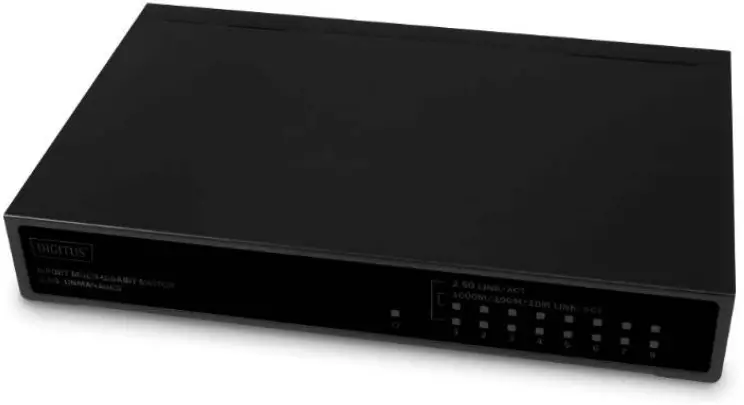

Front and Back Panels
Hardware Installation
This device will work with all OSs because there is no configuration needed for this stand-alone device. This switch has auto MDI-X ports that will auto-sense the cable type that you are using for each port. The switch will then automatically change the polarity of the port as need to ensure a link with either a straight-through or crossover cable. Remember, if you have a link light then you are using the correct cable.
Specifications
| Lan Port | RJ-45 x 8 Ports |
| Other Ports | lx DC Jack, lx Rest Button |
| LED Indicators | 8x G+G stacked LED (2.5G Link/Act, 1000/100/100M Link/Act) lx Green LED (Power) |
| Ethernet Standard | IEEE802.3: 100BASE-TX (802.3u) 1000BASE-T (802.3ab) 2.5G BASE-T (802.3bz) |
| Link Speed | 100BASE-TX: 100 Mbps 1000BASE-T: 1 Gbps 2.5G BASE-T: 2.5 Gbps |
| Duplex | Supports both full-duplex/half-duplex |
| Autonegotiation | Support on all ports |
| AutoMDl/MDI-X | Support on all ports |
| Jumbo Frame | Support (more than 9,216 bytes) |
| Type of switching | Store and forward |
| Switching rate | 100BASE-TX: 148,810 PPS 1000BASE-T: 1,488,095 PPS 2.5BASE-T: 3,720,238 PPS |
| Switched fabric | 40 Gbps |
| Operating temperature | 0 — 45 °C |
| Storage temperature | -10 — 60 °C |
| Humidity range | — 90 % |
| Dimensions (WxDxH) | 190 x 120 x 30 mm |
| Color | Black |
| Cooling Fan | Non (air flow cooling without fan) |
| Power Adapter | 12 V / 1.8 A |
This is a Class B product. In-home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures.
Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below-mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
ASSMANN Electronic GmbH | Germany
