Siren Marine Wiring Cable 1 Instructions

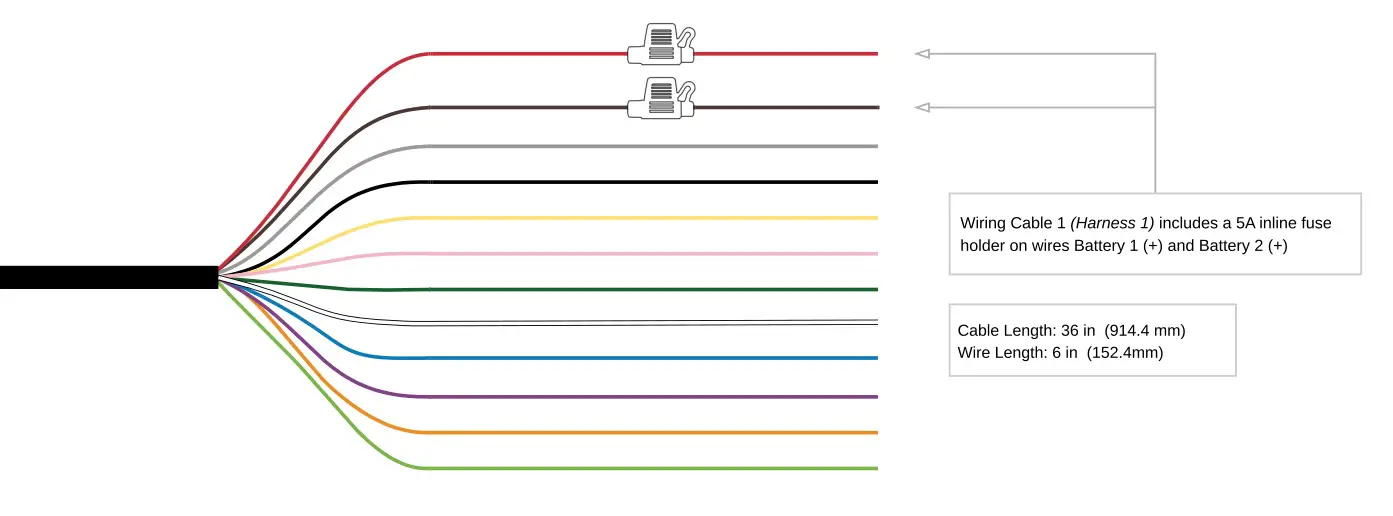

siren marine Wiring Cable 1
Instructions

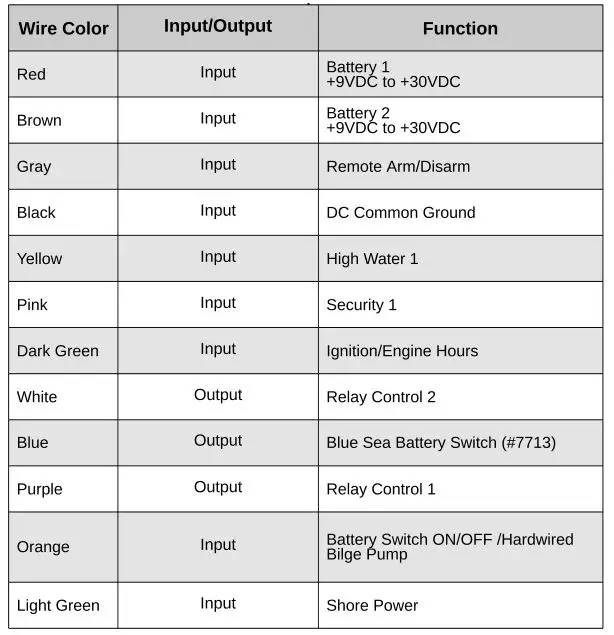

Installation Instructions:

1. Attach the wiring Cable 1 connector to the device Harness 1 connecter by aligning the keyway, then screw together tightly.
2. Connect the ground (-) wire (black) on the wiring cable to a battery negative post or common ground.
3. Connect the power (+) wire (red) on the wiring cable to a +9VDC to +30VDC battery positive post or constant +9VDC to +30VDC power source.
4. Connect selected wired sensors using Posi-Tap? connectors, terminal block, or other connection type.
