Instruction Manual
15-Gallon 12 Volt Spot Sprayer

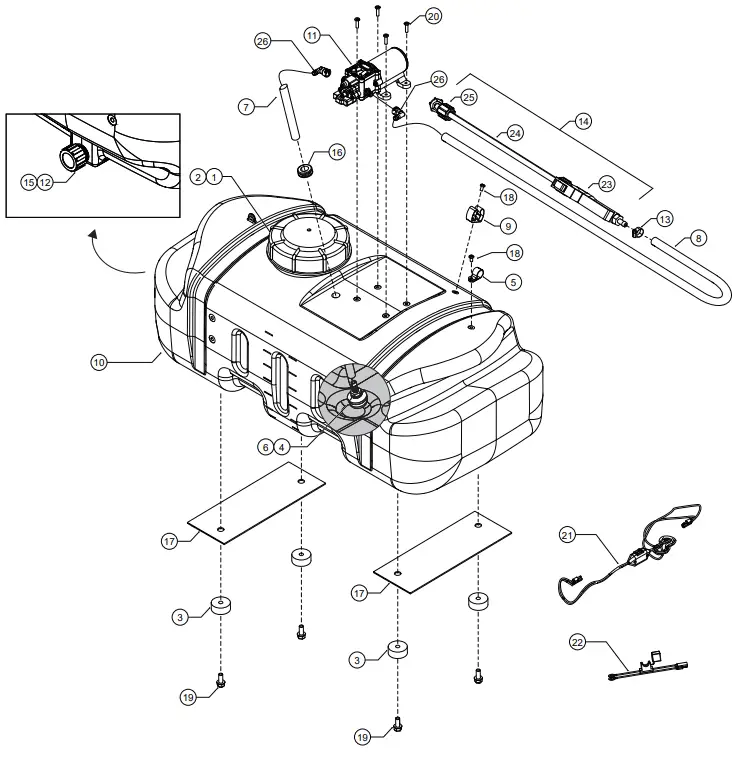

| REF. NO. | PART NO. | QTY. | DESCRIPTION |
| 1 | ST43175 | 1 | TANK FILL CAP |
| 2 | ST44017 | 1 | LANYARD FOR TANK FILL CAP |
| 3 | ST43176 | 4 | RUBBER BUMPER |
| 4 | ST43182 | 1 | SUMP FITTING 3/8″ BARB |
| 5 | ST43191 | 1 | HOSE HOLDER 3/8″ |
| 6 | ST43258 | 1 | SUMP STRAINER 3/8″ |
| 7 | 2-337 | 1 | HOSE 3/8″ x 13.25″ (ON 45-0585) |
| 2-334 | 1 | HOSE 3/8″ x 18″ (ON 45-0586) | |
| 8 | 2-340 | 1 | HOSE, 3/8″ X 240″ |
| 9 | ST43287 | 1 | SPRAY WAND HOLDER, LARGE |
| 10 | 2-471 | 1 | 15 GALLON TANK, WHITE |
| 2-468 | 1 | 25 GALLON TANK, WHITE | |
| 11 | ST43790 | 1 | 1.6 GPM 100 PSI PUMP |
| 12 | ST43516 | 1 | DRAIN CAP |
| 13 | ST43652* | 1 | HOSE CLAMP 3/8″ – 1/2″ |
| 14 | ST43238 | 1 | SPRAY WAND WITH PLASTIC TIP |
| 15 | ST43684 | 1 | WASHER FOR DRAIN CAP |
| 16 | ST43844 | 1 | GROMMET 5/8 ID, 1-1/8 OD, 7/8 GROOVE |
| 17 | ST62009 | 2 | BOTTOM BRACE |
| 18 | ST65000 | 2 | 10-24 X 3/8″ TRUSS HEAD SCREW |
| 19 | ST65007 | 4 | 5/16″ X 3/4″ FLANGE BOLT |
| 20 | ST65076 | 4 | #10-24 X 3/4 TRUSS HEAD BOLT |
| 21 | ST43472 | 1 | WIRE HARNESS, SWITCH |
| 22 | ST43483 | 1 | WIRE HARNESS, BATTERY |
| 23 | ST43124* | 1 | SPRAY WAND VALVE |
| 24 | ST43515* | 1 | SPRAY WAND EXTENSION |
| 25 | ST43295* | 1 | SPRAY WAND PLASTIC TIP |
| 26 | 2-382* | 2 | RA QC FITTING, 1.6 GPM PUMP |
| ST50749* | 1 | 15A ATO / ATC Fuse (NOT SHOWN) | |
| ST43489 | 1 | 15 LABEL (NOT SHOWN) | |
| ST43490 | 1 | 25 LABEL (NOT SHOWN) | |
| ST43488 | 1 | WARNING LABEL -CHEMICAL HAZARDS (NOT SHOWN) |
*Service Parts
