USER MANUAL

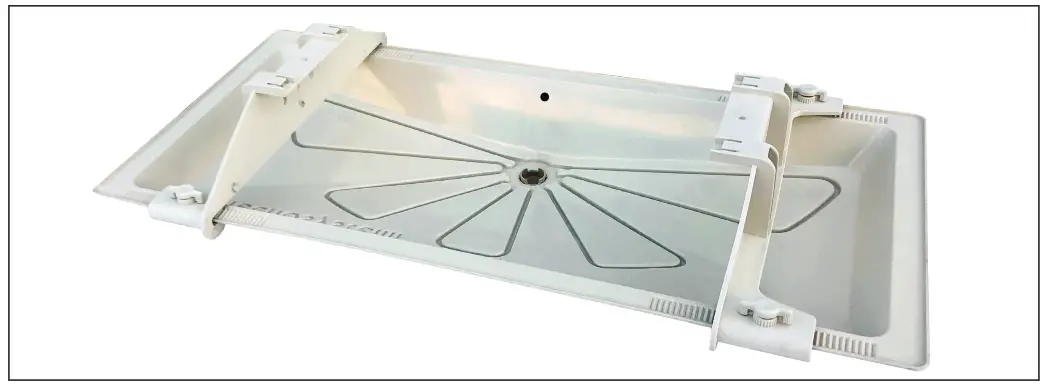

CONDENSATE DRAIN PAN “BLUE RIVER”
COD. 11100100F – 11100101F – 11100100F3
11100101F3 – 11100100F6 – 11100101F6

CONDENSATE DRAIN PAN “BLUE RIVER”
COD. 11100100F – 11100101F

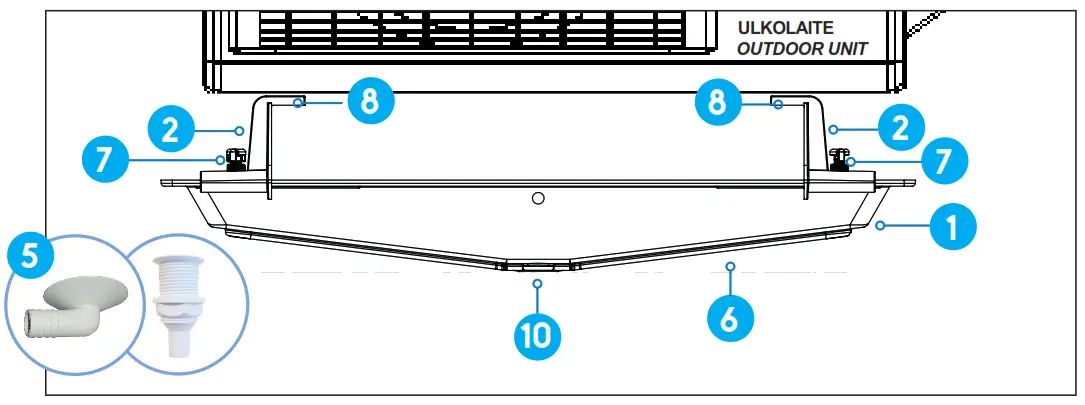

COMPONENT

ASSEMBLY INSTRUCTIONS

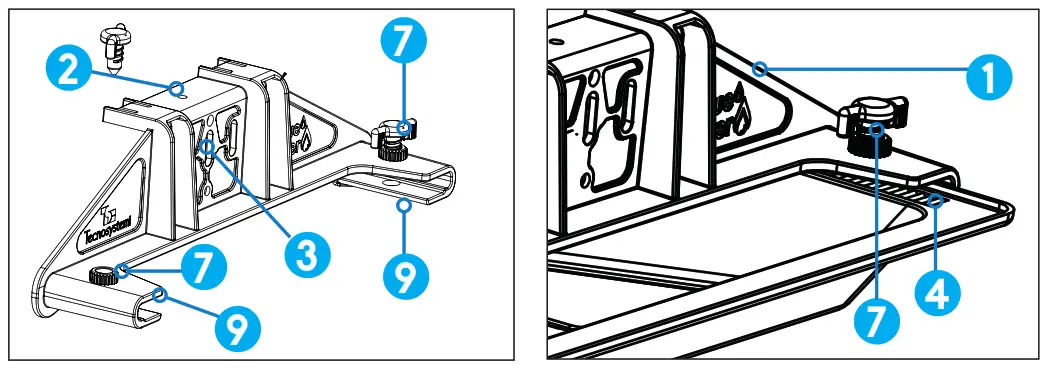

• LAY THE TELESCOPIC ANCHORING BRACKETS 2 ON THE ARM OF THE WALL BRACKETS 8 AND FIX THEM TO THE SLOTS USING THE SCREWS 3 . (IF THERE IS NO HOLE, ARRANGE FOR DRILLING.)
• LAY THE DRAIN PAN 1 ON HOUSING 9 AND LE IT SLIDE ONTO THE DESIRED POSITION AND BLOCK IT WITH THE BLOCKING THREADED PIN 7.
• INSERT THE PIPE COLLECTED CONDENSATE 5 IN THE SEAT PREPARED.

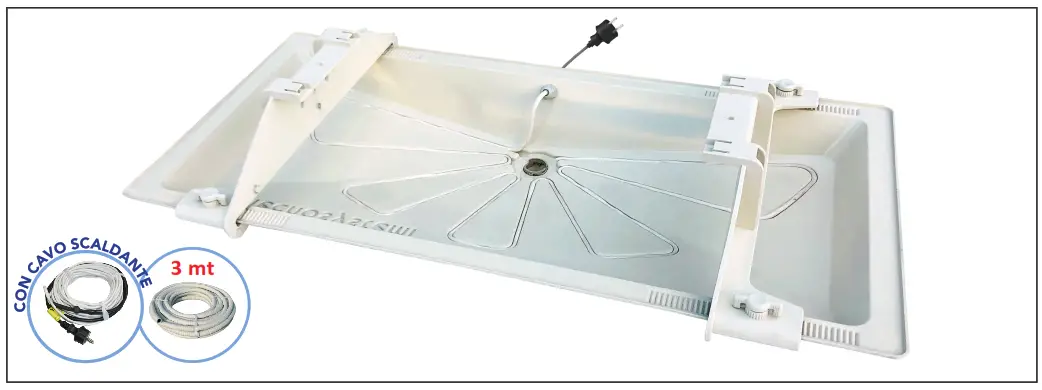

CONDENSATE DRAIN PAN WITH HEATING CABLE 3 mt “BLUE RIVER” COD. 11100100F3 – 11100101F3

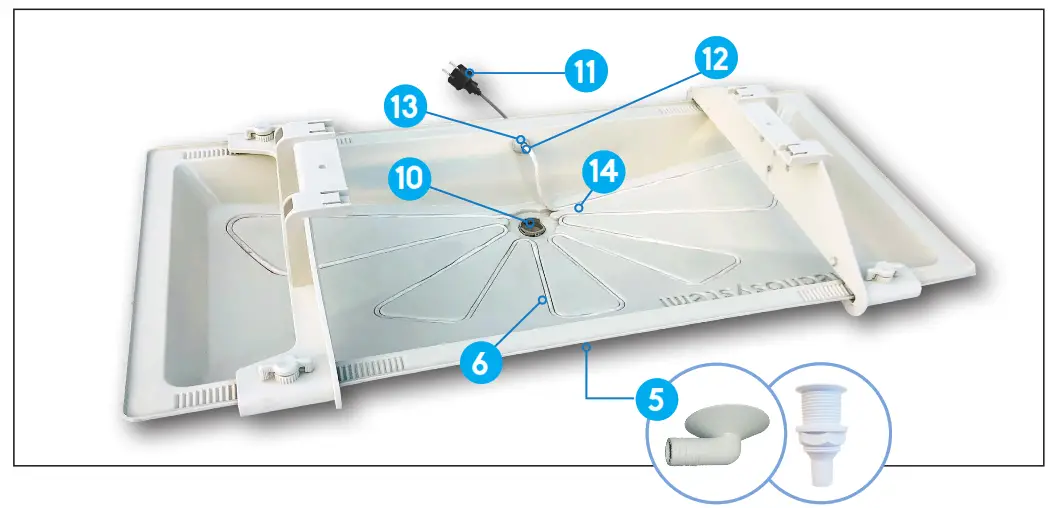

COMPONENT

ASSEMBLY INSTRUCTIONS HEATING CABLE

• AFTER FOLLOWING THE INSTRUCTIONS ON PAGE 3

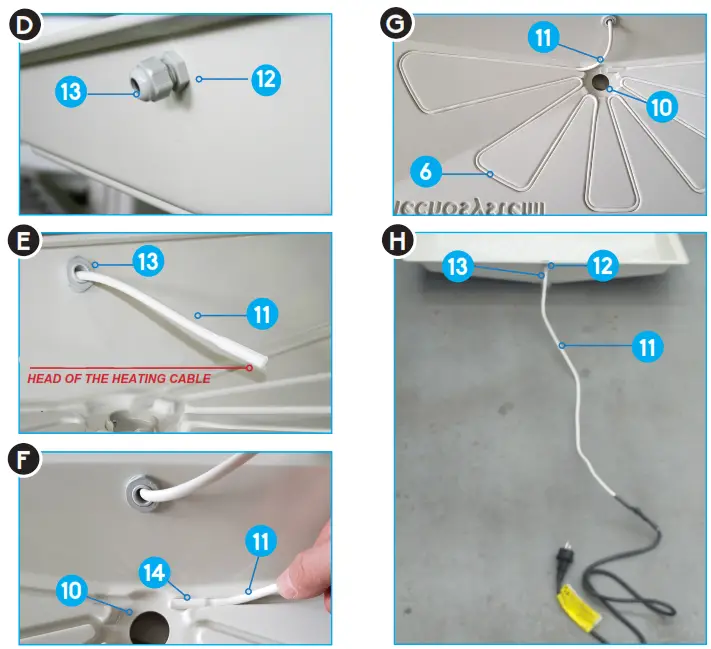

• INSERT THE CABLE GLAND 13 INTO THE REAR HOLE OF THE DRAIN PAN 12 (PICTURE D)
• INSERT THE HEATING CABLE 11 (PICTURE E) AND PLACE THE HEAD OF THE CABLE ON THE STARTING POSITION 14 (PICTURE F)
• ROUTE THE CABLE AND PUSH IT INTO ITS FLOWER-SHAPED HOUSING 6 TILL THE END (PICTURE G)
• CLOSE THE CABLE GLAND 13 TO FASTEN THE HEATING CABLE 11 (PICTURE H)
• FIX THE CONDENSATE DRAIN PIPETTE 5

*ATTENTION! THE OPERATION MUST BE CARRIED OUT BEFORE ASSEMBLING THE CONDENSATE DRAIN PUMP TO THE BRACKET.
FOR THE ASSEMBLY OF THE DRAIN PAN “BLUE-RIVER” TO THE BRACKET SEE PAGE 3

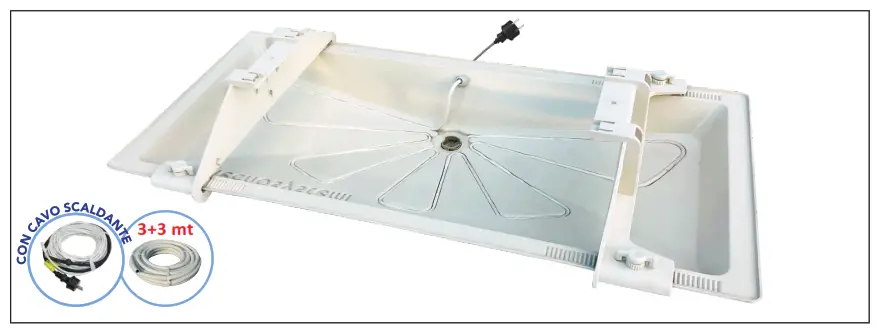

CONDENSATE DRAIN PAN WITH HEATING CABLE 6 mt “BLUE RIVER” COD. 11100100F6 – 11100101F6

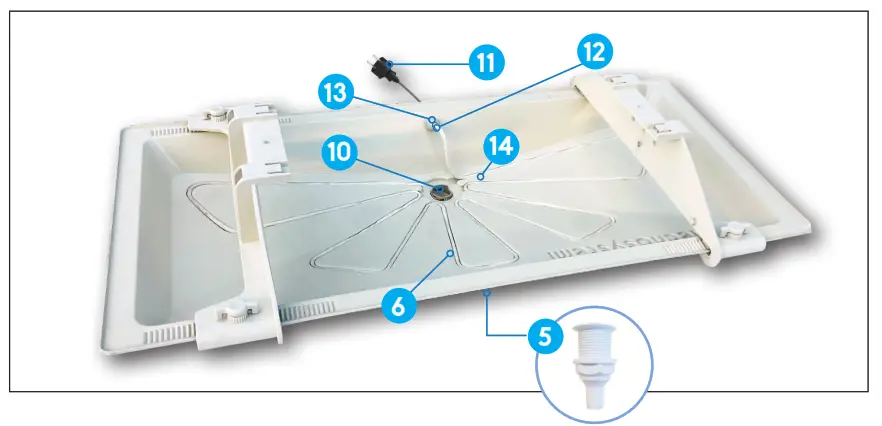

COMPONENT

ASSEMBLY INSTRUCTIONS HEATING CABLE

• AFTER FOLLOWING THE INSTRUCTIONS ON PAGE 3

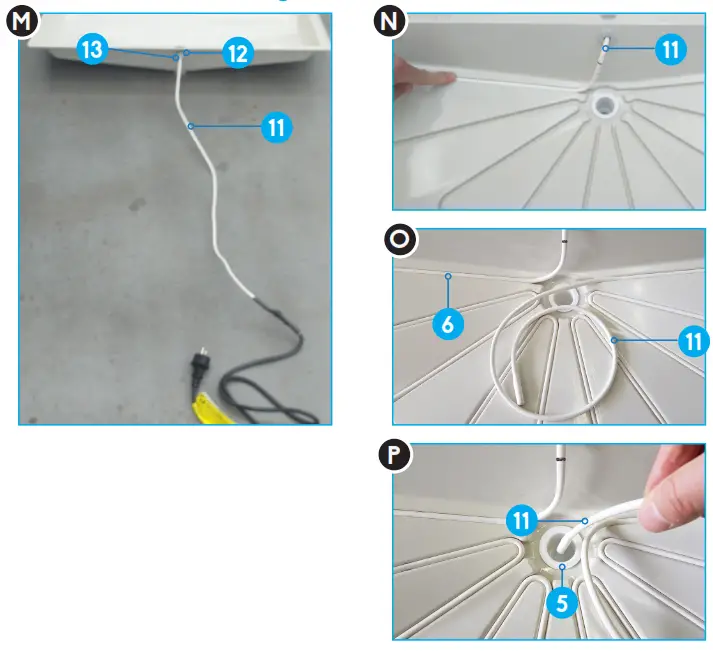

• INSERT THE CABLE GLAND 13 INTO THE REAR HOLE OF THE DRAIN PAN 12 AND FIX IT SLIGHTLY AS SHOWN ON THE (PICTURE M).
• ROUTE THE CABLE TAKING CARE TO POSITION THE SIGN AS SHOWN IN PHOTO 11 AND PUSH IT INTO ITS FLOWER-SHAPED HOUSING 6 TILL THE END, TIGHTENING THE CABLE GLAND 13 (PICTURE O).
• INSERT THE REMAINING HEATING CABLE 11 INTO THE DRAIN.

*ATTENTION! THE OPERATION MUST BE CARRIED OUT BEFORE ASSEMBLING THE CONDENSATE DRAIN PUMP TO THE BRACKET
FOR THE ASSEMBLY OF THE DRAIN PAN “BLUE-RIVER” TO THE BRACKET SEE PAGE 3
WARRANTY
The warranty lasts 2 years from the date of delivery.
The supplier company guarantees the quality of the materials used and the correct construction of the components. The warranty covers defects in materials and manufacturing defects and refers to the supply of spare parts of any components featuring defects, without any compensation, interest or claim for damages.
The warranty does not cover the replacement of components damaged due to:

• incorrect transportation;
• installation not compliant with that specified in this installation, use and maintenance manual;
• non-observance of product technical specifications;
• Anything else that is not linked to original faults of the material or production provided that the customer complaint is covered by the guarantee and a claim is made within the time limit and in the way requested by the supplier, the same supplier will commit, at their own discretion, to replace or repair any product or part of product showing signs of faults or defects.

DISPOSAL

At the end of its useful life, the product must not be disposed of with household waste. It can be deposited at a dedicated recycling center run by local councils, or at retailers who provide such a service. To highlight the requirement to dispose of household electrical items separately, there is a crossed-out waste paper basket symbol on the product.
