Instructions
GRAND BERNA

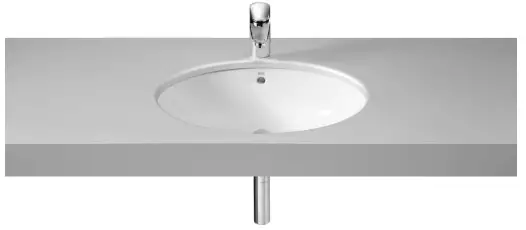

Under countertop vitreous china basin
REF: A327899000
FEATURES
Bowl depth (mm): 170
Bowl length (mm): 555
Bowl position: Central
Bowl width (mm): 325
Fixing kit: Included
Installation type: Built-in / Under countertop
Material: Vitreous china
Overflow type: Standard
Shape: Round
Taphole configuration: No tapholes
Trap: Not included
Waste: Not included
DIMENSIONS
COLOURS AND FINISHES
Length 620 mm.
Width 390 mm. 00 White
Height 215 mm.

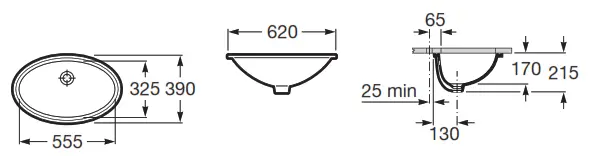

TECHNICAL DRAWINGS

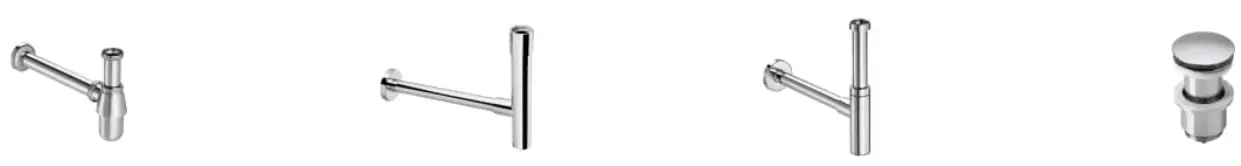

COMPATIBLE WITH
 | |||
| 1 1/4″ outlet connector for basin. 250 Pipe 506401614 | 1 1/4″ outlet connector for the basin. 300 Pipe 506403110 | 1 1/4″ outlet connector. 300 tube 506403810 | 1 1/4″ waste for basin/bidet with overflow and automatic plug 505400000 |
Grand Berna
A proposal for those seeking a sense of spaciousness in the bathroom. This collection is a wash basin with a singular design that imbues the room with style and personality. A new model that surprises with its meticulous design, providing maximum comfort and wellbeing, which it achieves with its considerable dimensions.
