WINLED Lilja 12W Surface Mounted Panel
WARNING
- For safety reasons, only a qualified electrician may perform the installation maintenance, or inspection in accordance with these instructions.
- Switch the power off before installation or maintenance.
- The product warranty is only valid when the connection to the mains current is carried out using a compatible Winled LED driver.
The manufacturer is not responsible for incorrect use of the luminaire
INFO
- The light source of this luminaire cannot be replaced. When the luminaire no longer works, it has to be decommissioned.
- These instructions must be kept and handed over to the user of the luminaire.
- This product contains a light source of energy efficiency class F.

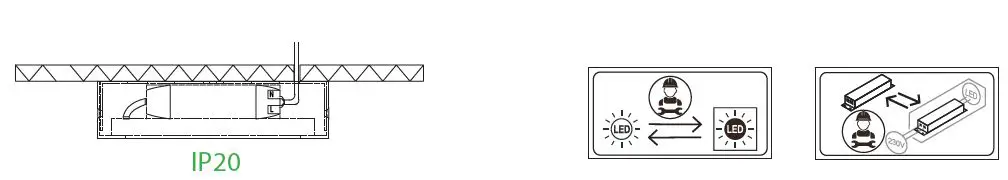

FIGURES
- Via the wind.fi website, you can find the luminous intensity distribution diagrams dimension diagrams, technical specifications, and these installation instructions in electronic format.

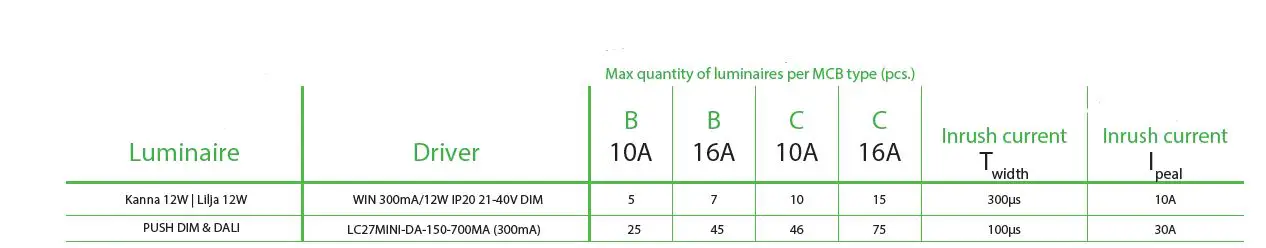

Load information
- Before installation or maintenance, disconnect the luminaire group from the electrical network and make sure that no one can switch the power back on during the installation

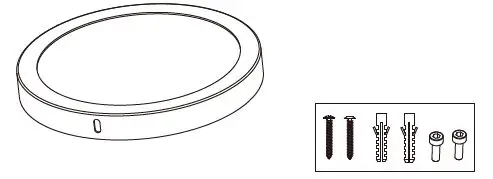

- Take out the LED downlight and accessory pack from the box.

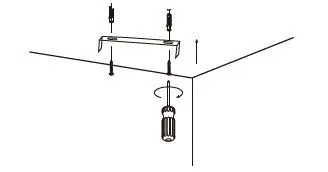

- Knock the plastic anchor into the ceiling. Fix bracket with screw on the ceiling.

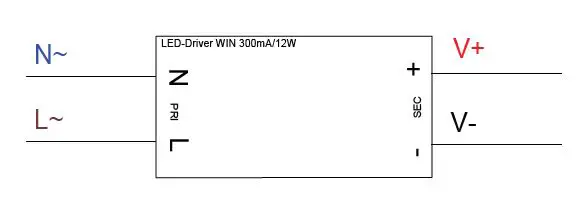

- Connect the supply cable (L/N) to the LED driver and make sure that the wires have been connected correctly.If the connection cable of the luminaire has not been fastened to the LED driver, connect the cable to the LED driver in accordance with the markings. Connect the snap connector of the LED driver to the luminaire’s counterpart.

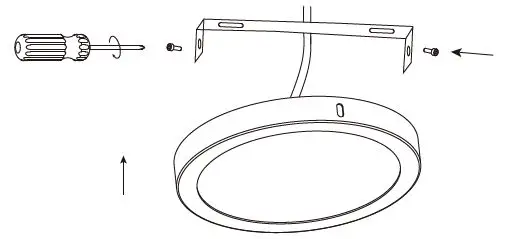

- Insert the lamp on the bracket, and fix the bracket and lamp tightly with a screw.
- Switch the power on and check the functionality of the luminaire.
