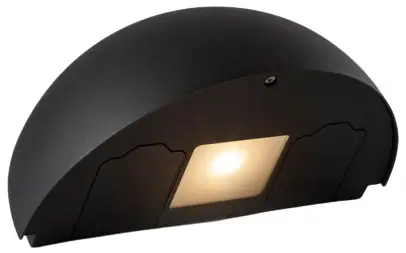

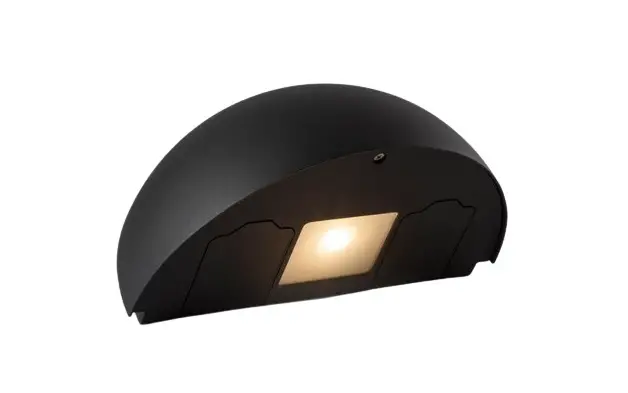

hidealite Arc and Arc Socket Instruction Manual
SAFETY INSTRUCTIONS
Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance.

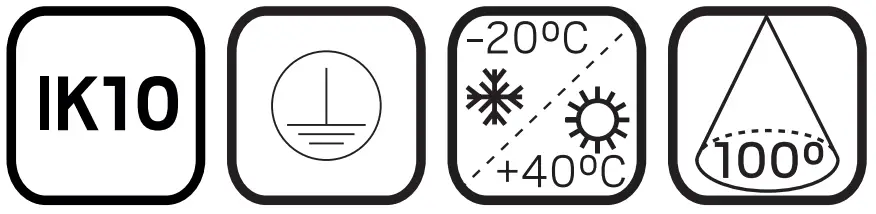

Symbols
For explanation of symbols see www.hidealite.se
Specifications
| E-nr | Snro | El.nr | GTIN | Name | LED color | Color | Total Effect |
| 77 033 27 | 45 234 45 | 31 060 33 | 7392971131290 | Arc | 3000K | White | 7W |
| 77 033 28 | 45 234 46 | 31 060 34 | 7392971131306 | Arc | 3000K | Grey | 7W |
| 77 033 29 | 45 234 47 | 31 060 35 | 7392971131313 | Arc | 3000K | Anthracite | 7W |
| 77 033 30 | 45 234 48 | 31 060 36 | 7392971131320 | Arc Socket* | 3000K | White | 7W |
| 77 033 31 | 45 234 49 | 31 060 37 | 7392971131337 | Arc Socket* | 3000K | Grey | 7W |
| 77 033 32 | 45 234 50 | 31 060 38 | 7392971131344 | Arc Socket* | 3000K | Anthracite | 7W |

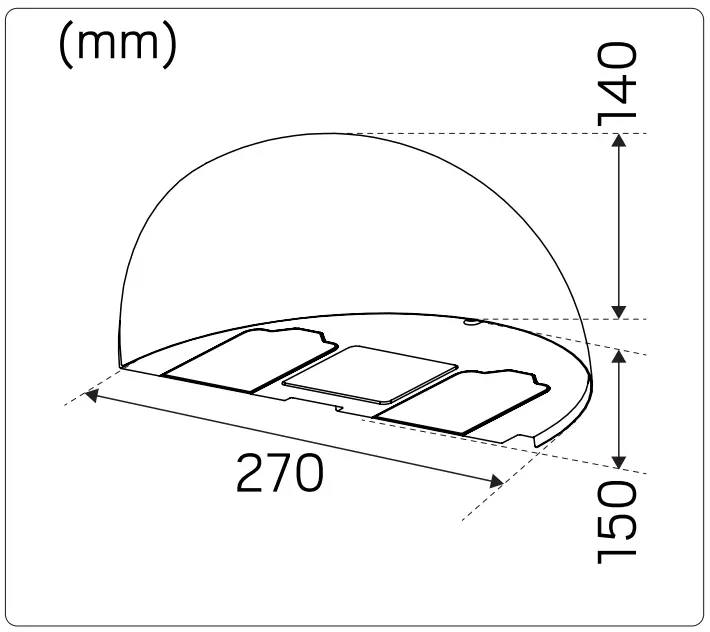

Dimensions

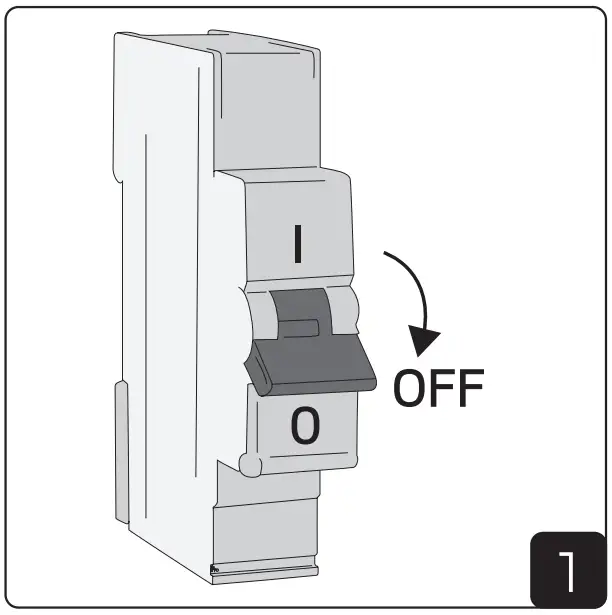

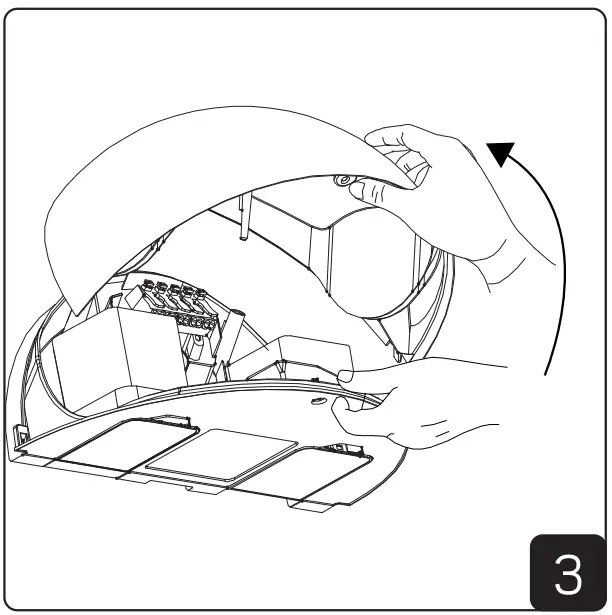

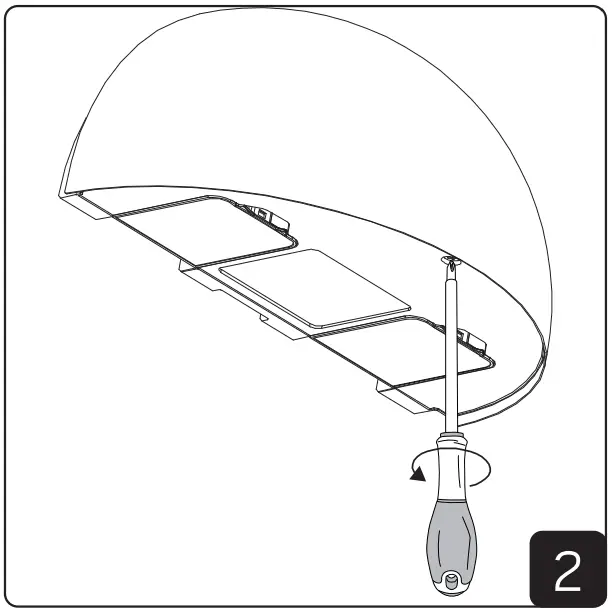

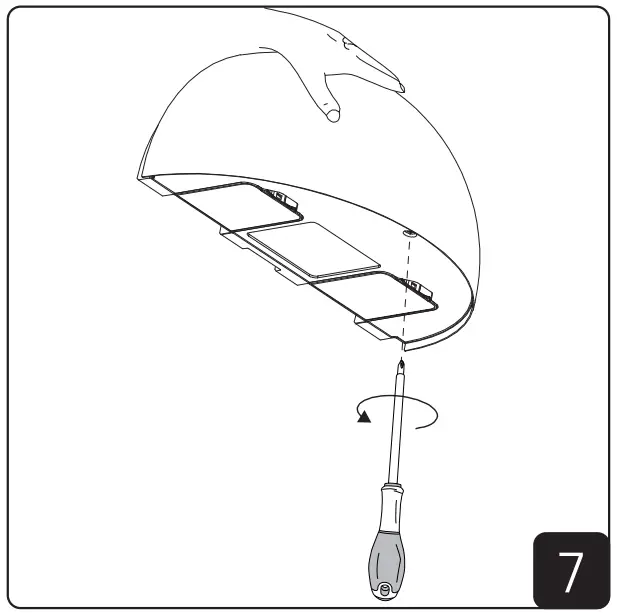

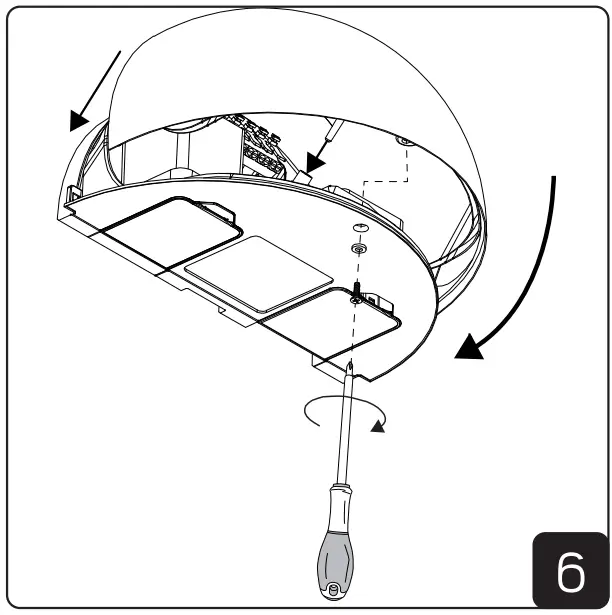

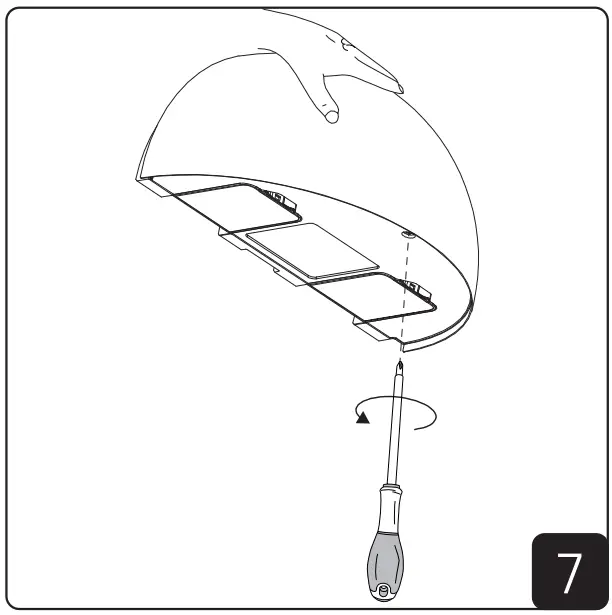

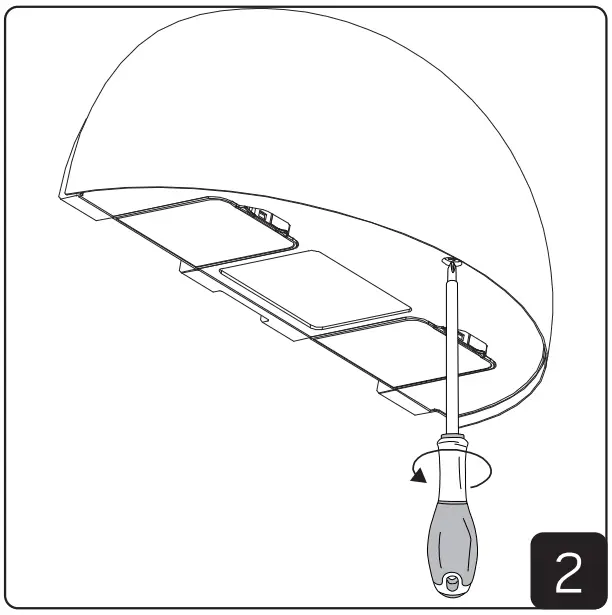

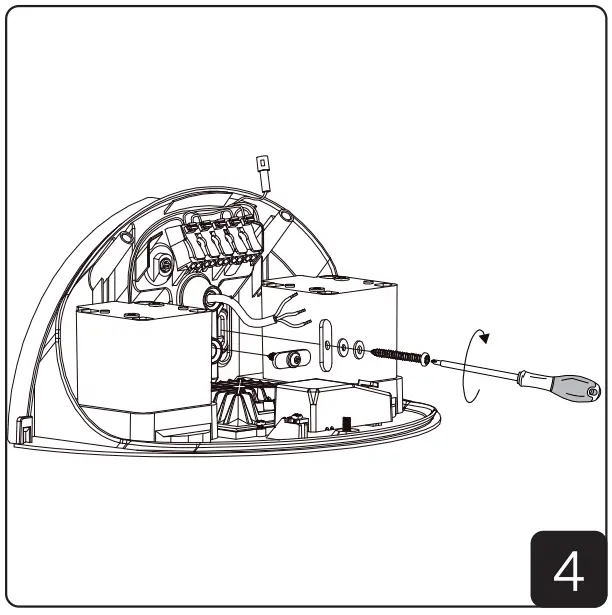

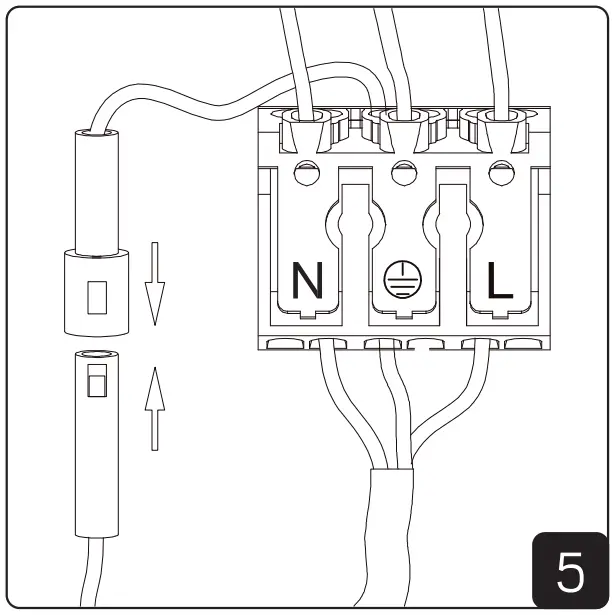

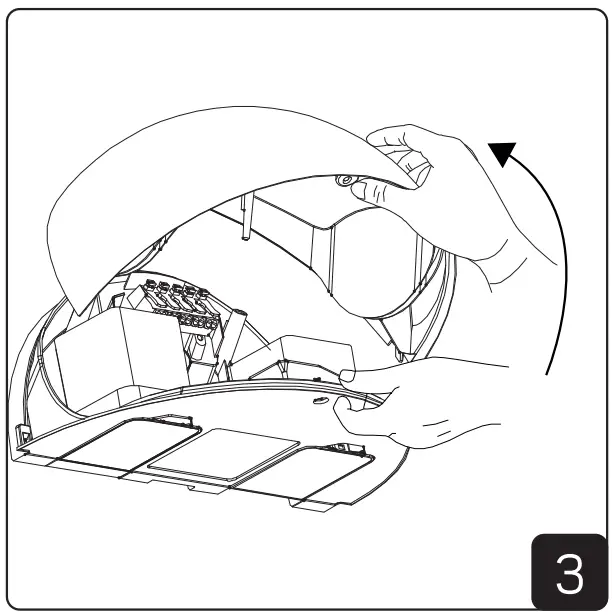

Installation

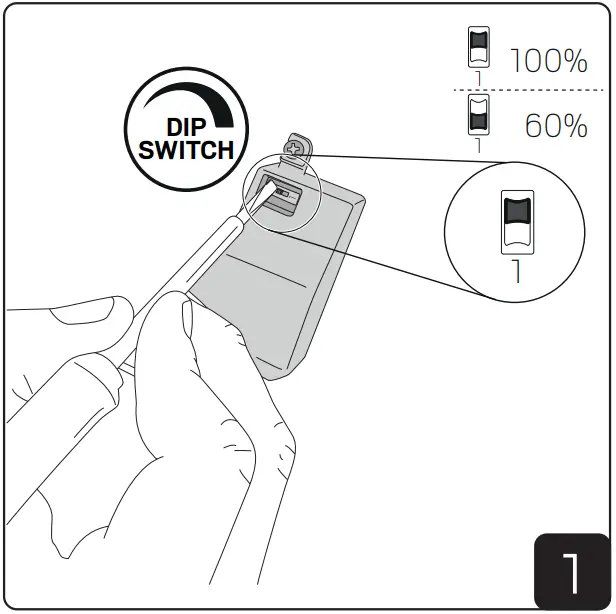

DIP-Switch dimming

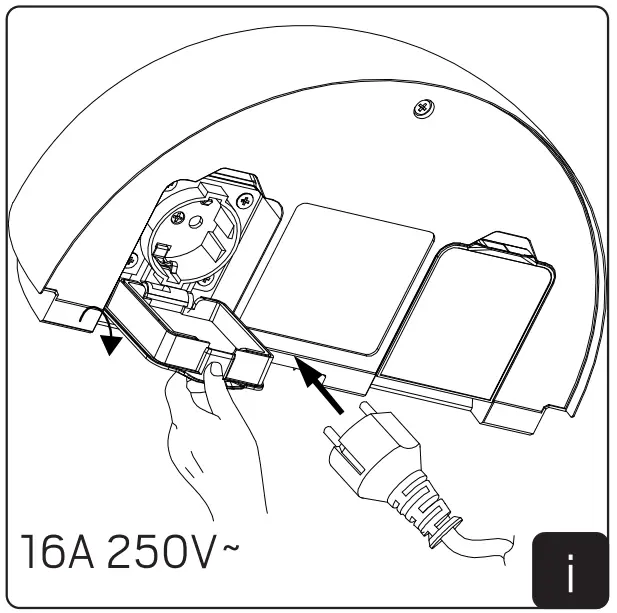

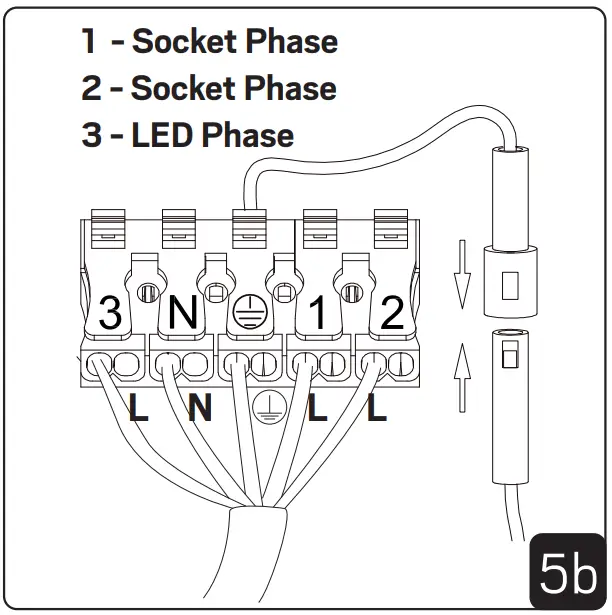

Installation – Arc Uttag

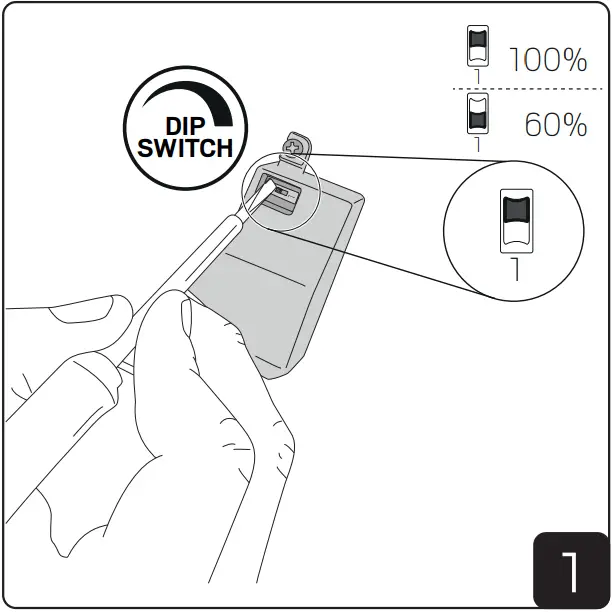

DIP-Switch dimming
Installation – External driver
Elektro Elco AB, Tallvägen 5, SE-56435 Bankeryd, Sweden | [email protected] | www.hidealite.se | www.hidealite.uk | www.hidealite.fi | www.hidealite.no | www.hidealite.dk
