Fulham TJTUNV023ACXXXB LED Light Engines Modules Retrofit Kits

DirectAC UNV Retrofit Kit Engines

• Integrated AC Direct Drive (No DC Driver)
• Universal Voltage (120~277) AC Engine
• Suitable for open or fully enclosed luminaires
• Suitable for luminaires with plastic and glass lenses
• All 90CRI product meets CEC Title 24 requirement
• cULus Classified 1598C
• cULus Recognized 8750
• Energy Star Luminaire 2.1 Listed (for rebate programs)
• Energy Star Luminaire CSD

General Specifications

1. See page #4 “Certification Chart” for exact models.
2. Measured electrical data per UL file

Electrical and Optical Specifications

NOTES:

1. Nominal luminous flux includes a 7.5% loss due to lens. Use a 1.075 multiplier when lens is removed.
2. Electrical and optical specifications are based on Tc mod = 25ºC @120V. Reference Amb. Temp. vs Rel. Lum. Flux for other temperatures.
3. Specifications are subject to change without notice.
4. Meets CEC Title 24 requirement.
5. ~10% lumen depreciation @277V input.

Thermal Specifications

DirectAC Engine Retrofit Kit (B)

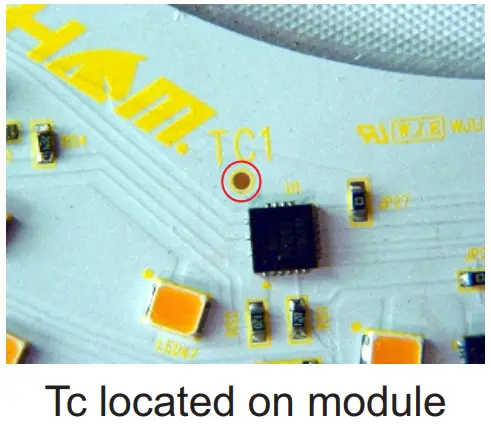

Thermal De-Rating: Tc vs. Luminous Flux

NOTES:

1. Refer to LED Engine Retrofit Kit Installation Instructions for further detail.
2. This LED Engine Kit can retrofit any luminaire with a dimension/volume greater or equal to the minimum dimensions shown below and on the Installation Instructions.
3. This LED Engine Kit can be used with luminaires similar to the one illustrated on the Installation Instructions.

Suitable for surface mounted luminaire with minimum dimensions or volume: 8.5” Dia. x 4.75” H or 173.92 cubic inches

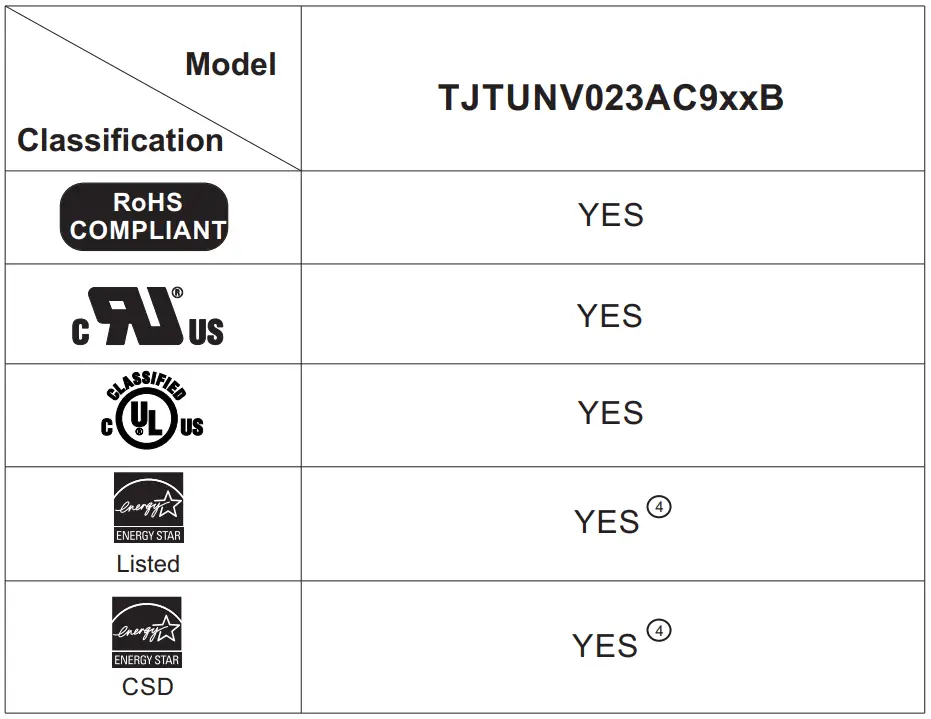

Certification Chart

Energy Star™ TM-21 Calculator Data

Compatible Tested Dimmers
(Contact Fulham for other alternatives)

(TRIAC or ELV Dimmers)

DirectAC Engine Equivalency Chart

NOTES:

1. For reference only, several factors apply.
2. Emergency systems are not UL classified for field installation.

Flicker Test Data Summary
(Test performed by third party lab using, Lutron S-600P dimmer)

With Dimmer at 100%

With Dimmer at 20%

With Dimmer at Minimum Light Output

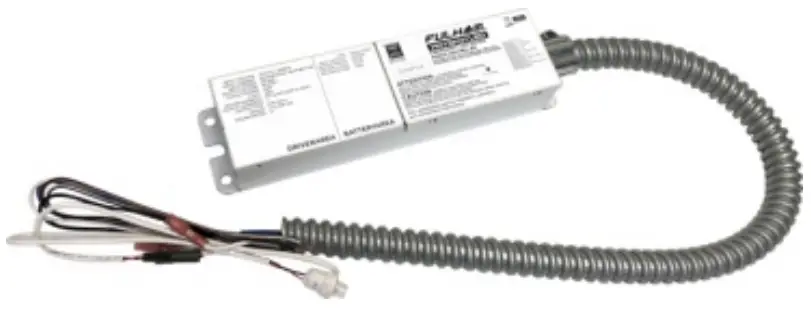

Battery Backup Option

• FHSCP-UNV-6W-L-SD: Emergency LED Driver for Direct AC Engines

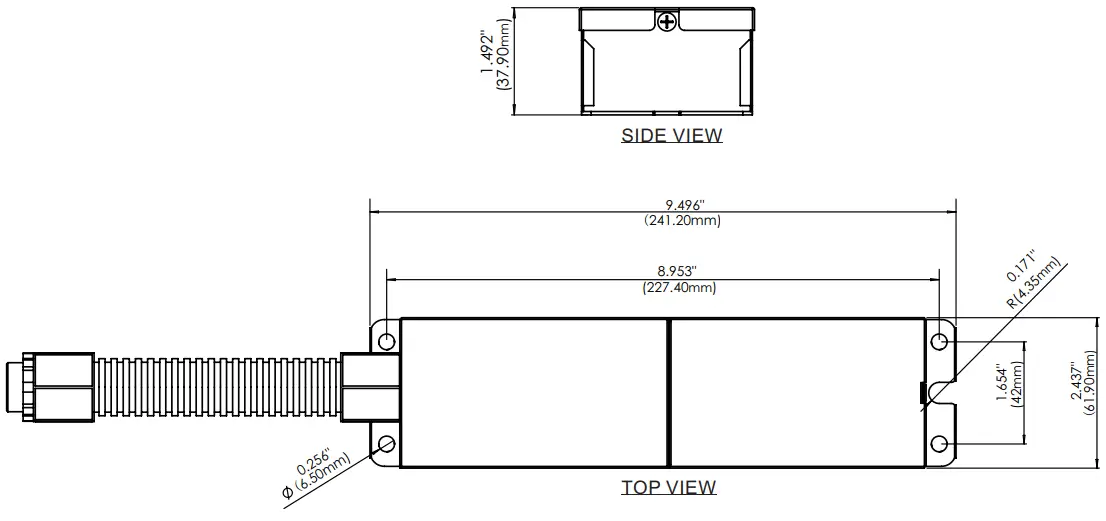

Mechanical Drawing

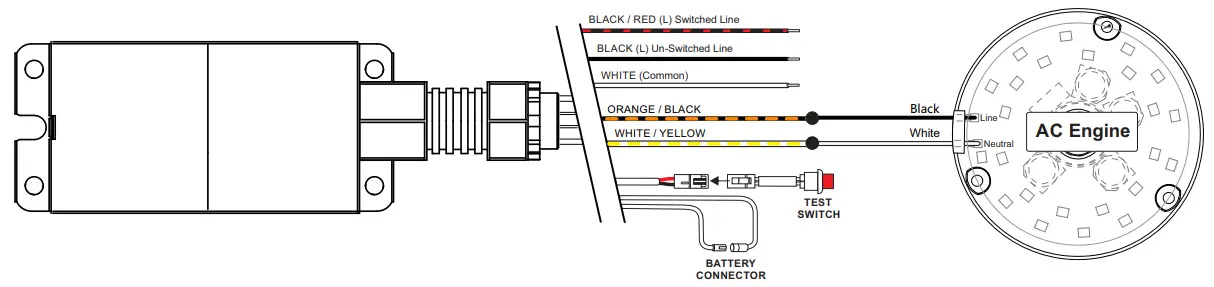

Wiring Diagram

Specification Sheet:

• https://www.fulham.com/PDFs/SpecSheets/FHSCP-UNV-6W-L-SD-2020-857-spec.pdf

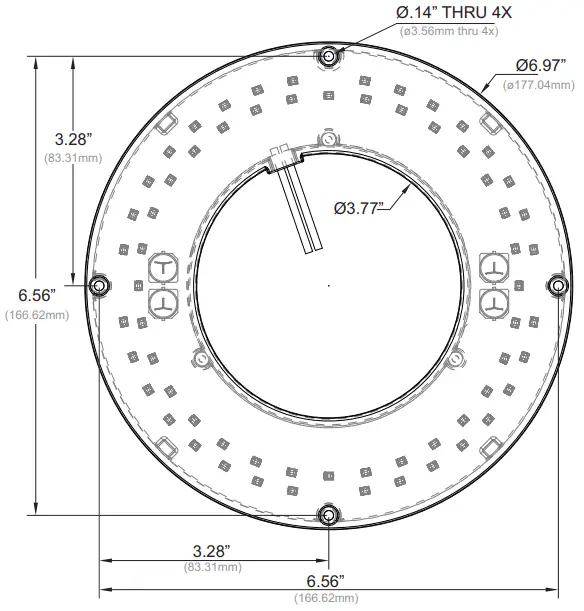

Mechanical Drawings

(Scale 13 : 20)
Exploded View

Top View

Side View

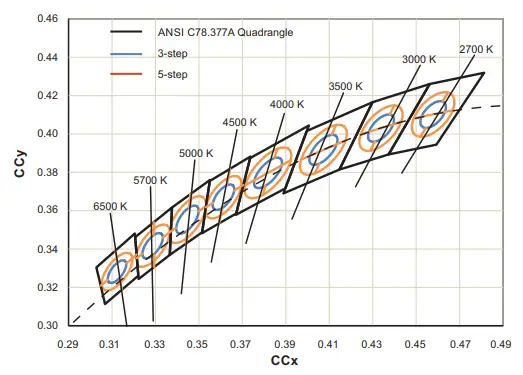

Color and Binning

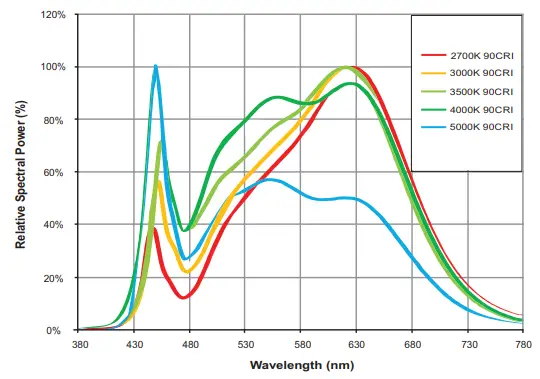

Optical Spectrum

NOTES:

1. The Color and Binning and Optical Spectrum charts are for reference only. For more detailed info, contact factory.
2. Binning per ANSI C78.377-2015 @ 85°C; 3 SDCM.
3. The Optical Spectrum values vary depending on product type and color rank.

Guidelines

Reduced Flicker Operation Feature

• DirectAC Engine models have added circuitry to help reduce the Flicker when operated on the 50/60Hz power lines.
  The Flicker percentage on these models is below 30% when operated at line voltage, per CEC requirement.
  Dimming by line voltage devices may increase the Flicker percentage as the power levels are reduced.

Hi-Pot Testing (Caution)

• All DirectAC Engine models are Hi-Pot tested on the Fulham production line. We advise NOT to apply AC high voltage Dielectric test to LED products as this may damage the sensitive electronic components as well as the LEDs. Please inspect the connection wires for any nicks or cuts in the insulation during and after installation.

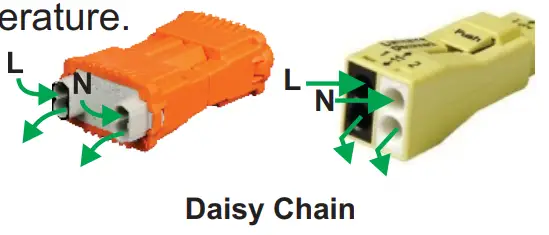

Termination Notes

• A luminaire disconnect UL listed connector is included, as part of Fulham’s retrofit kit only, to meet Energy Star requirements.
• Use solid wire size 18AWG/12” per pole, rated at max 600V load and 105°C operating temperature.
• Strip wires to 11-13mm (0.47in.).
• Connector not for multiple use.

  For additional information on Wago’s 873 Series Lumi-Nuts® and IDEAL’s 102X connector, please visit:
  http://www.wago.com/infomaterial/wago_ebook/51261593/flipviewerxpress.html
  https://idealind.com/shop/30-102x.html

Environmental Rating

• DirectAC Engines are rated for dry and damp locations.

IC Over Temperature Control

• DirectAC Engine models have built in Thermal management, if the unit experiences higher than normal ambient temperatures the circuit by design will reduce the drive current to the LED there by reducing the thermal impact on the LED’s.

Fastening to Luminaire

• When installing this LED Engine use screws with a diameter less than 0.13in. [3.4mm]. The LED Engine must be mounted on a flat surface and all mounting holes must be used to ensure good contact between the back side of the LED Engine and the mounting surface. Refer to max specified torque for installation. Suggested screw sizes: #5 or M3 Pan Head screw.
  Fulham provides four 6-20 X 5/8” Flat Head Self Drilling Screws, see instruction sheets for further details
• During installation process do not remove plastic film backing.

Electrostatic Sensitive Product (ESD)

• Fulham LED products should be handled with proper measures to protect against any potential ESD damage.
• When servicing, personnel should be ground and direct contact with LED should be avoided.

Thermal Management

• Proper thermal management should be employed to ensure life and reliability of product.

Wiring

• Intended for 120~277V application ONLY.
• Connect the Black wire from the DirectAC Engine to the building/source Line by using the proper connectors or wire nuts.
• Connect the White wire from the DirectAC Engine to the building/source Neutral by using the proper connectors or wire nuts.
• DirectAC Engine does not need grounding, but the luminaire must be grounded.
• Intended to be wired on dedicated lighting branch circuit.
• Do not wire on same branch circuit as motors, inductive type loads or heavy machinery which may introduce spikes, noise and other abnormalities onto the Line. Doing so may result in damage to the unit or abnormal lighting conditions.

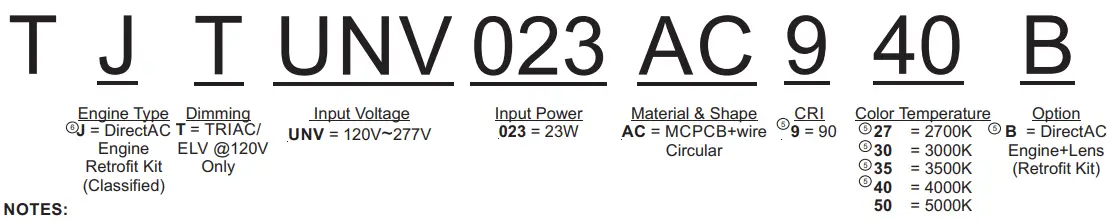

Part Number Matrix

NOTES:

1. DirectAC Engines standard model “B” comes with engine and lens.
2. Specifications are subject to change without notice.
3. All 90CRI product meets CEC Title 24 requirement
4. Standard Product offering. (90CRI / 5000K option is made to order with MOQ and lead time.)
5. LED Engine Retrofit Kit includes mounting hardware, retrofit labels, and installation instructions.

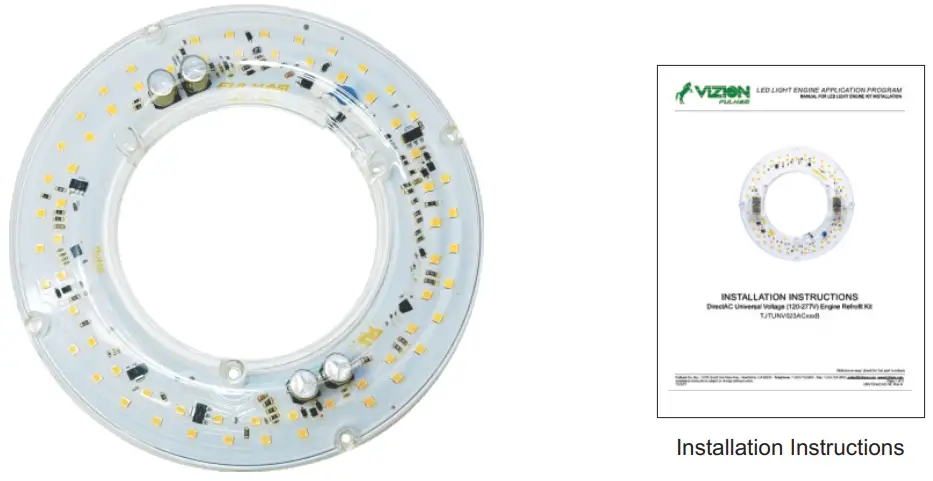

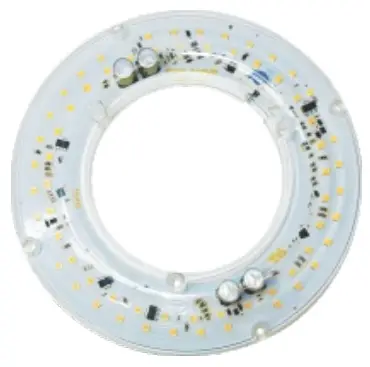

Product Image: 23W DirectAC UNV Round Engine Kit

TJTUNV023AC9xxB

WARNING: Risk of fire and electrical shock. Luminaire wiring and electrical parts may be damaged when drilling for installation of LED retrofit kit. Check for enclosed wiring and components.

WARNING: Cancer and Reproductive Harm.
www.P65warnings.ca.gov

DirectAC UNV Retrofit Kit Engines:

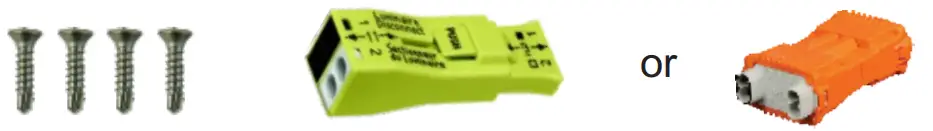

Hardware, Quick disconnect, Labels & Installation Instructions

Packaging

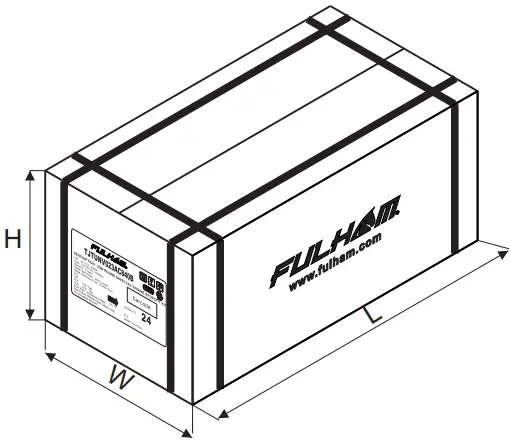

Master Carton

Twenty-Four (24) Individual DirectAC LED Engine bags inside each Master Carton.
