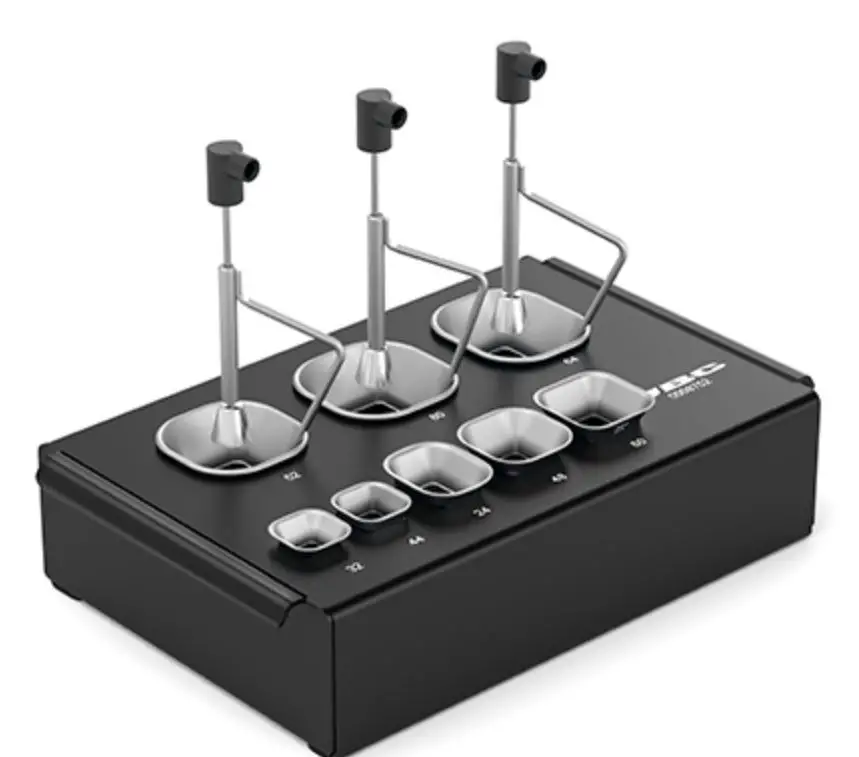

JBC ESHT Extractor Stand for Hot Air

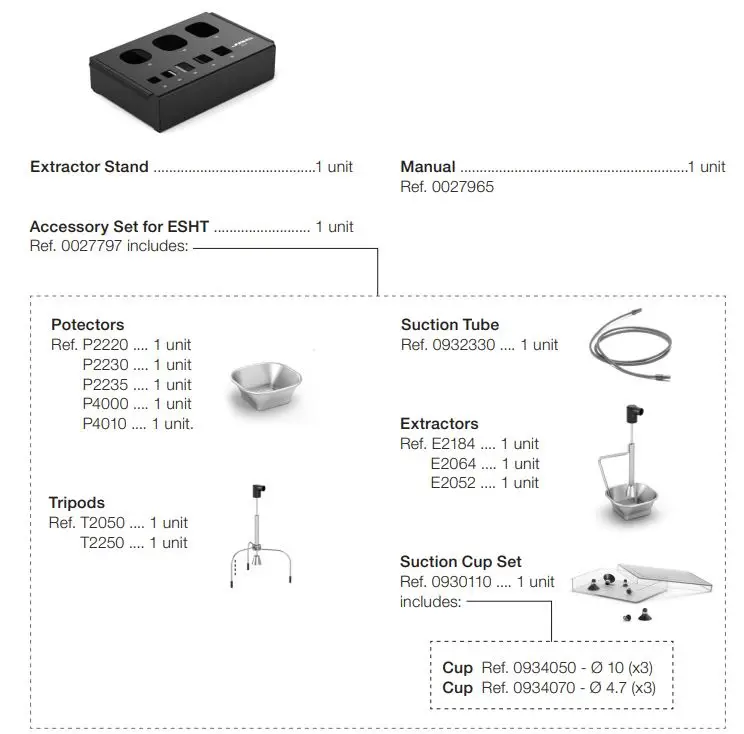

Packing List

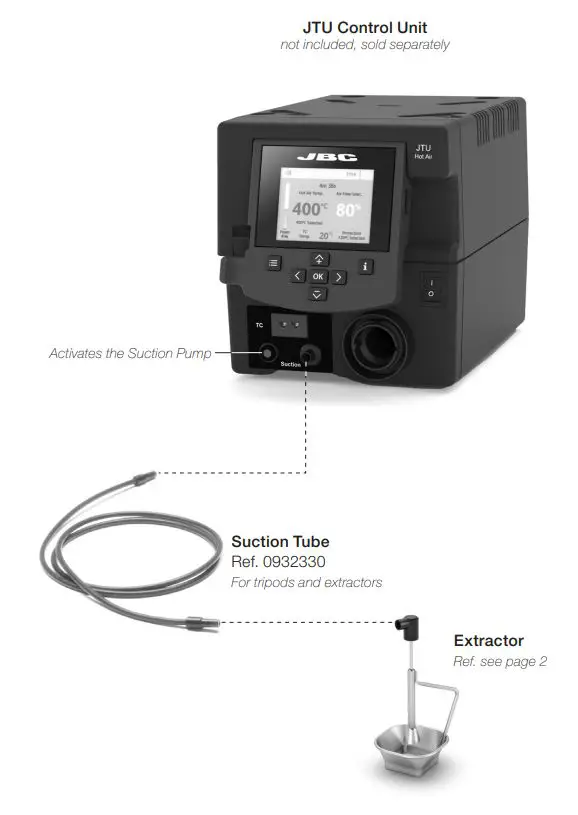

Features and Connections

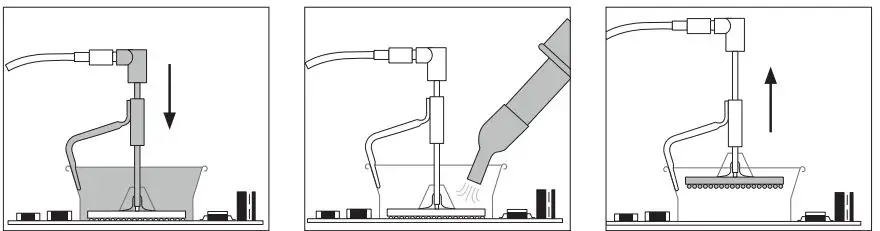

Operation
- Placing
- Position the extractor with the appropriate suction cup and Press the suction button.
- Heating
- Heat the component
- Extracting
- The component lifts off automatically when the solder melts
- The component lifts off automatically when the solder melts
Protectors & Extractors

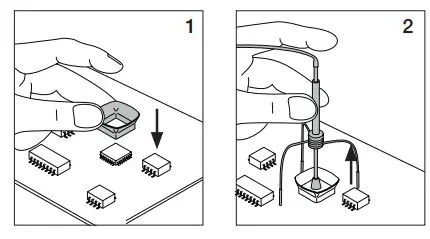

- For small components (fig. 1 and 2).We recommend using the protector + tripod
- For large components (fig. 3 and 4). We recommend using the manual extractors
Accessories

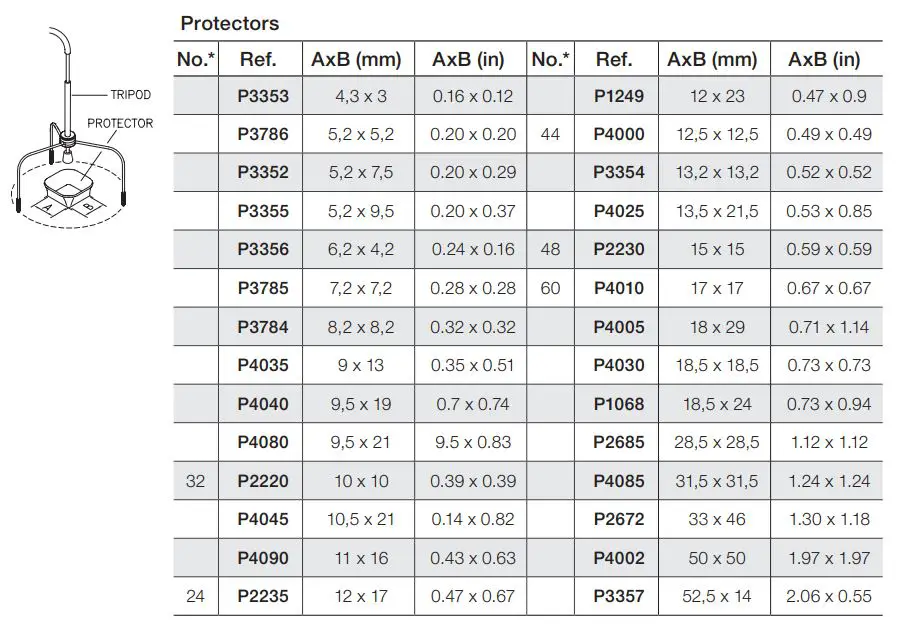

Protectors

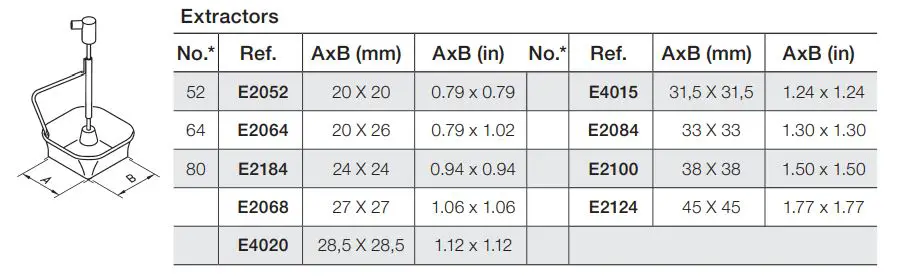

Extractors

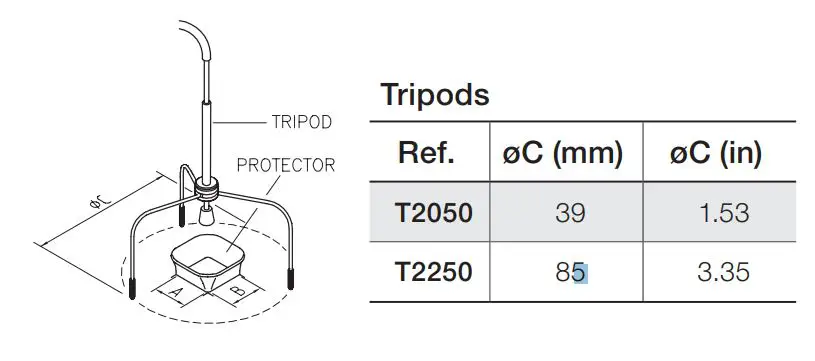

Tripods

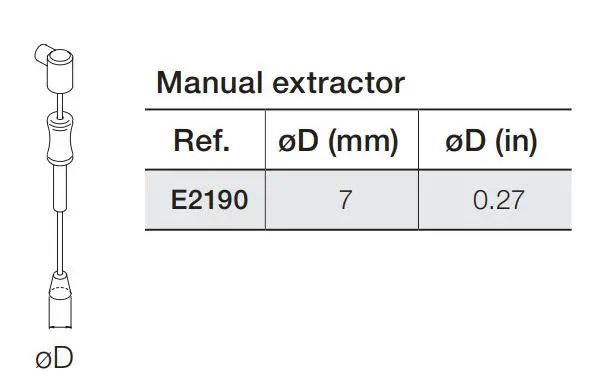

Manual extractor
Safety
- Do not use the equipment for any purpose other than PCB rework. Incorrect use may cause fire.
- The temperature of accessible surfaces may remain high after the unit is turned off. Handle with care.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight as well as persons with reduced physical, sensory or mental capabilities or lacking experience provided that they have been given adequate supervision or instruction concerning use of the appliance and understand the hazards involved.
- Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised
Warranty
JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase
Warranty Extension
