Tiller Roadster Bike User Guide

Tiller Roadster Bike

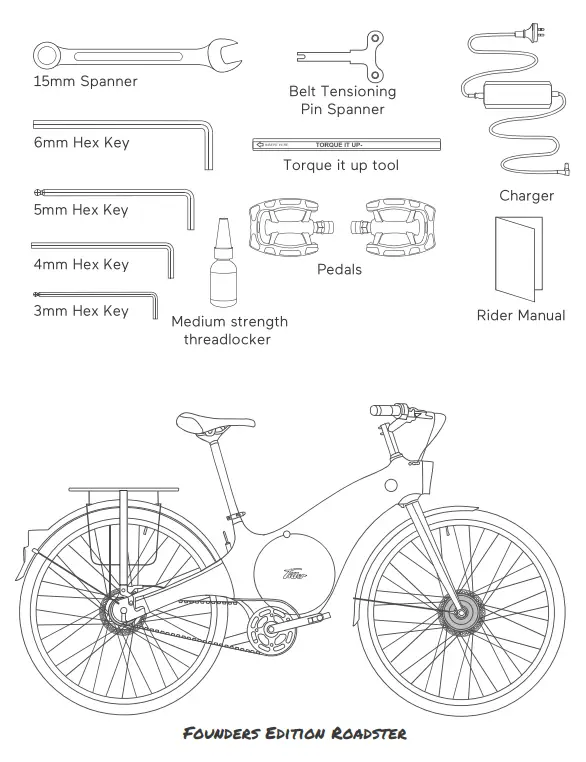

IN THE B0X

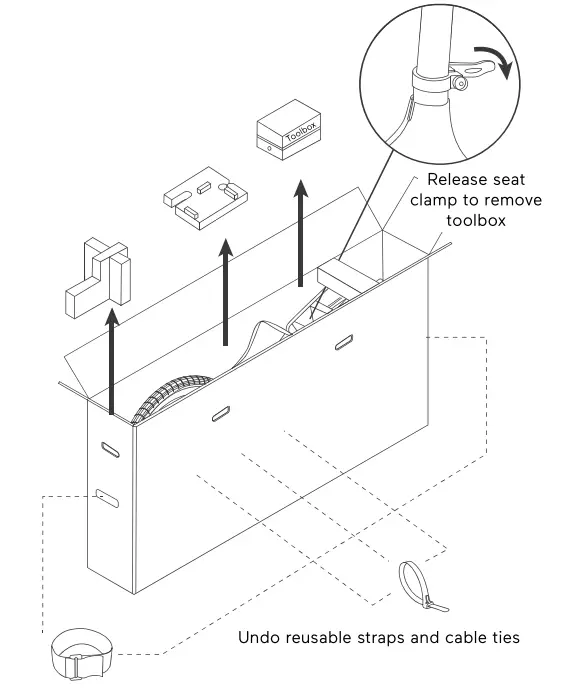

UNBOXING
UNBOXING

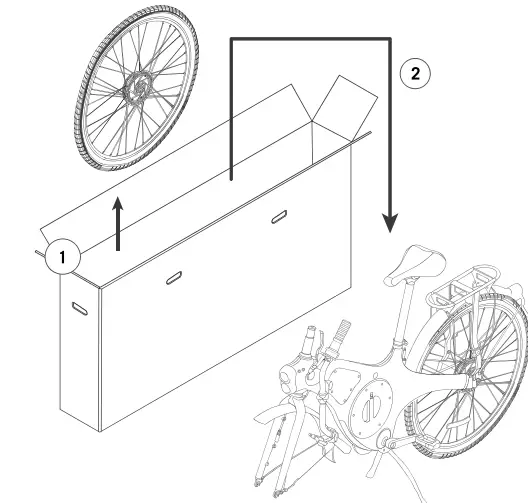

1. Lift box flaps and push box body to carefully slide the wheel out, avoiding contact with the frame
2. Lift the Roadster out of the box and sit it on the fork with the stand deployed. Take care to not damage the handlebar cable

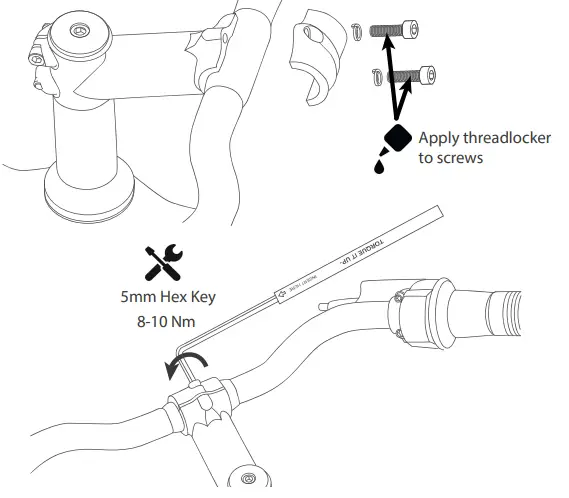

ATTACHING HANDLEBARS

1. Ensure handlebars are centered and rotated to a comfortable position
2. After tightening, push down on the handlebars and check if handlebars can rotate

REMOVE PROTECTORS

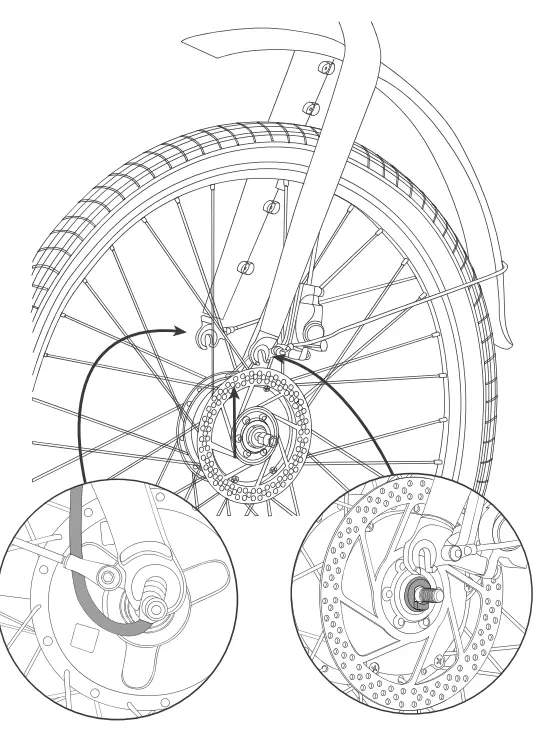

FIT FRONT AXLE TO FORKS

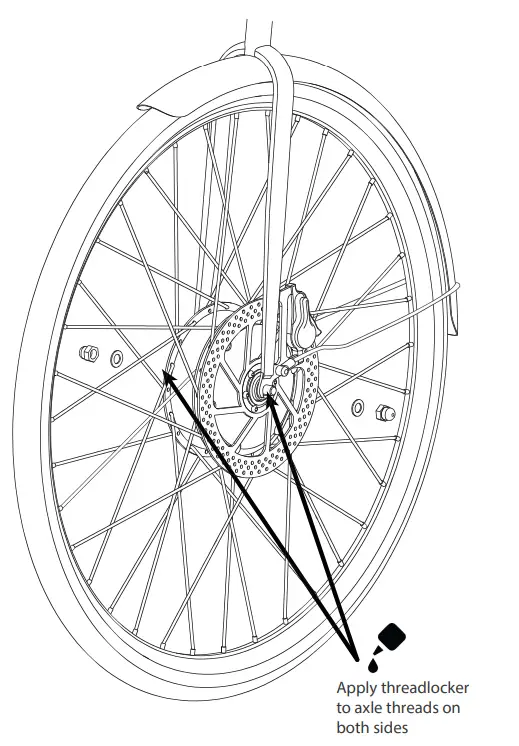

SCREW 0N NUTS

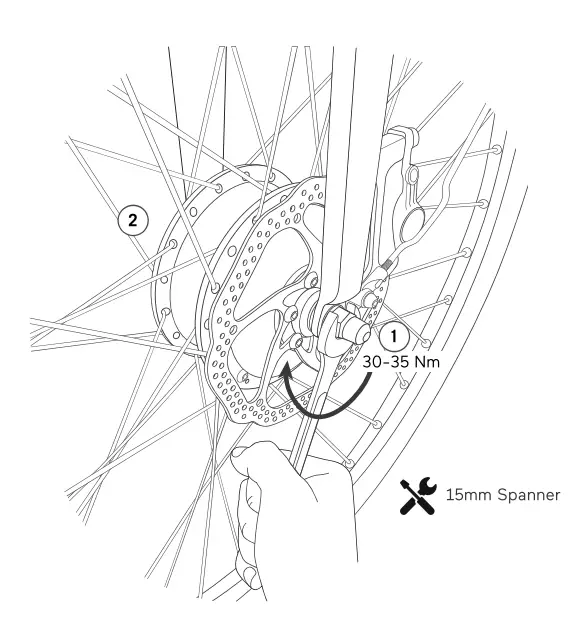

TIGHTEN FRONT WHEEL NUTS

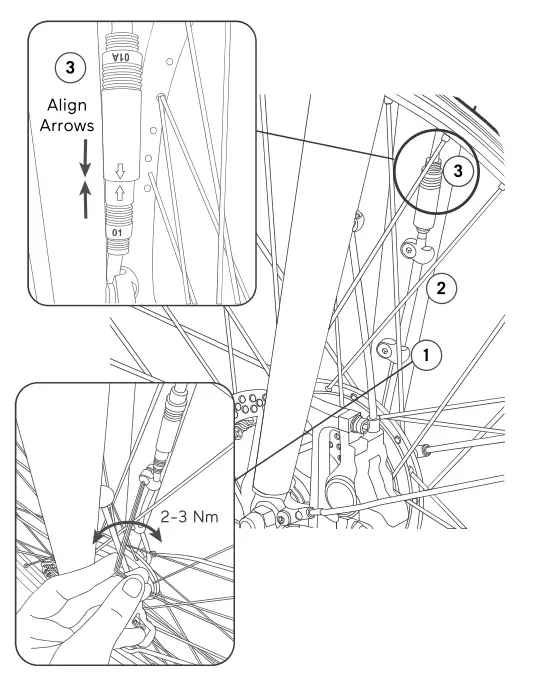

CONNECT MOTOR CABLE

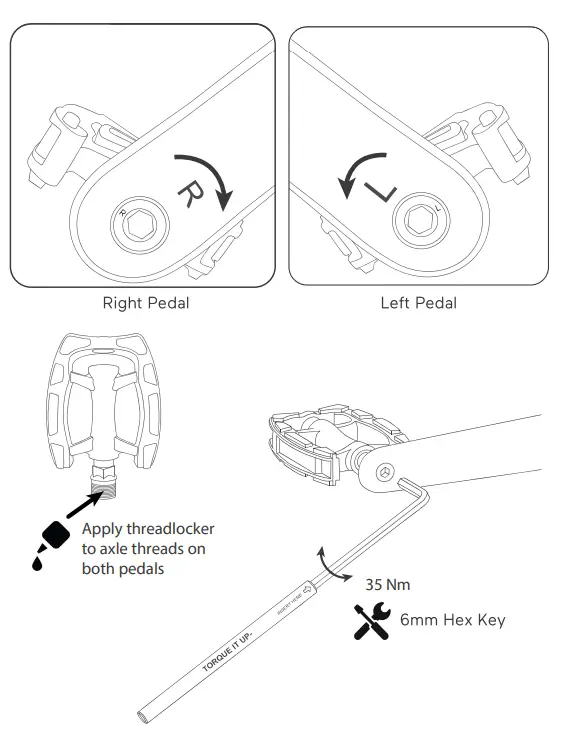

ATTACH PEDALS

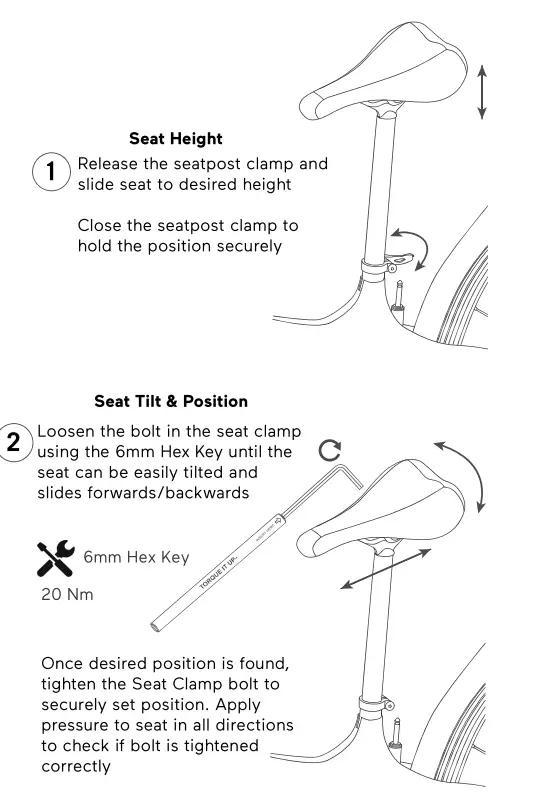

ADJUST SEAT HEIGHT, TILT & POSITION

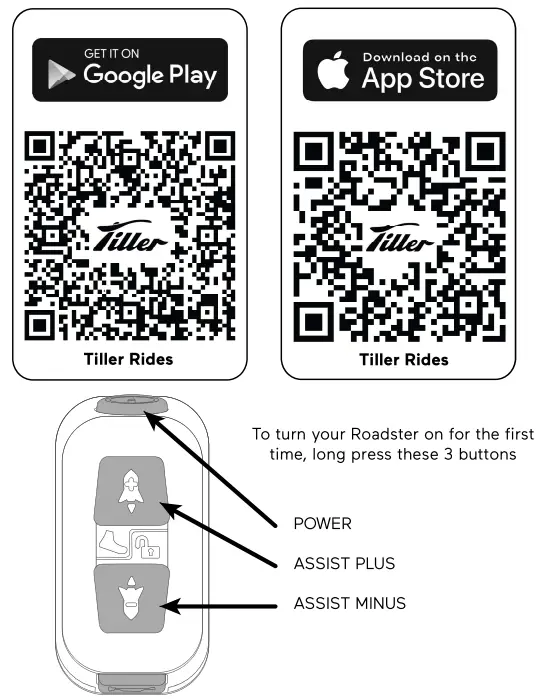

DOWNLOAD THE APP AND TURN IT ON

Download the Tiller Rides app by scanning the QR codes below or searching for Tiller Rides in the App Store / Google Play

Follow the in-app instructions to complete the setup of your Roadster

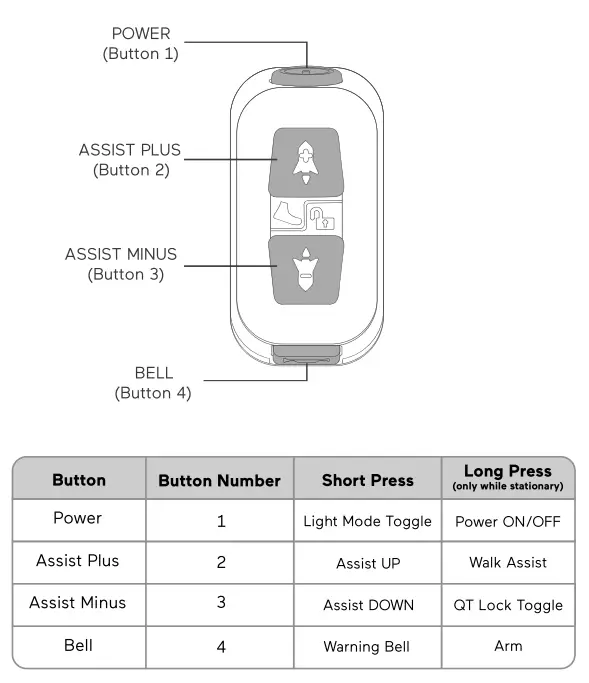

USING CONTROL SWITCH

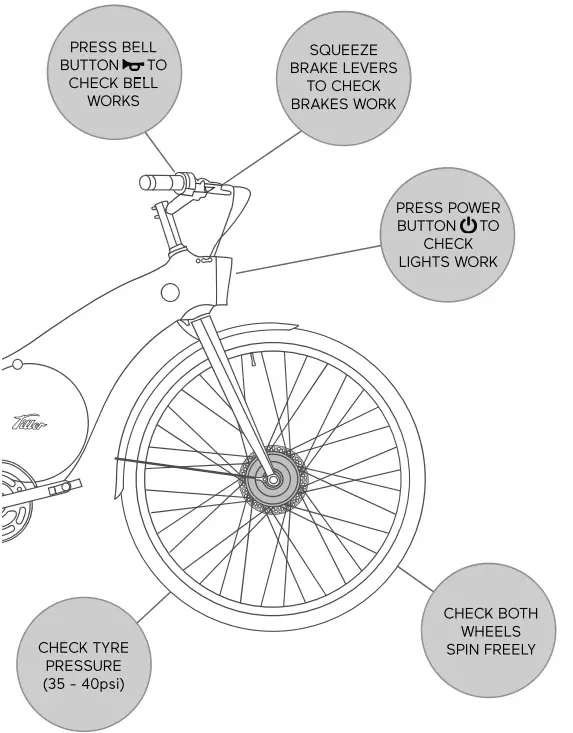

SAFETY CHECKS

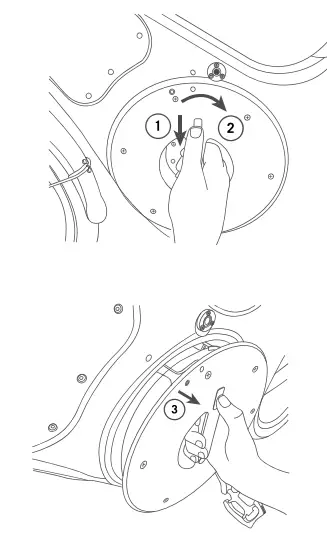

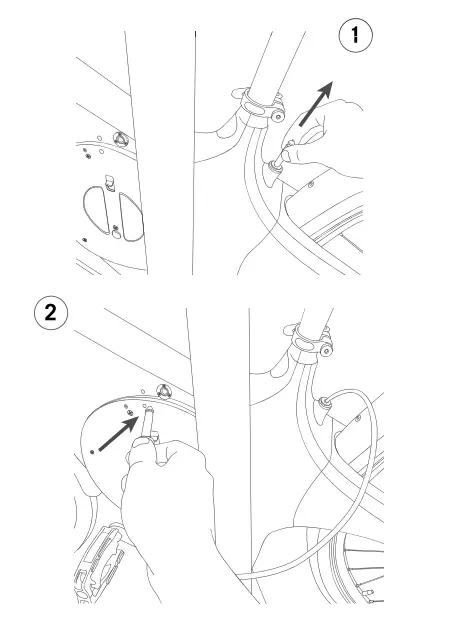

REMOVING/ INSTALLING BATTERY

1. To remove battery pack Slide battery pack lever downwards
2. Rotate the battery pack clockwise
3. Carefully pull the battery pack away from the roadster

To install battery pack

1. Align the batterypack& frame markings
2. into the frame Insert the battery pack Rotate the batterypack
3. anti-clockwise till the batterypack ‘clicks’ into place

USING THE QUICKTETHER
