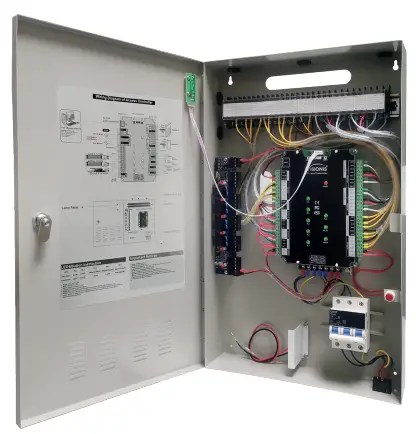

VISION VS-AXESS-4ETL Commercial Access Control
Wiring Introduction
| Wiring Position | Wire Model | Remark |
| Power Supply – Access Controller | RVV2*1.0 | Distance < 100M |
| Access Controller – Reader | RVV4*0.5 | Distance 60M, max. can not over 100M. |
| Access Controller – Electric Lock | RVV4*1.0 (Door-magnet feedback) | Distance < 150M |
| Access Controller – Exit Button | RVV2*0.5 | Distance < 200M |
| Access Controller – IR Alarm | RVV2*1.0 | Distance < 200M |
| Access Controller – Sound-light Alarm | RVV2*1.0 | Distance < 150M |
| RS485 Communication Cable | RVVP2*1.0 | Distance < 1000M, shield layer connect to ground |
| TCP/IP Communication Cable | CAT-5 | Distance < 100M |
Disclaimer
The document provides information according to the specification of the product. Vision does not undertake any type of guarantee, express or implied warranties, including any implied merchantability, specific purposes, or infringement. The information in the document is changed without prior notice. Visionis and its associated sales agents’ special statement does not assume the result of the use of Visionis equipment of any and all direct, indirect, special, in general, by chance, inevitably, punitive damages. Any user’s improper operation or use of the environmental problem caused by direct or indirect losses, user pays full responsibility, and equipment manufacturers and related sales agents do not undertake any responsibility.
Connection
| I/O | Device | Standard | Quantity | Setup |
| Input | Reader | Wiegand 26-40 | 2/4 | as function |
| Output | Electric Lock | Switch Signal | 2/4 | as doors |
| Input | Door-magnet | Switch Signal | 2/4 | Support |
| Output | Sound-light alarm | Switch Signal | 1 | |
| Input | IR Sensor/Smoke Sensor/Others | Switch Signal | 2/4 | |
| Input | Exit button | Switch Signal | 2/4 | Support |
| Input | RS485 device | Communication | 1 |
| LED | RL1 | RL2 | RL3 | RL4 | RL5 |
| Two-door | Lock1 | Lock2 | Magnet Alarm1 | Magnet Alarm2 | Alarm Output1 |
| Four-door | Lock1 | Lock2 | Lock3 | Lock4 | Alarm (COM) |
- Power: 12V power LED
- RUN: The device runs LED
- RDOK: Read card status LED
- 4DOOR: The status LED of 4 doors
- RESET Key: It is used to reboot the device and clear the communication password. After powering off, power on the device again and press the RESET button for 3 seconds, then you can clear the communication password.
Device Parameter
- Working Voltage: DC 12V
- Working Current: Non-loaded <200mA
- Working Temperature: -20°C – 50°C (-4°F – 122°F)
- Working Humidity: 10° – 90°
- Power Consumption: <3W
- Size: 342x241x83mm (13.46×9.49×3.27in.)
- Communication Mode: TCP/IP
- Communication Rate: 10/100M (TCP/IP)
- Extension Communication: RS485
- Users Capacity: 20000
- Users Capacity: 70000 Records
- Max. Doors: 4
- Dry Contact Input: 5
- Dry Contact Output: 12
- Access Group: 200 Groups
- Default IP Address: 192.168.0.245
- Default Communication Password: NULL
IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
Basic Function
- First card open
- Multi-card open
- Anti-passback
- Multi-door interlock
- Card, password, card+password, card or password open mode
- Different times different open mode
- Transmission encryption setup
- Self-checking function
- Remote control
- Wiegand format can be self-defined
- Add card without software
- Multi-channel connection (max. 3 channels)
- Real-time events active or passive upload
- Arm/disarm by card
- Arm/disarm by software
- Relieve alarm by software
- Multi-event linkage alarm
- One event related to multi-relay trigger
- Alarm delay turn off
- Capacity can be expanded
- Self-defined door lock relay
- Self-defined control door quantity
- Door latch mode
- Active door normal open mode by card
- Timed automatic normal open mode
- Timed invalid for exit button
- Normal open time
- Normal open holiday forbidden schedule
- Access time schedule
- Forbid access holiday schedule
- Door lock delay setup
- Access group setup
- Threaten code setup
- Force open/close door
- Open door by software
- Relieve normal open by card
- Relieve card and card valid date setup
- Expand RS485 communication
- Real-time monitoring door and relay state

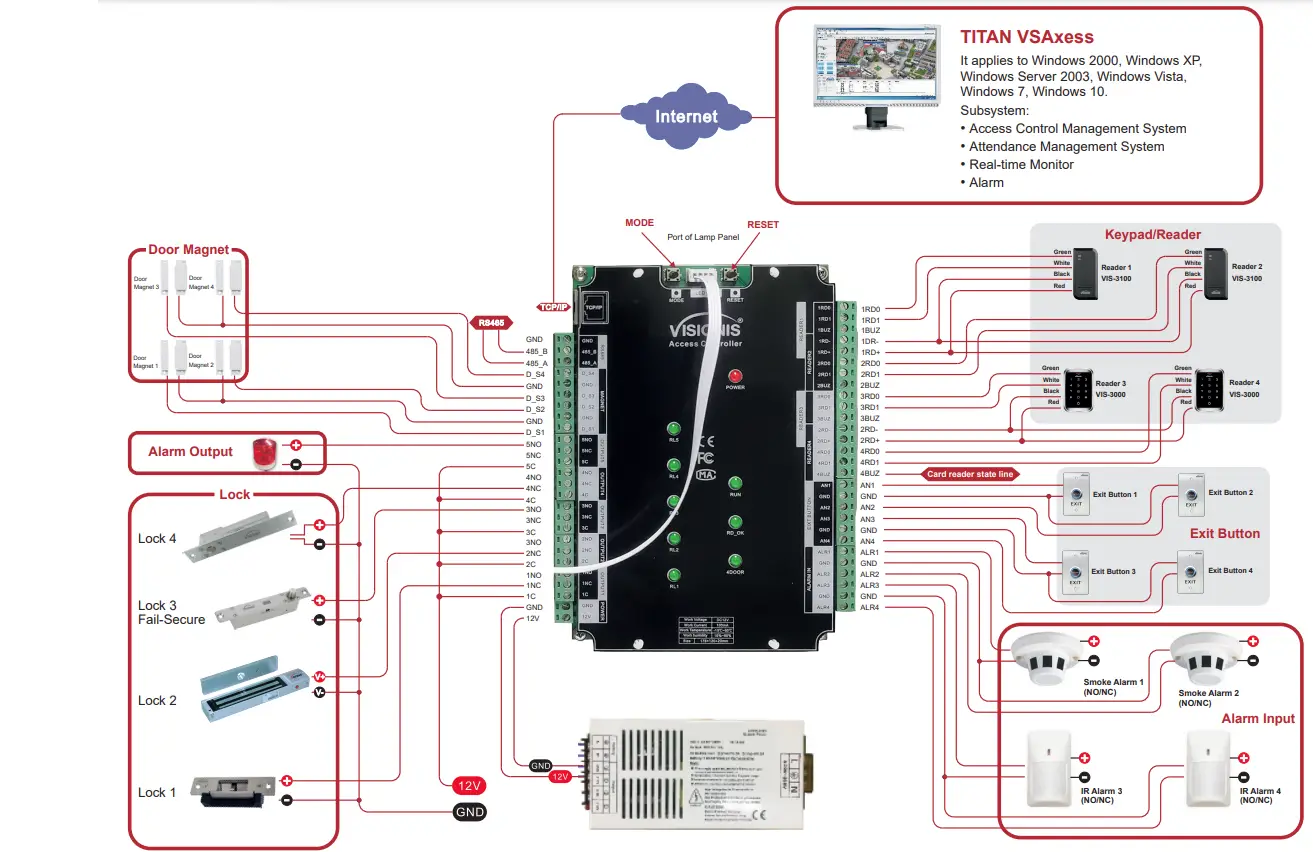

Wiring Diagram of Access Controller
Quick Start
Important Notices
- Power off when wiring.
- Power on when wiring OK.
- The power supply output current must 1.3 times bigger than the device work current.
- Lock should better use a separate power.
- All devices must be connected to a common GND.
- RS485 communication must use a hand-to-hand connection.
- Between different readers should have 10cm to avoid interference.
- As it is a currently weak system, strong and weak isolation must be done.
- The wiring of strong and weak should not be parallel and the distance at least 20cm.
- RS485 line should connect the cable shield to GND to avoid interference.
- When RS485 line interfaces more devices, user can add a 120Ω resistance between 485+ and 485- of last device.
- The reader can not install on the metal directly.
