Geminipro Gso40 2100w Combi Steam Oven Instruction Manual

geminipro GSO40 2100W Combi Steam Oven

Please read and retain for future reference.

SAFETY INSTRUCTION – GENERAL

• Use this appliance solely in accordance with these instructions.
• This appliance is for household use only, not for commercial purpose.
• Remove all packaging material from the appliance before use.
• This appliance shall not be used by children of 0 to 8-year old.
• This appliance can be used by children older than 8-year old and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, but only if they have been given supervision or instruction concerning use of the appliance in safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance must not be done by children.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.
• Do not handle the plug or appliance with wet hands.
• Do not immerse the main body in water.
• Children shall not play with the appliance.
• Only use the attachments/accessories supplied with the product.

SAFETY INSTRUCTION – ELECTRICITY AND HEAT

• Ensure the appliance is in placed on a horizontal, even and stable surface.
• Verify that the mains voltage is the same as that indicated on the rating plate on the appliance before use.
• Make sure that you always use a grounded wall socket to connect the appliance.
• Always remove the plug from the wall socket when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Make sure that the appliance, the power cord and plug do not make contact with water.
• Make sure that the appliance, the power cord and plug do not make contact with hot surface, such as a hot hob or naked flame.
• Check the appliance’s power cord regularly to make sure it is not damaged.Do not use the appliance if the power cord is damaged. If the power cord is damaged,it must be replaced by an electrical technician or a person with similar qualification, in order to avoid any hazards.

SAFETY INSTRUCTION – DURING OPERATION

• The Steam Oven shall be kept in a dry and flat place with plenty of space around it, and free space of at least 10cm shall be left at the back and on two sides and above the product when the product is placed. Do not place any object on the product
• A high-temperature steam or high-temperature airflow will be released when you open its door during or after the operation of the product. A safe distance shall be maintained when the door of the product is opened to avoid scalding yourself.
• Do not insert any foreign matter into the Door Lock Switch of the Oven Door.
• Appliances will heat during use. Please pay attention to the Heating Unit in the Oven.
• During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the Oven Door, since they can scratch the surface, which may result in shattering of the glass.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• Do not touch at random the steam oven in use because the surface may have a very high temperature. If it is needed to touch or move the Oven, please power off the product first and then use a pair of insulated gloves.
• Please do not share the Power Outlet with other high-power electrical devices to avoid a fire caused by the overload of the Circuit.
• Please check whether all cooking utensils are suitable for this product before using them. It is recommended to place food in high-temperature glass or ceramic containers. The capacity of holding the liquid food may not exceed two-thirds of the container.
• It is required to unplug the Power Plug from the Outlet when the Oven will not be used for a long time to avoid any electric leakage or fire caused by the aging of insulated rubber lines.
• The Water Tank shall not be overfilled with water. Please use it correctly according to the maximum water level.
• Please take out the Water Tank and allow the residual water of the product to flow out automatically from the product and drain or pour away the water from the bottom water holder after each use of the oven for cooking operation.
• The vent holes of the appliance must be kept unblocked

PRODUCT OVERVIEW

1. Control Panel
2. Knob
3. Door Safety switch
4. Oven Door
5. Oven Door Handle
6. Water Tank
7. Vent hole
8. Water Drip Collector
9. Rotisserie Set
10. Rotisserie Rack
11. Grill Rack
12. Bake Tray
13. Steam Tray
14. Heat Resistant Glove

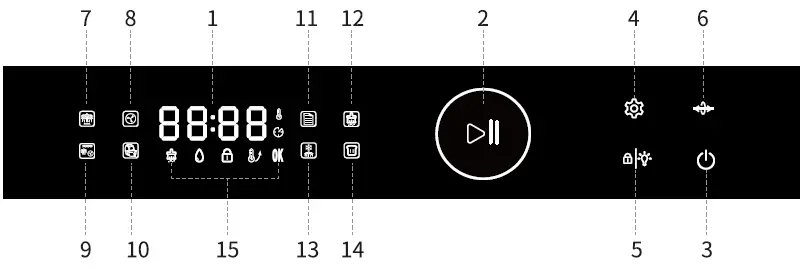

CONTROL PANEL

1. LED display
2. Knob control
3. Power button
4. Setting button
5. Child Lock/ Lamp
6. Rotisserie button
7. Steaming mode
8. Convection mode
9. Steaming + Convection mode
10. Air-Frying mode
11. Preset mode
12. Self-Cleaning mode
13. Defrosting mode
14. Fermentation mode
15. Indicator

PRODUCT STRUCTURE

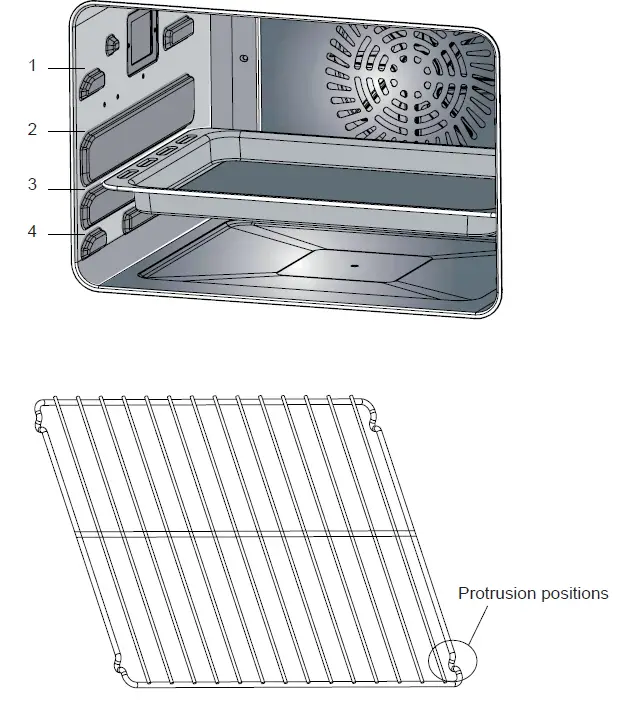

Wire rack Installation
There are 4 height levels for the grill rack and bake tray. Please keep the protrusion positions downward and push the grill rack into the oven. Select a height level based on food type or recipe.

ABOUT THE ELECTRIC BLANKET

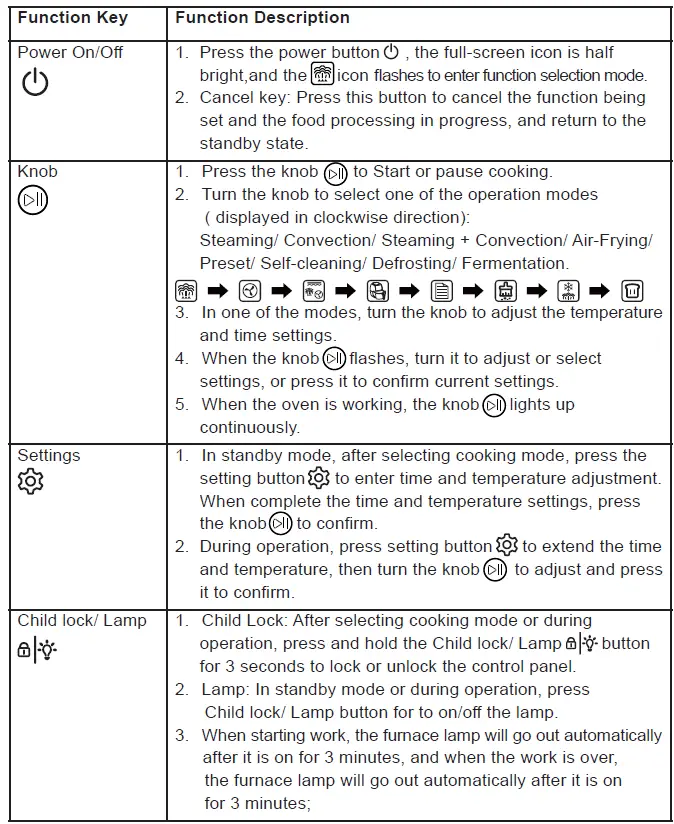

For the first usage, select any mode, heat for 5-10 minutes. Once the appliance is connected to the power, a “Beep” sound would be heard and the LED display will display in full screen for 3 seconds and then off, the power button flashes to save power, press the power button, the full-screen icon is half bright, and the icon flashes to enter function selection mode. If no action is detected within 3 minutes, the full screen will be turned off, and the power button flashes to return to the power-saving mode.

	4.   When the furnace door is opened, the furnace lamp will be automatically extinguished after being on for 3 minutes, and after the furnace door is closed, the furnace lamp will be automatically extinguished after being on for 3 minutes; 5.   There is a button operation at any time, the furnace light will automatically go out after 3 minutes.
Rossier button	1.  During operation, press the Rotessier button to start or stop rotate function.
Steaming mode	1.   Steaming mode: Steaming + Top & Bottom heating tube + Back Fan 2.   Time range: 1 to 120 minutes 3.   Temperature range: 95℃, 100℃, 105℃ 4.   When Steaming mode is selected, the icon lights up and flashes, press the knob to confirm, enter the steam mode, turn the knob to set the required time, after selecting the time, press the knob to confirm, enter the temperature setting, after the temperature is selected, press the knob to confirm, and the appliance starts to work, and the time begins to count down.
Convection mode	1.   Convection mode: Top & Bottom heating tube + back Fan 2.   Time range: 5 to 120 minutes 3.   Temperature range: 120℃ to 230℃ (± 5 per adjustment) 4.   When Convection mode is selected, the icon lights up and flashes, press the knob to confirm, enter the baking mode, and turn the knob to set the required time, after selecting the time, press the knob to confirm, enter the temperature setting, after the temperature is selected, press the knob to confirm, and the appliance starts to work, and the time begins to count down.
Steaming + Convection mode	1.   Steaming + Convection mode: Steaming + Top heating tube + Back heating tube + Back fan 2.   Time range: 5 to 120 minutes 3.   Temperature range: 120℃ to 230℃ (± 5 per adjustment) 4.   When Steaming + Convection mode is selected, the icon lights up and flashes, press the knob to confirm, enter the Steaming + Convection mode, turn the knob to set the required time, after selecting the time, press the knob to confirm, enter the temperature setting, after the temperature is selected, press the knob to confirm, and the appliance starts to work, and the time begins to count down.

Air-Frying mode	1.   Air-Frying mode: Top heating tube + Back heating tube + Back fan 2.   Time range: 5 to 120 minutes 3.   Temperature range: 120℃ to 230℃ (± 5 per adjustment) 4.   When Oven-frying is selected, the icon lights up and flashes, press the knob to confirm, enter the Oven-Frying mode, turn the knob to set the required time, after selecting the time, press the knob to confirm, enter the temperature setting, after the temperature is selected, press the knob to confirm, and the appliance starts to work, and the time begins to count down.
Pre-set Programs mode	1. When the menu is selected, the  icon lights up and flashes, press the knob to confirm to enter the menu setting mode, and turn the knob to display the F-01~F-37 menu reciprocating cycle. After selecting the corresponding mode, press the knob to confirm, and the appliance starts to work. There are defaulted times and temperatures.
Self-Cleaning mode	Main function of this mode is cleaning oven cavity after cooking. When the Self-Cleaning mode is selected, the icon lights up and flashes, press the knob to confirm to enter the Self-Cleaning mode, turn the knob clockwise to display the column “C-01”; “C-02”.   “C-01” is the Evaporation Pan Descaling function, preset time is 50 minutes, no adjustment allows. “C-01” Mode instructions 1.   When the accumulated working time of the Steam Generator reaches 50 hours, the cleaning mode icon will flash automatically (automatically enter C-01 cleaning mode) for cleaning. 2.   Combine 1 part descaler and 8 parts water and pour the solution into the water tank (water level must be above minimum mark). 3.   When the time counts down to 20 minutes, replace descaler in the water tank with clean water. When it counts down to 10 minutes, replace the water in the tank with clean water again. Once complete, the cleaning mode icon will go off.   “C-02” is a high-temperature disinfection function, preset time is 60 minutes, preset temperature is 100℃, no adjustment allows; After selecting the corresponding mode, press the knob to confirm, and the appliance starts to work, and the time begins to count down.

	During the cleaning operation, the indication indicator for cleaning mode is always on.
Defrosting mode	1.   Time range: 5 to 120 minutes 2.   Temperature range: 50℃, 55℃, 60℃ 3.   When Defrosting mode is selected, the icon lights up & flashes, press the knob to confirm, enter the Defrosting mode, turn the knob to set the required time, after selecting the time, press the knob to confirm, and enter the temperature setting, after the temperature is selected, press the knob to confirm, and the appliance starts to work, and the time begins to count down.
Fermentation mode	1.   Time range: 5 to 480 minutes 2.   Temperature range: 35℃ to 45℃ (± 1 per adjustment) 3.   When Fermentation mode is selected, the icon lights up & flashes, press the knob to confirm, enter the Fermentation mode, turn the knob to set the required time, after selecting the time, press the knob to confirm, and enter the temperature setting, after the temperature is selected, press the knob to confirm, and the appliance starts to work, and the time begins to count down.
	1.   Water refill: During any operation mode, this status icon will flash if the Water Tank is empty (water level is lower than the minimum mark). The oven will stop working and no key will respond until the Water Tank is refilled and put back into the Water Tank Slot. 2.   Preheat: When the oven is pre-heating, this status icon lights up. Once the oven reaches the desired temperature, this icon will be switched off. 3.   Complete: When the cooking program is done, the Display will show the word “END”. And the status icon lights up. 4.   Child Lock: When the control panel is locked, this status icon lights up. Press the “Child Lock/ Lamp ” button for 3 seconds to unlock. 5. Cleaning: When the oven is descaling, this status icon lights up. Once descaling is complete, this icon will be switched off. 6.  Cleaning icon, when the light of this icon flashes, it means that the product has been working for more than 50 hours and needs to be descaled

NOTE

• During the working process, when the glass door is opened, the furnace lamp lights up, the heating tube stops working, but the back fan will continue to work for a while to cool the cavity down until 60℃ then stop working, and the display panel flashes. After the glass door is closed, the work will continue automatically.
• Water Shortage alarm: When using steam-related functions, if water level is lower than the minimum mark), the water shortage icon flashes and the oven stops working and no key will respond until the Water Tank is refilled and put back into the Water Tank Slot. After adding water, it automatically resumes, and the icon lights off. Functions that do not require steam can continue to work when there is water shortage.
• Fan: Under the following working modes (Steaming/ Convection/ Steaming + Convection/ Air-Frying/ Preset/ Self-Cleaning), the fan works. When the cooking program is completes, the fan continues to work for a while to cool down the cavity until 60℃.

PRESET MENU LIST

This menu is for reference only. If users put more food inside or use multiple layers of grills to cook food at the same time, please press the knob to select other DIY cooking modes to adjust the required time and temperature.

CLEANING AND MAINTENANCE

• Please turn off the Combi Steam Oven and unplug the Power Cord from the outlet before cleaning the cavity.
• Do not clean the Drip Tray surface with metal tool or abrasive material. It would damage the non- stick coating.
• Please keep the cavity clean at all time. When food or grease is splashed onto the inner wall of the oven, wipe with a damp cloth soaked with detergent rather than any hard substance.
• It is recommended to fill the tank with distilled water or pure water. If tap water is used for a long time, there will be scale on the inner walls of the cavity.
• The Water Tank should be checked regularly. Remove the Water Tank horizontally. It must be cleaned and wiped gently with soft cloth. After cleaning the inner wall of the oven, put the Water Tank back to its original place.
• After cooking is completed, remove the remaining water in the Water Tank.
• The sealing surface of the oven door should be cleaned frequently and wiped with a soft, dry cloth.
• If the oven will not used for a long time, please unplug and clean the cavity. The oven should be stored in a dry environment with no exposure to corrosive gas. Do not clean the glass of Oven Door with a rough detergent or sharp metal scraper because it may lead to damage of the glass.
• The Power cord must be unplugged when cleaning the cavity or replacing the lamp.
• Unplug the appliance and let it cool down completely before storage.
• Make sure all parts are cleaned and dry before storage.

TROUBLESHOOTING

PRODUCT SPECIFICATIONS

• Model no.: GSO40
• Voltage: 220V
• Frequency: 50-60Hz
• Output power: 2100W
• Capacity: 40 Litres
• Product dimensions: 370(H) x 525(W) x 520(D) mm

The product specifications may be changed without prior notice. Please contact customer service for details if necessary. If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
