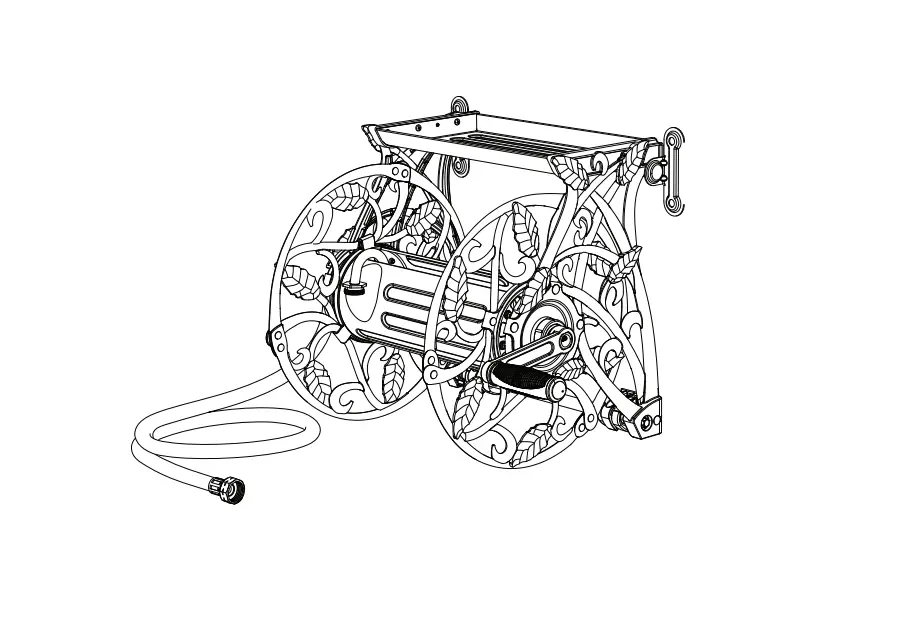

Cpe Hose Works Detachable Hose Reel Owner's Manual

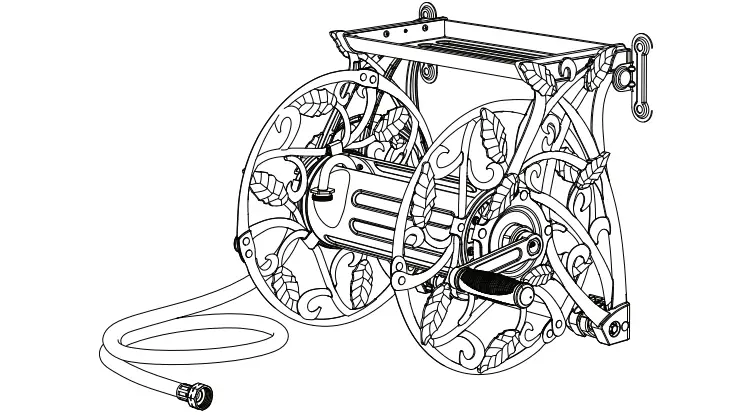

CPE DETACHABLE HOSE REEL OWNER’S MANUAL

MODEL NUMBER
100361

SAVE THESE INSTRUCTIONS
Important safety instructions are included in this manual.

MADE IN CHINA
REV 100361-20200525

12039 Smith Ave.
Santa Fe Springs, CA 90670 USA
1-877-338-0999
www.championpowerequipment.com

Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:

• Product Info and Updates
• Tech Bulletins
• Frequently Asked Questions
• Product Registration

– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999

*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.

INTRODUCTION

Before You Begin

This product has been packaged to ensure it arrives in best possible condition. Please be careful when unpacking. Read instructions prior to assembly. This kit contains parts that can be damaged if incorrectly assembled. Please follow instructions. Champion Power Equipment is not responsible for replacing parts damaged due to incorrect assembly.

Record the model and serial numbers as well as date and place of purchase for future reference. Have this information available when ordering parts and when making technical or warranty inquiries.

Champion Power Equipment Support
1-877-338-0999

Model Number
100361

Serial Number

Date of Purchase

Purchase Location

MANUAL CONVENTIONS

This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment.

Follow all safety messages to avoid or reduce the risk of serious injury or death.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

NOTICE

NOTICE is used to address practices not related to physical injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

SAFETY RULES

CAUTION

Read the entire guide before installation or use.

WARNING

Connect only to water below 100 psi.

CAUTION

Release pressure when not in use.

WARNING

The coupling contains lead, a chemical known to the state of California to cause cancer and birth defects or other reproductive harm.

WASH HANDS after handling.

This hose is not for drinking water use.

CAUTION

Please consider carefully the appropriate method to be used in mounting this hose reel. Hardware is included for your convenience, but may not be suitable for all mounting conditions. Some surfaces like vinyl siding or stucco may require special considerations or additional hardware. Improper mounting can cause personal injury or property damage. If you are unsure, contact a home improvement professional.

WARNING

Water hose reel is not intended for use as a potable water source.

NOTICE

If you have questions regarding your hose reel, we can help. Please call our help line at 1-877-338-0999

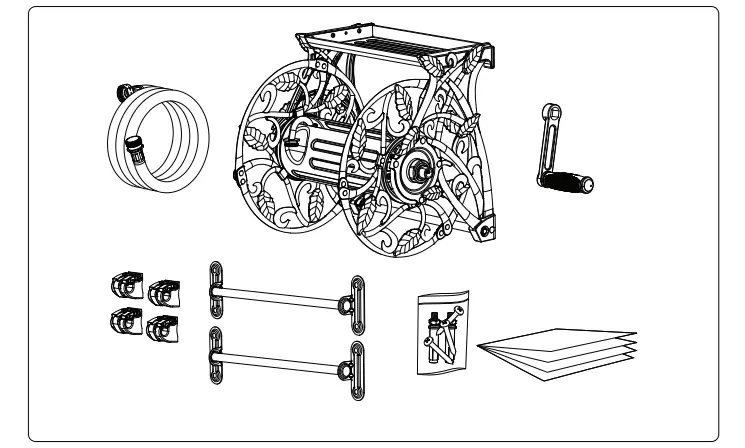

PARTS

Parts Included

• 2 m (6.5 ft.) leader hose x 1
• Decorative aluminum hose reel x 1
• Crank handle x 1
• Mounting clips x 4
• Mounting rails x 2
• Hardware pack x 1
• Owner’s manual x 1

­

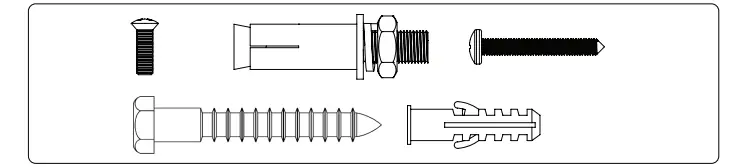

Hardware Included

• Crank screw x 1
• Masonry anchors x 8
• Lag screws x 8
• Phillips wood screws x 8
• Plastic anchors x 8

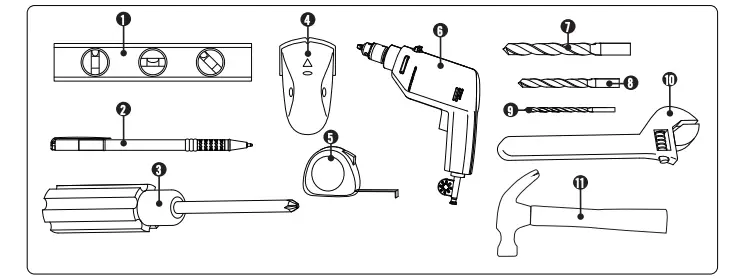

Recommended Tools (not included)

1. Bubble level
2. Pen or pencil
3. Phillips-head screwdriver
4. Stud finder
5. Tape measure
6. Drill
7. Ø13 mm (1/2 in.) masonry drill bit
8. Ø6 mm (¼ in.) drill bit
9. Ø10 mm (3/8 in.) drill bit
10. Adjustable wrench
11. Hammer

Replacement Parts

For replacement parts, contact:

Address
Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670 USA
www.championpowerequipment.com

Customer Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
[email protected]
Fax no.: 1-562-236-9429

Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
[email protected]
24/7 Tech Support: 1-562-204-1188

ASSEMBLY

NOTICE
Carefully remove all parts from the packing box. Locate all hardware and components before installation.

NOTICE
Do not completely tighten bolts until assembly is completed. For easier assembly, we recommend that two people assemble this product.

WARNING

Ensure there are no live electric wires or plumbing in the wall where you mount the hose reel.

WARNING

Always use eye-protection when using power tools.

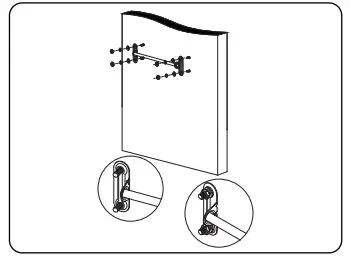

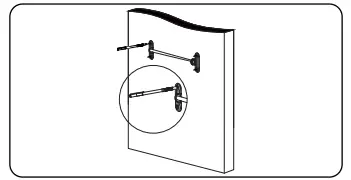

Install Mounting Rail to Masonry Wall

1. Position the mounting rail on the wall at a convenient height.
2. Use a bubble level to ensure the mounting rail is horizontal.
3. Mark hole centre locations on the wall.

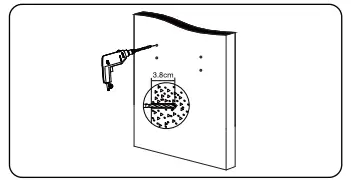

4. Using a 13mm (½ in.) masonry drill bit, drill approximately 3.8cm (1.5 in.) deep centered on the marks you made in step 3.

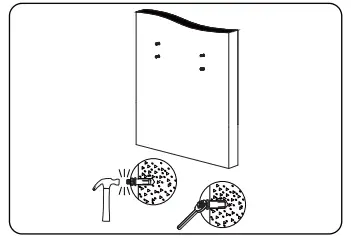

5. Using a hammer, lightly tap the masonry anchors into the holes, being careful not to damage them, until fully seated. Remove the nuts and washers.

6. Hang the mounting rail onto the exposed anchors.
7. Replace the nuts and washers, tightening them with a wrench.

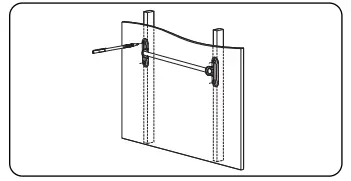

Install Mounting Rail to a Stud Wall

1. Locate the studs using a stud finder.
2. Position the mounting rail on the wall at a convenient height.
3. Use a bubble level to ensure the mounting rail is horizontal.
4. Mark hole centre locations on the wall.

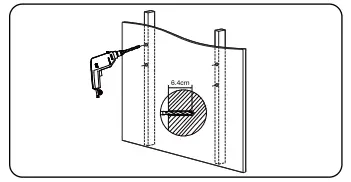

5. Using a 6mm (¼ in.) drill bit, drill pilot holes approximately 6.4cm (2.5 in.) deep centered on the marks you made in step 4.

6. Hang the mounting rail with the lag screws.

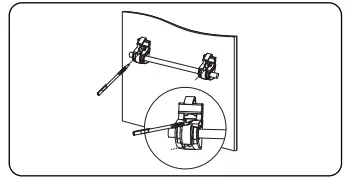

Install Mounting Clips

1. Hang the hose reel on the mounting rail.
2. Attach 2 mounting clips to the bottom rail, one at the far left and one at the far right.
3. Mark the hole centre locations on the wall.

4. Remove hose reel.

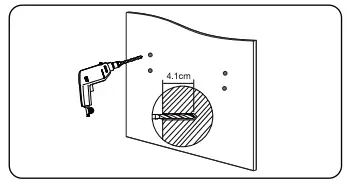

5. Using a 10mm (3/8 in.) drill bit, drill pilot holes approximately 4.1cm (1 5/8 in.) deep centered on the marks you made in step 3.

6. Push plastic anchors into the holes.

7. Rehang hose reel.
8. Drive screws into plastic anchors tightly with a screwdriver.

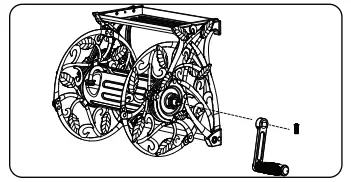

Crank Assembly

1. Assemble the crank on to the hose reel as shown.
2. Secure with the crank screw.


Attach the Leader Hose

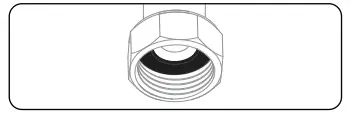

1. Inspect threaded female connector on hose reel, confirm that rubber O-ring is properly seated.

2. Connect threaded male connector end of leader hose to threaded female fitting on hose reel spool.
3. Tighten by hand until snug (clockwise).
4. With adjustable pliers or wrench tighten fully.

Moving or Storing the Hose Reel

NOTICE
Freezing temperatures can damage your hose and watering accessories. Always disconnect the connector hose and drain the water from the hose prior to freezing conditions.

NOTICE
Prior to removing the hose reel for winter or moving the hose reel to a new location, always disconnect the connector hose and drain the water from the hoses before storing or moving.

To remove hose reel from wall cradle:

1. Turn off water at house water spicket.
2. Unscrew leader hose from water spicket (leader hose connects the hose reel to the house spicket).
3. Unwind hose from hose reel.
4. Unscrew garden hose from hose reel.
5. Unlatch two lower clips.
6. Lift hose reel upward and out to remove from cradle system.

For re-installation, follow instructions in reverse.

SPECIFICATIONS

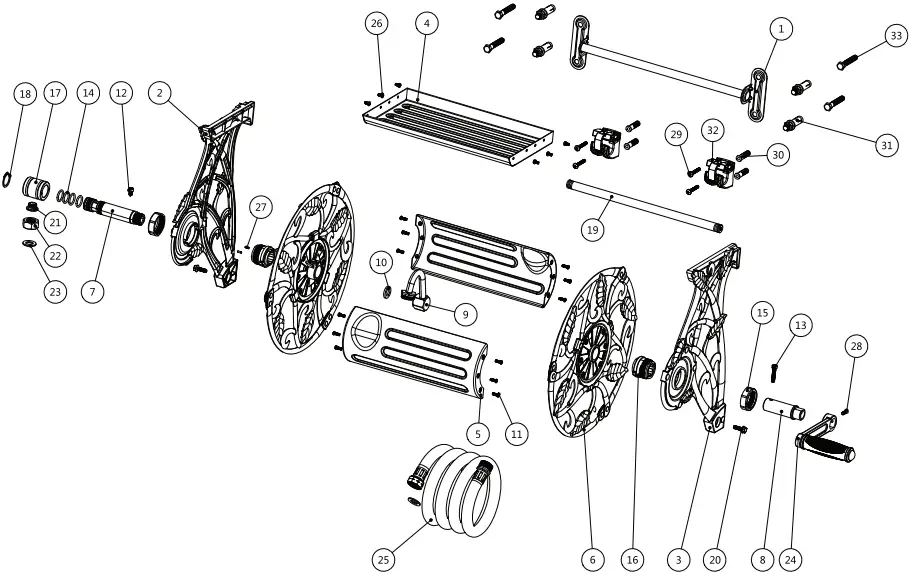

Parts Diagram

Parts List
