hp Motherboard Layout and Jumper Setting for the 440BX Chipset Model 8290

INSTRUCTION

System Board Layout
CPU Frequency Ratio
Power Supply/System Fan Connector
Front Panel Connector
Back Panel I/O Connectors
Serial Port Connector
Parallel Port
Floppy Connector

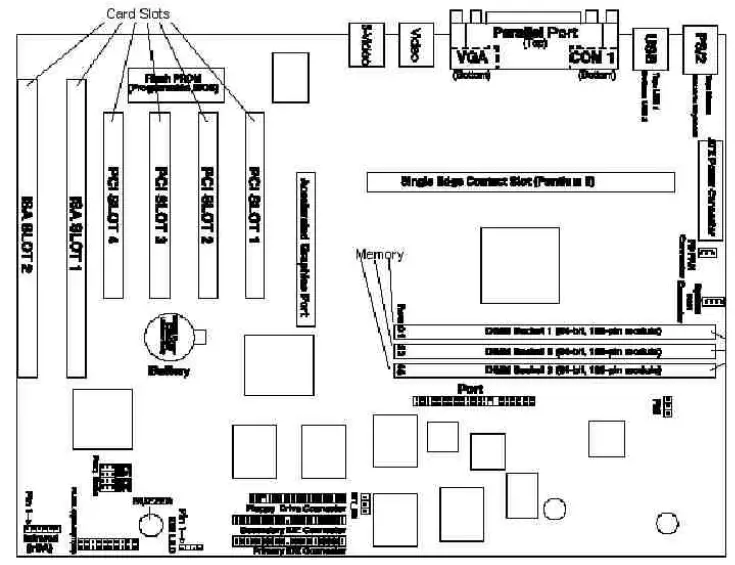

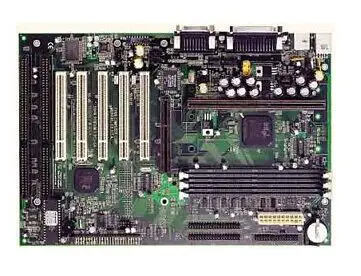

System Board Layout

Figure 1: System board

Tips
We are currently updating our customer support system and are unable to process your service order at this time Please check back after September 14th (10:00 AM MT) for your order status

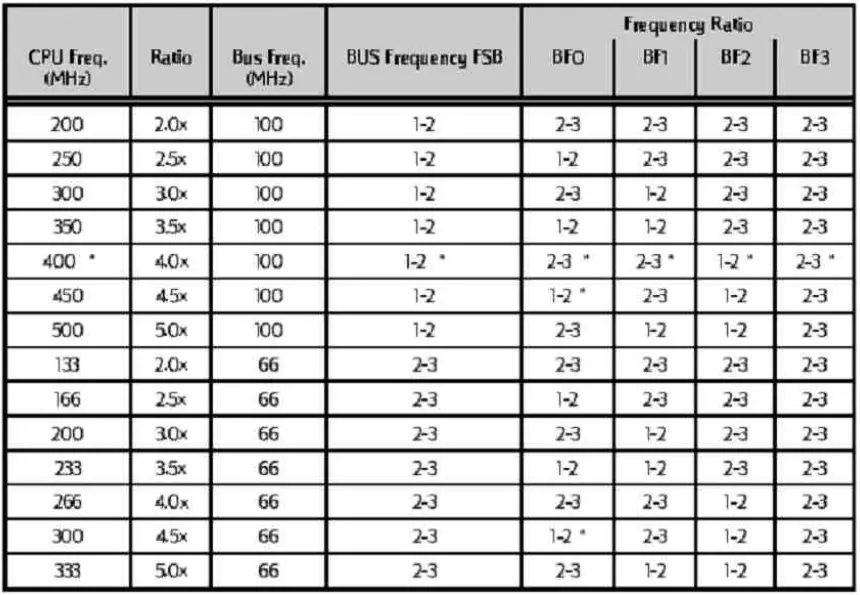

CPU Frequency Ratio

Figure 2: Frequency ratio

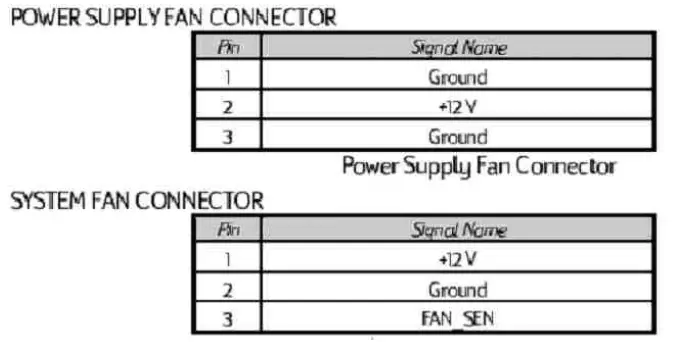

Power Supply/System Fan Connector

Figure 3: Connector tables

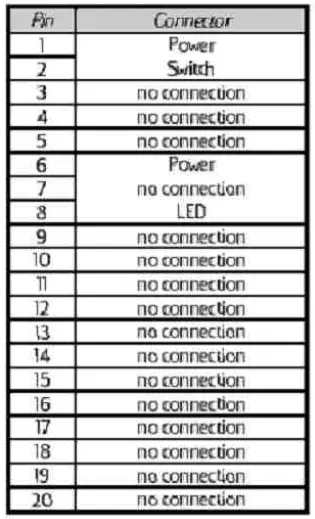

Front Panel Connector

The front panel connectors include headers for the following connections, Power Led, Power Switch, and IDE Led.

Figure 4: Front panel connector table

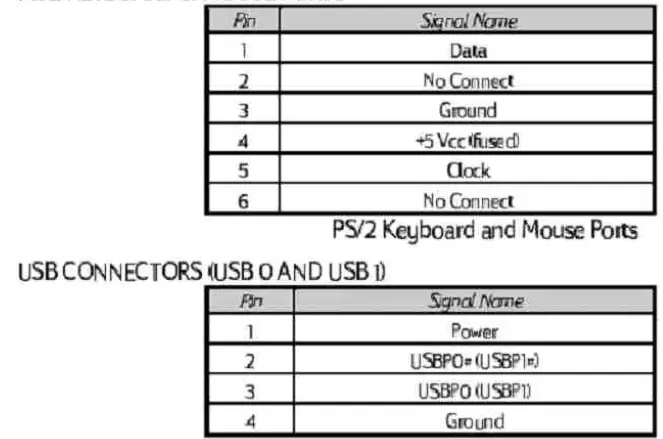

Back Panel I/O Connectors
Figure 5: Back Panel I/O connectors table

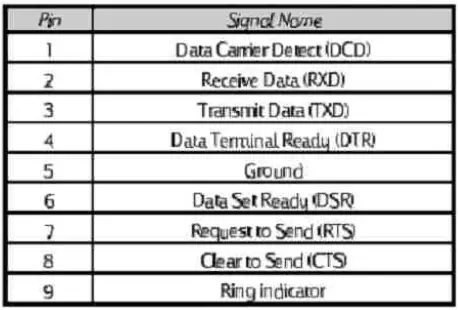

Serial Port Connector
Figure 6: Serial port connector table

Parallel Port

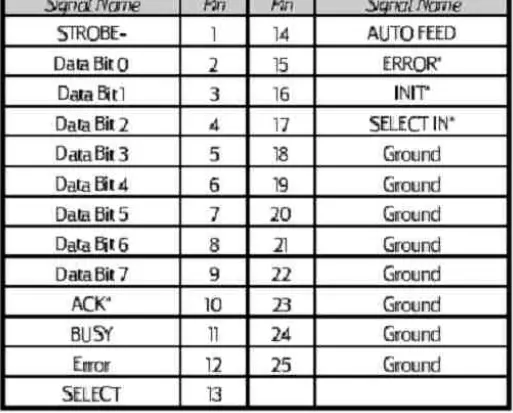

Figure 7: Parallel port connector table

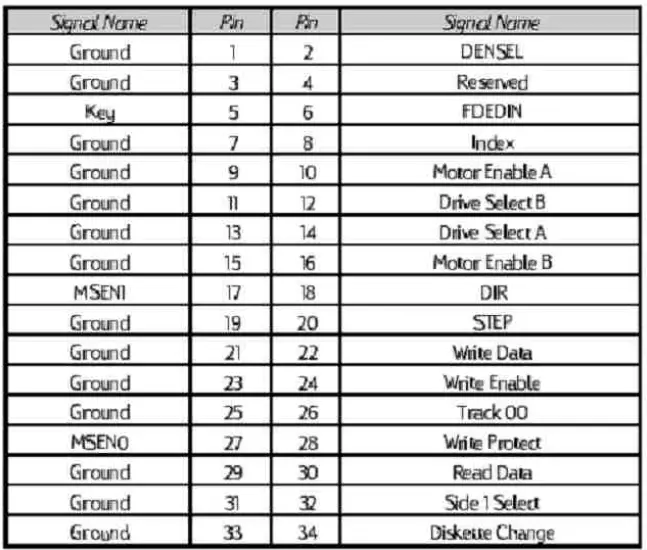

Floppy Connector
Figure 8: Floppy connector table
