Schlage Smart Lock Door Kit F60/f60f/f62/f93 Installation Manual

F60, F60F, F62, F93

Installation Instructions

Before Installing the Lock, Check Door Jamb and Door Preparation (See Page 5)

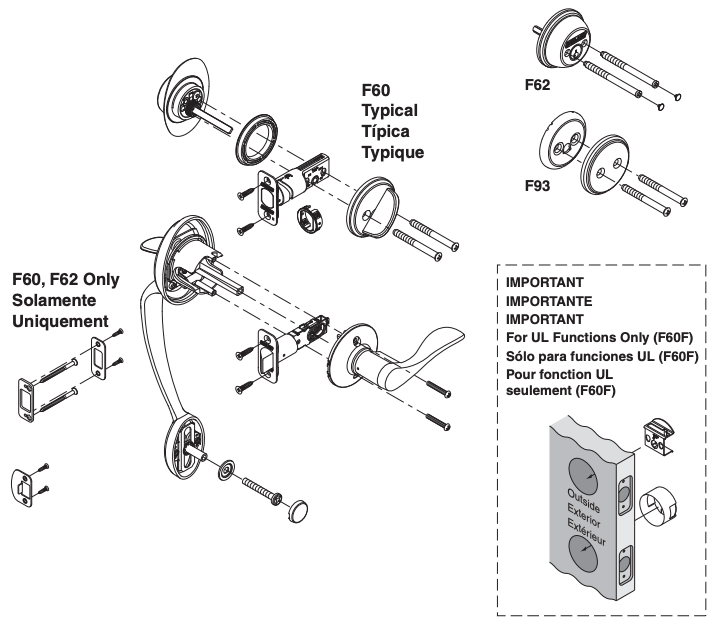

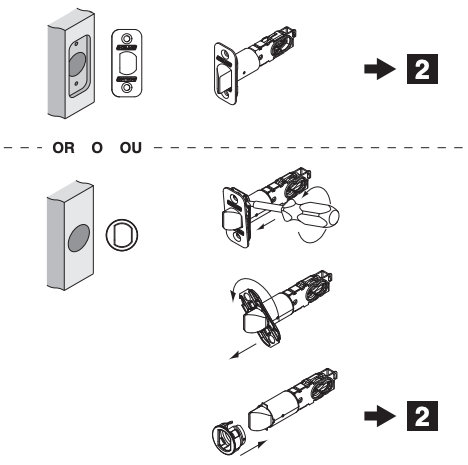

1. Choose Faceplate

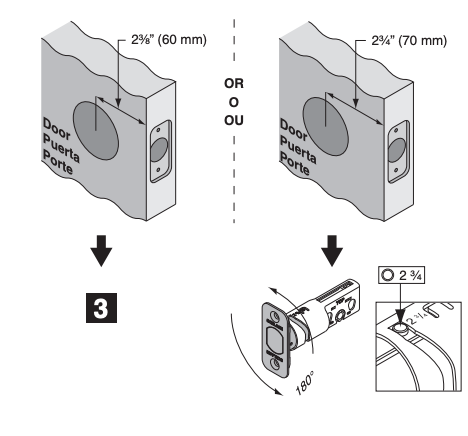

2. If Necessary, Adjust Deadbolt

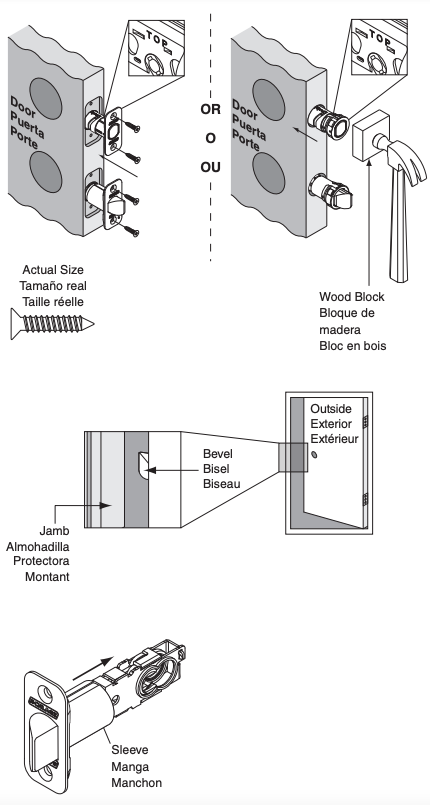

3. Install Latch and Deadbolt

If door has ⁷⁄₈” (22 mm) hole, remove latch sleeve

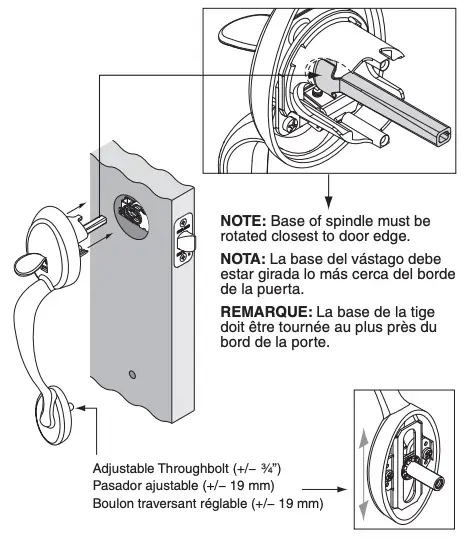

4. Install Handleset

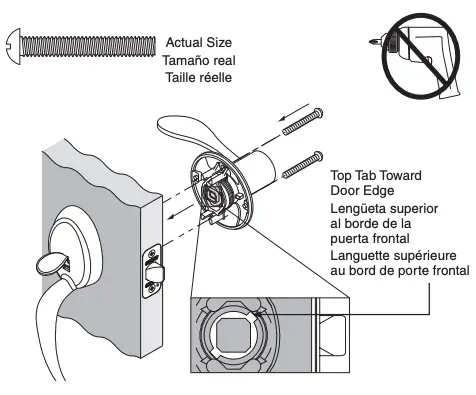

5. Install Inside Lever or Knob

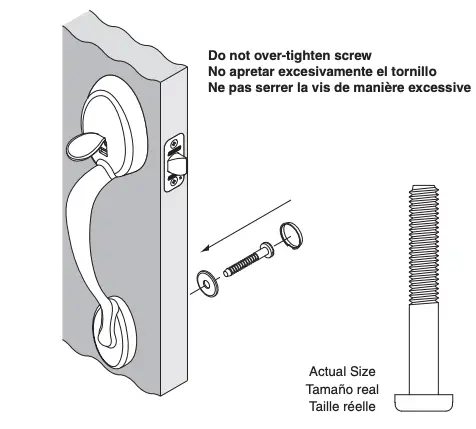

6. Install Handleset Washer, Screw and Cover

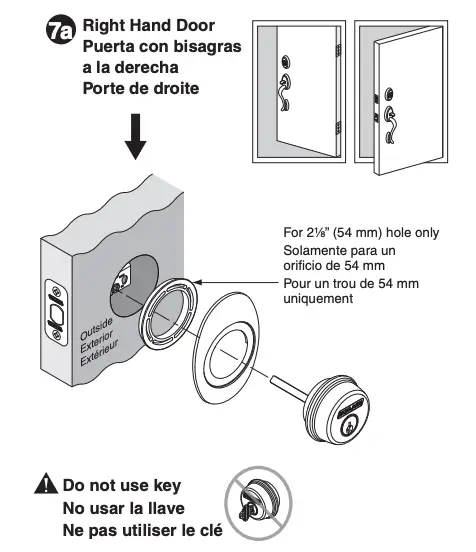

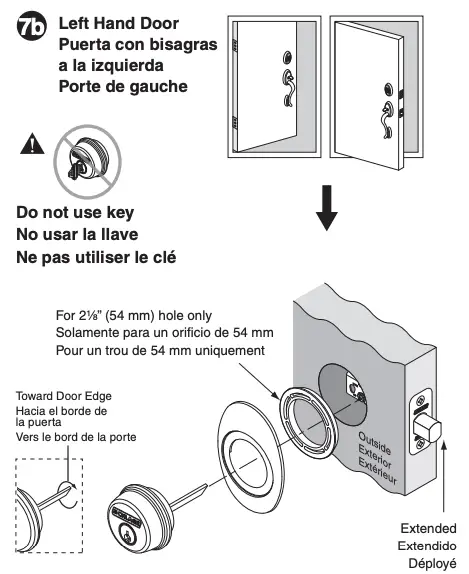

7. Install Outside Housing

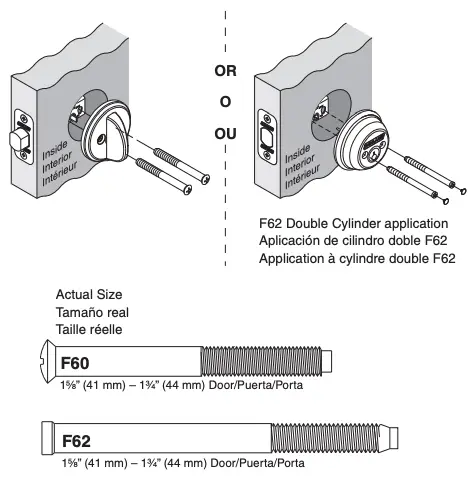

8. Install Inside Housing

9. Install Strike (F60/F62 Only)

If Desired, Switch Inside Lever

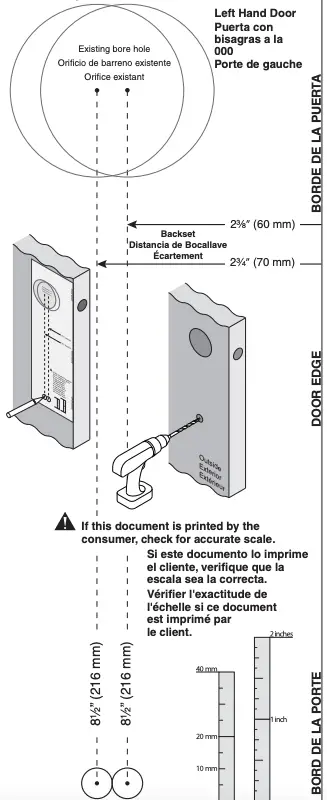

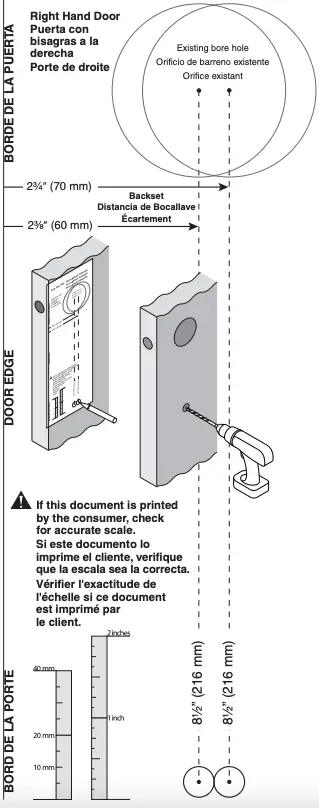

Throughbolt Template F60, F62, F93

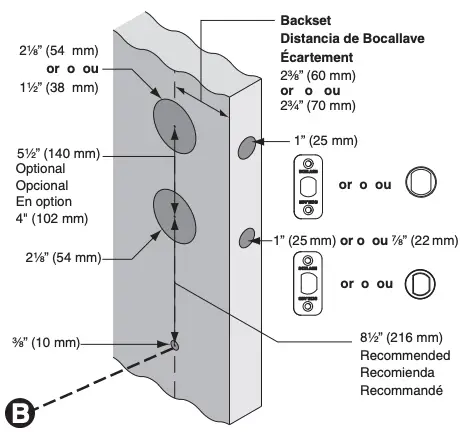

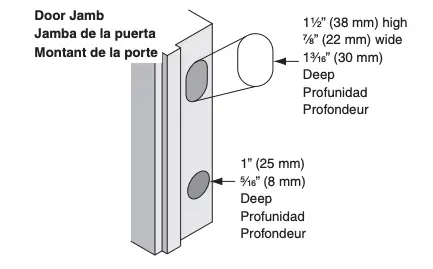

A. Check Door Jamb and Door Preparation

B. If necessary, cut out Throughbolt Template, mark door, and drill hole.
