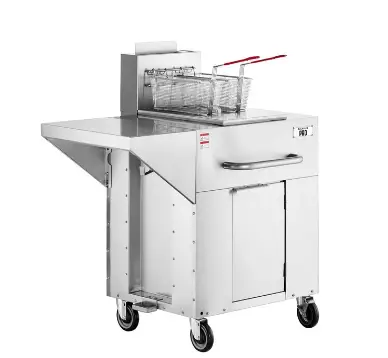

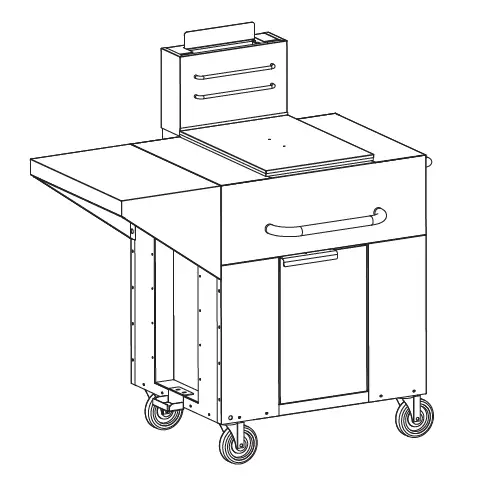

BACKYARD PRO 554BPF40 Fryer Carts
Instruction
Parts List
| Diagram Number | Item Number | Item Description | Qty Per Unit 554BPF40 | Qty Per Unit 554BPF80 |
| 1 | 554ZLC131 | Cover for Frypot | 1 | 2 |
| 2 | 55420502F001 | Basket Support Screen | 1 | 2 |
| 3 | 55421200F006 | Side Handle | 1 | 1 |
| 4 | 55420301C004 | Burner | 3 | 6 |
| 5 | 55421102F001 | Orifice | 3 | 6 |
| 6 | 55420101F003 | Thermostat | 1 | 2 |
| 7 | 55421002C001 | Caster | 4 | 4 |
| 8 | 55420502F013 | Fryer Basket | 2 | 4 |
| 9 | 55421200F002 | Drain Valve | 1 | 2 |
| 10 | 55421200F005 | Front Handle | 1 | 1 |
| 11 | 554ZLC107 | Right Door | 1 | 1 |
| 12 | 554ZLC106 | Left Door | 0 | 1 |
| 13 | 554BYP14WHL | 2x Wheel with Hardware | 1 | 1 |
| 14 | 55420101F004 | High Limit Thermostat | 1 | 2 |
| 15 | 55420101F040 | Combination Valve | 1 | 1 |
| 16 | 55420902F001 | Axle for Wheels | 1 | 1 |
Diagram

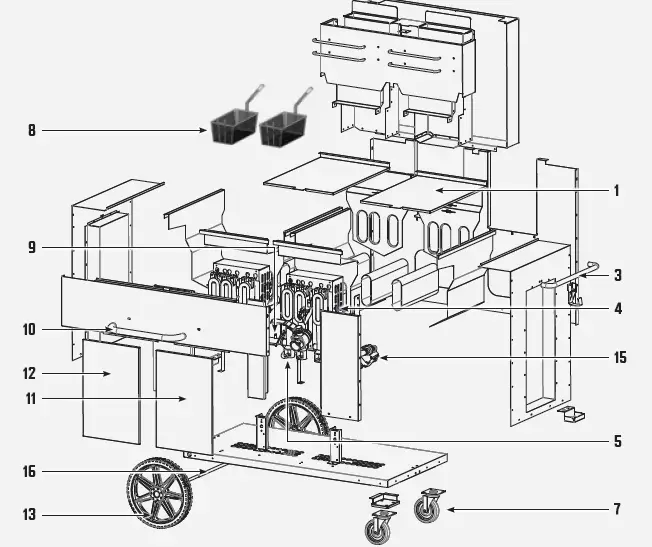

#554BPF80

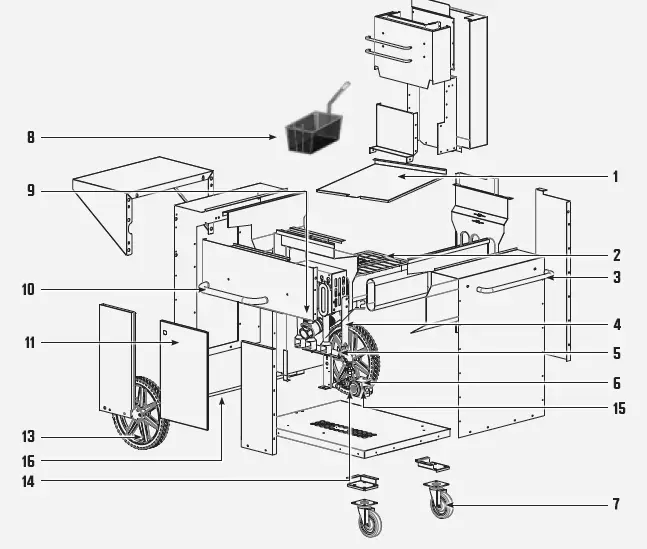

#554BPF40
