Watteco Clos’o 50-70-108 Lorawan Gateway Sensor User Guide

WATTECO Clos’O 50-70-108 LoRaWAN Gateway Sensor

Start

Provision the device on your LoRaWAN® network with the keys available on the secure platform.

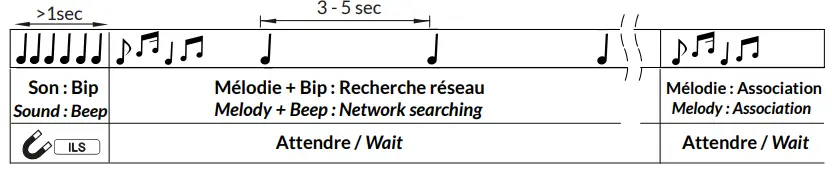

ON :

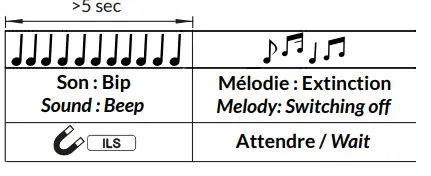

OFF :

Positioning on gate

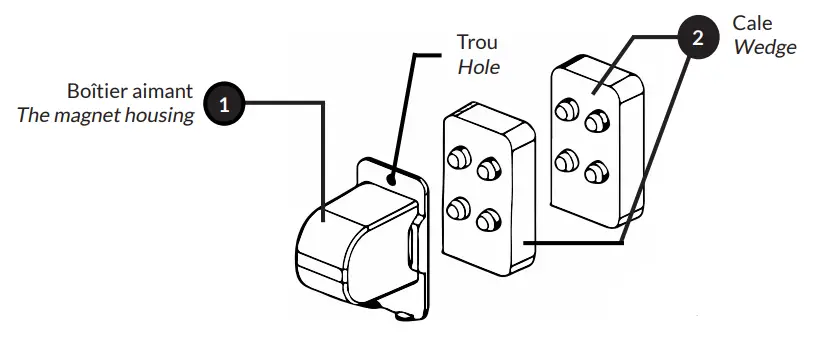

• To overcome the problem of alignment of the magnet housing (1), optional shims (2) are provided which are placed on the back of the magnet housing. The magnet housing can also be screwed to a flat surface. (screws not included)

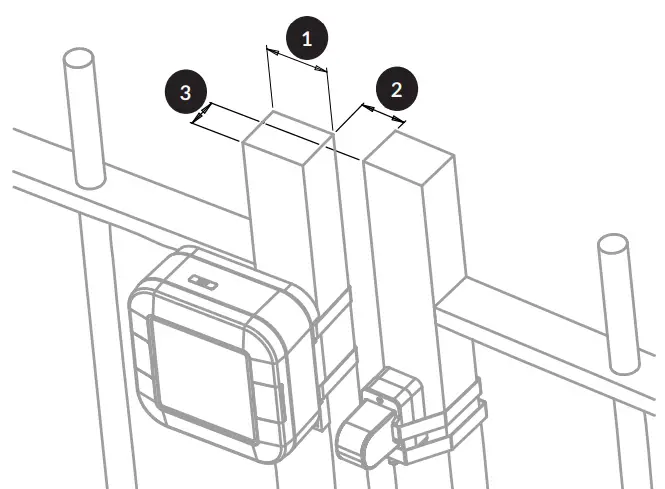

  The angular corners of the sensor and the magnet box must face each other. The sensor must be aligned with the magnet box.

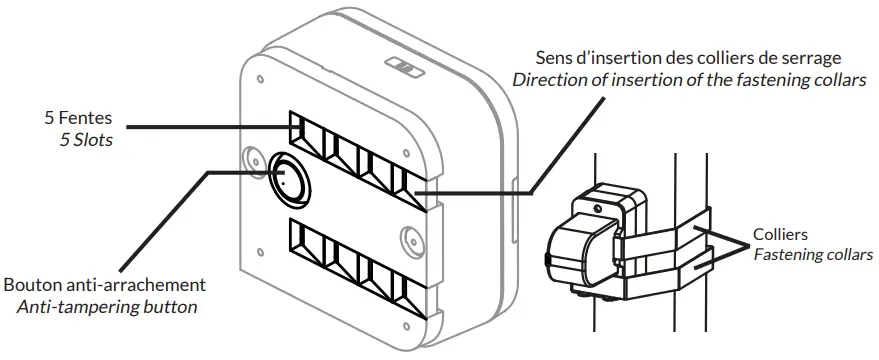

• In order to avoid slipping, the enclosure must be fixed with fastening collars, which must be mounted on the flat surface of the post. The clamp must be effective to prevent the sensor from moving but must be kept to a minimum so as not to damage the enclosure. The fastening collars are mounted from the back of the housing through the slots and exit on the other side of the housing. Slots are aligned and spaced at 16mm intervals allowing the collars to be positioned to suit the gate dimensions. The housing must be in contact with a flat surface. The Anti-tampering button must be in contact with the flat surface of the post.

Radio propagation

Check the radio coverage with the Netw’O.

For the sensor communicates correctly, the number of obstacles should be limited to avoid excessive radio attenuation.

Characteritics

https://support.watteco.com/

Watteco represented by JC LE BLEIS, declares that the radio equipment type 50-70-108 is in conformity with Directive 2014/53/EU (RED) and UKCA. The full text of the EU and UKCA Declaration of Conformity is available at the following web address: https://www.watteco.com/assistance/download-center/

Thanks for choosing WATTECO devices
