Outdoor LoRaWAN® Gateway
UG67
Quick Start Guide

Safety Precautions
Milesight will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide.

• The device must not be modeled in any way.
• Do not place the device close to objects with naked flames.
• Do not place the device where the temperature is below/above the operating range.
• Do not power on the device or connect it to another electrical device when installing.
• Check lightning and water protection when used outdoors.
• Do not connect or power the equipment using cables that have been damaged.

Related Documents
This Quick Start Guide only explains the installation of the Milesight UG67 LoRaWAN® Gateway. For more functionality and advanced settings, please refer to the relevant documents below.

The related documents are available on the Milesight website: https://www.milesight-iot.com

Declaration of Conformity
UG67 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS.

For assistance, please contact Milesight technical support:
Email: [email protected]
Tel: 86-592-5085280
Fax: 86-592-5023065

Revision History

Packing List

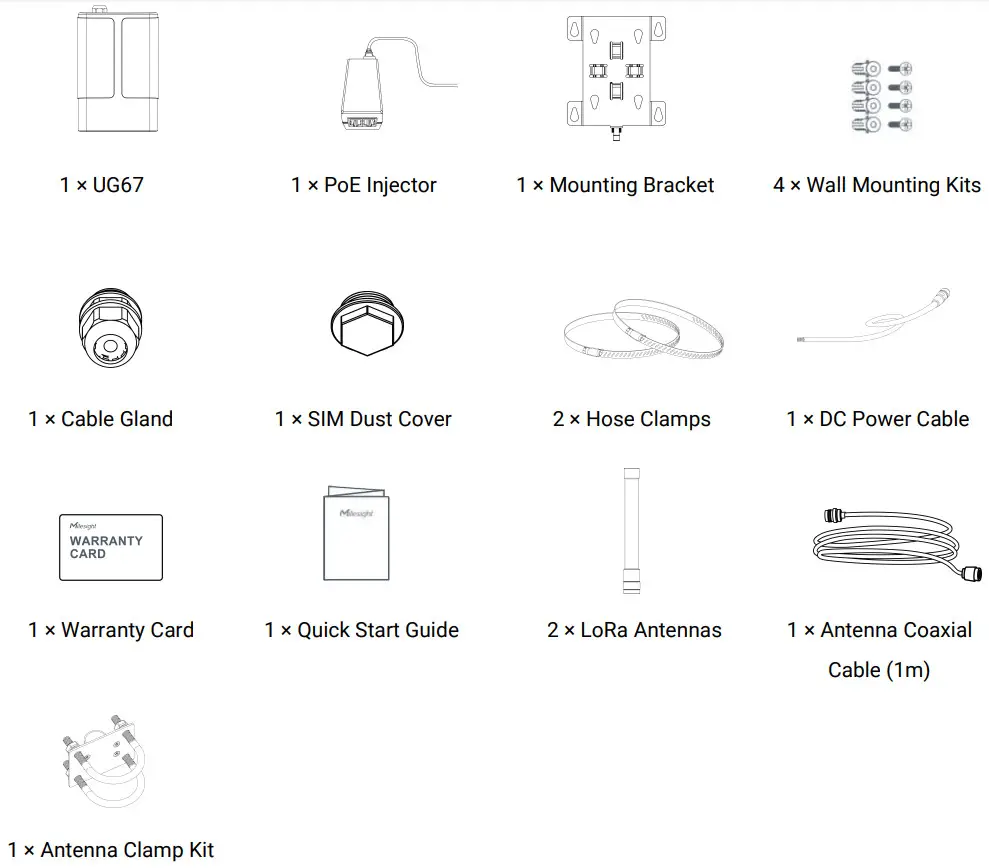

Before you begin to install the UG67 LoRaWAN® Gateway, please check the package contents to verify that you have received the items below.

If any of the above items are missing or damaged, please contact your sales representative.

Hardware Introduction

Overview

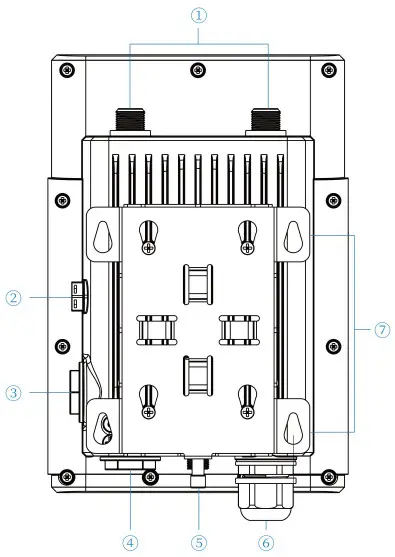

1. LoRa Antenna Connector
2. Vent Plug
3. SIM Slot
4. LED Area & Type-C Port & Reset Button
   SYS: System Indicator
   LoRa: LoRa Indicator
   LTE: Cellular Indicator
5. DC Power Connector (Solar Connector)
6. Ethernet Port (PoE)
7. Mounting Bracket

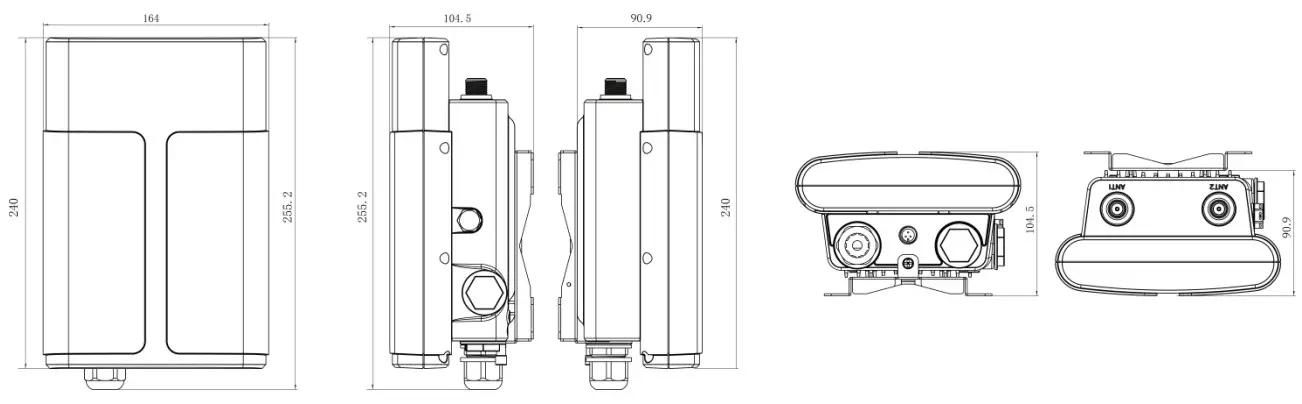

Dimensions (mm)

LED Indicators

Reset Button

DC Power Connector

UG67 supports 12 VDC or solar supply via an M12 connector.

Hardware Installation

SIM Card Installation

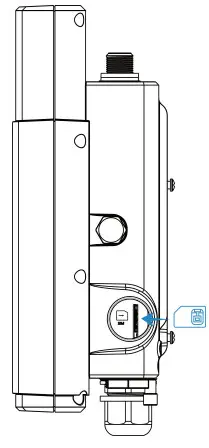

A. Insert the SIM card into the device according to the direction icon on the device. If you need to take out the SIM card, press into the SIM card and it will pop up automatically.
B. Tighten the SIM dust cover with a wrench to prevent water into the device.
Note: UG67 does not support hot-plugging (also called hot swapping). please turn off the power before you insert or take off cards.

Antenna Installation

UG67 supports multiple LoRa antenna types. After installation, please select the corresponding installation type in web GUI.
Internal Antenna Mode: keep gateway positive outwards to ensure a good signal.
Signal Antenna Mode: the external antenna must be installed on the ANT1 connector.

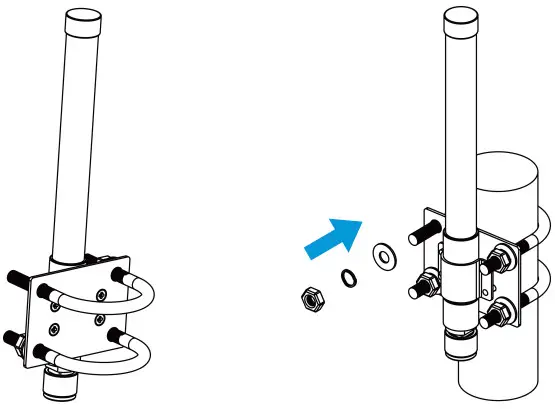

Double Antenna Mode: it’s suggested to add a coaxial cable between one of the antenna connectors (ANT1 is recommended) and the LoRa antenna to ensure better performance. After installation, the LoRa antenna can be fixed to a pole via an antenna clamp kit. Pass this LoRa antenna through the antenna clamp and fix it with 4 screws, then wrap the U-bolt around a pole and fix the clamp with nuts and other accessories.

Ethernet Cable & Power Cable Installation

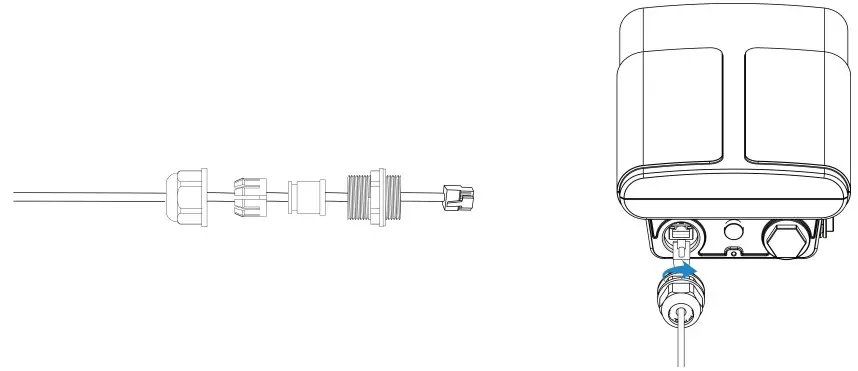

Pass the Ethernet cable through the cable gland and rotate the cable gland to the gateway, then tighten the cable gland with a wrench.

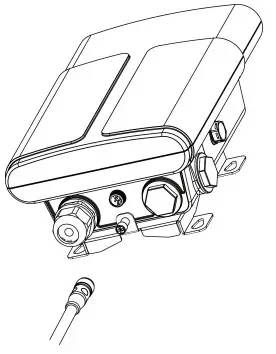

For DC or solar power supply, remove the protective cap of the power connector and rotate the DC power cable into the power connector.

Power Supply

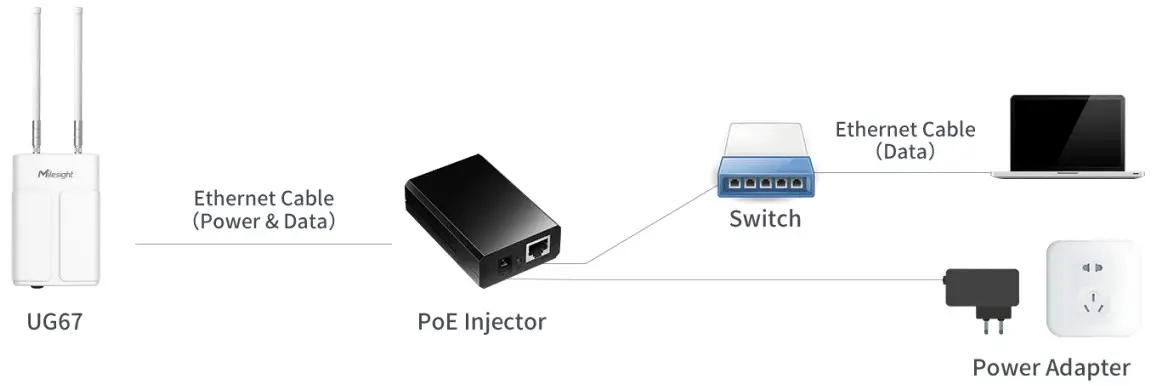

UG67 can be powered by 802.3af standard PoE or 12VDC. Please follow the picture to provide power supply via PoE injector:

Gateway Installation

UG67 can be mounted to a wall or a pole. Before you start, make sure that your SIM card has been inserted, your antennas have been attached and all cables have been installed.
Note: Do not connect the device to the power supply or other devices when installing.

Wall Mounting

Preparation: mounting bracket (with a screw), wall plugs, wall mounting screws, and other required tools.

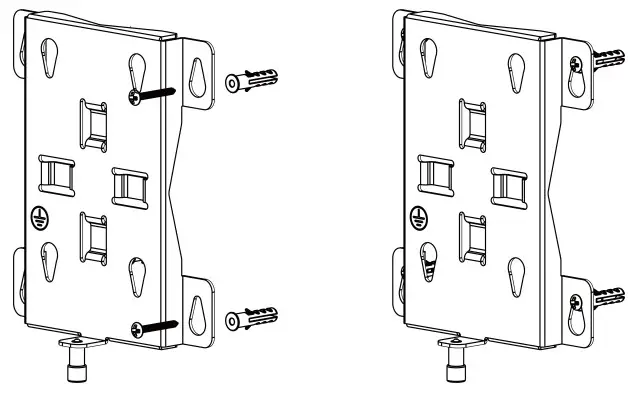

A. Align the mounting bracket horizontally to the desired position on the wall, use a marker pen to mark four mounting holes on the wall, and then remove the mounting bracket from the wall.
Note: The connecting lines of adjacent points are at right angles.
B. Drill four holes with a depth of 32 mm by using your drill with a 6 mm drill bit on the positions you marked previously on the wall.
C. Insert four wall plugs into the holes respectively.
D. Mount the mounting bracket horizontally to the wall by fixing the wall mounting screws into the wall plugs.

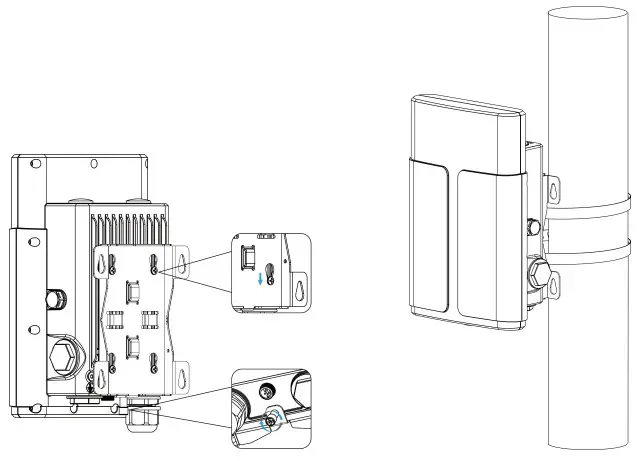

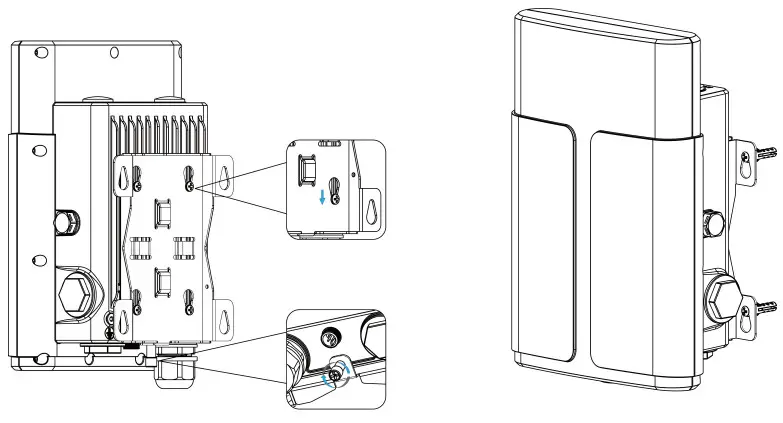

E. Hang the device to the mounting bracket via bracket mounting screws on the back of the device, then screw the bracket screw to the bottom of the device.

Pole Mounting

Preparation: mounting bracket (with a screw), hose clamp, and other required tools.
A. Loosen the hose clamp by turning the locking mechanism counter-clockwise.

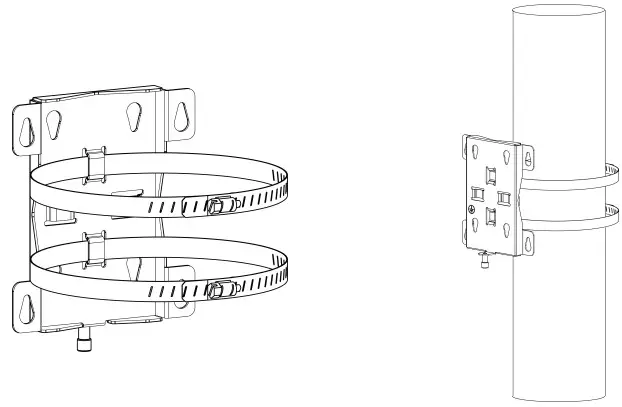

B. Straighten out the hose clamp and slide it through the rectangular rings in the mounting bracket, wrap the hose clamp around the pole.
C. Use a screwdriver to tighten the locking mechanism by turning it clockwise.

D. Hang the device to the mounting bracket via bracket mounting screws on the back of the device, then screw the bracket screw to the bottom of the device.

Log in to the Web GUI

UG67 provides a web-based configuration interface for management. If this is the first time you configure the gateway, please use the default settings below:
ETH IP Address: 192.168.23.150
Wi-Fi IP Address: 192.168.1.1
Wi-Fi SSID: Gateway_******
Username: admin
Password: password

Wireless Access

A. Enable Wireless Network Connection on your computer and search for access point “Gateway_******” to connect it.
B. Open a Web browser on your PC (Chrome is recommended) and type in the IP address 192.168.1.1 to access the web GUI.

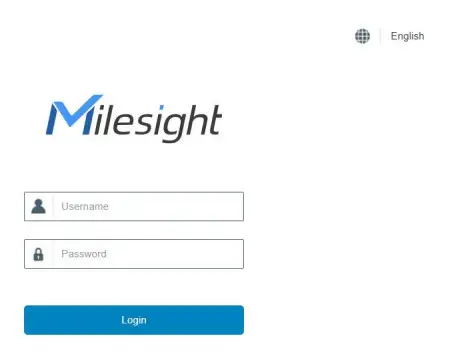

C. Enter the username and password, and click “Login”.

If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes.

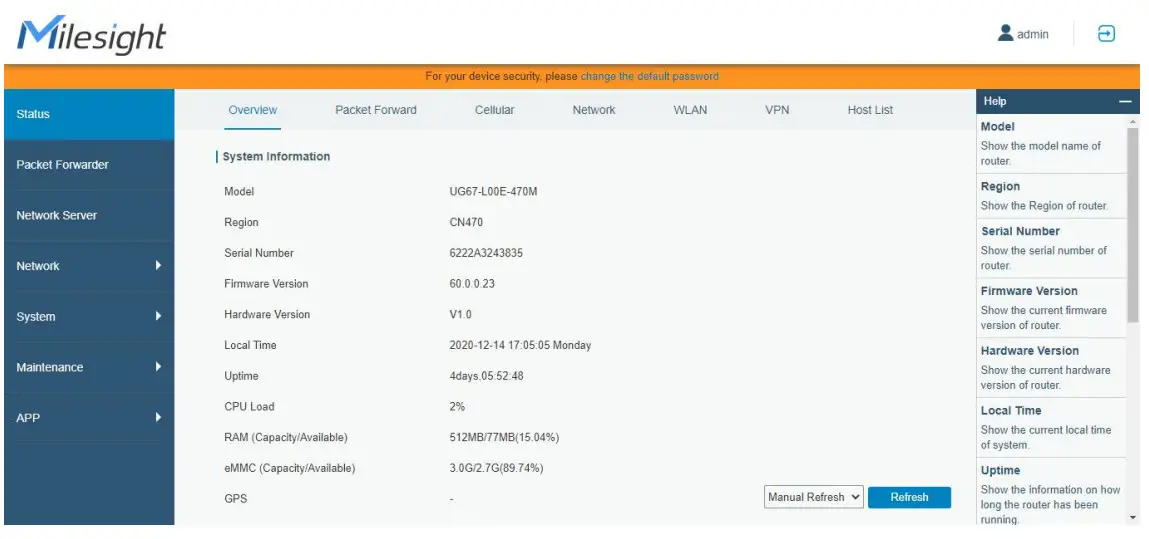

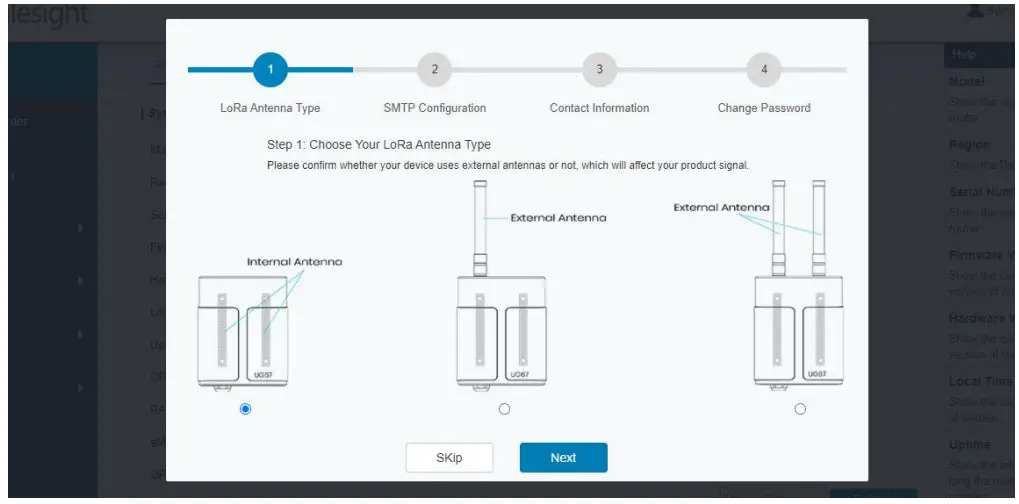

D. After logging into the web GUI, follow the guide to complete the basic configurations. It’s suggested that you change the password for the sake of security.

E. You can view system information and perform the configuration of the gateway.

Wired Access

Connect PC to UG67 ETH port through PoE injector. The following steps are based on Windows 10 operating system for your reference.

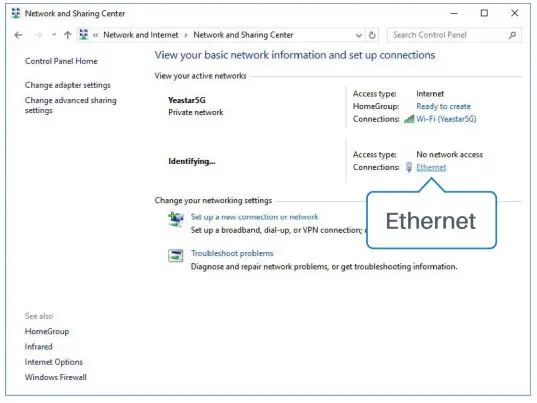

A. Go to “Control Panel” → “Network and Internet” → “Network and Sharing Center”, then click “Ethernet” (which May have different names).

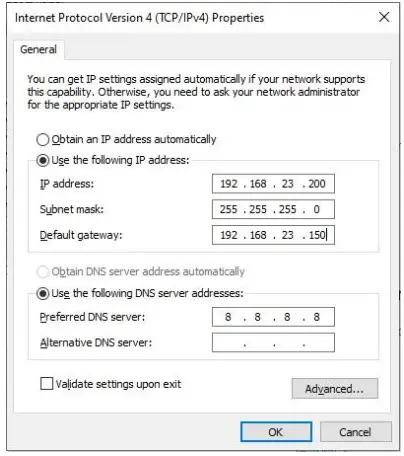

B. Go to “Properties” → “Internet Protocol Version 4(TCP/IPv4) ”and select “Use the following IP address”, then assign a static IP manually within the same subnet of the gateway.

C. Open a Web browser on your PC (Chrome is recommended) and type in the IP address 192.168.23.1 50 to access the web GUI.
D. Enter the username and password, and click “Login”.

If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes.
E. After logging the web GUI, follow the guide to complete the basic configurations. You can also skip the instructions. It’s suggested that you change the password for the sake of security.

F. After the guide is complete, you can view system information and perform the configuration of the gateway.

Network Connection

This section explains how to connect the gateway to a network via WAN connection, Wi-Fi, or cellular.

Configure the Ethernet Connection

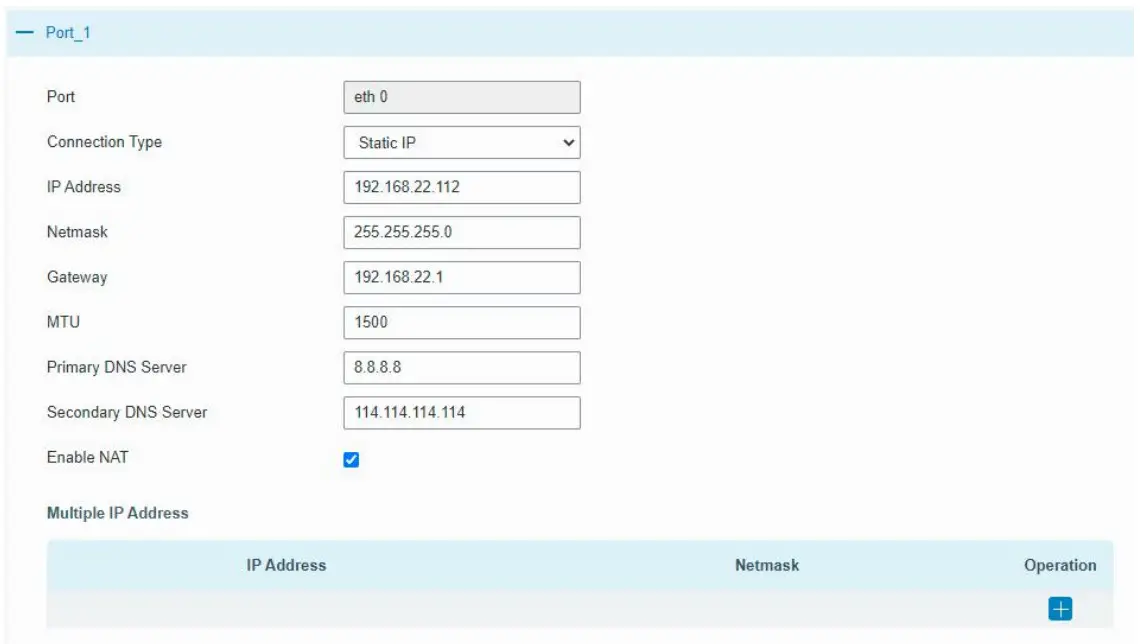

A. Go to the “Network”→ “Interface” → “Port” page to select the connection type and configure Ethernet port information.
B. Click “Save & Apply” for changes to take effect.

C. Connect Ethernet port of gateway to devices like router or modem.

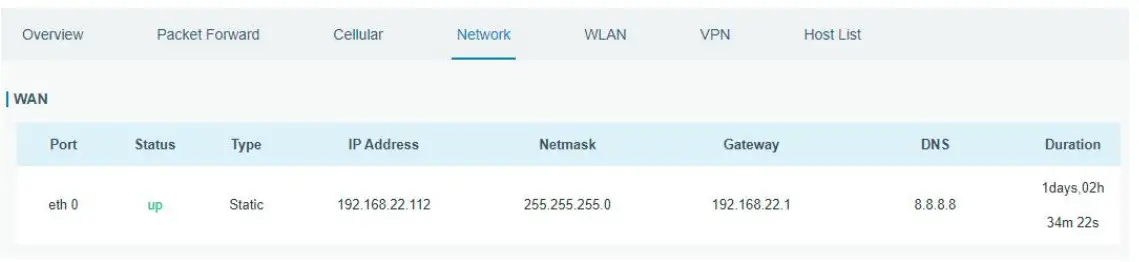

D. Log in to the web GUI via the newly assigned Ethernet port IP address and check the network connection.

Configure the Wi-Fi Connection

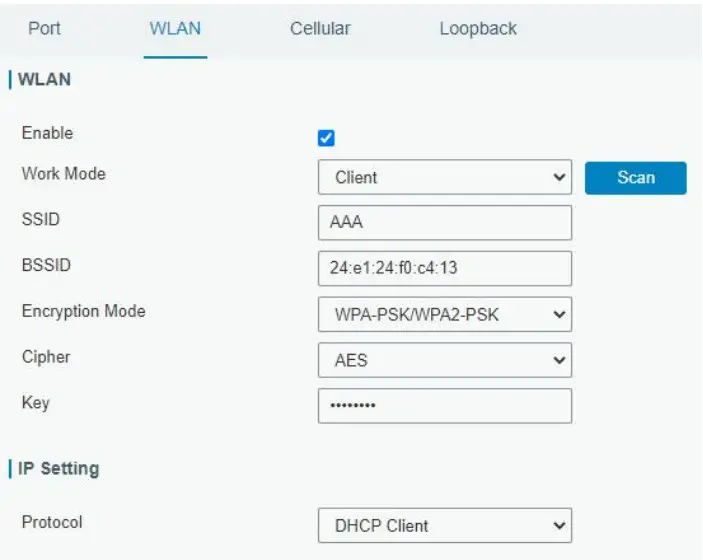

A. Go to “Network” → “Interface” → “WLAN” and select “Client” mode.

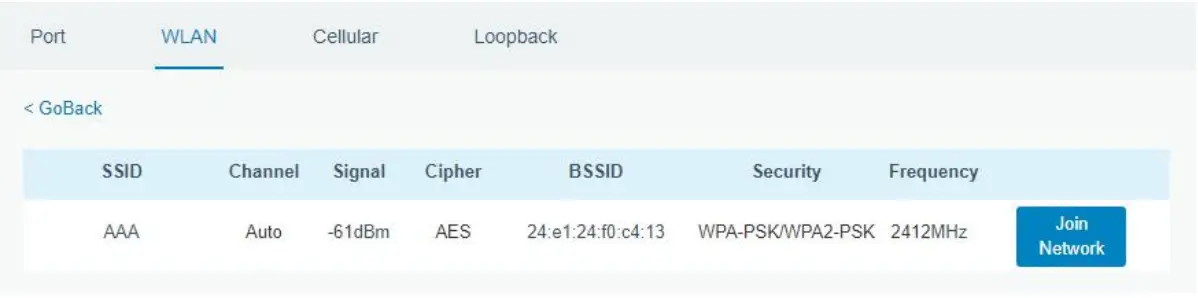

B. Click “Scan” to search for a Wi-Fi access point. Select the available one and click “Join Network”.

C. Type the key of Wi-Fi.

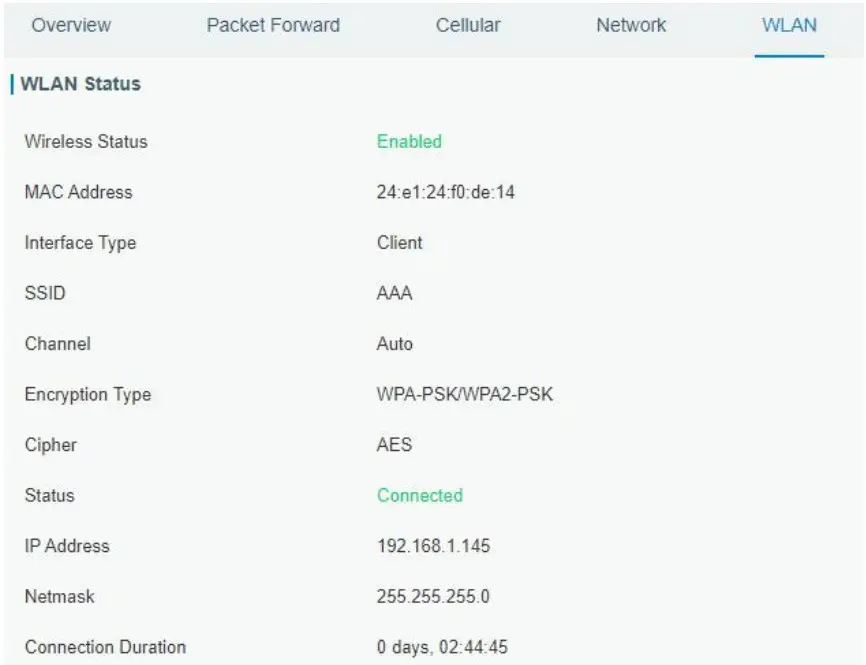

D. Go to “Status”→” WLAN” to check Wi-Fi status. If it shows “Connected”, it means the gateway connects to Wi-Fi successfully.

Configure the Cellular Connection

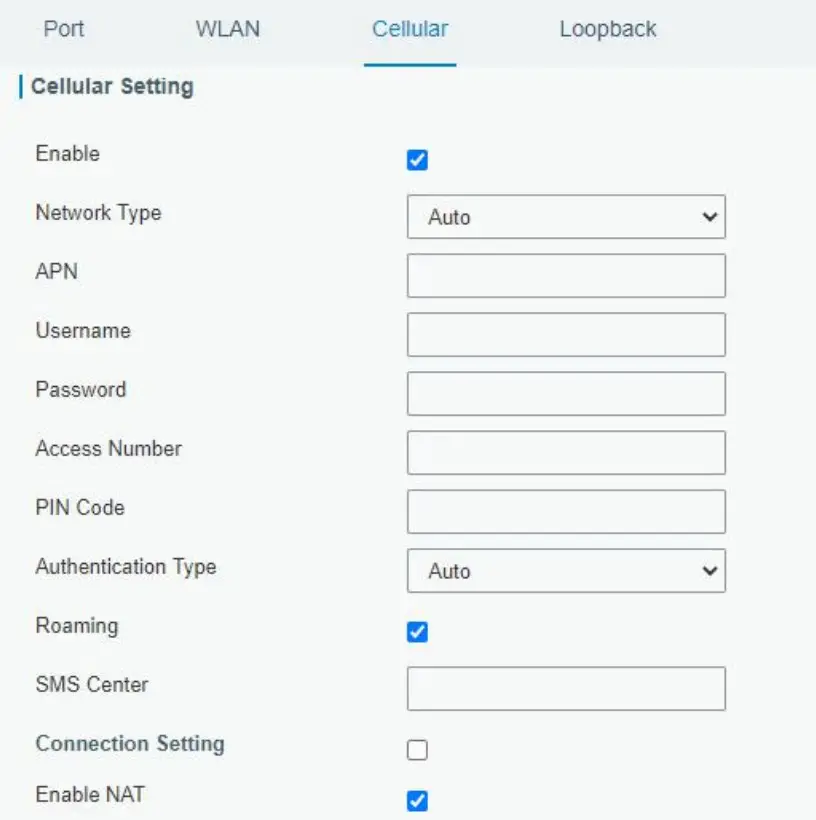

A. Go to the “Network” → “Interface” → “Cellular” → “Cellular Setting” page to enable cellular settings.
B. Choose relevant network type and fill in SIM card information like APN or PIN code.
C. Click “Save” and “Apply” for changes to take effect.

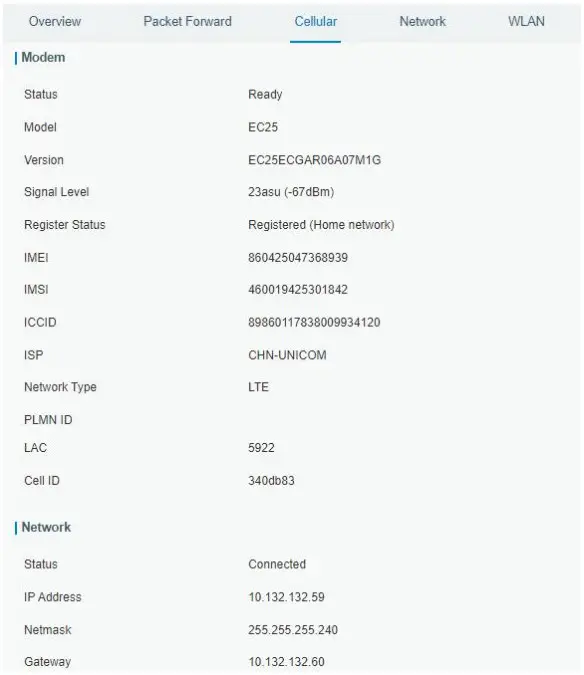

D. Go to the “Status” → “Cellular” page to view the status of the cellular connection. If it shows “Connected”, it means the SIM has dialed up successfully. On the other hand, you can check the status of the LTE indicator. If it keeps on light statically, it means SIM has dialed up successfully.

Packet Forwarder Configuration

UG67 has installed multiple packet forwarders including Semtech, Chirpstack-Generic MQTT broker, etc.
This section explains how to connect the gateway to network servers.
Make sure the gateway connects to the network as shown in Section 5.

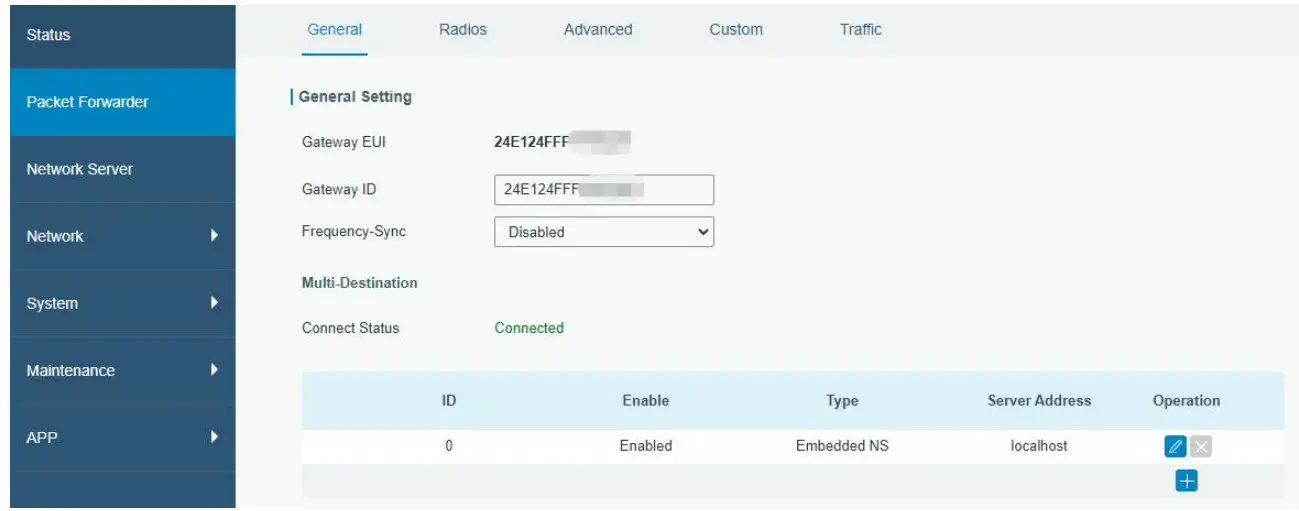

A. Go to the “Packet Forwarder” → “General” page and click  to add a network server.

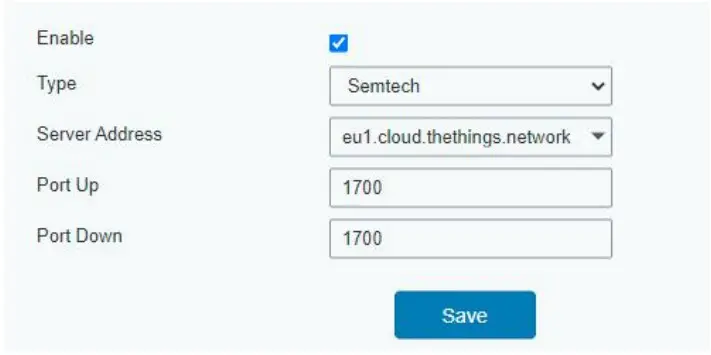

B. Fill in the server information and enable this server.

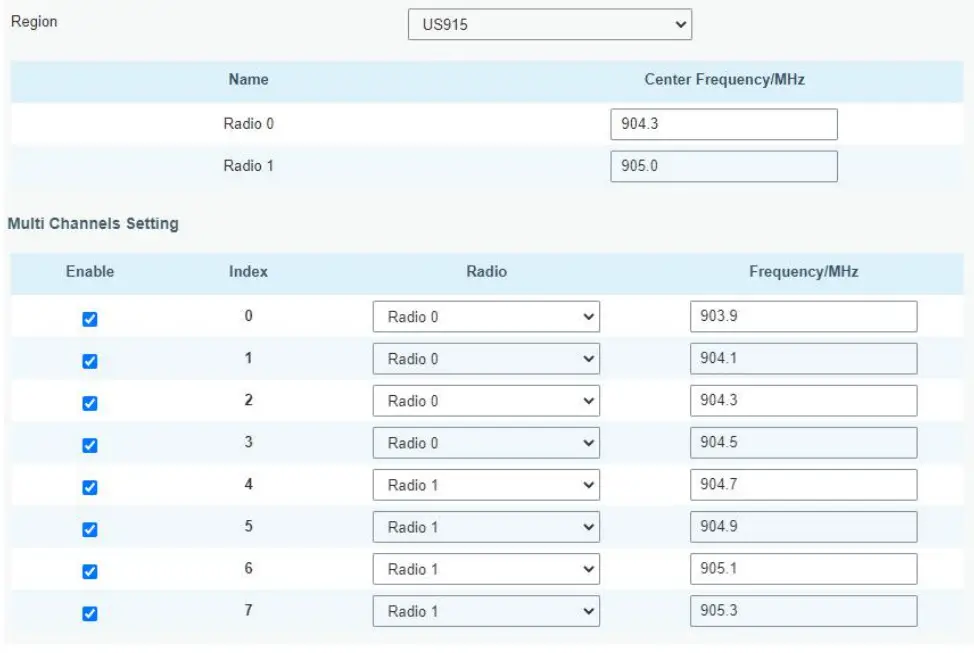

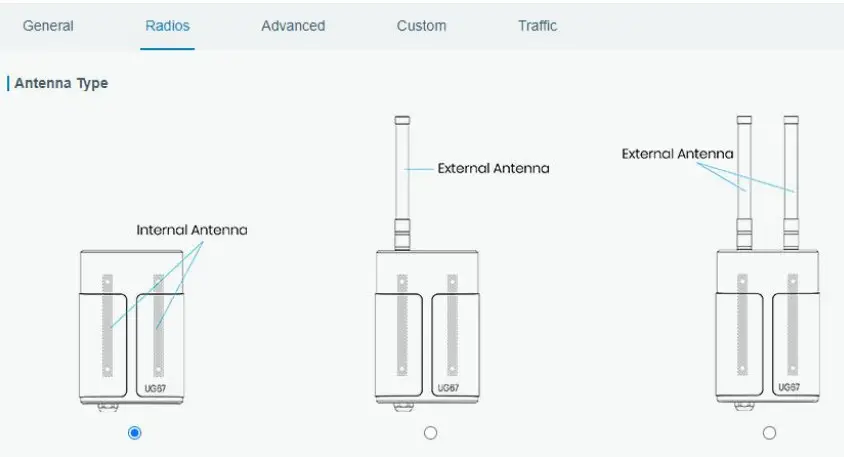

C. Go to the “Packet Forwarder” → “Radio” page to configure antenna type, center frequency, and channels. The channels of the gateway and network server need to be the same.

D. Add the gateway on the network server page. For more details about the network server connection please refer to the Milesight IoT Support portal.
E. Go to the “Traffic” page to view the data communication of UG67.

Network Server Configuration

UG67 can work as a network server and transmit data to Milesight IoT Cloud or another platform via MQTT/HTTP/HTTPS.
Make sure the gateway connects to the network as shown in Section 5.

Connect UG67 to Milesight IoT Cloud

A. Go to the “Packet Forwarder” → “General” page to enable the embedded network server.

B. Go to the “Packet Forwarder” → “Radio” page to select the antenna type, center frequency, and channels.
The channels of the gateway and nodes need to be the same.

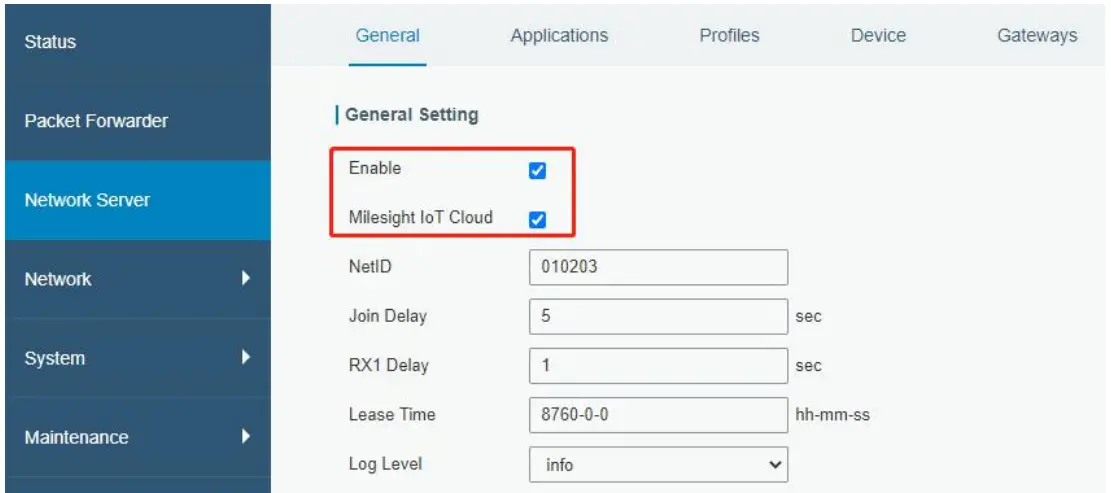

C. Go to the “Network Server” → “General” page to enable the network server and “Milesight IoT Cloud” mode.

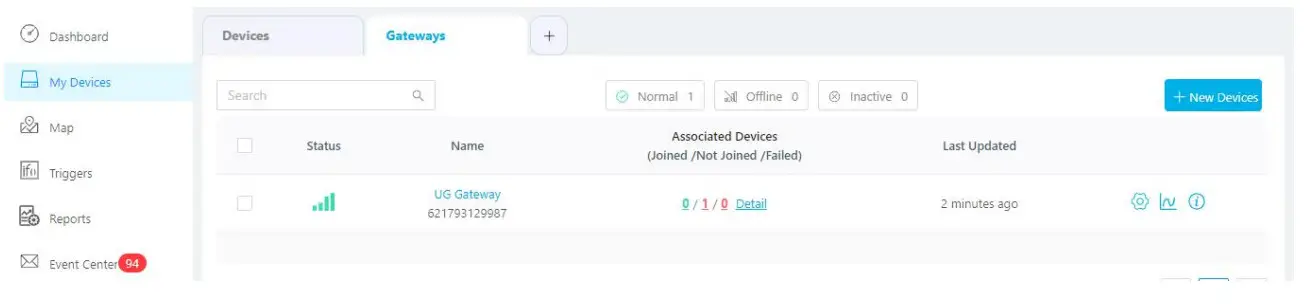

D. Log in to the Milesight IoT Cloud. Then go to the “My Devices” page and click “+New Devices” to add a gateway to Milesight IoT Cloud via SN. Gateway will be added under “Gateways” menu.

E. The gateway is online on Milesight IoT Cloud.

Connect UG67 to MQTT/HTTP Server

A. Go to the “Packet Forwarder” → “General” page to enable the embedded network server.

B. Go to the “Packet Forwarder” → “Radio” page to select the antenna type, center frequency, and channels.
The channels of the gateway and nodes need to be the same.

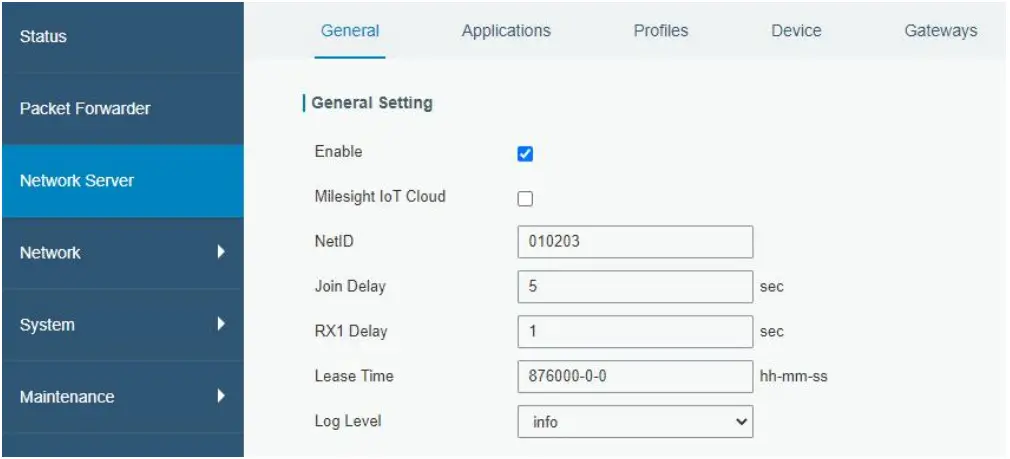

C. Go to the “Network Server” → “General” page to enable the network server mode.

D. Go to “Network Server”→” Application” to add a new application.

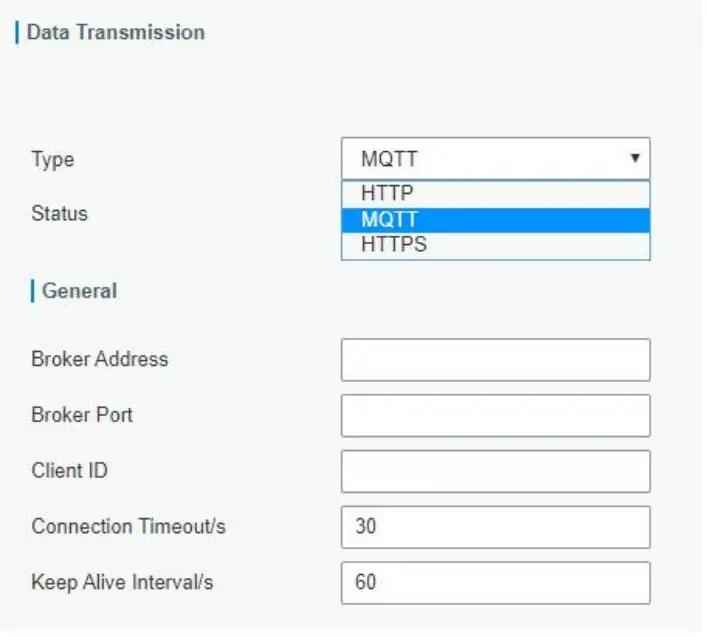

After saving the application, you can select HTTP, HTTPS, or MQTT protocol and fill in the corresponding server information to send data to another server.

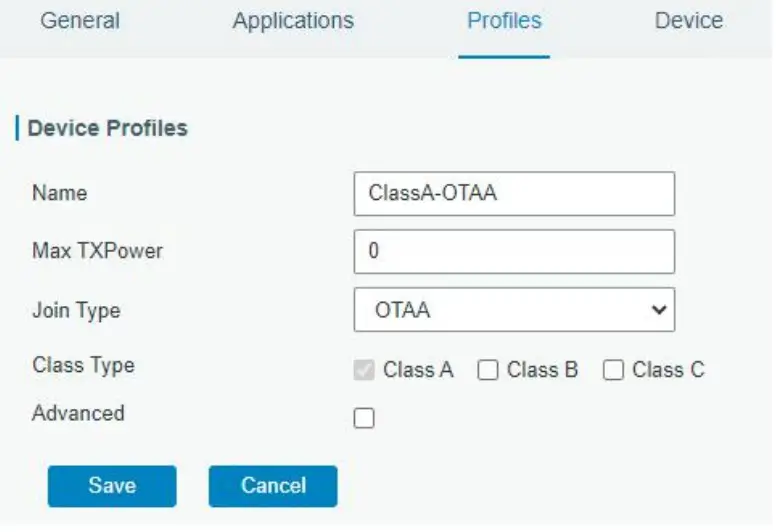

E. Go to the “Profiles” page to add a new profile for the device.

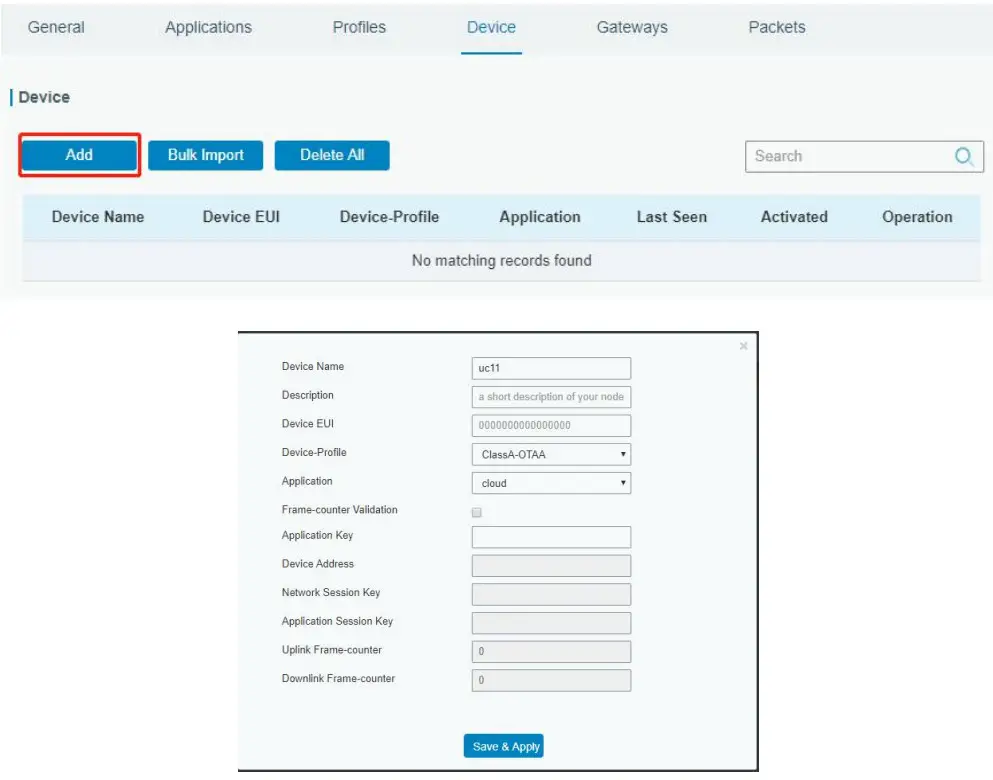

F. Go to the “Device” page and click “Add” to add LoRaWAN node devices.

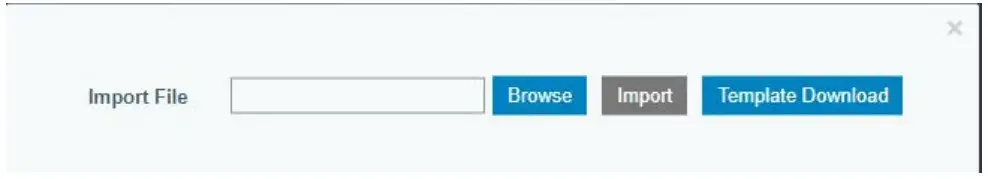

You can also click “Bulk Import” if you want to add many nodes all at once.

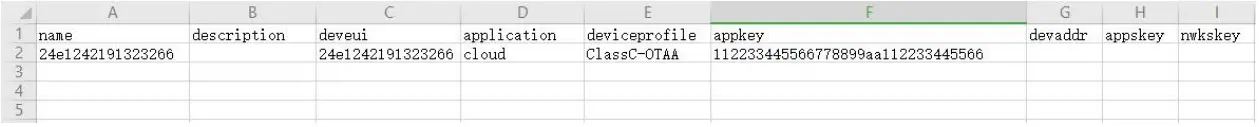

Click “Template Download” to download the template file and add device information to this file. The application and device profile should be the same as you created on the web page.

Import this file to add bulks of devices.

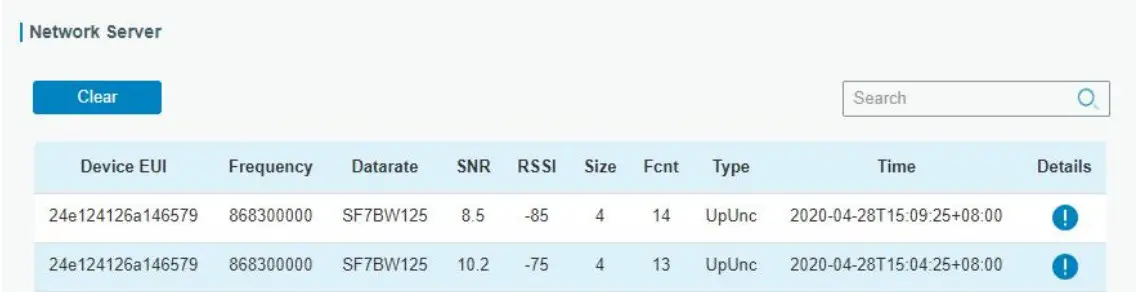

F. Go to the “Packets” page to check the packets from LoRaWAN® node devices. The type starts from “Up” which means uplinks and “Dn” means downlinks.

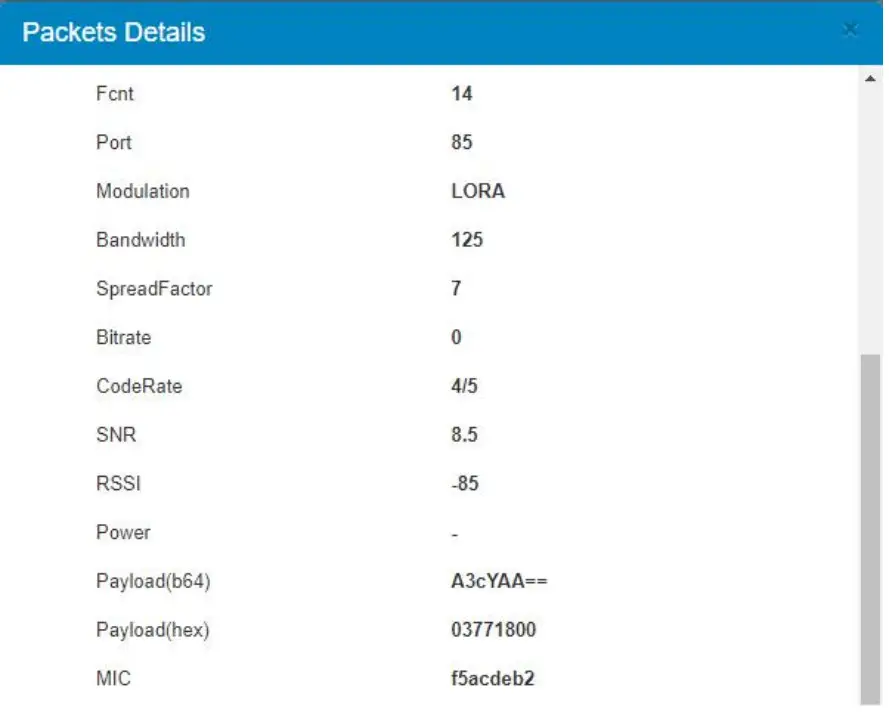

Click “Details” to check the properties and payload contents of packets.
