S500SD LoRaWAN Wireless WorkSpace Sensor
User Guide

Safety Precautions

Linovison will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide.

• The device must not be disassembled or remodeled in any way.
• To avoid the risk of fire and electric shock, do keep the product away from rain and moisture before installation.
• Do not place the device where the temperature is below/above the operating range.
• Do not touch components that may be hot.
• The device must never be subjected to shocks or impacts.
• Make sure the device is firmly fixed when installing.
• Make sure the plug is firmly inserted into the power socket.
• Do not expose the device to where laser beam equipment is used.
• Use a soft, dry cloth to clean the lens of the device. Stubborn stains can be removed using a cloth dampened with a small quantity of detergent solution, then wipe them dry.

Declaration of Conformity
S500SD is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS.

Copyright © 2007-2021 Linovision. All rights reserved.
All information in this guide is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user guide by any means without written authorization from Hangzhou Linovision Co., Ltd.
Revision History

Product Introduction

1.1 Overview
S500SD, based on Artificial Intelligence (AI) technology, is an AI workplace sensor designed to monitor occupancy & utilization in modern workspaces, which can reach up to 95% recognition rate. With the ability to sense from up to 78m², fewer sensors are needed to cover the same area, decreasing the deployment costs for users. Only counter values are transmitted over the LoRaWAN®  network to prevent privacy concerns. S500SD is equipped with Wi-Fi for easy configuration without any tools.
Sensor data are transmitted in real-time using standard LoRaWAN®  protocol. LoRaWAN® enables encrypted radio transmissions over long distances while consuming very little power. The user can obtain sensor data and view the trend of data change through the user’s own network server.
1.2 Key Features

• The recognition rate is up to 95% based on advanced AI identification and analysis
  technology and wide detection range
• Support to map up to 12 custom regions
• No image data is collected, free from privacy concerns
• Equipped with Wi-Fi for web GUI configuration
• Function well with standard LoRaWAN® gateways and network servers

Hardware Introduction

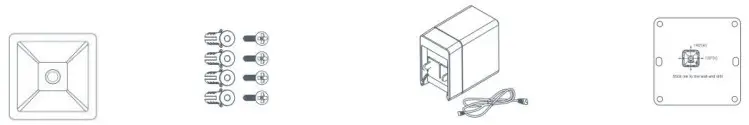

2.1 Packing List

1 × S500SD Sensor	Wall Mounting Kits	1 × Type-C Cable (1 m) & Power Adapter	1 × Mounting Sticker	1 × Quick Guide

If any of the above items are missing or damaged, please contact your sales representative.
2.2 Hardware Overview

2.3 Buttons and LED Indicators

2.4 Dimensions(mm)

Access the Sensor

S500SD sensor provides a user-friendly web GUI for configuration and users can access it via a Wi-Fi connection. The recommended browsers are Internet Explorer, Firefox, Chrome, Microsoft Edge, and Safari. The default IP of the sensor is 192.168.1.1, and the default SSID is Vision Sensor_XXXXXX (which can be found on the label).
3.1 Access without Plugin
Step 1: Power on the device.
Step 2: Enable the Wireless Network Connection on your computer and search for the corresponding access point, then connect the computer to this access point.
Step 3: Open the Browser and type 192.168.1.1 to access the web GUI.
Step 4: Select the language.

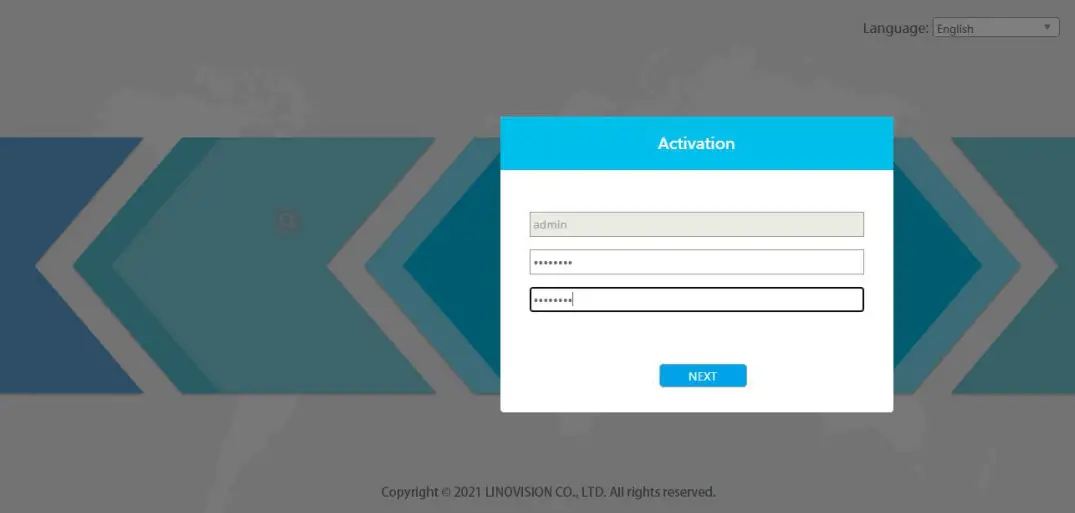

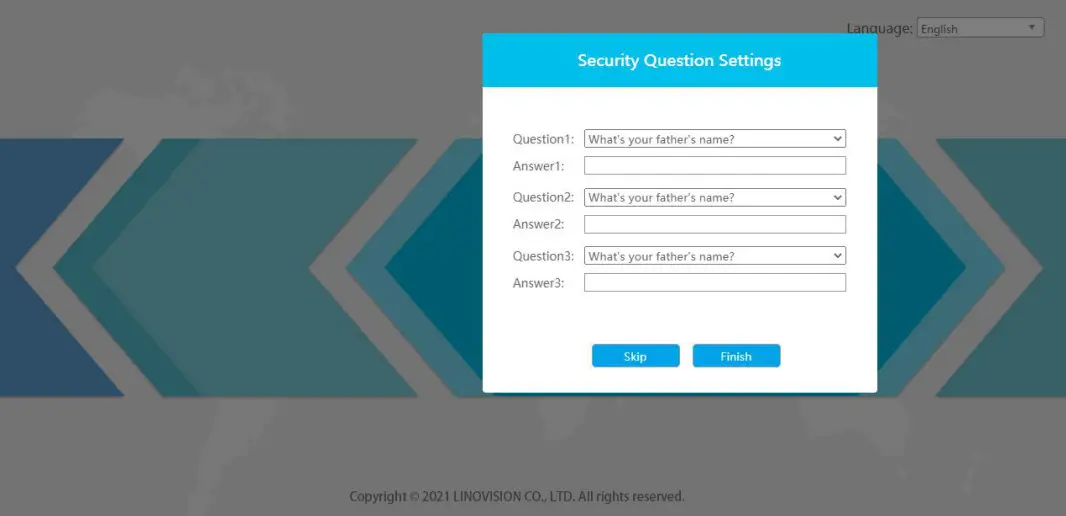

Step 5: Users need to set the password when using the sensor for the first time. And three security questions can also be set optionally. After configuration, use a username (admin) and a custom password to log in to the sensor.
Note:

1. Password must be 8 to 32 characters long and contain at least one number and one letter.
2. You can click the “forget password” on the login page to reset the password by answering three security questions when you forget the password if you set the security questions in advance.

3.2 Access with Plugin
For IE browser access, users need to install the MsActiveX first. You can refer to the steps as follows:
Step1: Launch the IE browser and enter the IP address of the sensor;
Step2: Enter the user name and custom password and click “Login”;
Step3: At the first time to log in to the device, the browser will prompt you to install Controls, please click “Click here to download and install controls manually” as shown below;

Note: During installing the controls, please keep the browsers close.

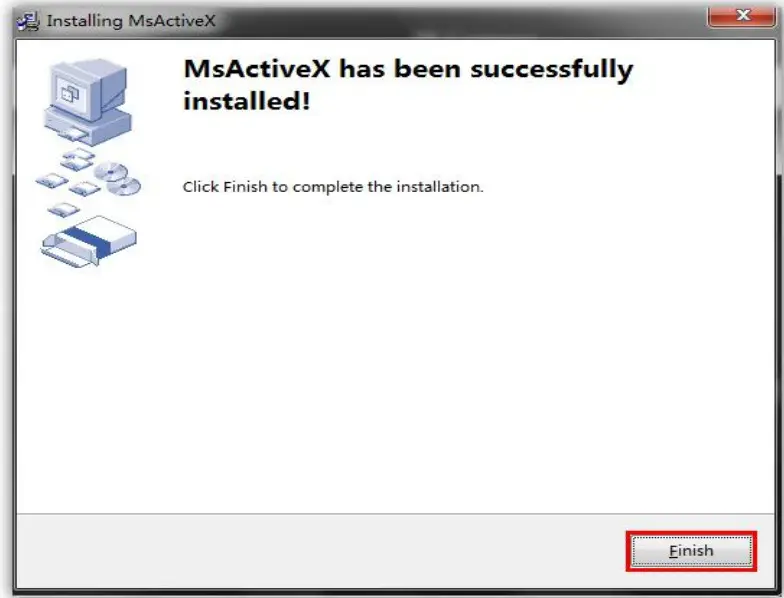

Step4: Follow the prompts to install the Controls, when it`s finished, it will pop out a window as shown below. Please click “Finish” and refresh the browser, then you will see the video.

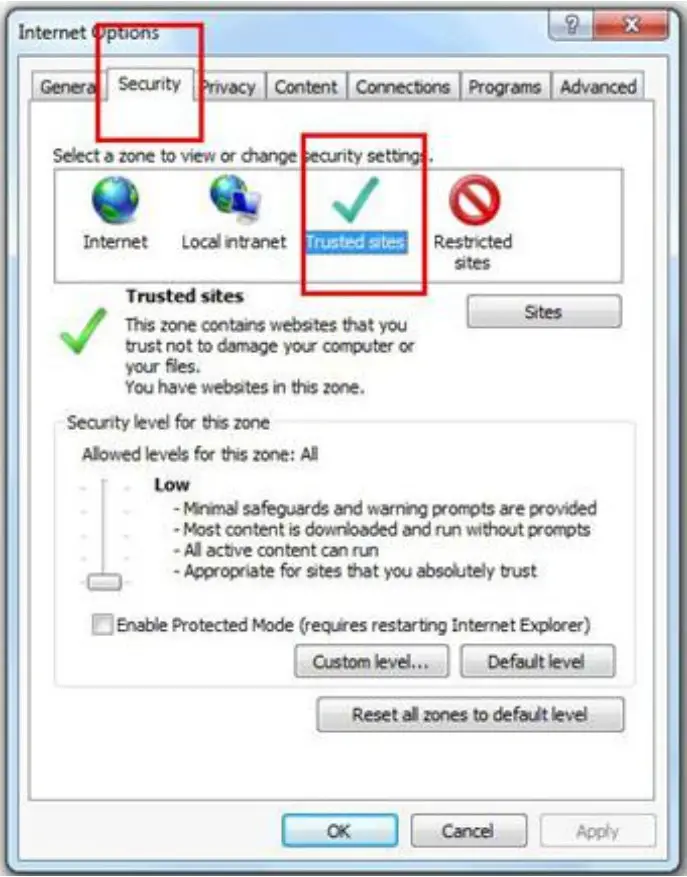

If IE9 or a higher version browser is used, it is suggested that the web link should be added as a trusted site. See the instructions as follows:

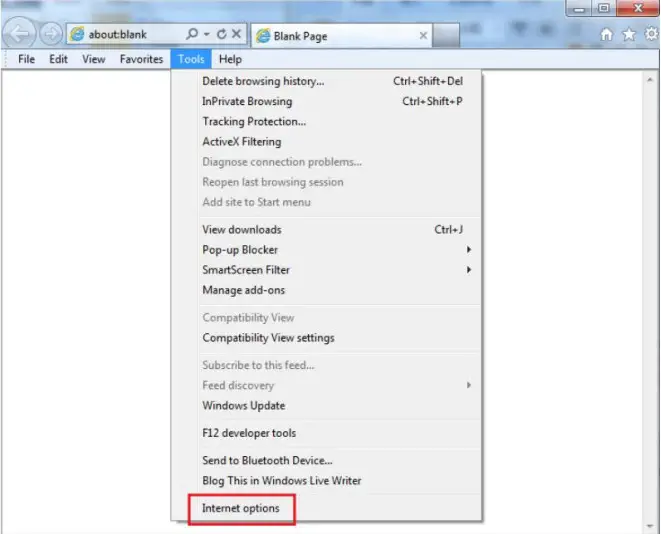

Step1: Start the IE9 or higher version browser, and select “Tools”→ “Internet Options”;

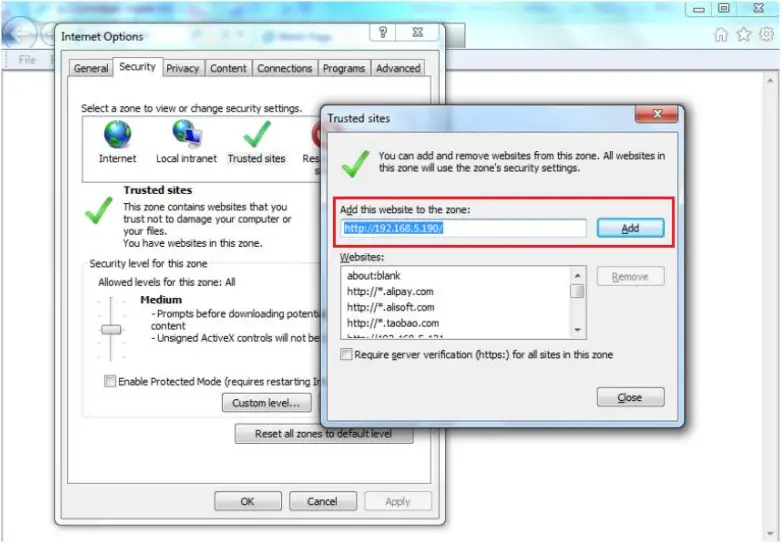

Step2: Select “Security” to “Trusted”;

Step3: Enter the IP address of the camera in the blank and click “Add”;

Step4: Enter the IP address. After logging on to web GUI successfully, the user is allowed to view live video.

Operation Guide

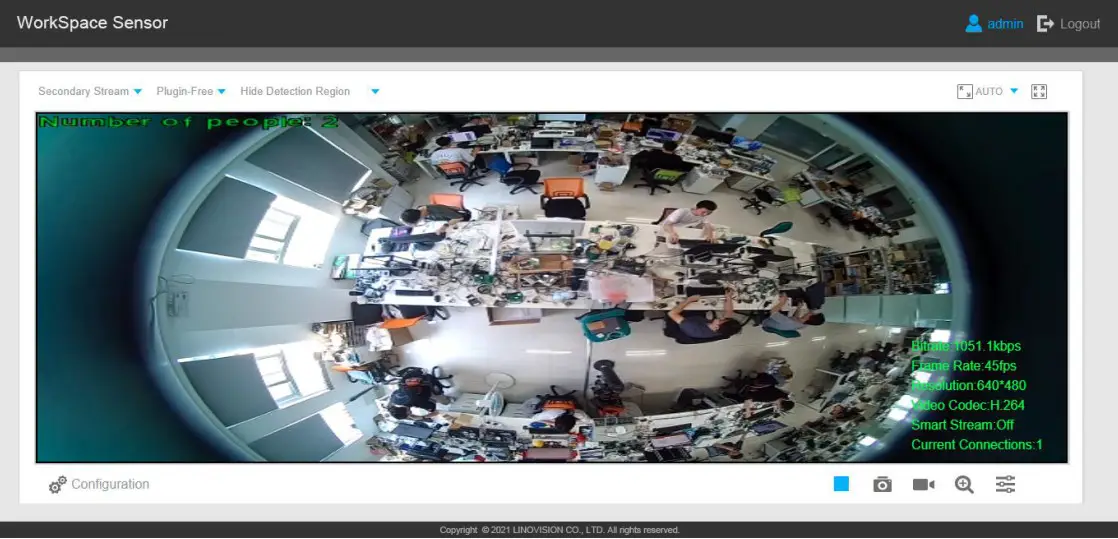

4.1 Live Video
After logging in to the network camera web GUI successfully, the user is allowed to view live video as follows.

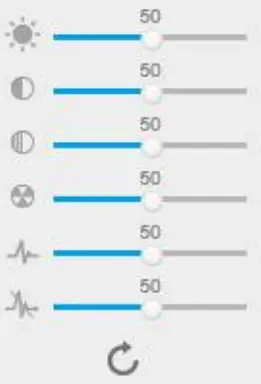

Parameters	Description
Image Config	Brightness: Adjust the Brightness of the scene
	Contrast: Adjust the color and light contrast
	Saturation: Adjust the Saturation of the image. Higher Saturation makes colors appear more “pure” while lower one appears more “wash-out”
	Sharpness: Adjust the Sharpness of the image. Higher Sharpness sharps the pixel boundary and makes the image looks “clear”
	2D DNR/3D DNR: Adjust the noise reduction level
	Default: Restore brightness, contrast, and saturation to default settings
	Click to access the configuration page
	People Counting (Region): Show the mapped or non-mapped regions of people counting Hide Detection Region: hide people detection region
Window size	Click to display images at a window size
Real size	Click to display images at a real size

Full Screen	Click to display images at full-screen
	Start/Stop live view
Enable Digital Zoom	When enabled, you can zoom in on a specific area of a video image with your mouse wheel

4.2 IoT

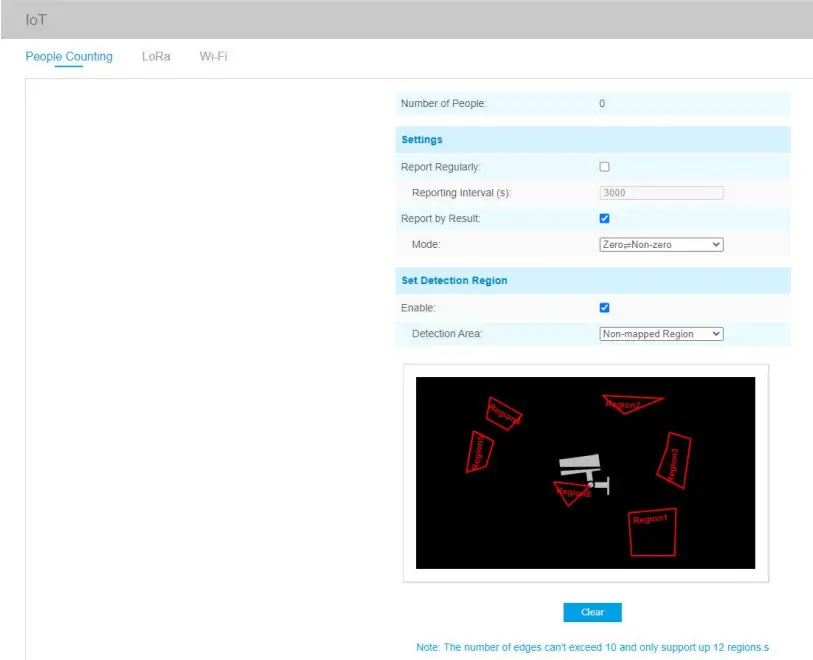

4.2.1 People Counting
Users can set the report settings and detection regions here.

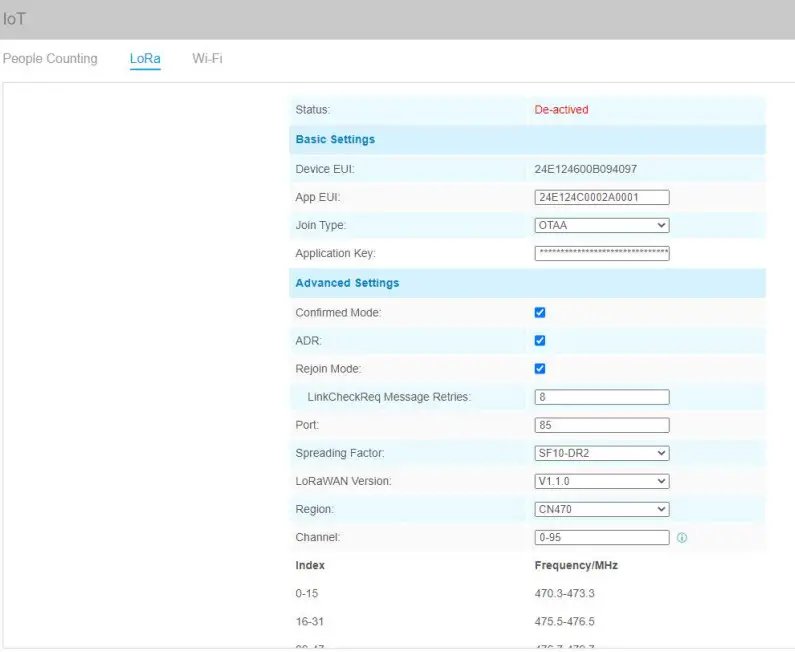

4.2.2 LoRa
LoRa settings are used for configuring the transmission parameters in the LoRaWAN® network.

Note:

1. Please contact sales for the device EUI list if there are many units.
2. Please contact sales if you need random App keys before purchase.
3. Only OTAA mode supports rejoin mode.
4. For -868M models, the default frequency is EU868; for the -915M models, the default frequency is AU915.

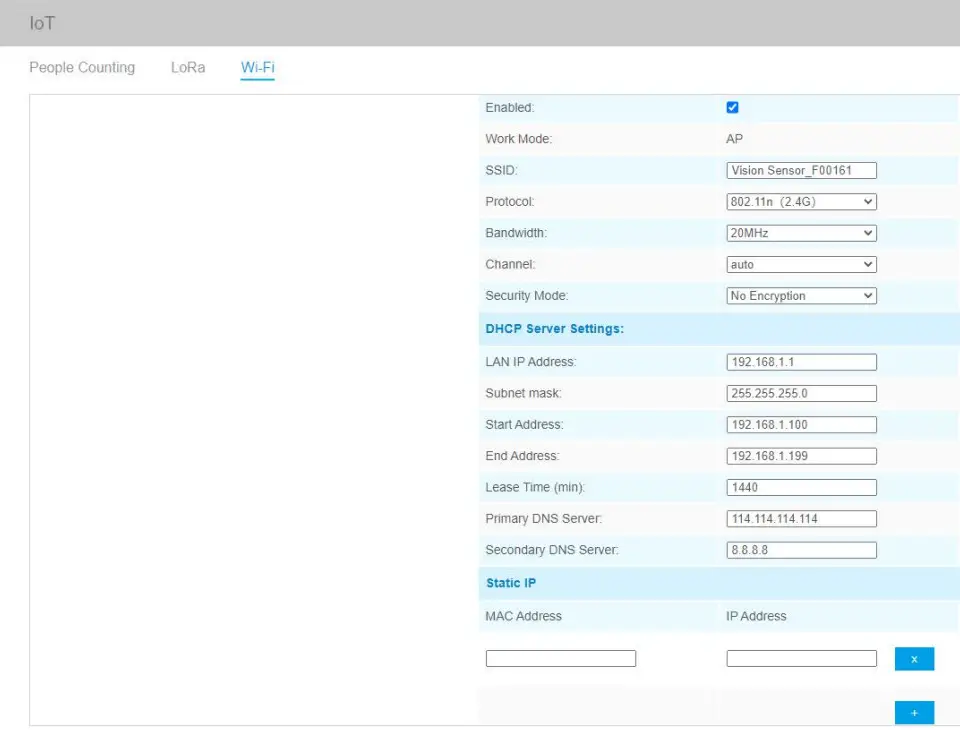

4.2.3 Wi-Fi

4.3 Advanced Settings
4.3.1 Security
User

Parameters	Description

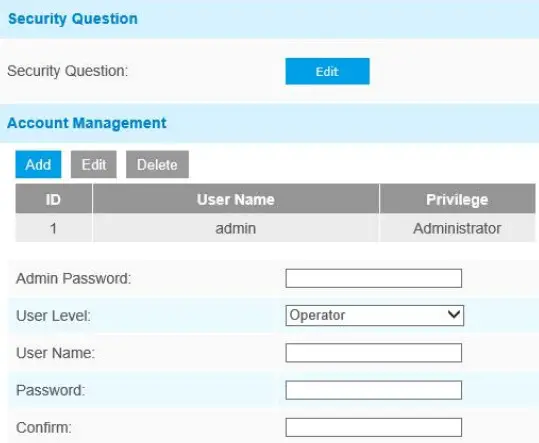

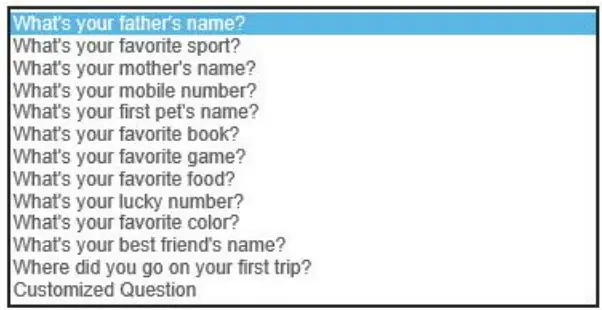

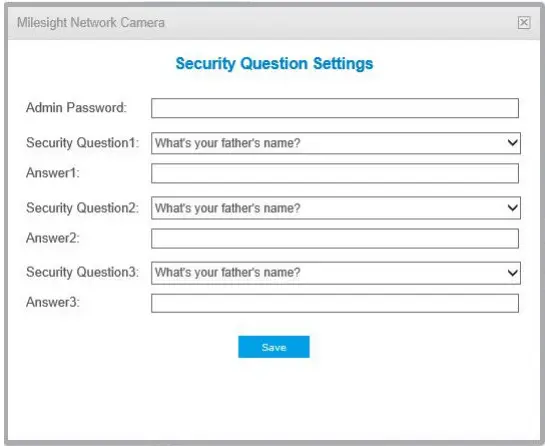

Security Question	Click the Edit button to set three security questions for your sensor. In case you forget the password, you can click Forget Password button on the login page to reset the password by answering three security questions correctly. There are twelve default questions below, you can also customize the security questions.

Account Management

Click Add button, and it will display the Account Management page. Users can add an account by entering Admin Password, User Level, User Name, New Password, Confirm, and edit user privilege by clicking . The added account will be displayed in the account list. Users can add 20 accounts at most. Admin Password: enter the correct admin password before adding an account. User Level: Set the privilege for the account. User Name: Input the user name for creating an account. Password: Input the password for the account. Confirm: Confirm the password. You can edit and delete the account in the account list under the admin account. For the default admin account, you can only change the password, and it cannot be deleted.

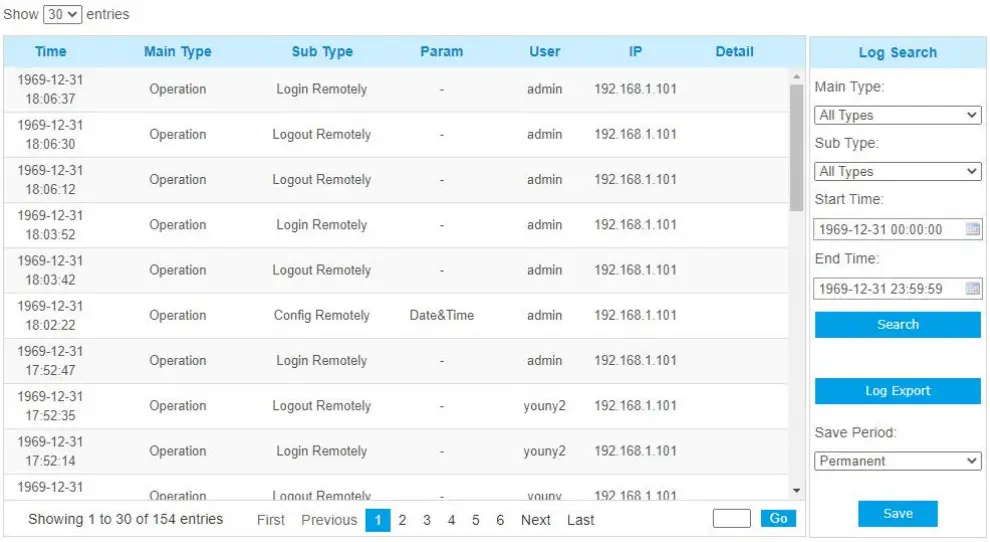

4.3.2 Logs
The logs contain information about the time and IP that has accessed the web GUI.

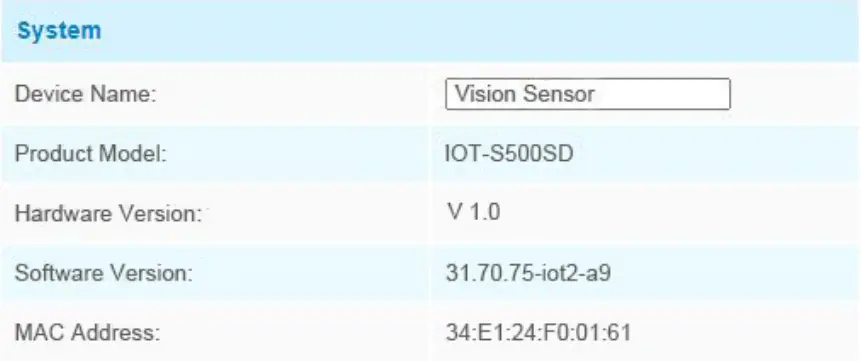

4.4 System
All information about the hardware and software can be checked on this page.

4.5 Maintenance

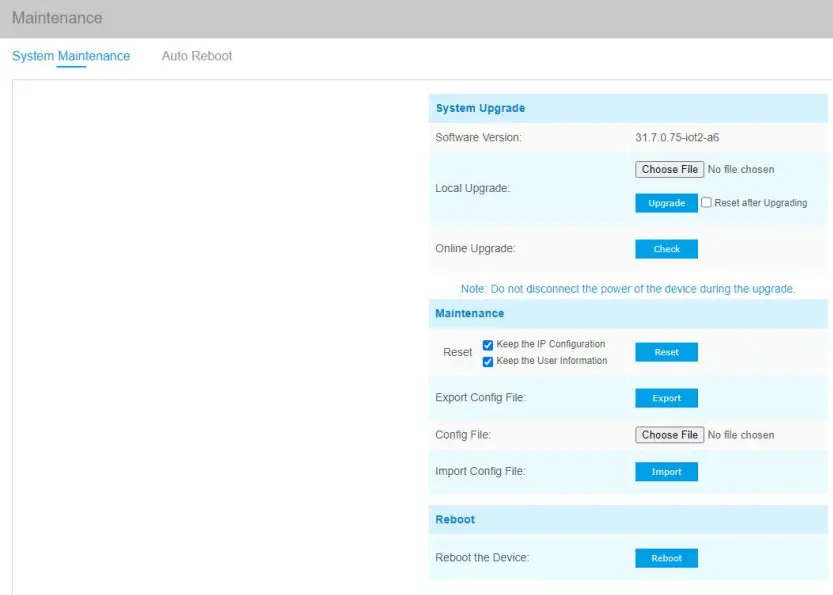

4.5.1 System Maintenance

4.5.2 Auto Reboot
Set the date and time to enable the Auto Reboot function, the sensor will reboot automatically according to the customized time in case of the sensor overload after running a long time. Before configuration note that the date and time should be correct.

Installation

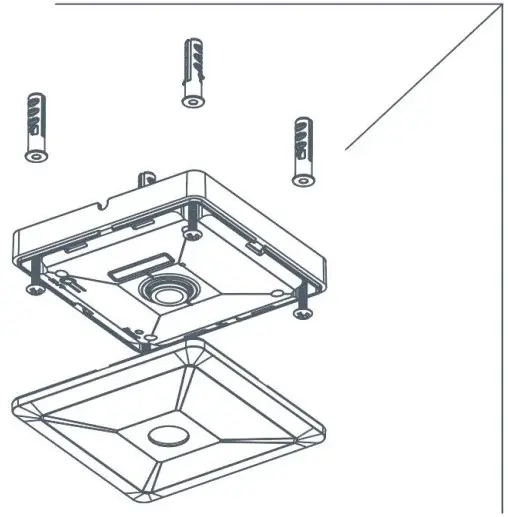

Step 1: Ensure the thickness of the ceiling is more than 30 mm, then attach the mounting sticker to the ceiling and drill 4 holes with a diameter of 6 mm.
Step 2: Fix the wall plugs into the ceiling holes.
Step 3: Remove the cover on the device, then fix the device to the wall plugs via mounting screws; remember to adjust the mounting direction according to the detection area requirement and the direction sticker on the inner cover.
Step 4: Take the cover back to the device; note that the Logo should be facing the LED indicator.

Device Payload

S500SD reports basic information only when joining the network and reports people counter according to reporting settings. All data are based on the following format(HEX):

Example:
