In-Cabinet Tray Pull Out (11 in. W)
01-76077-00 5/19
Please read all instructions carefully before beginning.
32101 In-Cabinet Tray Pull Out

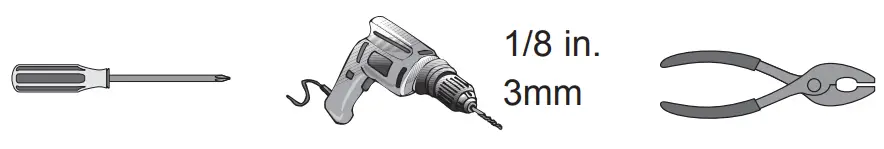

REQUIRED TOOLS

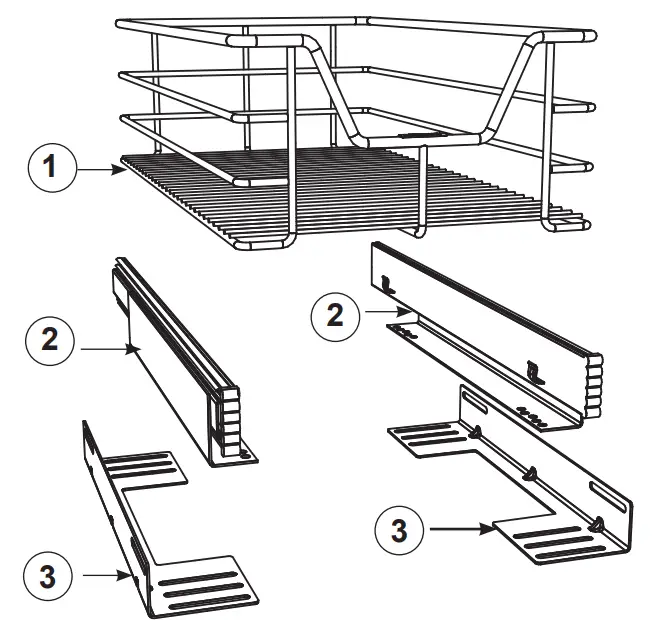

| Part | Quantity | Part # | Part Name |
| 1 | 1 | 55539 | Wire Tray |
| 2 | 2 | 55303/55304 | Glides |
| 3 | 2 | 95767 | L-Bracket |

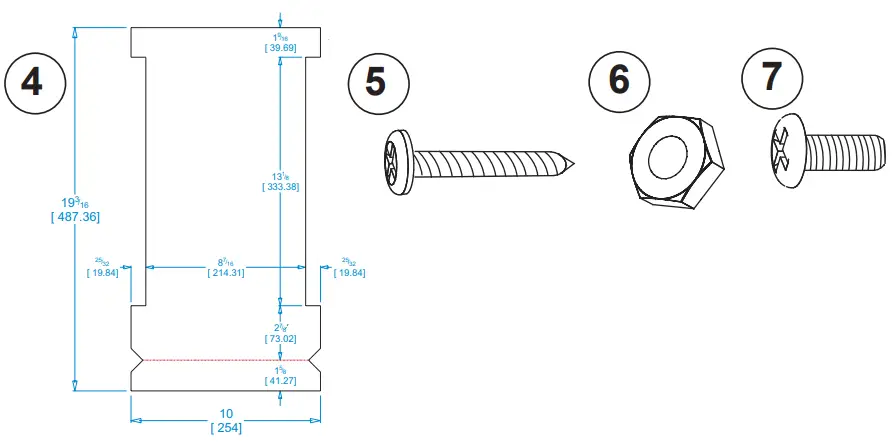

| 4 | 1 | 87761 | Template |
| 5 | 8 | 99976 | #10 x 5/8 in. screw |
| 6 | 4 | 95702 | #10 Nut |
| 7 | 4 | 95559 | #10 x 3/8 in. screw |
USE AND CARE
Use in cabinet and pull out to access items with ease.
CABINET BOTTOM MOUNTING

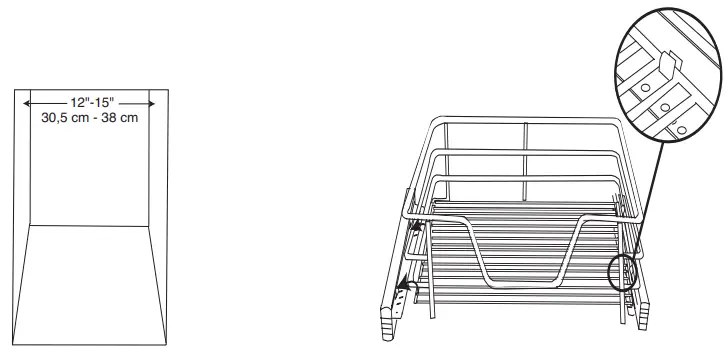

- Center in 12 in. cabinet

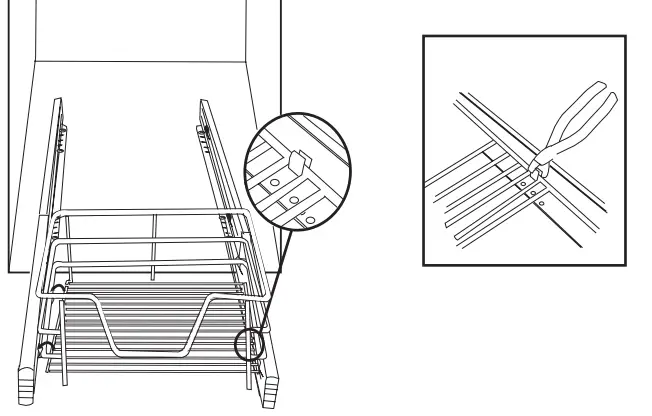

- Remove and discard template. Slide glides forward. Locate four tabs (two on each side) on inside of glides (see inset). Push wire tray into tabs (be sure tray is straight). Use pliers to gently crimp all tabs closed.
CABINET SIDE MOUNTING
- For 11 1/8 in. – 14 3/8 in. Interior Width
Locate four tabs (two on each side) on inside of glides (see inset). Push wire tray into tabs (be sure tray is straight). Use pliers to gently crimp all tabs closed. Once installed, be sure wire tray slides forward.

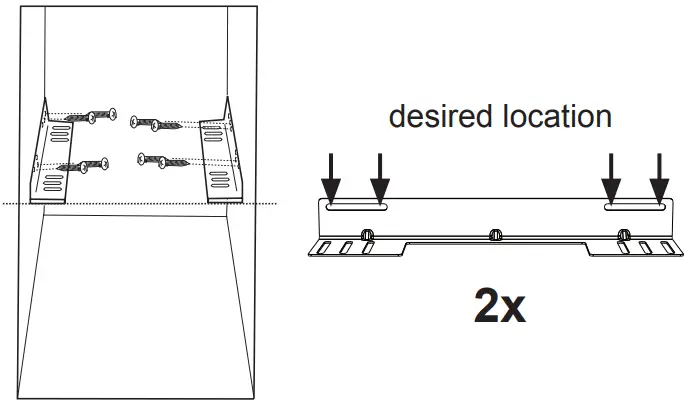

- Arrange an “L” bracket on each side (inside) of cabinet. Be sure each bracket is level and at same height.
Use a (power) screwdriver and supplied wood screws (8) to secure “L” bracket to sides of cabinet as shown.
- Place glide/tray assembly into “L” brackets. Insert 3/8 in. bolt through desired holes in glides and through slots in bottom of “L” brackets. Thread nut slightly onto end of screw. Arrange assembly from side to side and tighten bolt/nut connection. Push tray into cabinet.
Locate four tabs (two on each side) on inside of glides (see inset). Push wire tray into tabs (be sure tray is straight). Use pliers to gently crimp all tabs closed. Once installed, be sure wire tray slides forward.
© 2019 ClosetMaid LLC
Ocala, FL 34471
1-800-874-0008 (USA, Canada)
www.closetmaid.com
