CLOSETMAID In Cabinet 2 Tray Pull Out
Please read all instructions carefully before beginning.

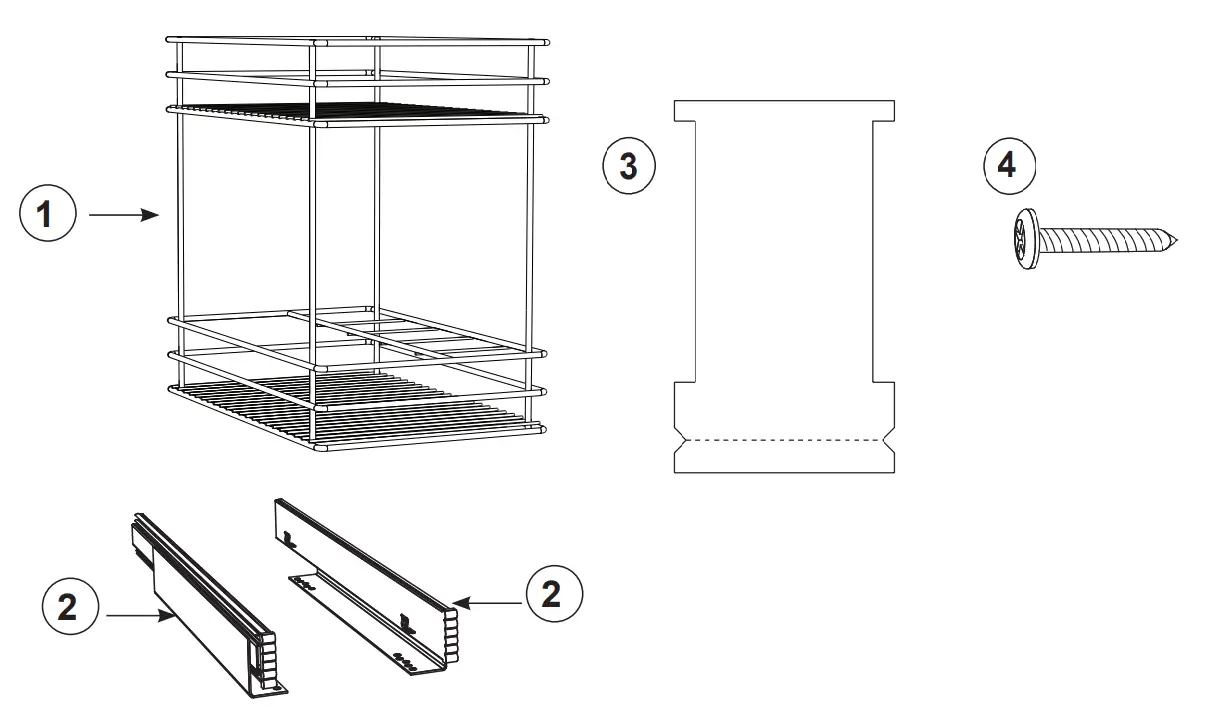

| Part | Quantity | Part # | Part Name |
| 1 | 1 | 95470 | Wire Tray |
| 2 | 2 | 55303/55304 | Glides |
| 3 | 1 | 87858 | Template |
| 4 | 8 | 99976 | #10 x 5/8 in. screw |

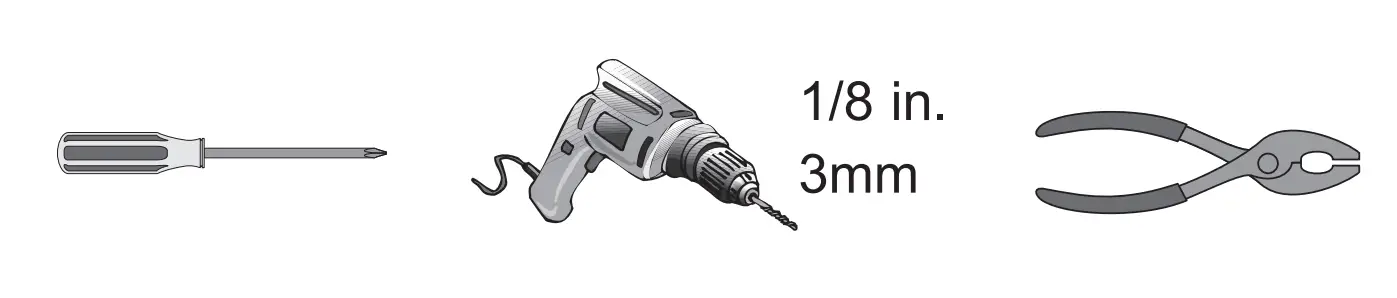

REQUIRED TOOLS
USE AND CARE
Use in cabinet and pull out to access items with ease.

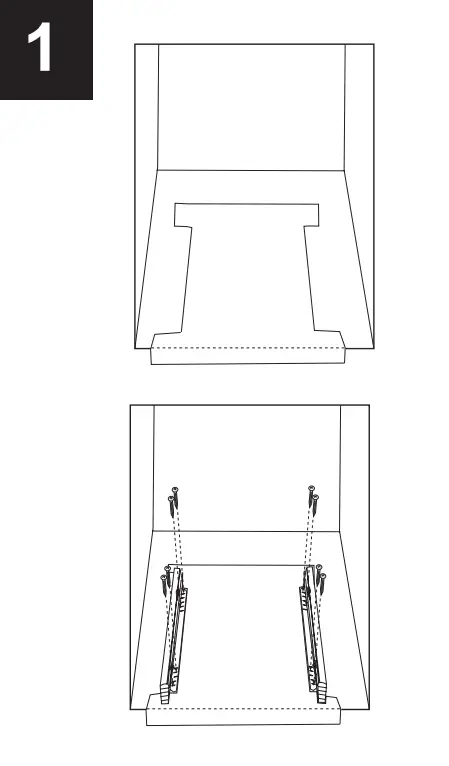

CABINET BOTTOM MOUNTING
NOTE: For optimum performance, center product in 12 1/8 in. cabinet door opening. For larger cabinet openings, allow a 1/2 in. clearance between side of cabinet and edge of product. Place supplied template inside cabinet as shown. Be sure to allow front of template to fold down over front of cabinet. Carefully place glides in cut-outs in sides of template. Use supplied screws (8) to secure glides to bottom of cabinet as shown.
NOTE: For ease of installation, we recommend using a drill and a 1/8 in. drill bit to drill pilot holes. We also recommend using a power screwdriver to install screws into cabinet.

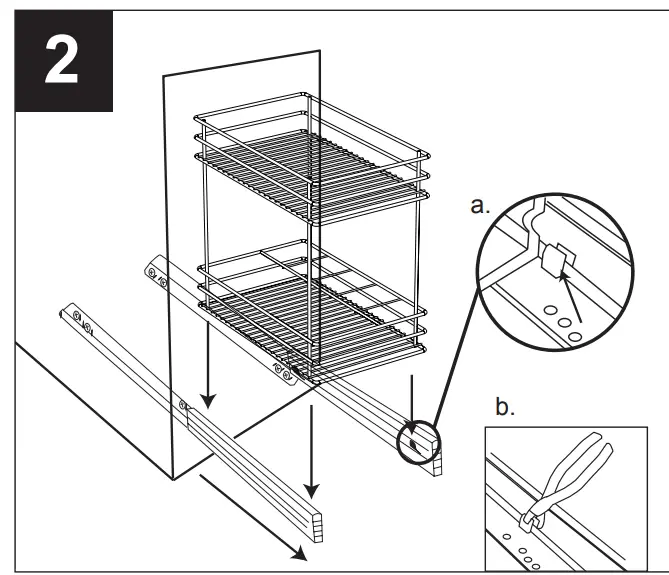

Carefully remove and discard template. Slide glides forward. Locate four tabs (two on each side) on inside of glides (“a”). Firmly push tray into tabs on glides as shown (be sure tabs are even on both sides of basket and basket is straight). Once installed, be sure tray slides forward. Use pliers to gently crimp all tabs closed (“b”).
