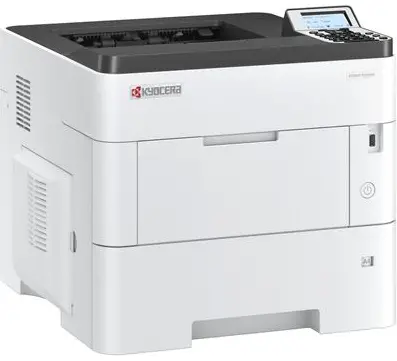

KYOCERa PA6000x A4 Black and White Printer
Cautionary Labels
The machine bears any of the following labels
NOTE: Do not remove these labels

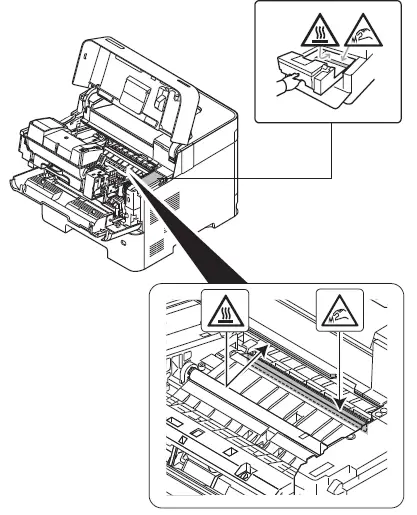

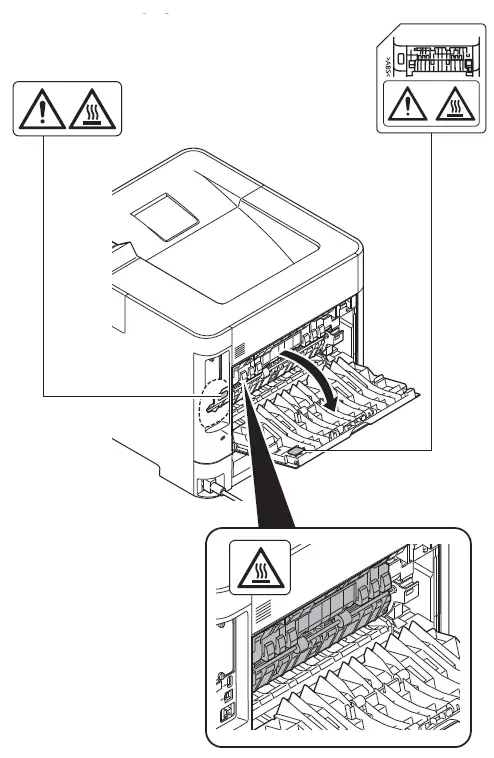

CAUTION: Hot surface
High temperature inside. Do not touch parts in this area, because there is a danger of getting burned.
Safety Guide

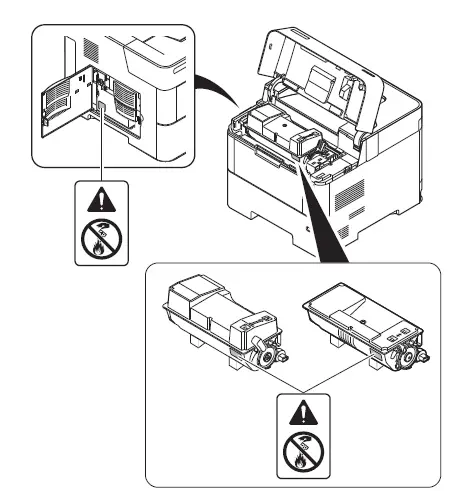

Do not attempt to incinerate parts which contain toner. Dangerous sparks may cause burns
Do not touch the Sharp edges
- It may hurt your fingers, etc.
Installation Precautions
Environment

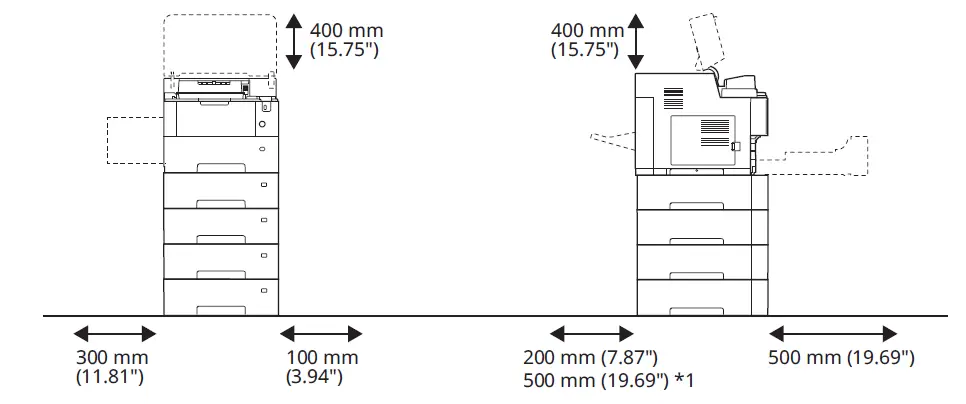

To keep the machine cool and facilitate changing of parts and maintenance, allow access space as shown below. Leave adequate space, especially around the side cover, to allow air to be properly ventilated from the machine.
DIMENSION
The value when an optional rear tray (PT-320) is installed to the the ECOSYS PA5000x, ECOSYS PA5500x and ECOSYS PA6000.
| Model | ECOSYS PA6000x / ECOSYS PA5500x / ECOSYS PA5000x / ECOSYS PA4500x | |
| Power Source | 120 V Specification Model: 220 V Specification Model: | 120 V 60 Hz 10.0 A 220 – 240 V 50/60 Hz 5.6 A |
| Operating Environment | Temperature: 10 to 32.5 °C (50 to 90.5 °F) Relative Humidity: 15 to 80 % | |
