SW-POCS-CK003 20-Inch Blind Corner Organizer
Instruction Manual
SW-POCS-CK003 20-Inch Blind Corner Organizer
| Size of Product VV*D*H | Size of basket VV*D*H | Min Door Open | Min Cabinet Height Min Depth | of cabinet |
| 243″x18/Elx20″ 623x461x501mm | 161×10 x4″ 419x250x100mm | 14 360mm | 22″ 550mm | 201 520mm |
| Contents | ||
| I | II | III |

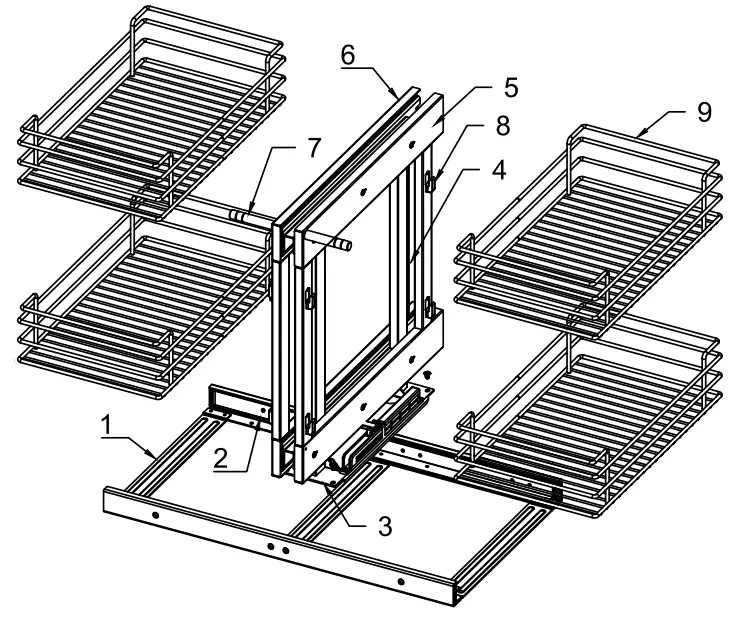

| 1-Base Frame 1pc 2-Glide 2pc 3-Foot 1pc 4-Main Fame 1pc | 5-Right Glide 1pc 6-Left Glide 1pc 7-Handle 2pcs 8-Plastic hook 8pcs | 9-Basket 4pcs |
| IV(Spare parts) | ||
| M4*8 2pcs M5*8 4pcs ST4*16 8pcs | ||

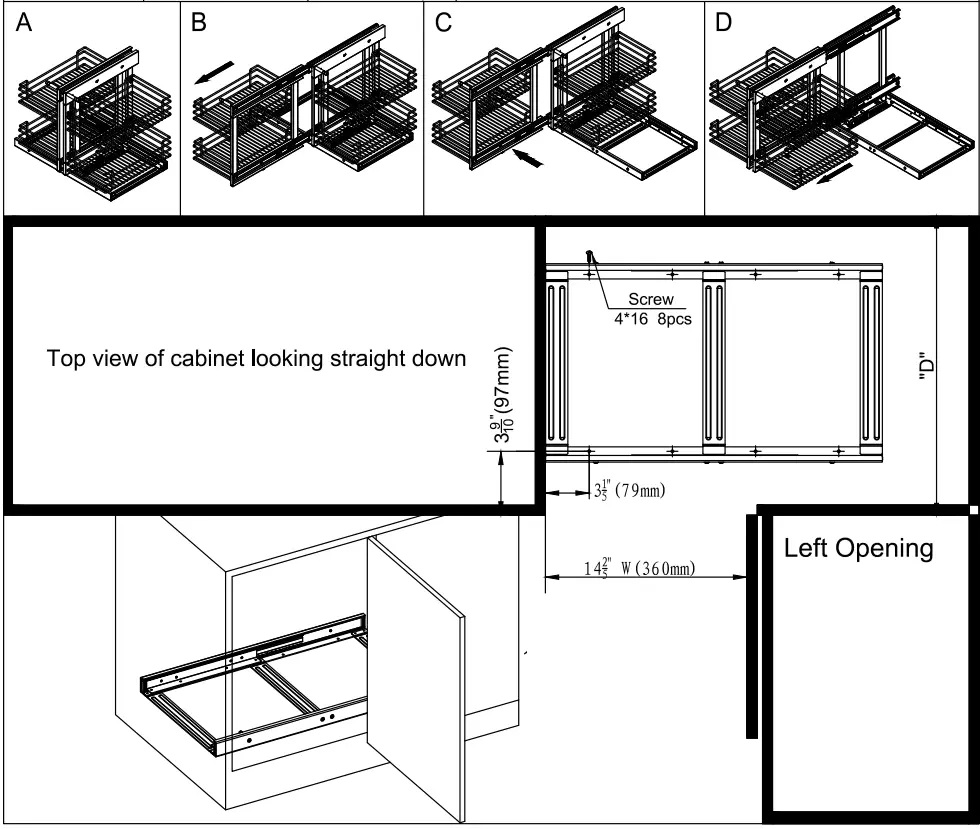

- Place the base frame into the cabinet.Once the correct position has been determined,screw the base frame into position.

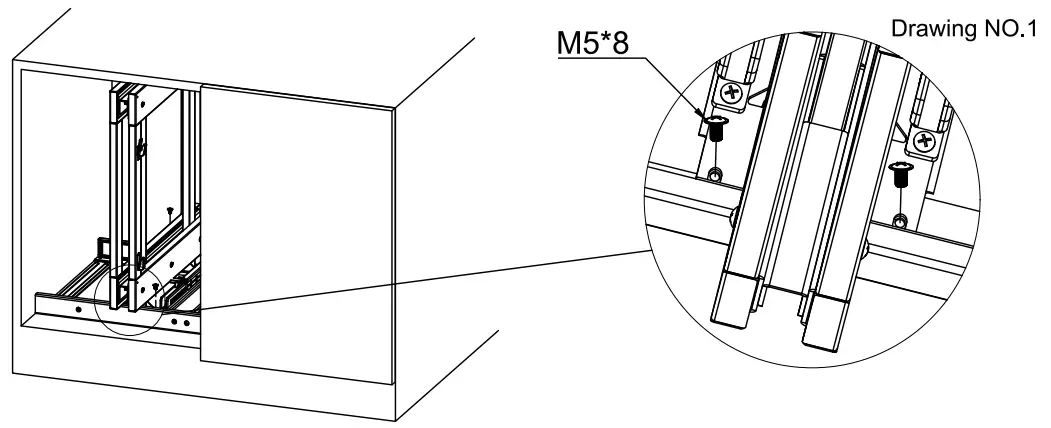

- Connect the main frame and the base frame with M5*8 screws according to Drawing NO.1

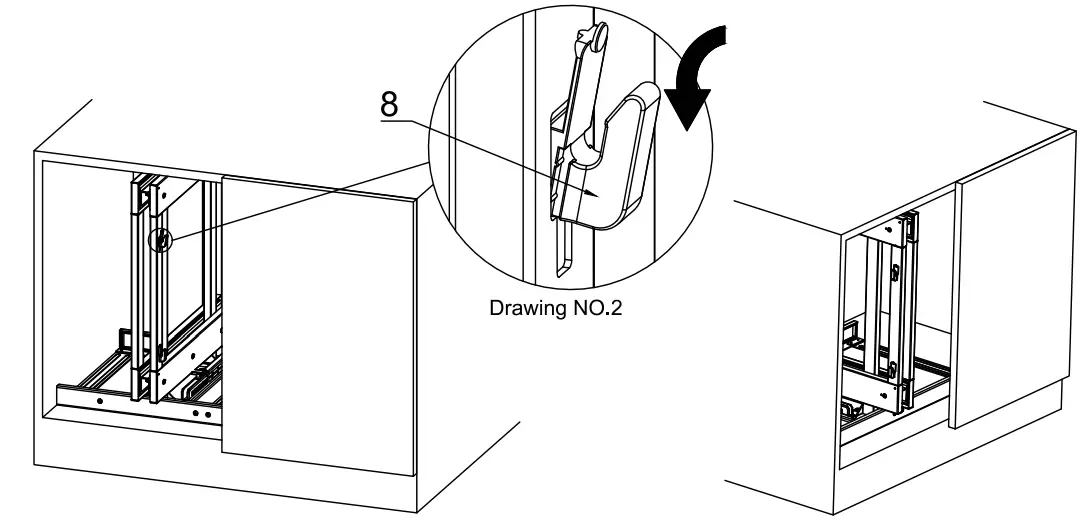

- Insert the plastic hook into the hole of the main frame according to Drawing NO.2

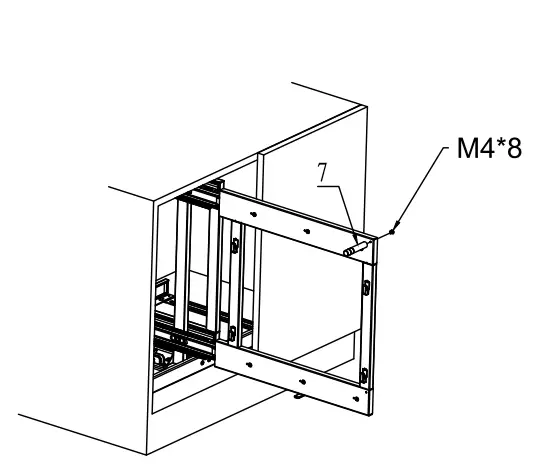

- Fix the handle and the main frame with M4*8 screws

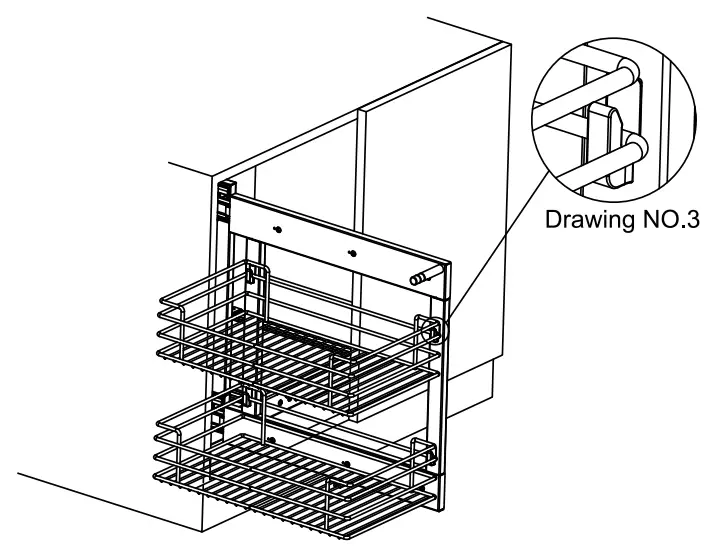

- Fix the baskets with the plastic hooks according to Drawing NO.3
