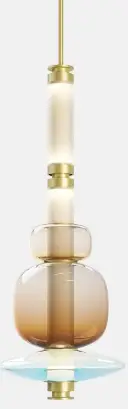

GABRIEL SCOTT LUNA Modern Glass Pendant Lighting
SAFETY INSTRUCTION
- Suspended mount only.
- Certified electrician recommended for electrical installation.
- A minimum of 2 people is recommended for installation.
- Terminal Block not included. Installation may require advice from a qualified person.
- Junction box rated for a minimum of 50 lbs or structural blocking required to support fixture.
- Structural blocking is required at monoprint locations, and adequate drywall plugs may be substituted.
- For all LED fixtures, use only with class 2 power units.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person. Contact the manutacturer for service.
- For controllable luminaires, the classification of insulation that has been maintained between LV supply and control conductors shall be provided.. basic insulation, reinforced insulation, etc.
*IMPORTANT: Please provide email confirmation that your order and its related components have been received in their entirety and in good condition. Failure to do so within 7 days of delivery will waive all product warranties.
Provided supplies
- Luna Pendant fixture
- Hanging template
- Male mana points
- Universal T-bar
- Installation screws
Required tools and hardware
- Screwdriver
- Drywall anchors suitable for 25Ibs for mono points
- 4x 2-pole wiring terminals, screws or screwless, 12- lBAWG ( l .0-2.5mm2) rated for 600V, 15A / ex: WAGO 222-412
- LED driver; Input: local line voltage, output 24Vdc SELV, 5A, max 60 watt class 2 LED driver
INSTALLATION
- STEP 1
If the fixture is provided with stems to assemble, put together the stems using the provided self-locking nipples ( 1 /SIPS) and leave to set for 24 hours. Do not unscrew the stems once assembled. This curing step can be done while the chandelier is installed.
- STEP 2

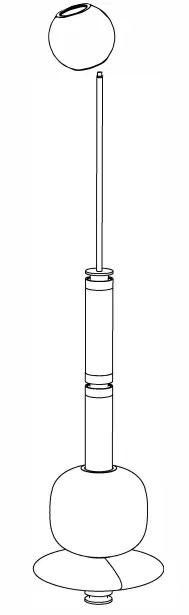

Carefully slide the glass beads over the Luna tubes.
- STEP 3
Place the canopy over the threaded nipple and secure it in place with the provided nut.
- STEP 4

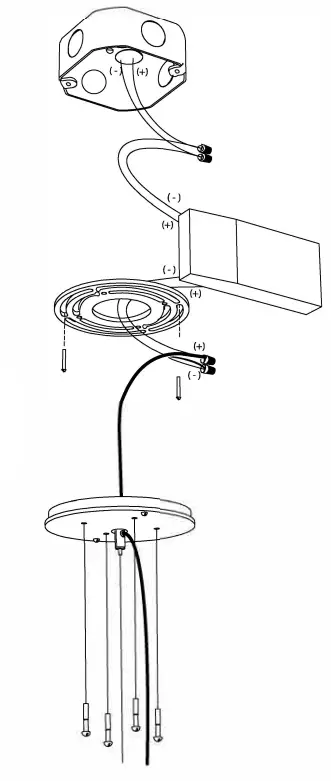

Using wire terminals, connect the LED driver to the Luna Fixture (Maximum distance 100′. use 12-lBAWG (l.0- 2.5mm )). On Gabriel Scott fixtures, the black wire (+) is positive, and the white wire is negative(-). Next, again using wire terminals, connect the LED driver to the power supply. Finally, attach the universal T-bar and screw the canopy with the provided screws.
