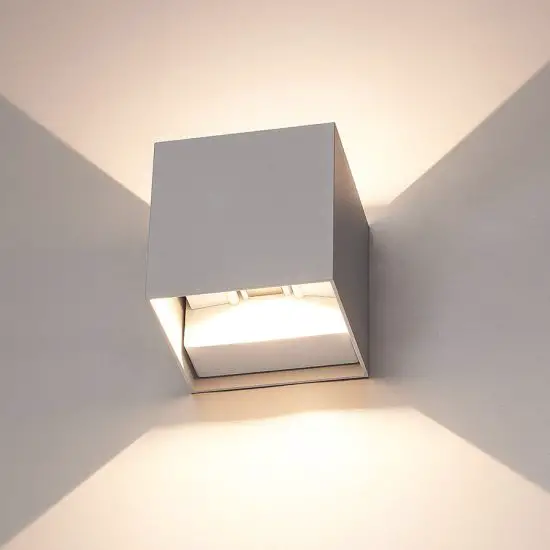

SOLIGHT WO789-791 LED Wall Light Luminaire
Instruction
Dear customer, thank you for purchasing our product. For its safe and full functioning, please read these instructions carefully and adhere to them to avoid product misuse or damage. Please prevent unauthorized use of this appliance and always observe all rules for using electric appliances. Keep these instructions for future reference. The installation must be performed by qualified personnel only. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
Features
| WO789 W790 WO791 | ||
| Power | 15W 15W 24W | |
| Voltage | 220- 240V AC | |
| Luminous flux | 1200 Im | 1920 Im |
| Chromaticity | 3000K 14000K | 3000 K, 4000 K, 6000 K |
| Operation temperature | -20 °C ~ +SO °C | |
| Dimensions | 280 x 280 x 60 mm 1380 x 380 x 60 mm | |
Installation

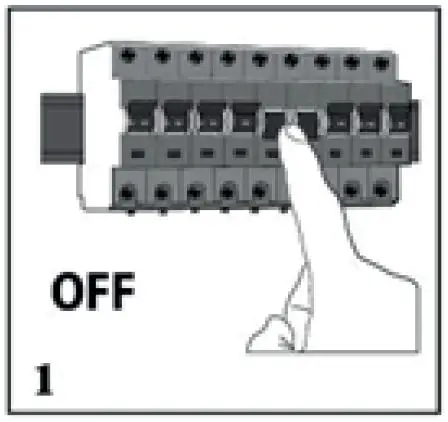

- Turn off the power source

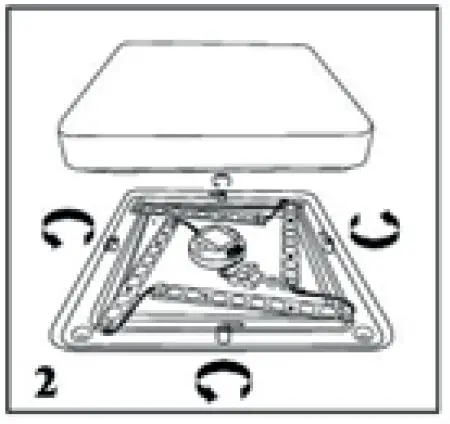

- Open the light panel

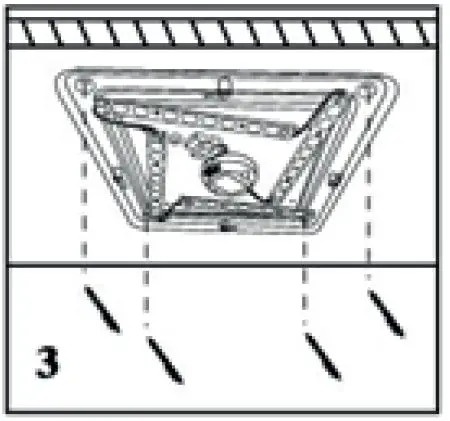

- Use the back plate as a template and mark three holes

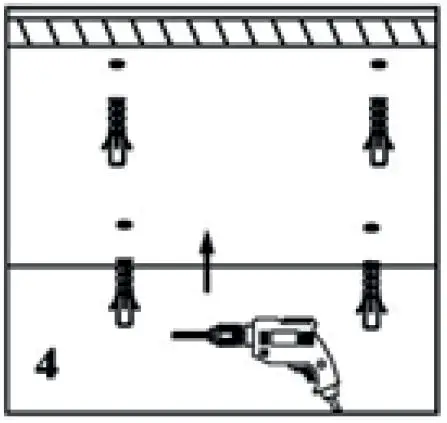

- Drill the holes and insert plastic anchors

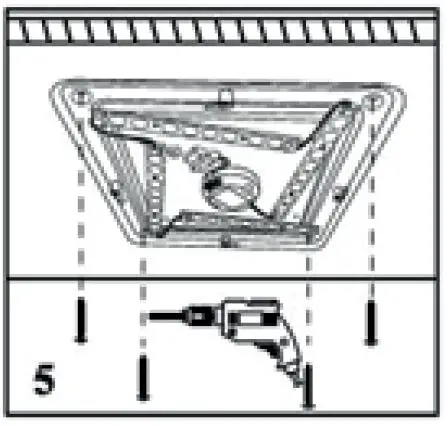

- Attach the back plate with the screws

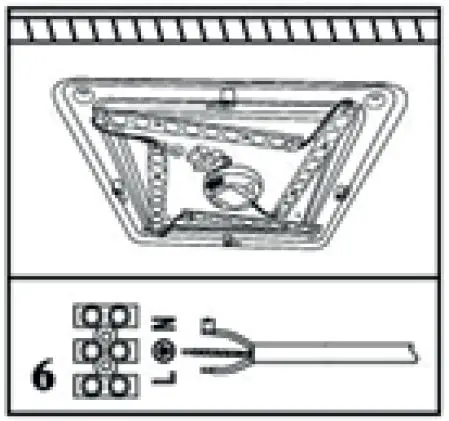

- Connect the power input cable to the terminal block

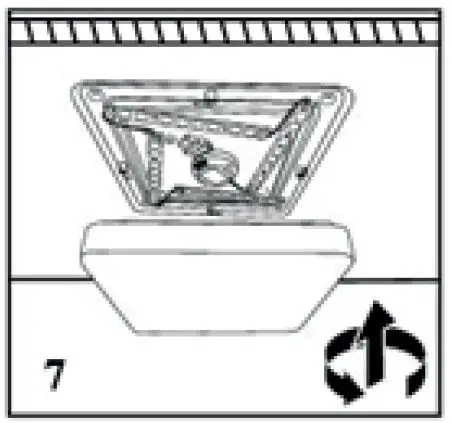

- Close the light panel

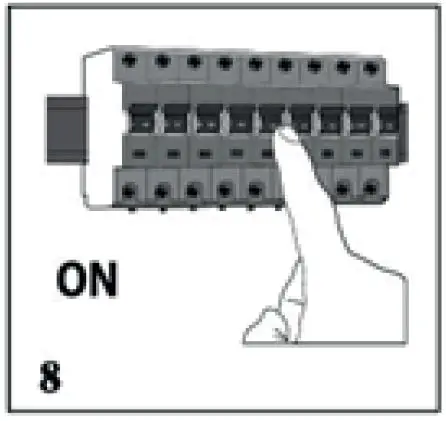

- Turn on the power source
Manufacturer: Solight Holding, s.r.o., Na Brne 1972, Hradec Kralove 500 06, Ceska republika
