Blue Marine N4055043 Reef 200 Aquarium Complete With Aluminum Furniture Instruction Manual

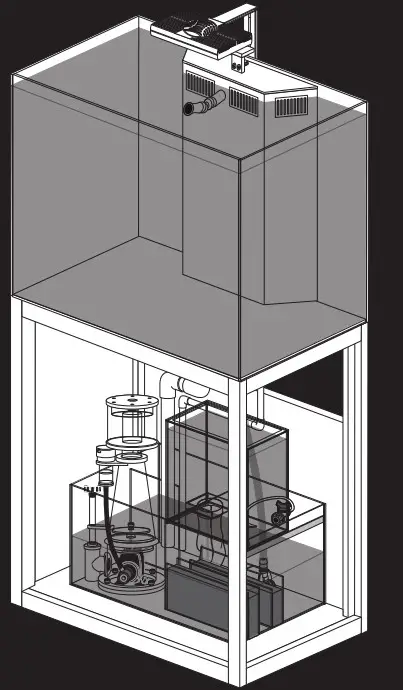

N4055043 Reef 200 Aquarium Complete with Aluminum Furniture
Instruction Manual

Parts

Safety

SAFETY REEF 200:

• Read then manual of the stand and accessories carefully before usage.
• Only suitable for indoor use.
• Before filling the aquarium with water, ensure that it is placed on a solid surface that can support the load.
• The aquarium must not be transported in a filled state because of the risk of glass breakage (no warranty coverage).

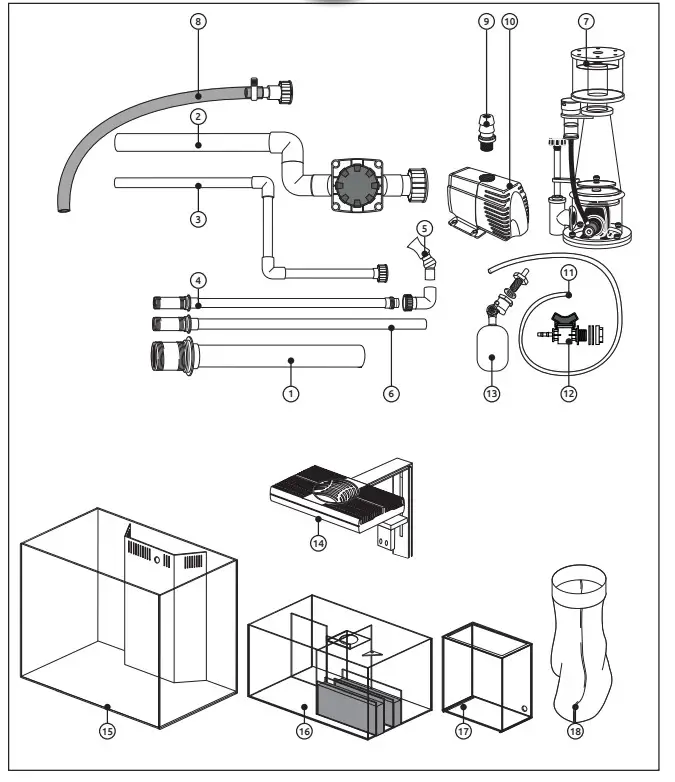

PARTS

Technical installation

STEP 1

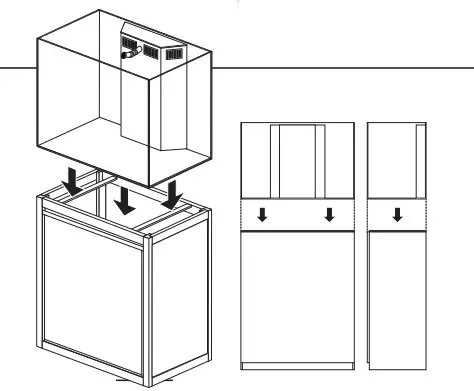

Place the aquarium (15) on the cabinet, and make sure the tank is aligned with the cabinet.
Make sure the aquarium is in its final position and horizontal, so it’s not necessary to move the aquarium anymore.
Make sure the aquarium is level.

STEP 2

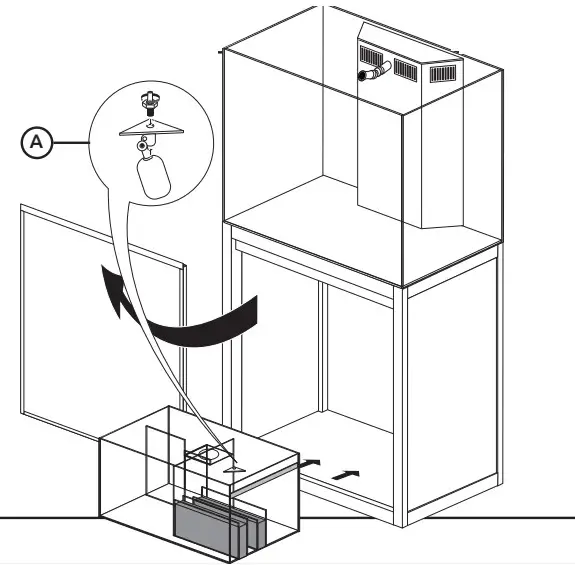

Mount (A) the float (13) in the sump (16).
Place the sump in the middle of the cabinet against the backside.

STEP 3

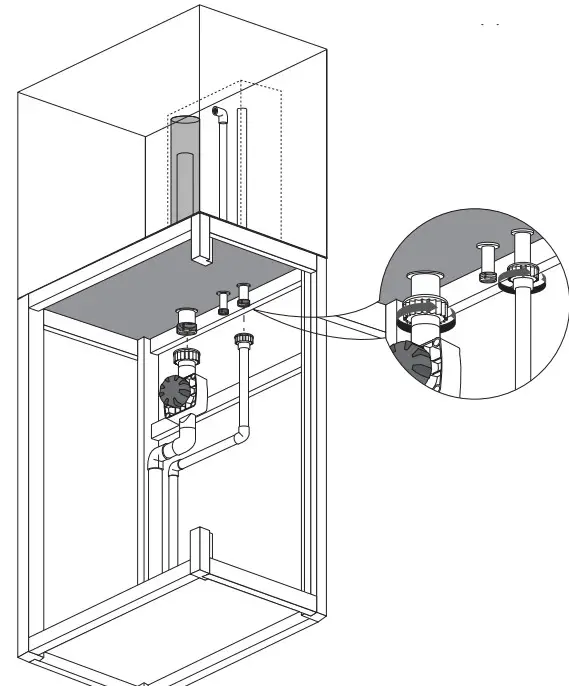

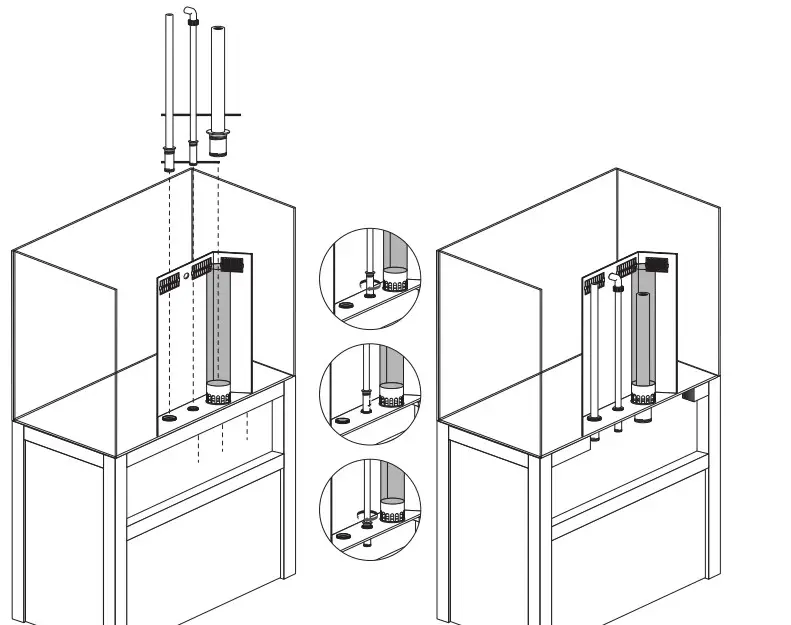

Place the transit pipe (1), the outflow pipe (4), and the overflow pipe (6) in 0the slots.

STEP 4
Fit the transit pipe with valve (2) and the overflow transit (3)

STEP 5

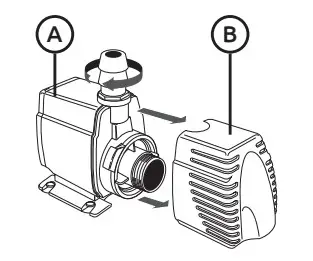

Screw the hose connector (9) into the pump (A).

Remove the filter cover (B) of the pump, it is not necessary with a marine aquarium.

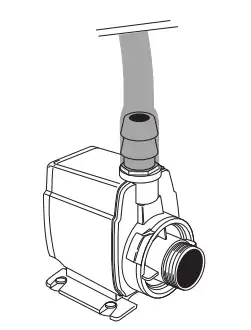

Slide the hose (8) onto the hose connector (9).

STEP 6Place the pump (10) in the appropriate section of the sump.

STEP 7

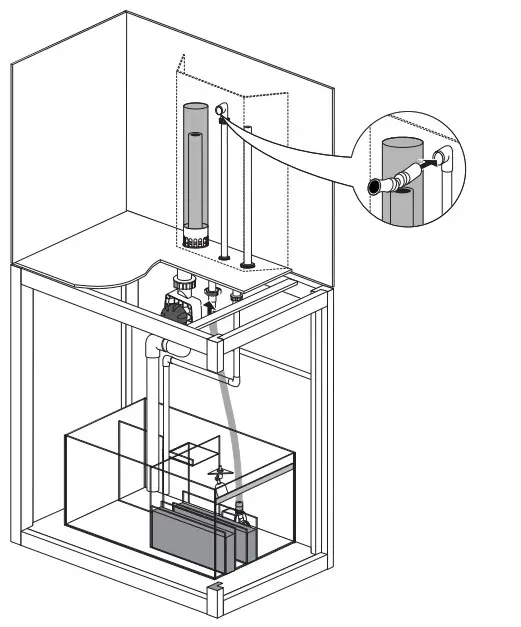

Place the nozzle (5) on the outflow pipe (4).
Connect the hose (8) to the outflow pipe (4)

STEP 8

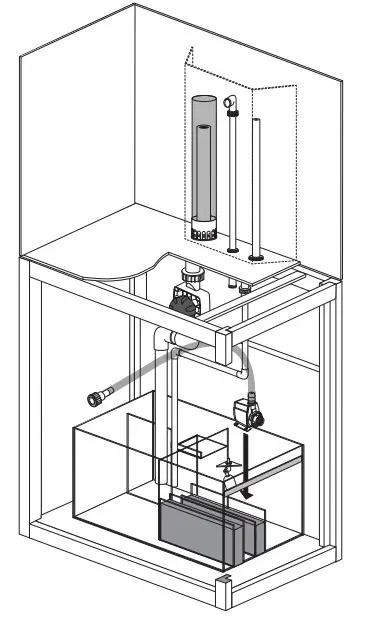

Place the filter sock (18) and the skimmer (7) in the appropriate sections of the sump.

STEP 9

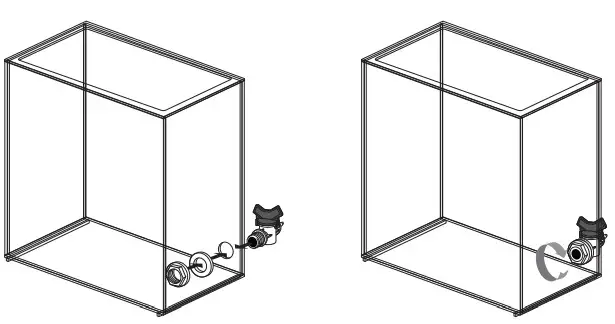

Assemble the water reservoir tap (12) on the water reservoir. Slide the float hose (11) to the tap.

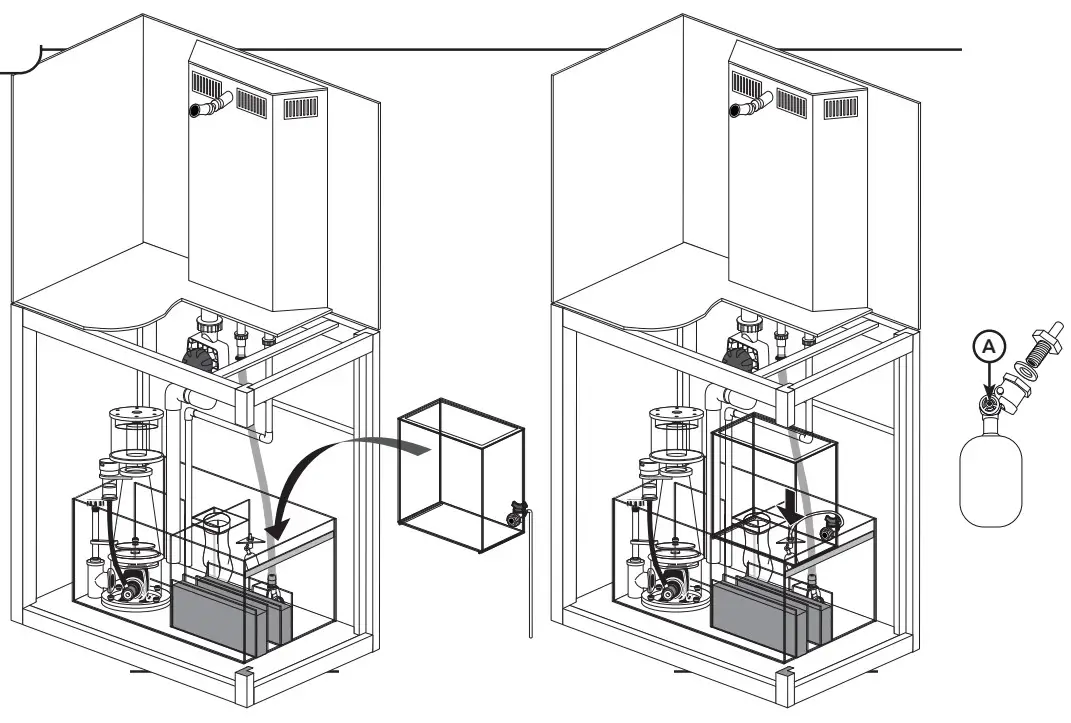

STEP 10

Place the water reservoir (17) on the sump. Connect the float hose (11) to the float.
The position of the float can be adjusted with the adjusting screw (A).

STEP 11

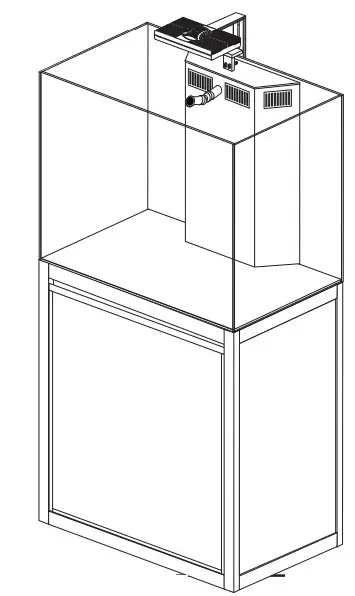

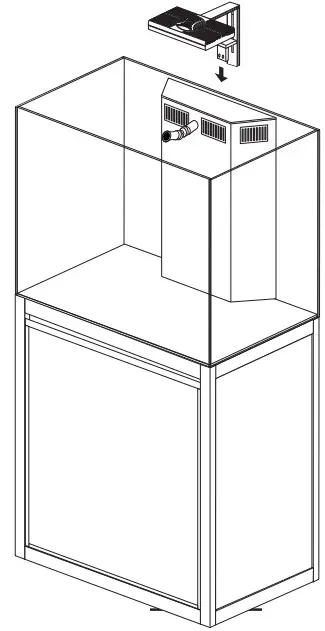

Place the ProLED 150 (14) on the aquarium and fixate it with the screws

STEP 12
The aquarium is now ready for use.

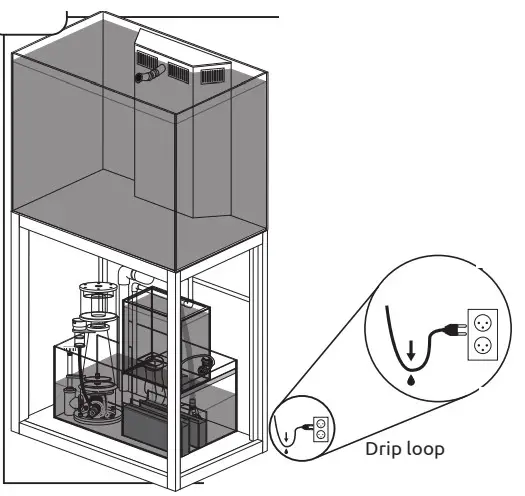

STEP 13

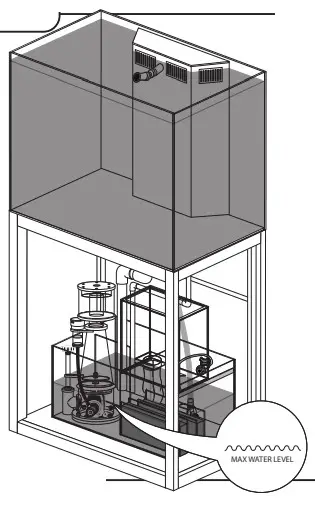

Open the tap of the transit pipe and fill the tank until the maximum water level has been reached in the sump.

STEP 14

Fill the water reservoir (17) with osmosis water.

WARRANTY CONDITIONS:

This warranty is valid for 2 years on materials and incorrect construction. Only units with a fully filled-in warranty slip and official till receipt showing the date of purchase will be considered. You must supply the entire unit with accessories in the event of a warranty claim. We will inform you on a receipt whether the unit will be repaired or replaced.  Aquadistri shall accept no liability for glass breakage or damage caused by negligence, incorrect use, transportation, incorrect set-up, or any subsequent modifications to the aquarium. No claims shall be assertible in excess of the value of the aquarium, in particular for damage to fish or corals.

RECYCLING INFORMATION:
The symbol of the barred bin printed on the product means that it must be collected separately from other rubbish when it will not be anymore in use. The user, at the end of the life of the product, will have to bring it to a proper rubbish collection center for electric and electrical devices. Alternatively, he can return the used product to the seller at the moment he buys a new unit, but only in proportion 1 to 1. A differentiated refuse collection is environmentally friendly and it helps the recycling of the materials, any other collection procedure is unlawful and will be subject to the law in force.

Dealer stamp

• Always keep proof of purchase, without a purchase note no warranty!
• Bewahren Sie den Kassenbon immer auf; ohne Kaufbeweis keine Garantie!
• Toujours garder le bon d’achat, sans bon aucune garantie!
• Bewaar altijd het aankoopbewijs, zonder bon geen garantie!

Date of purchase
…………………. / …………………….. / 20 …………………

Produced in China for:
www.aquadistri.com
Vlietweg 8 NL-4791 EZ Klundert

Material
Powder coated aluminum body + 1 aluminum door
