PREPARATIONS

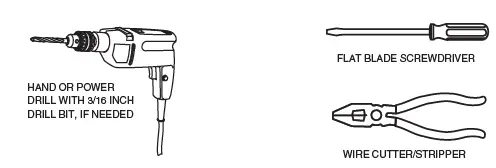

Assemble tools required below.

Failure to follow and read all instructions carefully before installing or operating this control could cause personal injury and/or property damage2

THERMOSTAT DETAILS

REMOVING OLD THERMOSTAT

CAUTION
To prevent electrical shock and/or equipment damage, disconnect electrical power to the system at the main fuse or circuit breaker until installation is complete.

Before removing wires from the old thermostat’s switching subbase, label each wire with the terminal designation it was removed from.

1. Remove Old Thermostat: A standard heat/cool thermostat consists of three basic parts:
   • The cover may be either a snap-on or hinge type.
   • The base, which is removed by loosening all captive screws.
   • The switching subbase, is removed by unscrewing the mounting screws that hold it on the wall or adaptor plate.
2. Shut off electricity at the main fuse box until installation is complete. Ensure that the electrical power is disconnected.
3. Remove the front cover of the old thermostat. With wires still attached, remove wall plate from the wall. If the old thermostat has a wall mounting plate, remove the thermostat and the wall mounting plate as an assembly.
4. Identify each wire attached to the old thermostat.
5. Disconnect the wires from the old thermostat one at a time. DO NOT LET WIRES FALL BACK INTO THE WALL.
6. Install new thermostat using the following procedures.

ATTENTION! This product does not contain mercury. However, this product may replace a unit that contains mercury.
Do not open mercury cells. If a cell becomes damaged, do not touch any spilled mercury. Wearing non-absorbent gloves, take up the spilled mercury and place into a container that can be sealed. If a cell becomes damaged, the unit should be discarded.
Mercury must not be discarded in household trash. When the unit this product is replacing is to be discarded, place in a suitable container.
Refer to www.white-rodgers.com for locations to send products containing mercury.

MOUNTING AND WIRING

WARNING
Do not use on circuits exceeding specified voltage. Higher voltage will damage control and could cause shock or fire hazards.
Do not short out terminals on gas valve or primary control to test. Short or incorrect wiring will damage the thermostat and could cause personal injury and/or property damage.
Thermostat installation and all components of the system shall conform to Class II circuits per the NEC code.

Electric Heat or Single-Stage Heat Pump Systems
This thermostat is configured from the factory to operate a heat/cool, fossil fuel (gas, oil, etc.), forced air system. It is configured correctly for any system that DOES NOT require the thermostat to energize the fan on a call for heat. If your system is an electric or heat-pump system that REQUIRES the thermostat to turn on the fan on a call for heat, locate the GAS/ELECTRIC switch (see fig. 1) and switch it to the ELECTRIC position. This will allow the thermostat to energize the fan immediately on a call for heat. If you are unsure if the heating/cooling system requires the thermostat to control the fan, contact a qualified heating and air conditioning service person.

Hydronic (Hot Water or Steam) Heating Systems
This thermostat is set to operate properly with a forced-air heating system. If you have a hydronic heating system (a system that heats with hot water or steam), you must set the thermostat to operate properly with your system.
The factory default setting is forced air heat. Clipping jumper W905 on the circuit board will produce a longer heating cycle which is normally for hot water or steam (hydronic) systems. Both settings produce a very accurate temperature control and can be set to your personal preference. As received, the thermostat cycles the system just under 1°F. With W905 clipped, the system cycles at approximately 1.5°F.

CAUTION
Take care when securing and routing wires so they do not short to adjacent terminals or rear of the thermostat. Personal injury and/or property damage may occur.

Energy Management Recovery (EMR)
This thermostat is set to operate with EMR. This causes the thermostat to start the heating or cooling system early to have the room temperature reach the program setpoint at the time the period is to start.
To disable EMR, clip jumper W903 (see Fig. 1).

Attach Thermostat Base to Wall

1. Remove the packing material from the thermostat. Gently pull the cover straight off the base. Forcing or prying on the thermostat will cause damage to the unit. If necessary, move the electric heat switch (see ELECTRIC HEAT SYSTEMS, above).

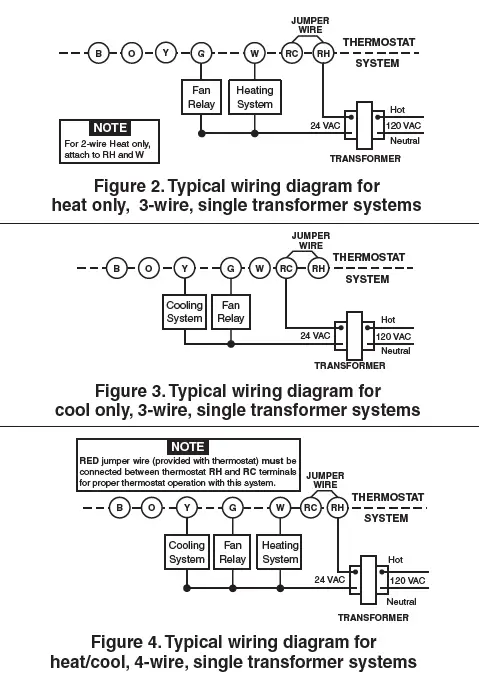

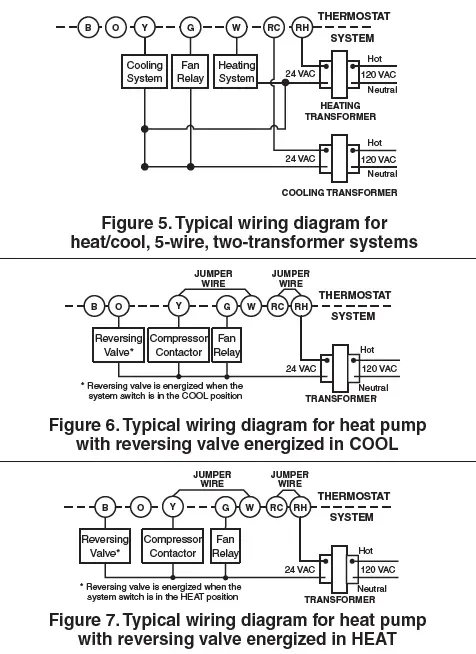

2. Connect wires beneath terminal screws on the base using the appropriate wiring schematic (see figs. 2 through 7).
3. Place base over hole in wall and mark mounting hole locations on the wall using the base as a template.
4. Move the base out of the way. Drill mounting holes.
5. Fasten base loosely to the wall, as shown in fig. 1, using two mounting screws. Adjust until level, and then tighten screws. (Leveling is for appearance only and will not affect thermostat operation.) If you are using existing mounting holes, or if the holes drilled are too large and do not allow you to tighten base snugly, use plastic screw anchors to secure the sub-base.
6. Push excess wire into wall and plug the hole with a fire-resistant material (such as fiberglass insulation) to prevent drafts from affecting thermostat operation.

Battery Location
This thermostat requires 2 “AAA” alkaline batteries to operate. If is displayed, the batteries are low and should be replaced. For best results, replace batteries once a year with new premium brand alkaline batteries such as Duracell® or Energizer®. To replace the batteries, install the batteries along the top of the base (see fig. 1). The batteries must be installed with the positive (+) ends to the right.

CHECK THERMOSTAT OPERATION

NOTE
To prevent static discharge problems, touch side of the thermo-stat to release static build-up before touching any keys.

If at any time during testing your system does not operate properly, contact a qualified service person.

Fan Operation
If your system does not have a G terminal connection, skip to Heating System.

1. Turn on the power to the system.
2. Move FAN switch to the ON position. The blower should begin to operate.
3. Move FAN switch to the AUTO position. The blower should stop immediately.

Cooling System

CAUTION
To prevent compressor and/or property damage, if the outdoor temperature is below 50°F, DO NOT operate the cooling system.
This thermostat has a time delay between cooling cycles to allow the head pressure in the compressor to stabilize. If the temperature is adjusted to call for cool within 5 minutes of the last cycle the snowflake icon will blink indicating the thermostat is locked out. After 3 to 5 minutes, the compressor will start and the snowflake icon will stop flashing. This helps prevent the compressor from cycling too quickly and is a normal operation for the thermostat.

1. Move the SYSTEM switch to the COOL position.
2. Press to adjust the thermostat setting below room temperature. The blower should come on immediately on high speed, followed by cold air circulation
3. Press to adjust the temperature setting above room temperature. The cooling system should stop operating.

Heating System

1. Move SYSTEM switch to the HEAT position. If the heating system has a standing pilot, be sure to light it.
   Press to adjust the thermostat setting above room temperature. The heating system should begin to operate.
2. Press to adjust the temperature setting below room temperature. The heating system should stop operating.

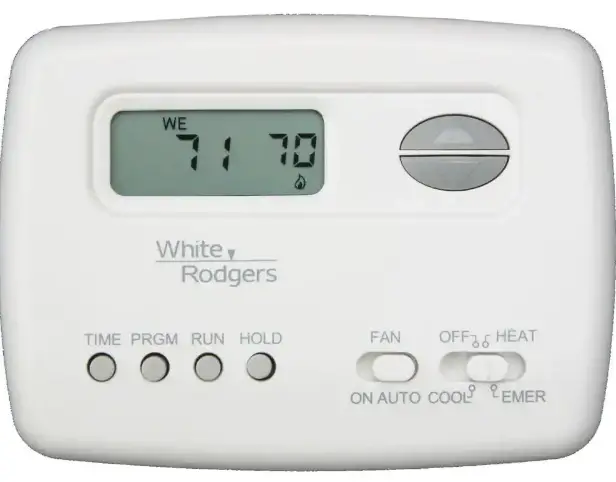

Before you begin using your thermostat, you should be familiar with its features and with the display and the location and operation of the thermostat buttons. Your thermostat consists of two parts: the thermostat cover and the base. To remove the cover, gently pull it straight out from the base. To replace the cover, line up the cover with the base and press gently until the cover snaps onto the base.

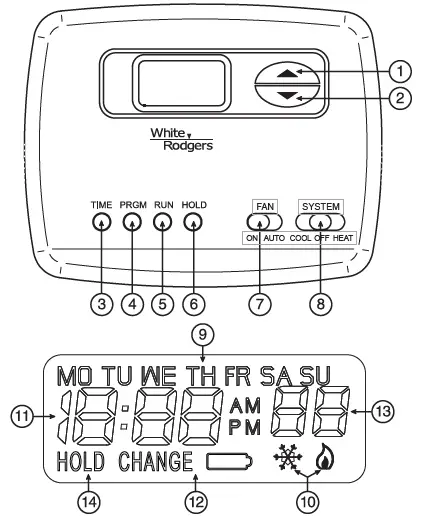

The Thermostat Buttons and Switches

1. (Up arrow) Raises temperature setting.
2. (Down arrow) Lowers temperature setting.
3. Time button.
4. PRGM (program) button.
5. RUN (program) button.
6. HOLD button.
7. FAN switch (ON, AUTO).
8.  SYSTEM switch (COOL, OFF, HEAT).
   The Display
9. Indicates day of the week.
10. is displayed when the SYSTEM switch is in the HEAT position. is displayed (non-flashing) when the SYSTEM
    switch is in the COOL position. is displayed (flashing) when the compressor is in lockout mode
11. Alternately displays current time and temperature.
12. is displayed when the 2 “AAA” batteries are low and should be replaced. Nothing else will be displayed. Earlier models display “LO BATTERY”. Refer to 37-7006.
13. 13 Displays currently programmed set temperature (this is blank when the SYSTEM switch is in the OFF position).
14. 14 “HOLD” is displayed when the thermostat is in HOLD mode.

Operating Features

Now that you are familiar with the thermostat buttons and display, read the following information to learn about the many features of the thermostat.

• SIMULTANEOUS HEATING/COOLING PROGRAM STOR-AGE — When programming, you can enter both your heating and cooling programs at the same time. There is no need to reprogram the thermostat at the beginning of each season.
• TEMPERATURE OVERRIDE— Press until the display shows the temperature you want. The thermostat will override current programming and keep the room temperature at the selected temperature until the next program period begins. Then the thermostat will automatically revert to the program.
• HOLD TEMPERATURE — The thermostat can hold any temperature within its range for an indefinite period, without reverting to the programmed temperature. Press the HOLD button. “HOLD” will be displayed. Then choose the desired temperature by pressing. The thermostat will hold the room temperature at the selected setting until you press the RUN button to start the program operation again.
• ENERGY MANAGEMENT RECOVERY — Energy Manage-ment Recovery (EMR) causes the thermostat to start heating or cooling early to make the building temperature reach the program setpoint at the time you specify. Heating will start 5 minutes early for every 1° of temperature required to reach setpoint. Cooling will start approximately 15 minutes early for every 1° because it takes longer to reach temperature. Clip-ping W903 jumper will disable EMR.
  Example: You select EMR and have your heating programmed to 65° at night and 70° at 7 AM. If the building temperature is 65° the difference between 65° and 70° is 5°. Allowing 5 minutes per degree the thermostat setpoint will change to 70° at 6:35 AM.
• °F/°C CONVERTIBILITY — The factory default setting is Fahrenheit. Clipping the W904 jumper on the circuit board (see fig. 1) will alter this feature to the Celsius temperature setting.
• LOW BATTERY INDICATOR — If the 2 “AAA” alkaline batteries are low and should be replaced, the display will be blank except for. When the batteries are low, pressing any button will cause the display to operate for ten seconds. After ten seconds, the display will be blank except for.
  When the batteries are low, pressing any button will cause the display to operate for ten seconds.
  After ten seconds, the display will be blank except for After has been displayed for 4 weeks, the thermostat will raise the temperature 10° above your setpoint in COOL mode and drop the temperature 10° below your setpoint in HEAT mode. You cannot program with low batteries, but you can override setpoint temperature.
• TEMPERATURE DISPLAY ADJUSTMENT — Your new thermostat has been accurately set in our factory. However, if you wish, you may adjust your new thermostat temperature display to match your old thermostat. This can be accomplished (within a ±3° range) as follows:

1. Press PRGM and RUN buttons at the same time.
2. Press to adjust the displayed temperature to your desired setting.
3. Press RUN to resume normal program operation.
   Display Backlight — (Not available on earlier models.) The display backlight improves display contrast in low-lighting conditions. Selecting the backlight ON will turn the light on for a short period of time after any button is pressed. Selecting the backlight OFF (default) will keep the light off. Turn the display backlight feature ON as follows:
   1. Press the TIME and RUN buttons at the same time. The display will show “d-L” and “OFF” alternately.
   2. Pressto change “OFF” to “ON”

PROGRAMMING YOUR THERMOSTAT

This section will help you plan your thermostat’s program to meet your needs. For maximum comfort and efficiency, keep the following guidelines in mind when planning your program.

• When heating (cooling) your building, program the temperatures to be cooler (warmer) when the building is vacant or during periods of low activity.
• During early morning hours, the need for cooling is usually minimal.

Look at the factory preprogrammed times and temperatures are shown below. If this program will suit your needs, simply press the RUN button to begin running the factory preset program.
If you want to change the preprogrammed times and temperatures, follow these steps.
Determine the time periods and temperatures for your weekday and weekend programs. You must program four periods for both the weekday and weekend programs. However, you may use the same heating and cooling temperatures for consecutive time periods. You can choose start times, heating temperatures, and cooling temperatures independently for both weekday and weekend programs (for example, you may select 5:00 AM and 70° as the weekday 1st-period heating start time and temperature, and also choose 7:00 AM and 76° as the weekday 1st-period cooling start time and temperature). Use the table at the bottom of the page to plan your program time periods and the temperatures you want during each period. You may also want to look at the sample program table to get an idea of how the thermostat can be programmed.

SAMPLE
Heating/Cooling Schedule Plan (Factory Program)

Entering Your Program

Follow these steps to enter the heating and cooling programs you have selected.

Set Current Time and Day

1. Press TIME button once. The display will show the hour only.
2. Press and hold either or until you reach the correct hour and AM/PM designation (AM begins at midnight; PM be-gins at noon).
3. Press TIME once. The display window will show the minutes only.
4. Press and hold either until you reach the correct minutes.
5. Press TIME once. The display will show the day of the week.
6. Press until you reach the current day of the week.
7. Press RUN once. The display will show the correct time and room temperature alternately.

Enter Heating Program

1. Move the SYSTEM switch to HEAT.
2. Press PRGM once. “A” (indicating weekday program) will appear in the display. Also displayed are the currently programmed start time for the 1st heating period and the currently programmed temperature (flashing).
   This display window shows that for the 1st weekday period, the start time is 6:00 AM, and 70° is the programmed temperature (this example reflects factory preprogramming).
3. Press to change the displayed temperature to your selected temperature for the 1st heating program period.
4. Press TIME once (the programmed time will flash). Press until your selected time appears. The time will change in 15-minute increments. When your selected time is displayed, press TIME again to return to the change temperature mode.
5. Press PRGM once. The currently programmed start time and setpoint temperature for the 2nd heating program period will appear.
   Heating/Cooling Schedule Plan
6. Repeat steps 4 and 5 to select the start time and heating temperature for the 2nd heating program period.
7. Repeat steps 4 through 6 for the 3rd and 4th heating program periods. Weekday heating programs are now complete.
8. Press PRGM once. “SA SU” (indicating weekend program) will appear in the display, along with the start time for the 1st heating period and the currently programmed temperature.
9. Repeat steps 4 through 8 to complete weekend heating programming.
10. When you have completed entering your heating program, press RUN.

Enter Cooling Program

If the outside temperature is below 50°F, disconnect the pow-er to the cooling system before programming. Energizing the air conditioner compressor during cold weather may cause personal injury or property damage.

1. Move the SYSTEM switch to the COOL position.
2. Follow the procedure for entering your heating program, using your selected cooling times and temperatures.

Check Your Programming
Follow these steps to check your thermostat programming one final time before beginning thermostat operation.

1. Move SYSTEM switch to the HEAT position.
2. Press PRGM to view the 1st weekday heating period time and temperature. Each time you press PRGM, the next heating period time and temperature will be displayed in sequence for weekday, then weekend program periods (you may change any time or temperature during this procedure).
3. Press RUN.
4. Move the SYSTEM switch to the COOL position.
5. Repeat step 2 to check cooling temperatures.
6. Press RUN to begin program operation.
   YOUR THERMOSTAT IS NOW COMPLETELY PROGRAMMED AND READY TO AUTOMATICALLY PROVIDE MAXIMUM COMFORT AND EFFICIENCY!

7 SPECIFICATIONS

ELECTRICAL DATA

• Electrical Rating: MV to 30 VAC 50/60 Hz. or D.C.
  0.05 to 1.0 Amps (Load per terminal)
  1.5 Amps Maximum Total Load (All terminals combined)
  THERMAL DATA
• Setpoint Temperature Range: 45°F to 90°F (7°C to 32°C)
• Operating Ambient Temperature Range: 32°F to 105°F (0°C to 41°C)
• Operating Humidity Range: 0 to 90% RH (non-condensing)
• Shipping Temperature Range: -40°F to 150°F (-40°C to 66°C)

TROUBLESHOOTING

Reset Operation
If a voltage spike or static discharge blanks out the display or causes erratic thermostat operation you can reset the thermostat by pressing, and TIME at the same time. This also resets the factory defaults. If the thermostat has power, has been reset and still does not function correctly contact your heating/cooling service person or place of purchase.

Batteries
For best results, replace batteries once a year with new premium brand alkaline batteries such as Duracell® or Energizer®.
