FDT9200SE Diesel Generator
Owner’s Manual

SAFETY INFORMATION
In order to ensure the safe use of the generator please follow the next safety instructions:

1. Check the outside of the generator in order to detect any apparent trouble.
2. Check the screws and nuts, they could loosen because of the equipment vibration.
3. The temperature range to use this equipment is between + 5 °C and 40 °C.
4. The use of good quality oil and diesel is a must
5. All elements must be cleaned regularly.
6. Storage should be in a dry place. Frost damage permanently your group. Drain your machine completely before storing it in a dry and warm place.
7. The air filter must be checked and cleaned regularly.
8. Make sure all filters are cleaned regularly.
9. Exhaust fumes contain carbon monoxide. This gas is odorless and colorless and is very dangerous. NEVER USE THE EQUIPMENT IN A CLOSED OR POORLY VENTILATED AREA.
10. The exhaust temperature is high during equipment use and remains hot even after turning off the generator. Be careful not to touch the hot exhaust and wait for the machine to cool before moving it.
11. The repairs to the generator should be done by qualified and authorized personnel for this purpose.
12. Do not smoke or allow flames or sparks during the operation of the generator or during filling the fuel tank. Do not store the generator near flammable material to avoid the danger of explosion.
13. Store the generator in a well-ventilated area.
14. Never place the generator in an inclined or vertical position to prevent fuel leakage and damage to equipment.

ATTENTION
The warranty is automatically voided if the process described to start and stop the group is not followed.
Not following the process described can damage the equipment.
ALWAYS control the level of oil and fuel as well as its maintenance before each use.

Technical Data

COMPONENTS

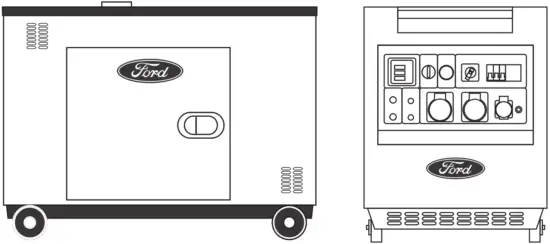

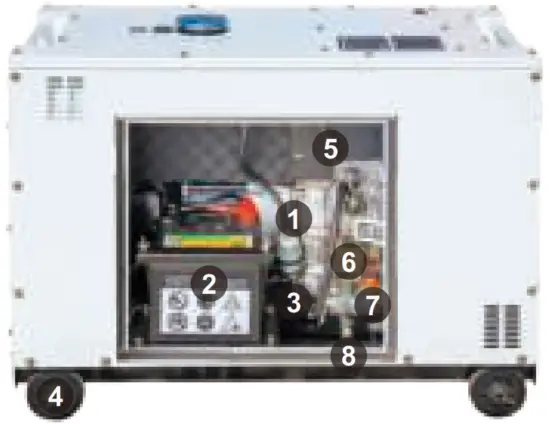

General view

1. Fuel filter
2. Battery 12V 36Ah
3. Oil filter
4. Transport wheels
5. Injection pump
6. Starter lever
7. Oil refill/Oil dipstick
8. Oil drain

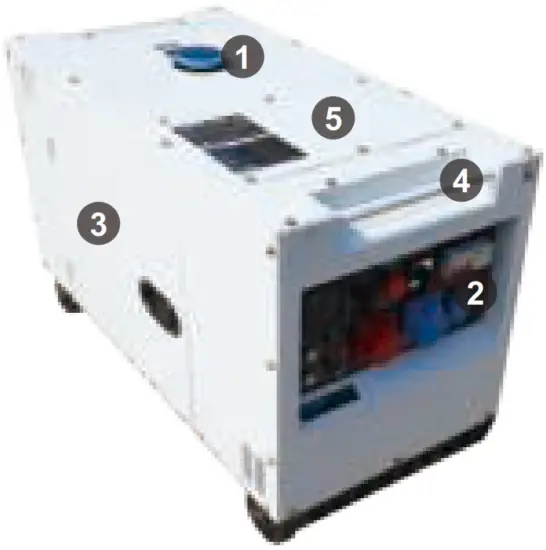

Side view

1. Diesel tank
2. Control panel
3. Engine access
4. Carrying handle
5. Air filter

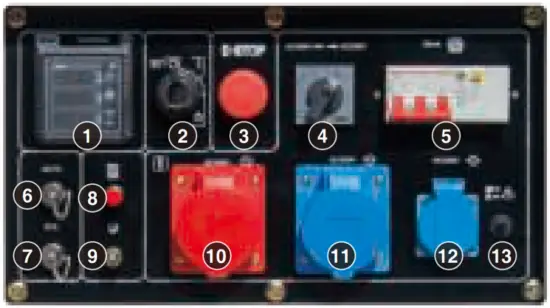

Control panel LED

First startup

Preparation before starting up

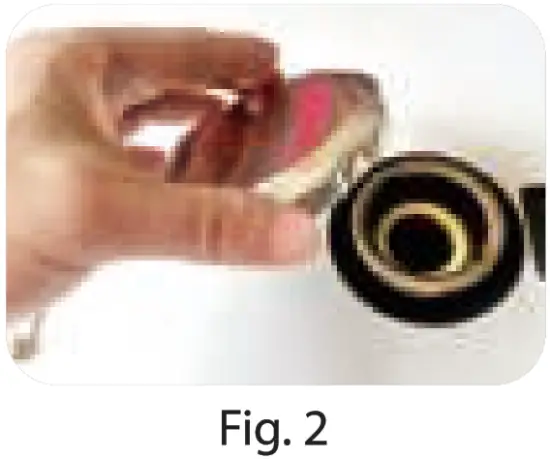

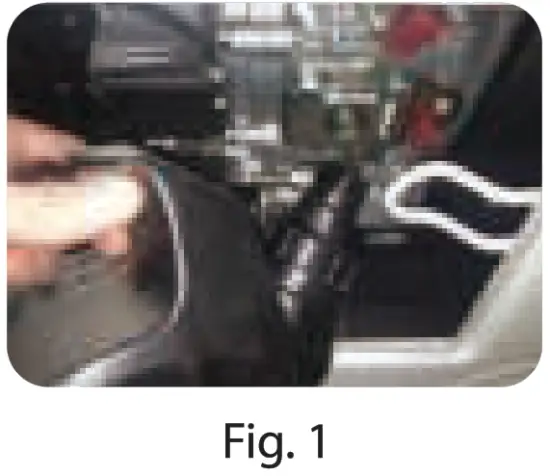

Put oil on the motor (Fig.1) using 1 5W40 oil, 1.6Lt maximum, check the level with the dipstick without screwing it in, the level must remain at the maximum line (without exceeding the upper mark). Fill the fuel tank with diesel (Fig 2), with 17 liters (depending on the version).

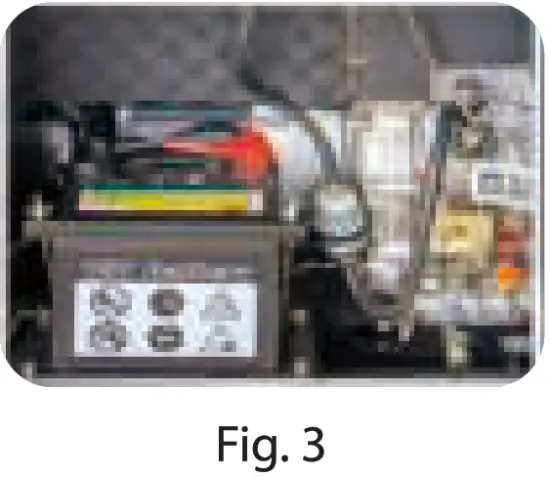

Connect the positive (red wire) to the battery, insert it back into its housing, and pay attention not to touch the positive to the body or it could blow the fuse. Tape the positive terminal if necessary. Be sure to remove the lateral battery caps. (Fig 3)

Starting the Generator

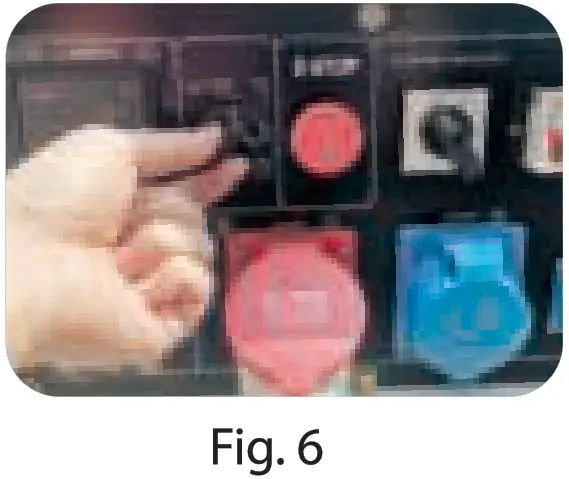

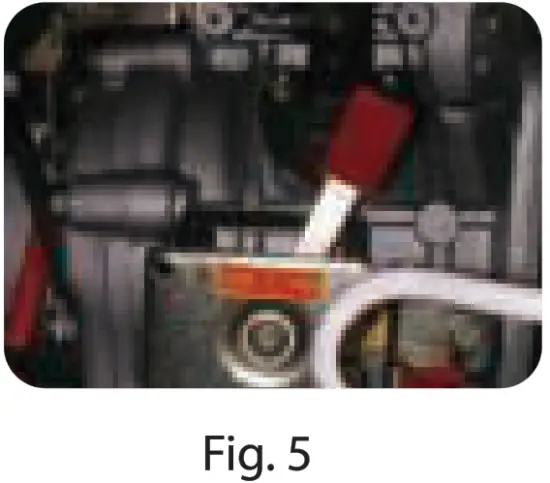

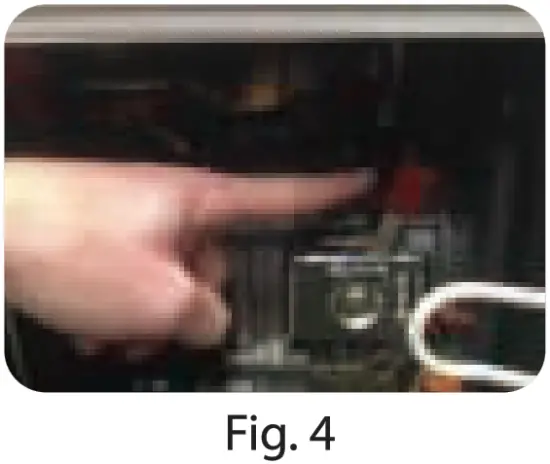

Turn the speed lever to the “RUN” position. (Fig 4) It is possible that the first time you need to purge air from the circuit by removing the rubber tube indicated (Fig.5), letting flow the diesel. When no air, put them back in place, and do not touch the pressure tubes. Repeat if necessary. Insert the key into the bowler and proceed to startup. Turn right to the “ON” position to give contact. Turn the key to the START position to start the engine (Fig 6). Once the generator is running, make it work for 3 minutes and make sure the differential is at the “OFF” position (down). Then you can connect the load and put the differential at the “ON” position.
RESPECT THE GENERATOR’S RATED POWER. IF THERE’S AN OVERLOAD THE BREAKER WILL JUMP BETWEEN 3 AND 10 SECONDS.
WHEN THE GENERATOR IS RUNNING THE DIGITAL DISPLAY LED 5 WILL SHOW YOU THE VOLTAGE, FREQUENCY, THE HOURS OF USE, AND THE APPLIED POWER.

Stopping the generator

Turn the differential to the “OFF” position (down, Fig 7) and disconnect the equipment connected to the control panel.

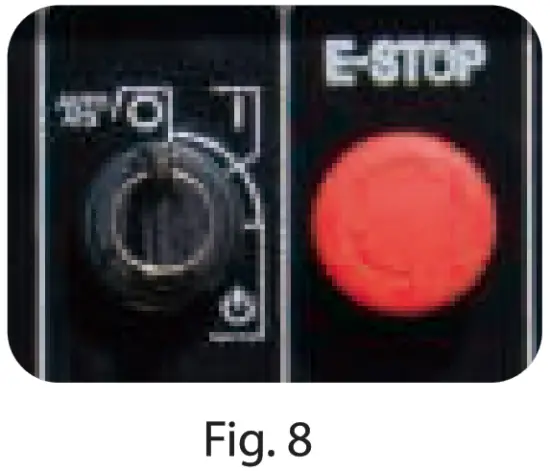

(If you miss this step, you may damage the voltage regulator AVR). To stop the engine, turn the key ) to the “OFF” position.

Engine maintenance

First oil change after 20 hours

Place a recipient underneath to catch the oil.

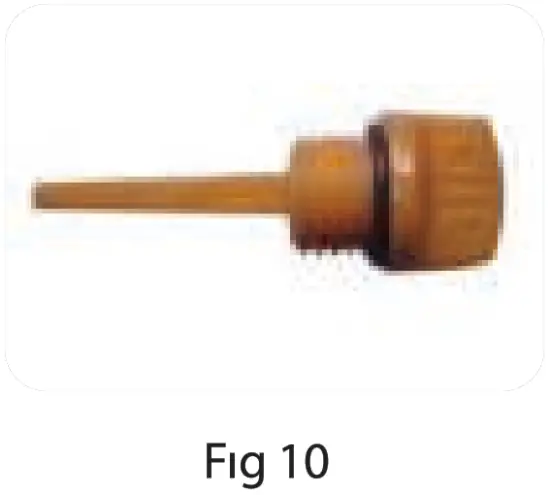

Loosen the drain screw. Drain the engine oil.
Fit and tighten the drain screw again.
Replace the gasket screw at each change to avoid losses.
Fill the engine with new oil 15W40 (1.6Lt).
NEXT OIL CHANGES EVERY 100 HOURS OF OPERATION.

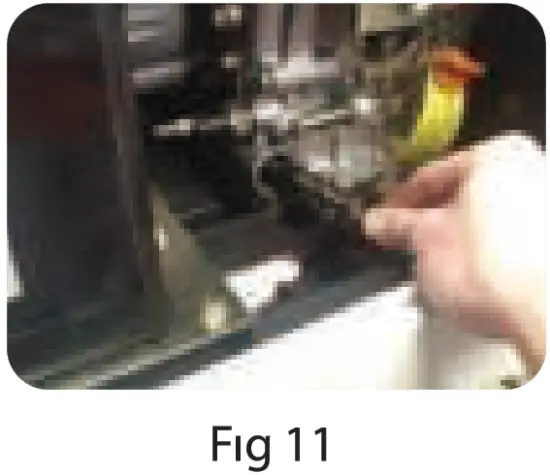

Oil filter

Remove and clean the oil filter on every oil change by changing the gasket to prevent leakage.
If there are impurities in the filter, it can block the oil sensor stopping the start of the generator.
REPLACE THE OIL FILTER EVERY 200 HOURS.

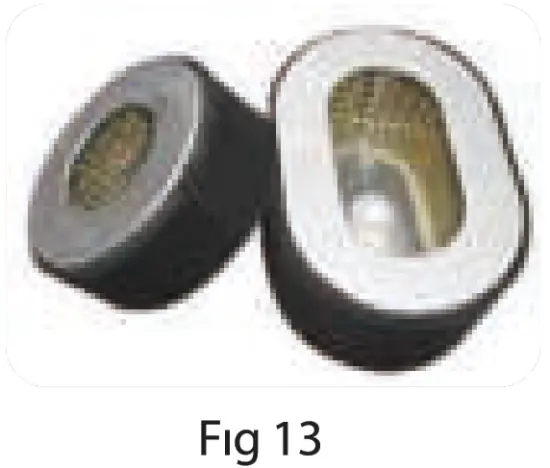

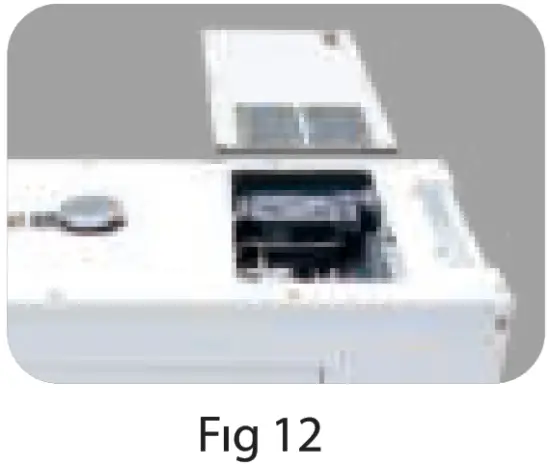

Air filter

Clean the air filter with compressed air at each oil change and replace it every 200 hours.
WARNING: DO NOT START THE ENGINE WITHOUT AN AIR FILTER.

Diesel filter

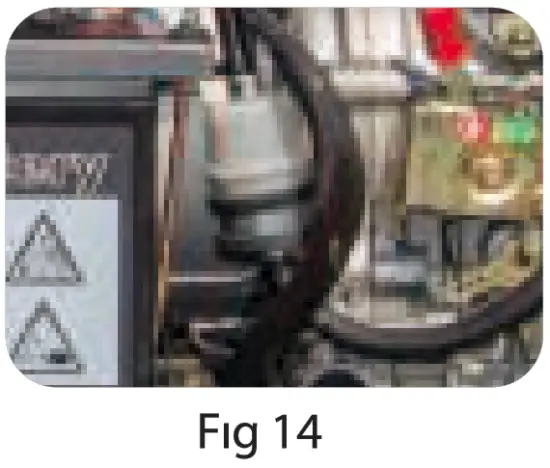

Replace every 100 hours (Fig 14).
The filter is located inside the fuel tank or in the fuel pipe (depending on the model).
It is above the battery to replace it and place a container, as there is no stopcock to prevent the escape of dieseL.
If the fuel used is dirtier than normal, replace it earlier than indicated.

General maintenance

Never incline the generator during transportation without emptying the oil pan.
Failure to observe this instruction may cause severe damage to the engine.
We recommend cleaning the equipment after use and before storage.
Visually check the external components.
Check the screws and nuts due to equipment vibration could loosen.

Prolonged storage

To keep the equipment in perfect condition we recommend the following steps:
– Drain the fuel tank.
– Drain the engine oil.
– Pull the starter until you feel some resistance (allowing the valves to close in order to prevent moisture and corrosion of the cylinder and the valve regulation)
-After prolonged storage, the starting process is identical to the first startup.
ATTENTION
The warranty is automatically voided if the process described to start and stop the group is not followed.
Not following the process described can damage the equipment.
ALWAYS control the level of oil and fuel as well as its maintenance before each use.

Troubleshooting
