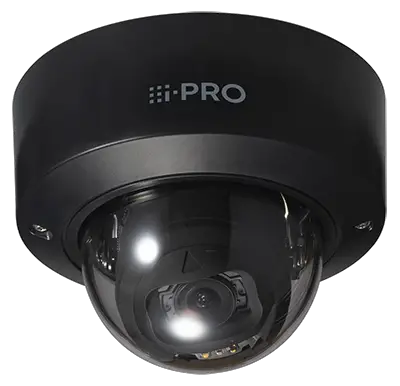

Panasonic WV-S2236L i-PRO Extreme H.265 Dome Network
INSTRUCTIONS
The new Standard by i-PRO video surveillance
Full HD Vandal Resistant Indoor Dome Network Camera with AI engine
The S-Series network cameras offer a new standard in i-PRO video surveillance with drastically improved image quality with advanced technology. It comes with pre-installed AI analytics applications that detects people and vehicles with accuracy, allowing you to easily start state-of-the-art video surveillance.
The camera can be configured while keeping the unit in the box with the acclaimed “Easy Kitting Packaging”, making the installation process smooth and easy.
Key Features
- Drastically improved image quality by advanced technology and AI intelligent Auto
- Pre-installed AI analytics applications to detect human and vehicles. Ready for installing 3rd party applications
- Detecting suspicious sound like Gunshot, Yell, Vehicle horn, and Glass break, with external microphones
- Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box
- i-PRO Configuration Tool “iCT” can set up 1024 cameras at the same time.
- ( iCT page : https://security.panasonic.com/training_support/design_tools/iCT/ )
Key i-PRO Spec
- Full HD 1080p
- Intelligent Auto (with AI Engine)
- Super Dynamic 144dB
- Color night vision (0.007 to 0.009 lx)
- Smart Coding (with AI Engine)
- Built-in IR LED
- Vandal Resistant
- Onvif Profile G / S / T
Industry examples
- Airport (Passport control / Security checkpoint / Ticket counter)
- Retail / Bank / Education / Hospital / Building
Specifications
| Camera | Image Sensor | Approx. 1/2.8 type CMOS image sensor | |
| Minimum Illumination | Color : 0.007 lx (30IRE, F1.3, 1/30s) *1 Color : 0.009 lx (50IRE, F1.3, 1/30s) BW : 0.006 lx (50IRE, F1.3, 1/30s) BW : 0 lx(50IRE, F1.3,1/30s with IR LED) | ||
| White Balance | ATW1 / ATW2 / AWC | ||
| Shutter Speed | [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30fps/15fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix, [25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix | ||
| Intelligent Auto | On / Off | ||
| Super Dynamic*2 | On / Off, The level can be set in the range of 0 to 31. | ||
| Dynamic Range | Max.144 dB (Super Dynamic : On, Level 31) | ||
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. | ||
| Back light compensation / High light compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off) | ||
| Fog compensation | On / Off (only when Intelligent auto / auto contrast adjust : Off) | ||
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. | ||
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) | ||
| IR LED Light | High / Middle / Low / Off, Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE) *1 50 m {Approx. 164 ft} (50IRE) | ||
| Digital Noise Reduction | The level can be set in the range of 0 to 255. | ||
| Video Motion Detection (VMD) | On / Off, 4 areas available | ||
| Scene Change Detection (SCD) | On / Off, 1 areas available | ||
| Audio Detection | On / Off | ||
| AI Sound Classification | Gunshot, Yell, Vehicle horn, Glass break | ||
| AI Analytics | Yes | ||
| Privacy Zone | On / Off, Up to 8 zones available | ||
| VIQS | On / Off, Up to 8 zones available | ||
| Image rotation*3 | 0 ° / 90 ° / 180 ° / 270 ° | ||
| Camera Title (OSD) | On / Off, Up to 40 characters (alphanumeric characters, marks) | ||
| Focus Adjustment | Auto focus / Manual | ||
| Lens | Optical zoom | 3.1 x (Motorized zoom / Motorized Focus) | |
| Extra zoom | 3.1x – 9.3x (when resolution is 640 x 360) | ||
| Focal length | 2.9 – 9 mm {1/8 inches – 11/32 inches} | ||
| Angular Field of View | [16 : 9 mode] Horizontal : 36° (TELE) – 114° (WIDE), Vertical : 20° (TELE) – 60° (WIDE) [ 4 : 3 mode] Horizontal : 27° (TELE) – 82° (WIDE), Vertical : 20° (TELE) – 60° (WIDE) | ||
| Maximum Aperture Ratio | 1 : 1.3 (WIDE) – 1 : 2.5 (TELE) | ||
| Focus Range | 0.3 m {11-13/16 inches} – ∞ | ||
| DORI | Detect (25ppm / 8ppf) | Wide: 24.9 m / 81.8 ft, Tele: 118.2 m / 387.7 ft | |
| Observe (62.5ppm / 19ppf) | Wide: 10.0 m / 32.7 ft, Tele: 47.3 m / 155.1 ft | ||
| Recognize (125ppm / 38ppf) | Wide: 5.0 m / 16.4 ft, Tele: 23.6 m / 77.5 ft | ||
| Identify (250ppm / 76ppf) | Wide: 2.5 m / 8.2 ft, Tele: 11.8 m / 38.8 ft | ||
| Adjusting Angle | Horizontal : -240 to +120°, Vertical : -30 to +85°, Yaw : ±100° | ||
| Browser GUI | Camera Control | Brightness, AUX On / Off | |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High | ||
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | ||
| Browser *4 | Microsoft Edge, Firefox, Google Chrome | ||
| Network | Network IF | 10Base-T / 100Base-TX, RJ45 connector | |
| Resolution H.265/ H.264/ JPEG (MJPEG) | [16:9 mode (60 fps mode)]*2 , [16:9 mode (30 fps mode)], [16:9 mode (50 fps mode)]*2 , [16:9 mode (25 fps mode)] 1920×1080, 1280×720, 640×360, 320×180 [4:3 mode (30 fps mode)], [4:3 mode (25 fps mode)] 1280×960, VGA, QVGA [4:3 mode (15 fps mode)], [4:3 mode (12.5 fps mode)] 2048×1536*5 , 1280×960, VGA, QVGA | ||
| H.265/ H.264 *6 | Transmission Mode | Constant bit rate / VBR / Frame rate / Best effort | |
| Transmission Type | Unicast port (AUTO) / Unicast port (MANUAL) / Multicast | ||
| JPEG | Image Quality | 10 steps | |
| Smart Coding | GOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off | ||
| Network | Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC*7 : 64 kbps / 96 kbps / 128 kbps | ||
| Audio transmission mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) | |||
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP | |||
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) | |||
| SDXC/SDHC/SD Memory Card (Option) | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Available SDXC/SDHC/SD Memory Card : microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB | |||
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals | |||
| ONVIF Profile | G / S / T | |||
| Alarm | Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm | ||
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output | |||
| Input/ Output | Monitor Output (for adjustment) | VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera | ||
| Audio input | ø3.5 mm stereo mini jack | |||
| For microphone input : | Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V | |||
| For line input : | Input level : Approx. –10 dBV | |||
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV | |||
| External I/O Terminals | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) | |||
| General | Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 | ||
| EMC | FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035 | |||
| Power Source and Power Consumption | DC power supply : DC12 V 720 mA, Approx. 8.6 W PoE (IEEE802.3af compliant) Device : DC48 V 180 mA, Approx. 8.7 W (Class 0 device) | |||
| Ambient Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) | |||
| Shock Resistance | IK10 (IEC 62262) | |||
| Ambient Operating Humidity | 10 to 90 % (no condensation) | |||
| Dimensions | ø129.5 mm x 102.5 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)} Dome radius 41.5 mm {1-5/8 inches} | |||
| Mass (approx.) | 570 g {1.26 lbs.} | |||
| Finish | Main body : PC resin, i-PRO white / Dome cover : Polycarbonate resin, Clear | |||

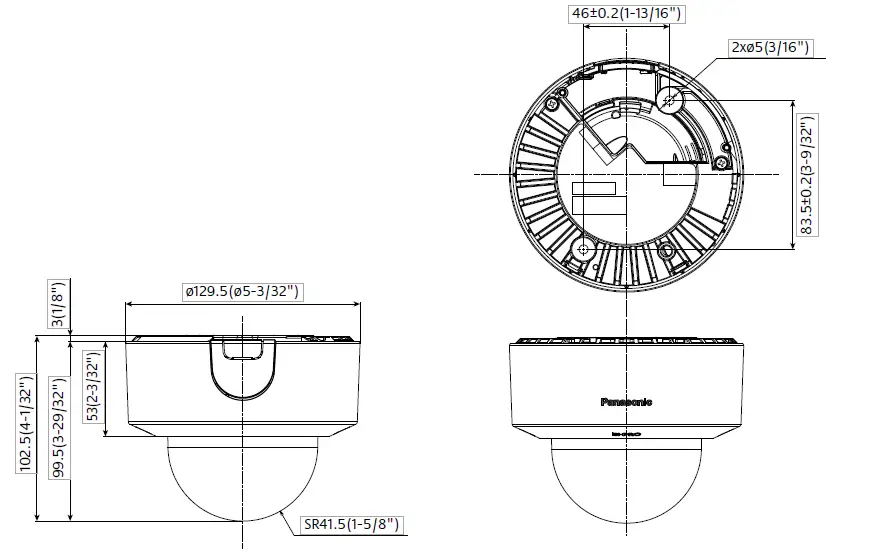

Appearance
AI Analytics applications
https://security.panasonic.com/products_technology/products/i-pro_ai_application/
AI Video Motion Detection (AI-VMD)
Advanced video analysis technology detects objects (faces, people, cars, motorcycles) in a specified area. (Intruder Detection, Loitering Detection, Direction Detection, Cross Line Detection)
AI Privacy Guard
To protect privacy and portrait rights, it is possible to automatically apply a mosaic the entire face and figure of a person photographed by the camera.
AI Face Detection
Detects faces with high precision even in low-light, backlit, and mask-wearing environments.
AI People Detection
Extract the characteristics of human face / clothing and classify them into meaningful categories such as gender, age, and clothing color.
3rd party applications are also available.
https://security.panasonic.com/i-pro-application-platform/application-list/

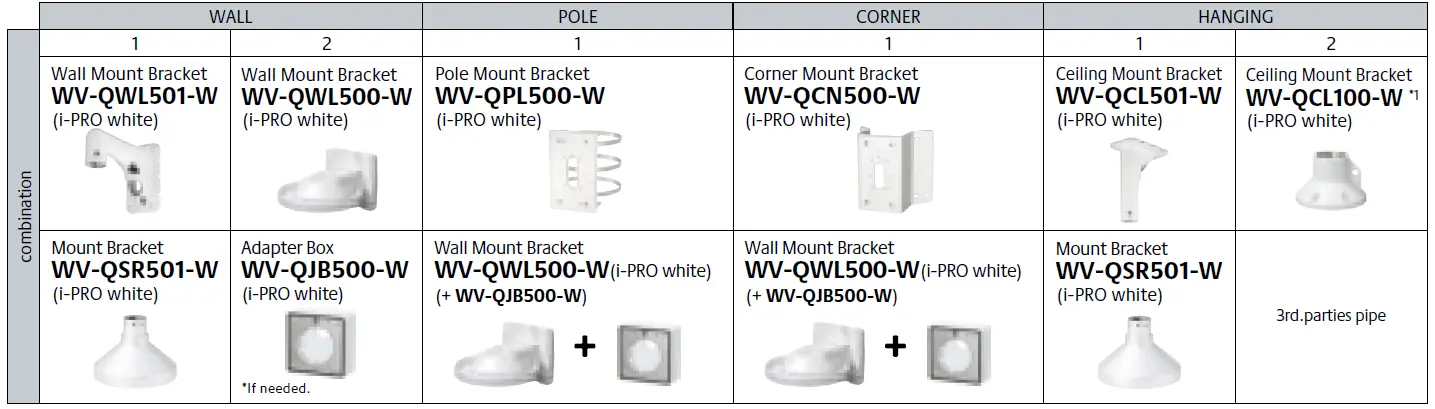

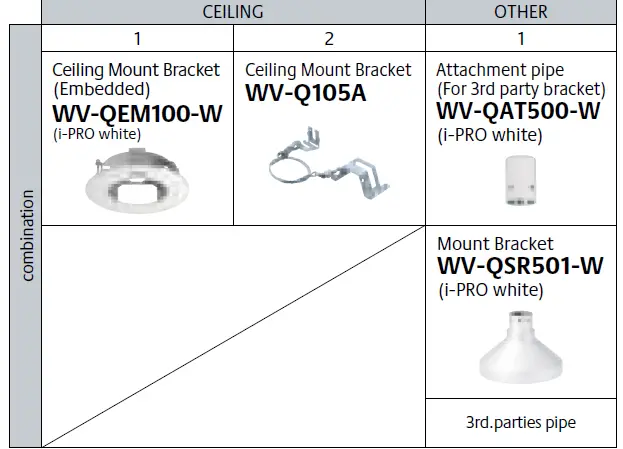

Optional Accessories
Mount Bracket / Other
Dome Cover
Trademarks and registered trademarks
- iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
- Android is a trademark of Google LLC.
- ONVIF is trademarks or registered trademarks of Onvif Inc.
- All other trademarks identified herein are the property of their respective owners.
Important
- Safety Precautions : Carefully read the Basic Information, Installation Guide and Operating Instructions before using this product.
- Panasonic i-PRO Sensing Solutions Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers’ products used on the network.
- Masses and dimensions are approximate.
- Specifications are subject to change without notice.
