IMOU 2MP H.265 Wi-Fi Pan and Tilt Camera

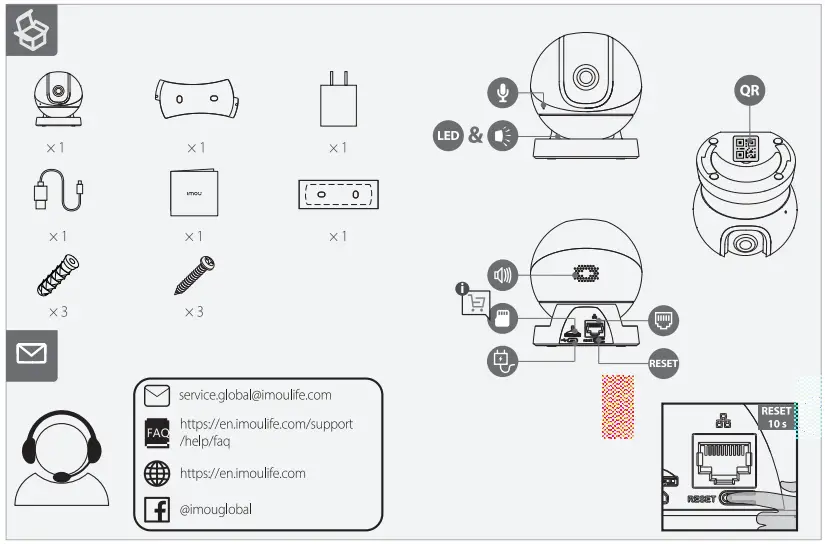

WHAT IS IN BOX

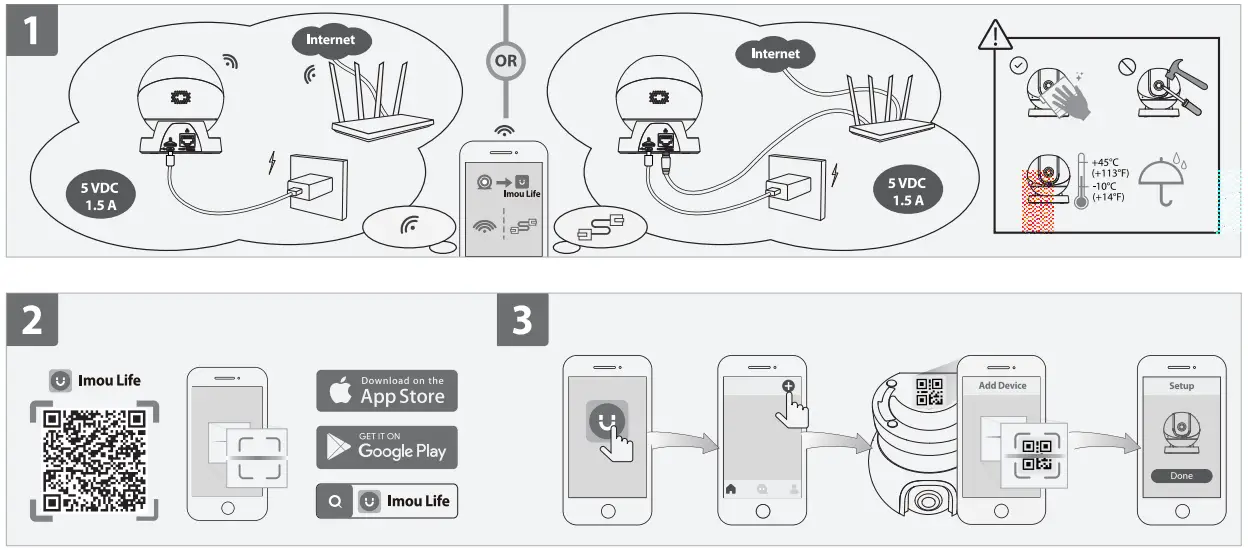

Power On the Camera
Connect the camera to power. You can choose wireless or wired network connection (see part 1).
Get the lmou Life App
Scan the QR code on part 2 or search for “lmou Life” to download and install the app. Create an account and log in.
Set Up the Camera
Scan the QR code on the body of the device or on the cover of this guide with the app, and then follow on-screen instructions to complete the setup (see part 3).

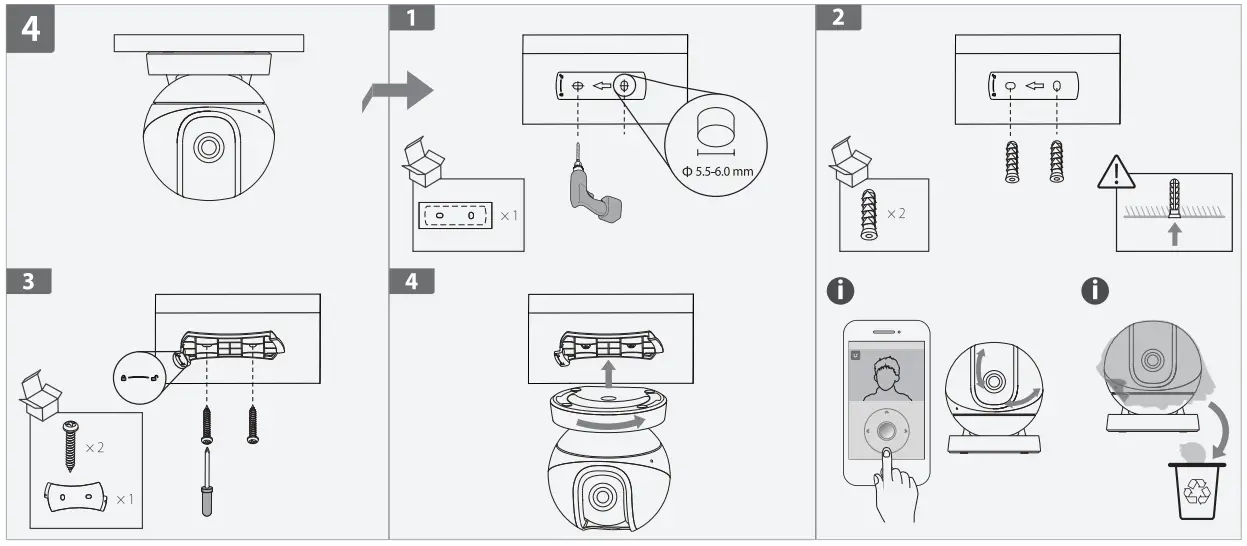

Install the Camera
Make sure the mounting surface is strong enough to hold three times the weight of the camera. For detailed installation process, please see part4.
| Green | Flashing | Ready to set up the device |
| Solid | Working properly | |
| Red | Flashing | Network disconnected |
| Failed to set up the device | ||
| Solid | Booting | |
| Device malfunction | ||
| Green & Red | Alternating | Updating firmware |
| White | Flashing | An alarm is triggered |
| Off | Power off | |
| LEDturned off | ||
