Laxihub PTCam Smart Pan Tilt Wi-Fi Camera
Packing list
| |
|
|
|
|
Camera X1
Power adaptor X1
Type-C cable X1
Quick guide X1

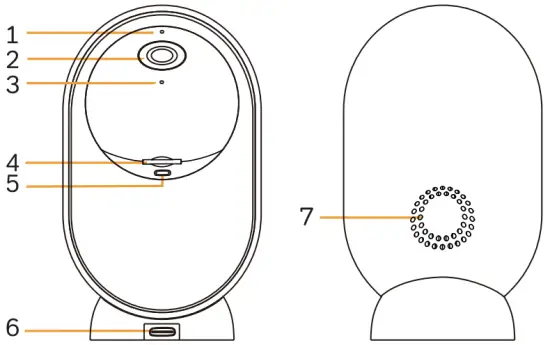

Warning sticker 1XProduct description
- Microphone
- Lens
- LED indicator
- SD card slot
- Reset
- Type-C port
- Speaker
Notice
To reset the device, press and hold the reset button for 5s.
The camera beeps when the operation is complete.
| Flashing red light (slow) | Wait for network config |
| Flashing red light (fast) | Connecting the network |
| Fixed red light | Network is malfunctional |
| Fixed blue light | Camera is working correctly |

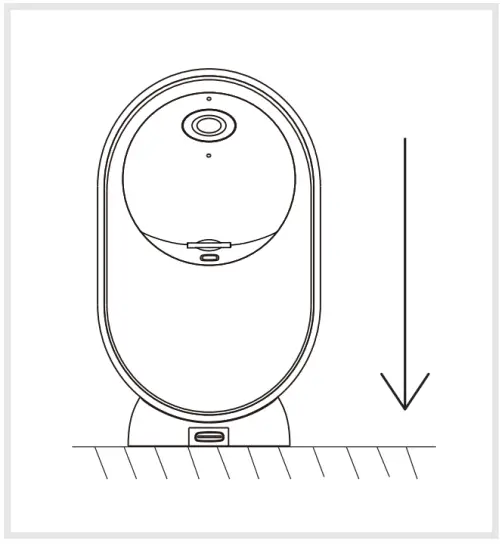

Installation
- Put the camera on a flat surface.
Product configuration
Step 1 Turn on your camera.
Step 2 Connect your smartphone to the Wi-Fi network.
Step 3 Download Arenti app from the App Store or Google Play depending on your device.
Step 4 Launch the App and sign up for the first use.
Step 5 Follow the on-screen instructions to add your camera.
For more information, scan the QR code.
Notice
If you have multiple cameras, please follow step 5 again to add devices one by one. To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
Specifications
| Sensor type | 1/3″ CMOS |
| Min. brightness | Color [email protected] |
| Black and white [email protected] | |
| Resolution | 2 Mega pixels |
| Lens | 3.6 mm F2.0 |
| Shutter | 1/15-1/10,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 10 meters |
| Pan/Tilt | 0°~355°/-43°~77° |
| Video compression | H.264 |
| Bit rate | 32Kbps – 2Mbps |
| Max resolution | 1920 x 1080 |
| Framerate | 1-25 per second |
| Picture settings | Support HD/SD; support flip |
| Storage | SD card (Max 256GB) |
| Audio | Two-way audio |
| Protocols | HTTP, DHCP, DNS, RTSP |
| WiFi standard | IEEE802.11b/g/n/ac |
| Frequency | 2.4 GHz; 5 GHz |
| Bandwidth | 20/40MHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20℃~50℃ |
| Power | DC5V,1A |
| Consumption | 4.5W MAX |
| Size(mm) | 59 x 63 x 110 |
| Model | TPA-67F050100VU01 |
| Input voltage | 100-240V AC |
| Input frequency | 50-60Hz |
| Output voltage | 5V DC |
| Output current | 1A |
| Output power | 5W |
| Efficiency | 73,62% |
| No-load Consumption | <0.1W |
Legal notice
Support
www.laxihub.com
Symbols
Direct current (DC)
Don’t throw batteries or out of order products with the household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collect of garbage proposed by your city
Hereby, Laxihub, declares that the radio equipment type ‘PTCam’ is in compliance with the Directive 2014/53/EU
The full test of the EU declaration of conformity is available at the following Internet address: www.laxihub.com
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
© 2021 Laxihub. All rights reserved. All trade names are registered trademarks of respective companies Apple, the Apple logo, iPhone are trademarks of Apple Inc. registered in the U.S. and other countries. Google, the Google logo, Android are trademarks of Google Inc. App Store is a service mark of Apple Inc. Google Play is a service mark of Google Inc.
