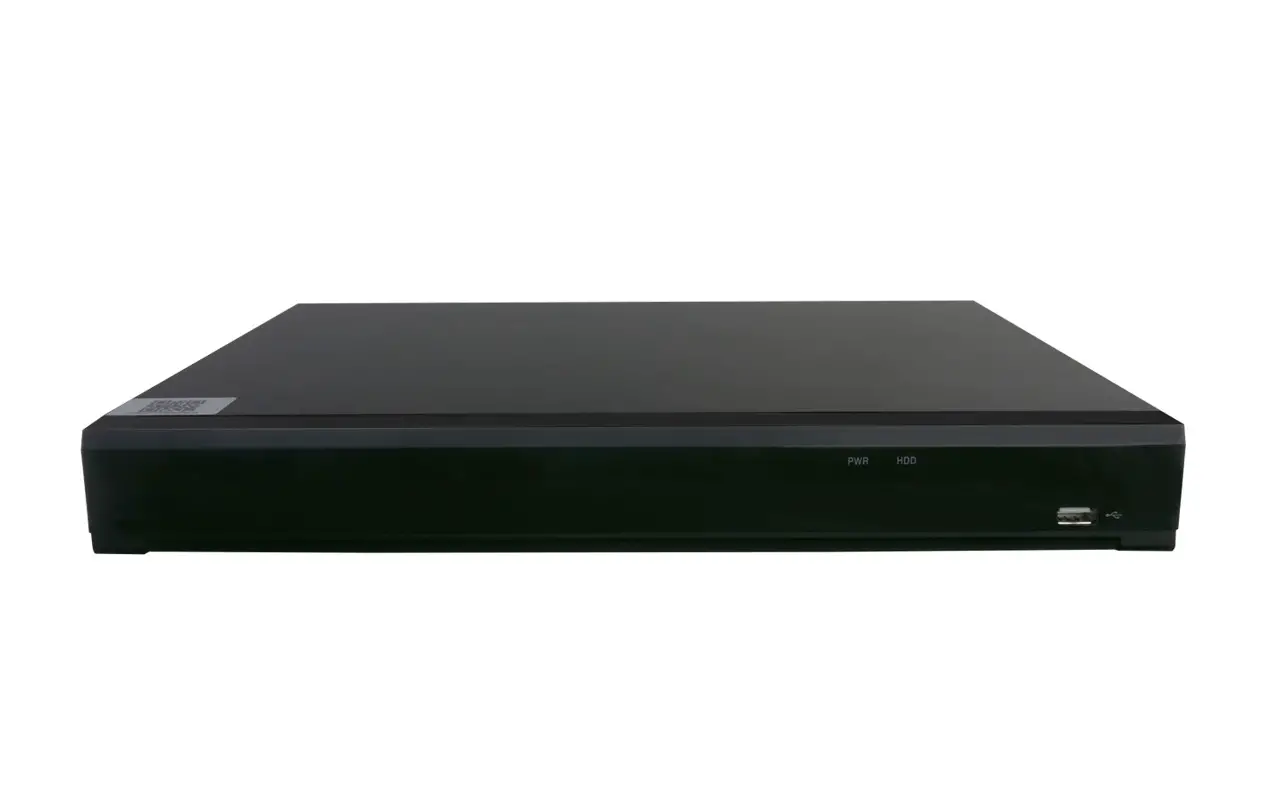

pimfg 24 Channel H.265 Hybrid DVR
KEY FEATURES
- Supports cameras up to 8MP (4K)
- H.265 compression
- 24 channels (16 analog + 8 IP)
- Up to 2 SATA drives
- Audio Inputs / Outputs
- Alarm terminals
SPECIFICATIONS
Video Compression H.265 / H.264
Video System NTSC / PAL
Operating System Linux (embedded)

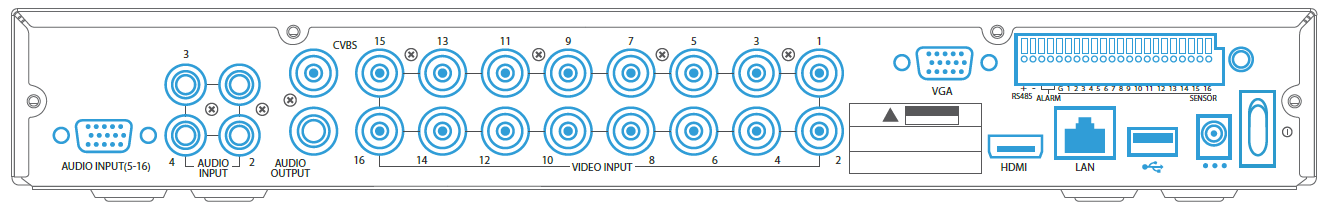

Analog Video (I/O) 16CH inputs / VGA and HDMI output
Display Resolution Analog:
8MP (15fps) 5MP (20fps)
4MP / 3MP / 1080p / 720p / 960H (30fps)
IP:
4MP / 3MP / 1080p / 720p
Display Features 1/4/6/8/9/10/13/14/16/S.E.Q.
IP Recording Bandwidth 64Mbps
Maximum Output Bandwidth 128Mbps
Recording Speed Continuous / Manual / Motion Detection
Network Type LAN, DHCP, DDNS
HDD Interface 2 SATA HDDs
Multiplex Operation Live display, record, playback, backup and network
USB 1 x USB 3.0, 1 x USB 2.0 (For mouse and backup / upgrade)
Sensor & Alarm 16 inputs / 1 output
PTZ Control Yes (RS485)
Mobile App iOS / Android
VGA / HDMI 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 1680×1050, 1600×1200, 1900×1200, 2560×1440, 3840×2160
Power Supply DC 12V / 5A
Dimensions (W x D x H) 14.88″ x 13.39″ x 1.97″ (378x340x50mm)
Working Temperature -10°C~+55°C (14°F – 131°F)
Working Humidity 10%~90%
